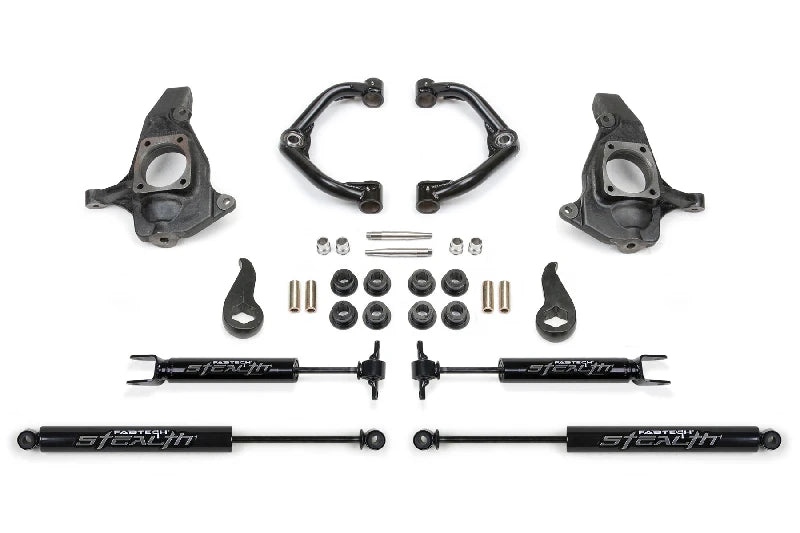

4" Ultimate System with Uniball UCA

Features:

• Fits 2011-2016 GM 2500HD/3500HD
• Provides 4 inch front lift
• Uniball upper control arms included
• 4130 chromoly tubular control arms
• 1 inch FK stainless PTFE uniballs
• Delivers up to 9 inches travel
• Heavy duty ductile iron knuckles
• Forged torsion bar adjusting keys
• Minimizes CV bind at lift height
• Levels factory nose down stance
• Optional 1 inch rear block
• Uniball arms available separately

Step Up To Serious Front End Travel And Aggressive HD Stance

If you are ready to push your 2011-2016 Silverado or Sierra 2500HD or 3500HD beyond a basic leveling kit, the Fabtech K1064M 4 inch Ultimate System delivers the kind of performance you can actually feel from the driver seat. This setup does more than lift the front, it transforms the way the truck handles rough terrain and uneven job sites. With up to 9 inches of front wheel travel, the suspension cycles more freely, helping the truck stay composed when the trail gets choppy or the road turns unpredictable. The included Uniball upper control arms bring a more aggressive, performance driven edge that is perfect for drivers who want strength and articulation in one package. Additionally, the system levels out the factory nose down rake, giving your HD a balanced and commanding stance without touching the rear suspension. You still keep the practicality these trucks are known for, but now it looks and feels like it was built with adventure in mind. It is a clean 4 inch lift that blends everyday usability with serious front end capability.

Chromoly Uniball Engineering Built For Strength And Suspension Control

At the heart of this 4 inch Ultimate System are Fabtech Uniball upper control arms constructed from .120 wall 4130 chromoly tubing with a 1.50 inch outer diameter. These arms are paired with 1 inch FK stainless PTFE lined uniballs that are designed to handle high loads while allowing increased angular movement. This combination supports up to 9 inches of front wheel travel, giving the suspension more usable range without binding. The system also includes heavy duty ductile iron steering knuckles that maintain proper steering geometry at the lifted height. Forged torsion bar adjusting keys are provided to achieve the correct amount of lift while minimizing CV bind, which is critical on 2011-2016 GM 2500HD and 3500HD trucks. Furthermore, the rear suspension remains untouched, allowing the truck to retain its factory load characteristics. For those who prefer a slight rake, an optional 1 inch rear block kit is available to fine tune the final stance.

Fitment: 2011, 2012, 2013, 2014, 2015, 2016 GM Silverado/Sierra 2500HD/3500HD

Notes:

• Fits 2011-2016 GM 2500HD and 3500HD only
• Provides 4 inch front lift only
• No rear suspension components included
• Levels factory nose down stance
• Optional 1 inch rear block sold separately
• Alignment required after installation
• Professional installation recommended
• Forged torsion keys adjust factory bars
• Designed to minimize CV bind
• Verify wheel and tire fitment
• Uniball arms require periodic inspection
• Check local lift height regulations
