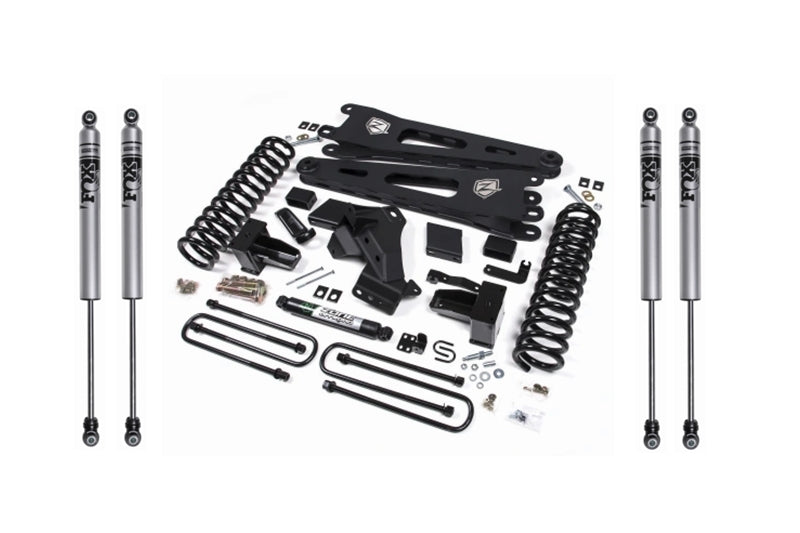

Zone Offroad F64F 7 inch Radius Arm Lift Kit with Fox Shocks | 2020-2022 Ford F250/F350 Super Duty 4WD 6.7L Powerstroke

Features:

• 7″ front lift for added ground clearance
• 5″ rear lift with block and U-bolts
• Fits SRW and DRW diesel 4WD trucks
• Compatible with 2020–2022 Super Duty models
• FOX 2.0 IFP shocks for smooth ride quality
• Radius arms correct caster and improve strength
• Track bar bracket recenters front axle
• Forged pitman arm improves steering geometry
• Supports 37″ tires with minor trimming
• Includes sway bar and brake line brackets
• Backed by 5-year/60K drivetrain warranty
• Limited lifetime warranty on hard parts

Built To Make Your Super Duty Stand Taller And Ride Better

If you're looking to give your Super Duty a bold stance without compromising ride quality, the Zone Offroad F64F 7-inch Radius Arm Lift Kit is a serious contender. This complete system gives your 2020-2022 Ford F250 or F350 diesel truck the clearance to run up to 37-inch tires while maintaining the comfort and drivability you'd expect from a daily driver. FOX 2.0 Adventure Series shocks come tuned to handle rough roads and off-road trails, delivering a smooth, controlled ride whether you're hauling gear or just headed to town. The radius arm upgrade improves caster alignment and gives your front suspension extra strength and clearance for navigating uneven terrain. With a heavy-duty track bar relocation bracket and forged pitman arm included, your steering stays tight and precise even after the lift. It’s all backed by Zone’s Factory Protection Plus warranty, so you can lift with confidence. Whether you're in it for the looks, the function, or a bit of both, this kit is designed to get your truck sitting and performing just right.

Engineered For Real World Diesel Suspension Demands

The Zone Offroad F64F kit combines rugged engineering with everyday practicality to meet the demands of modern diesel trucks. At its core are full-length diesel-specific coil springs that support the added weight of the 6.7L Powerstroke while offering improved suspension travel and stability. The fabricated steel radius arms correct caster and improve articulation, helping your front end stay aligned without wearing out tires or steering components. A forged pitman arm and high-clearance track bar bracket keep steering geometry in check and allow the front axle to stay centered after the lift. FOX 2.0 monotube shocks with internal floating pistons help control rebound and provide consistent damping across different road surfaces. The rear lift is handled with a block and U-bolt setup, which helps retain factory ride quality and payload capacity. Trucks equipped with two-piece driveshafts may need a carrier bearing drop kit to reduce driveline angle and prevent vibration. Every part is designed to bolt on cleanly, making this a solid upgrade for diesel owners looking for a long-lasting lift solution.

Fits: 2020, 2021, 2022 Ford F250/F350 Super Duty 4WD 6.7L Powerstroke

Notes:

• Fits 2020–2022 Ford F250/F350 Super Duty 4WD with 6.7L Powerstroke diesel
• Compatible with both single and dual rear wheel trucks
• Not compatible with gas-engine models or 2023+ trucks
• Minor trimming may be required for 37x12.50 tires
• Factory wheels work when used with factory tire sizes
• Trucks with 2-piece rear driveshafts may need a carrier bearing drop kit
• Check for Ford Safety Recall 21S31 before installing this kit
• Lift height may vary slightly on Tremor models due to taller factory suspension
• FOX 2.0 shocks are tuned specifically for lifted diesel applications
• Backed by Zone’s 5-year/60,000-mile drivetrain and limited lifetime warranty
