Evolution CTS4

Features:

• For 2019-2022 non-refresh 5.3L and 6.2L 1500s

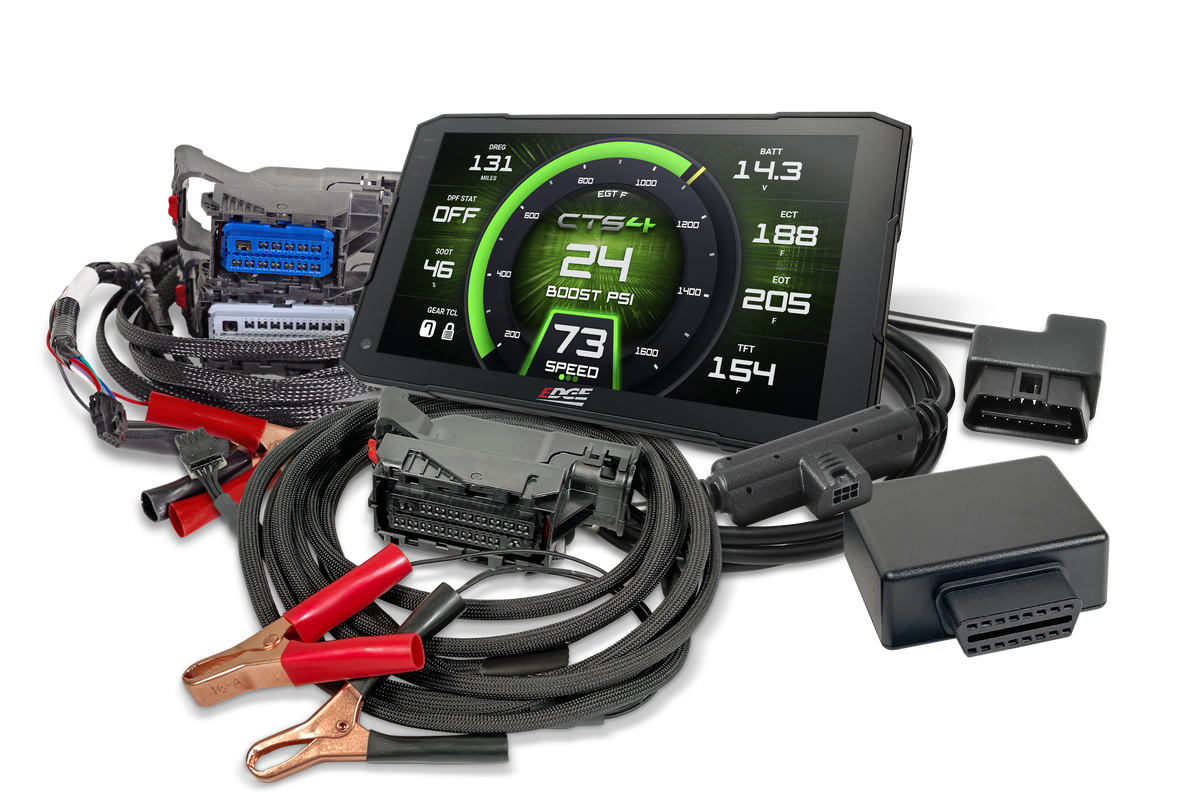

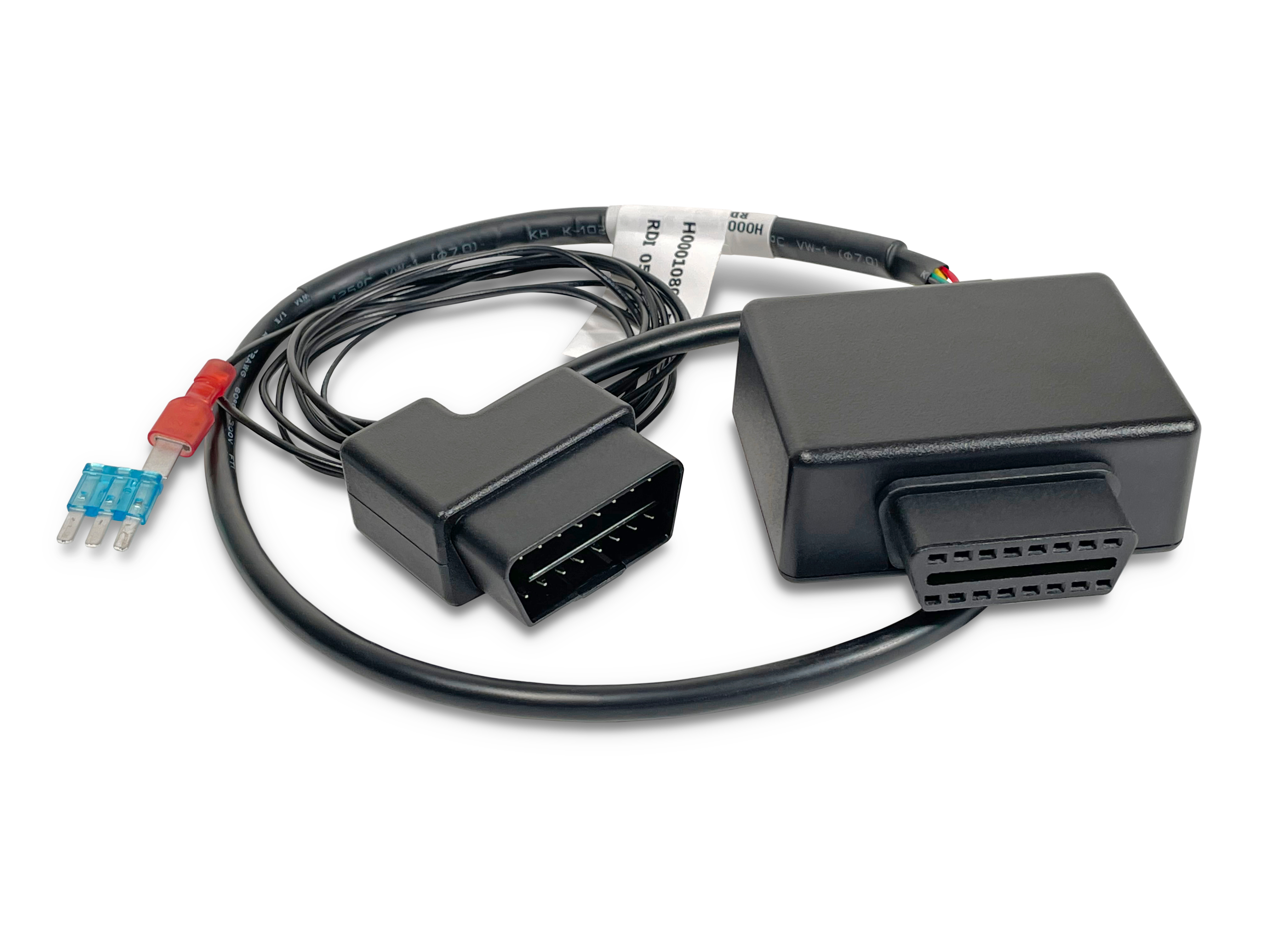

• Edge Locksmith ECM unlock included
• 87 and 91 octane performance tunes
• Vehicle-specific gains in horsepower and torque
• 8-speed and 10-speed transmission tuning
• No bench flashing required
• AFM and DFM disable on supported trucks
• Tire size and speed limiter adjustments
• Remembers Tow/Haul and drive mode settings

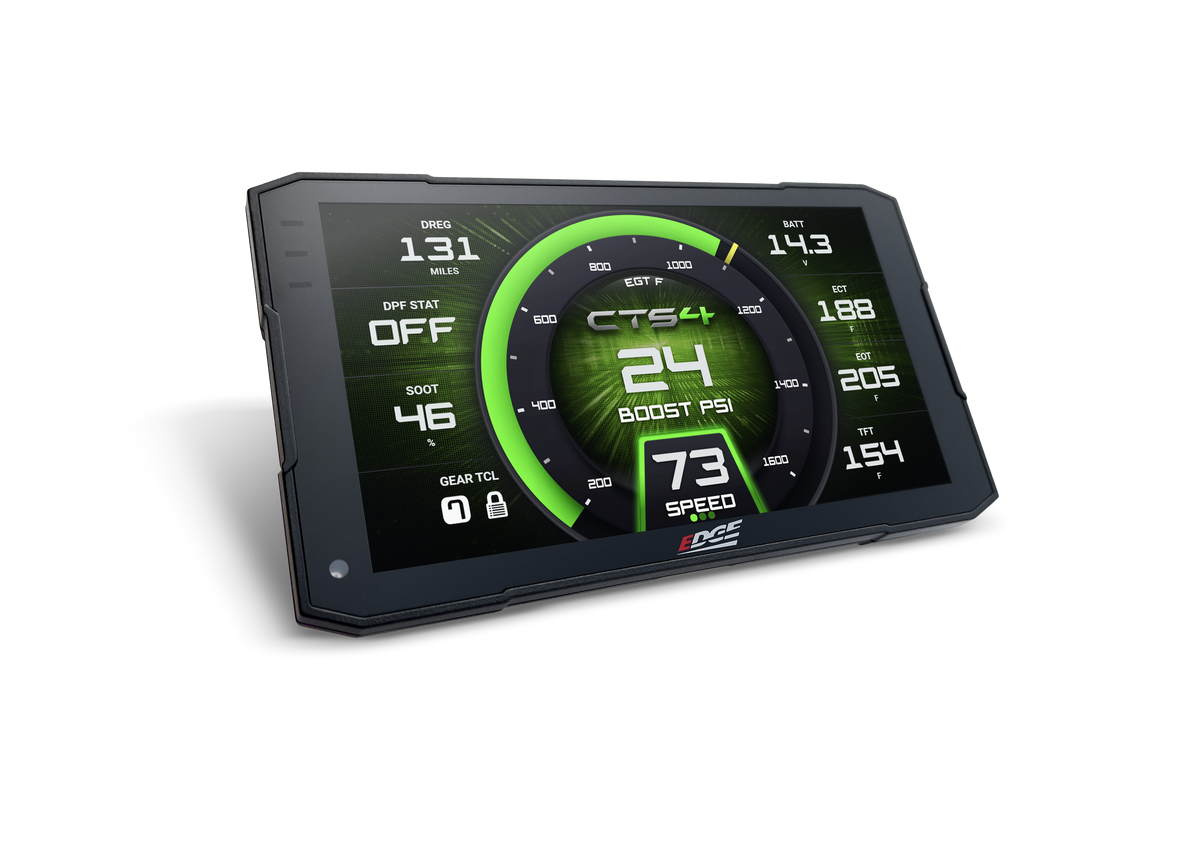

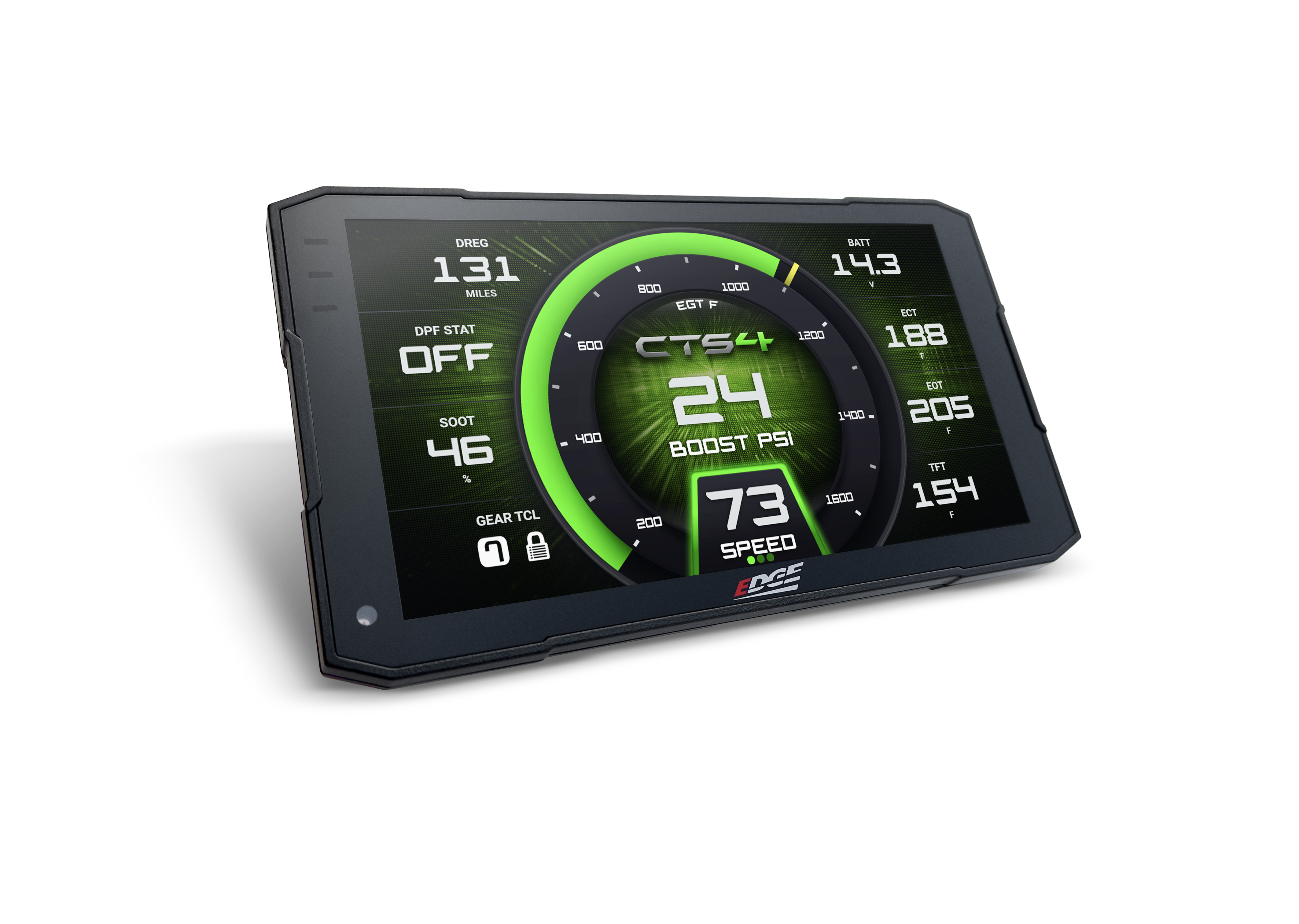

• Customizable digital gauges and alerts
• Data logging and trouble code clearing
• Expandable with EAS sensors and camera options

Pick The Octane That Matches The Job And Let The Transmission Keep Up

A gas half ton has two jobs that pull in opposite directions, getting through the week on 87 octane and pulling hard when the trailer is hooked up. The Edge Evolution CTS4 gives a 2019 to 2022 Silverado or Sierra 1500 a tune for each job. Choose the 87 octane tune for daily driving and economy, or step up to the 91 octane tune for extreme performance and towing. Edge says the vehicle specific tuning delivers noticeable gains in horsepower and torque, along with sharper throttle response and better drivability, though results vary by truck. It also tunes the 8 speed and 10 speed transmissions on supported applications, which Edge says improves shift points, shift feel, and power delivery, all without bench flashing. If you would rather keep your V8 on all eight cylinders, the CTS4 can disable Active Fuel Management and Dynamic Fuel Management on supported applications. The built in monitor puts customizable digital gauges, alerts, and data logging in the cab, so you can see how the truck is responding. For a non refresh 5.3L or 6.2L 1500 that works and tows, it is one device that does both the tuning and the watching.

Locksmith Unlock, Octane Specific Calibrations, And What Each Software Step Requires

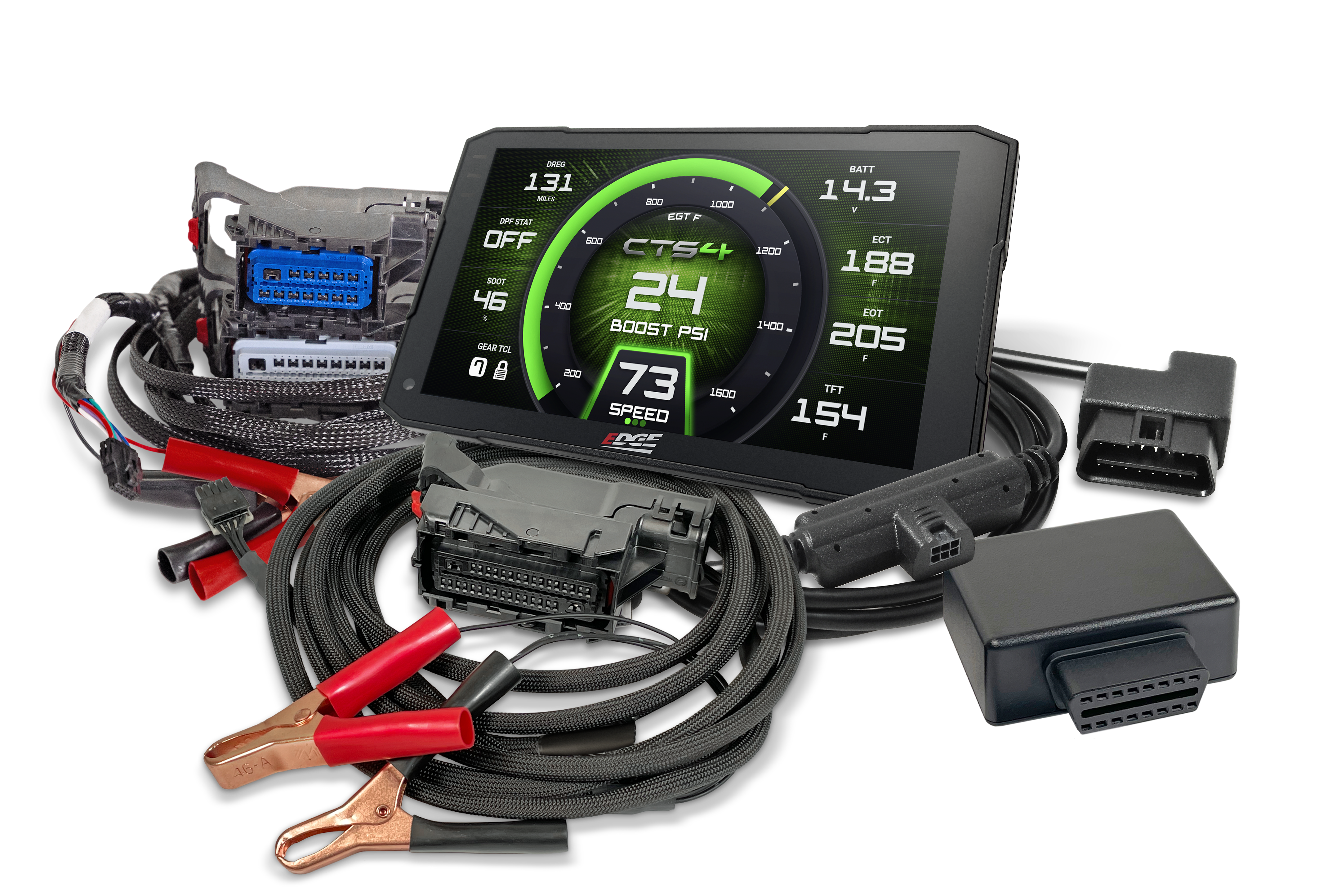

The Edge 85802 is the Evolution CTS4 tuner and monitor for 2019-2022 non refresh Chevrolet Silverado 1500 and GMC Sierra 1500 trucks with the 5.3L or 6.2L gas V8, and it does not support the 2022.5 and newer refresh trucks. Every kit includes the Edge Locksmith tool, which unlocks the factory ECM and TCM so Edge's pre loaded, emissions friendly calibrations can be installed without removing either module. A PC and Edge's downloadable Update Agent software are required to complete the unlock and tuning process. Adjustable features include tire size recalibration, speed limiter adjustments, and recall of supported Tow/Haul and drive modes, and Active Fuel Management and Dynamic Fuel Management can be disabled on supported applications. The CTS4 monitors supported engine, drivetrain, temperature, and pressure data through customizable digital gauges, with alerts and warnings, data logging with 5 volt inputs, a speedometer, video capability, and the ability to read and clear trouble codes. It works with compatible EAS accessories and camera options, and Wi-Fi supports updates. The device can unlock and tune only one vehicle, and once the VIN lock and ECM unlock are complete it is non returnable. Edge states the part is legal under the EPA's Tampering Policy dated November 23, 2020, and that it is not legal for sale or use in California.

Fitment: 2019, 2020, 2021, 2022 GM Silverado/Sierra 1500 5.3L and 6.2L Gas V8

Notes:

• One vehicle only, the device can unlock and tune only one truck, once the ECM is unlocked and flashed the truck can be returned to the factory calibration but the unlock cannot be reversed
• Non-returnable once the VIN lock and ECM unlock have been completed
• A PC and Edge's downloadable Update Agent software are required to complete the ECM unlock and tuning process

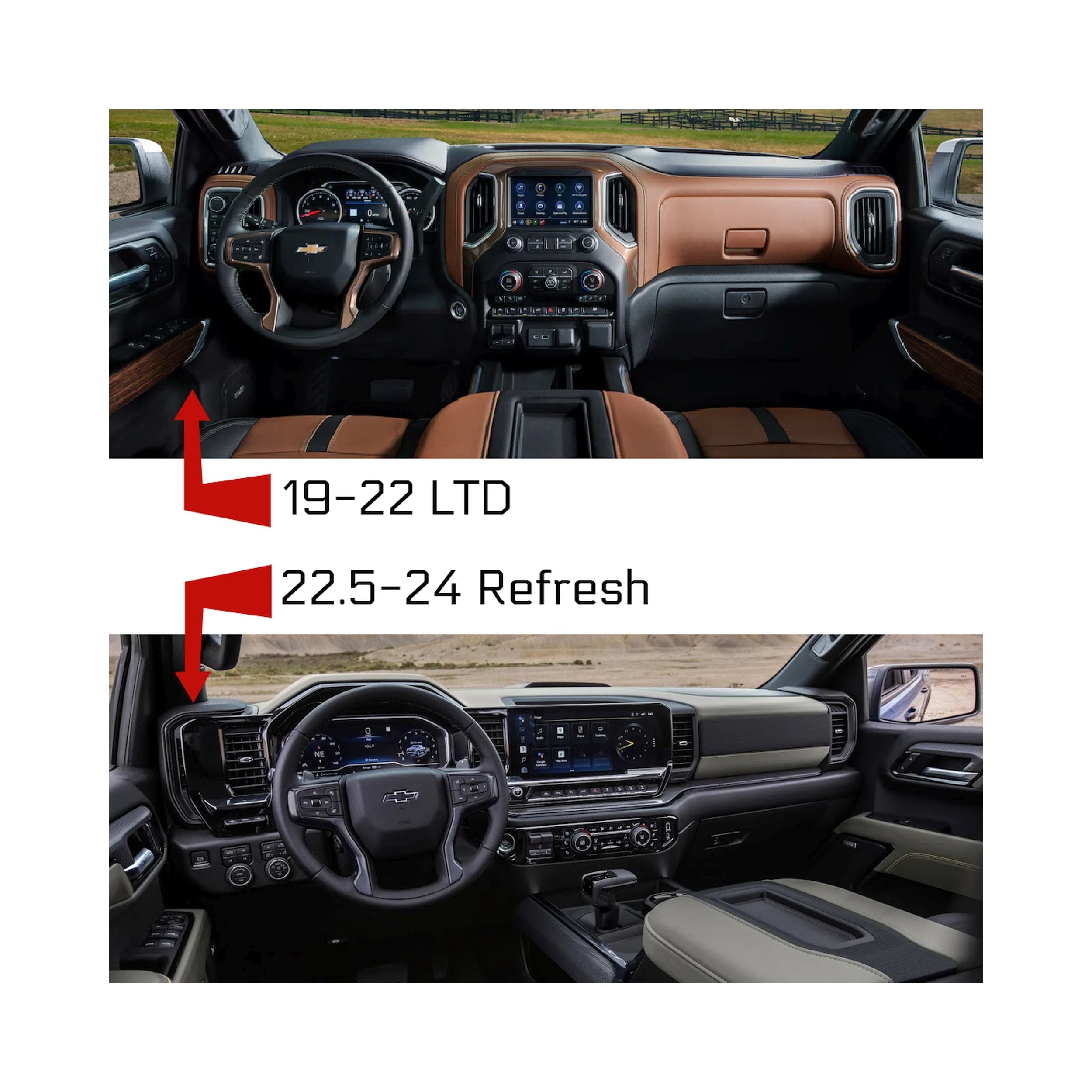

• Fits 2019-2022 non-refresh Chevrolet Silverado 1500 and GMC Sierra 1500 trucks with the 5.3L or 6.2L gas engine, does not support 2022.5+ GM refresh applications, confirm your truck's engine and model year before ordering
• Not legal for sale or use in California, Edge states CARB testing is pending and no E.O. number has been issued, the spec table lists the kit as not 50-state legal and not CARB compliant
• Edge states this part is legal under the EPA Tampering Policy dated November 23, 2020, in states that accept those provisions
• Choose 87 octane tuning for daily driving and economy or 91 octane tuning for extreme performance and towing
• Horsepower, torque, throttle response, and shift improvements are Edge's claims, results will vary
• 8-speed and 10-speed transmission tuning, and AFM and DFM disabling, are available on supported applications only
• Includes the Edge Locksmith tool, software, and an instruction manual, a case and an AC adapter are not included, and pods and mounts are available
• Compatible EAS accessories and camera options are available separately

• California Proposition 65 warning applies to this product
