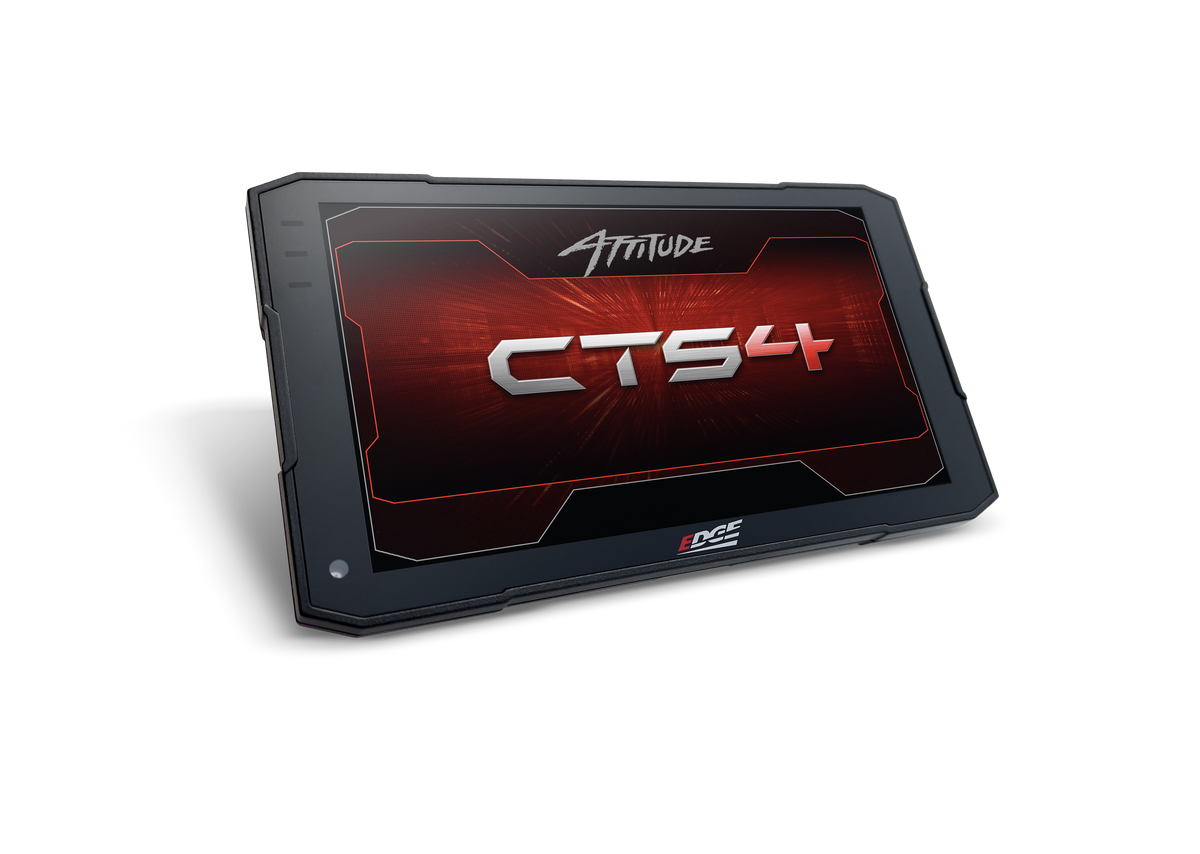

Juice CTS4 Upgrade Kit

Features:

• Upgrades CS2, CTS2, and CTS3 Juice systems
• Keeps your existing Juice performance module
• Retains on-the-fly Juice power level control

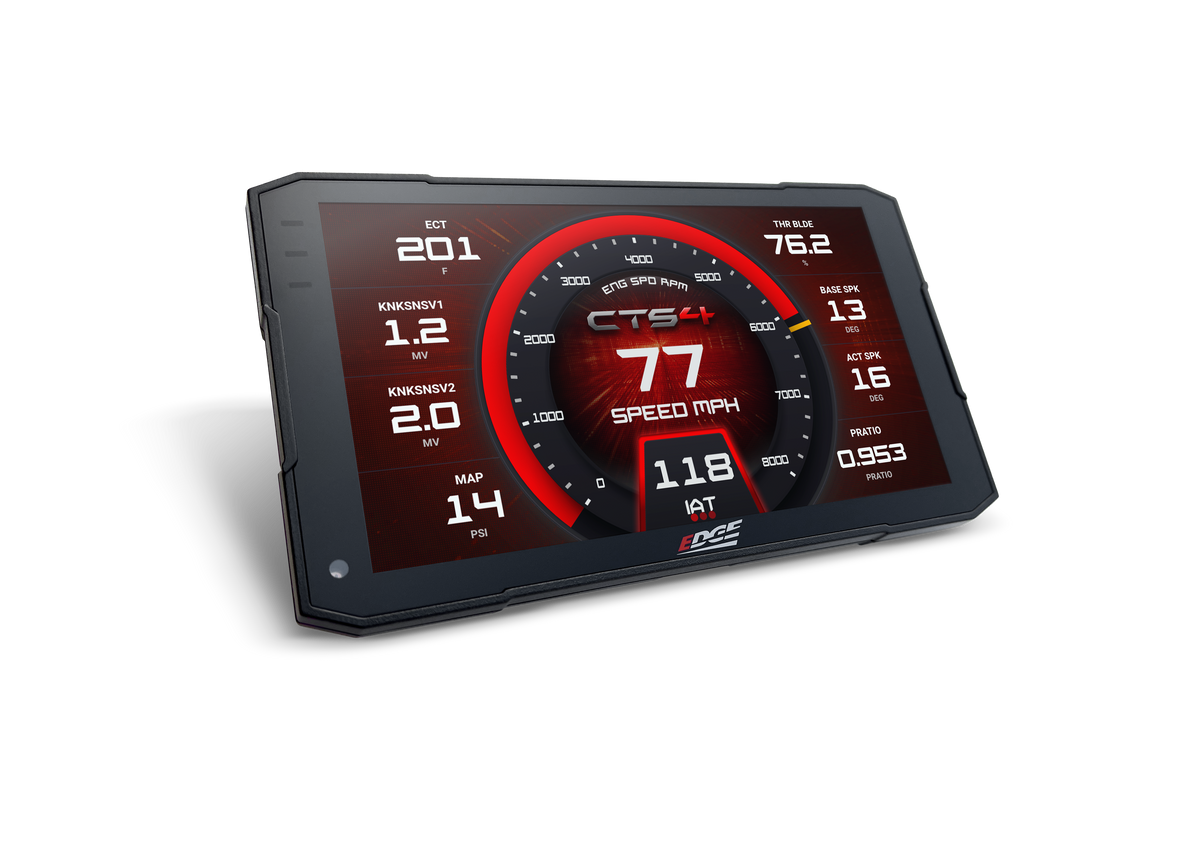

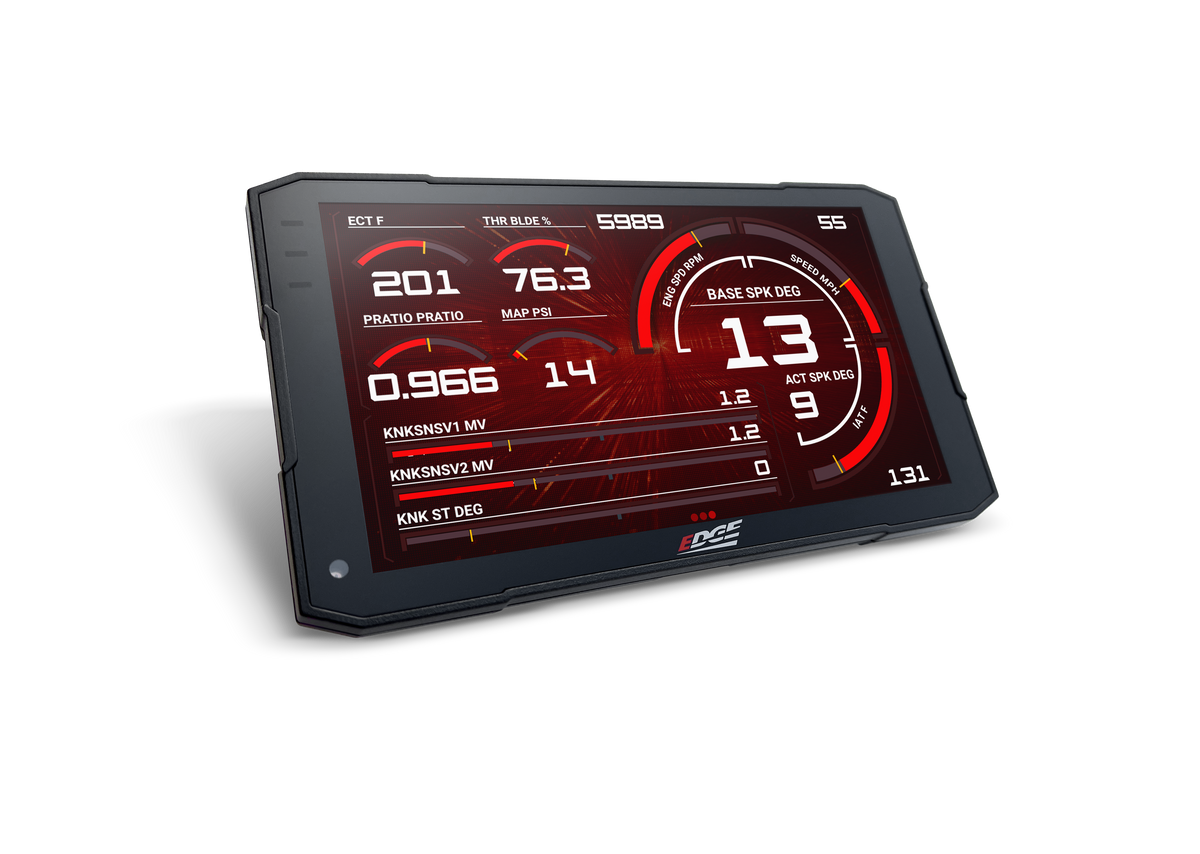

• 5.5-inch high-resolution color touchscreen
• 21% larger viewing area than CTS3
• Smooth 60 FPS gauge refresh
• 3.4x more processing power, 2GB RAM
• 70% faster cold boot-up, 50% faster PID changes

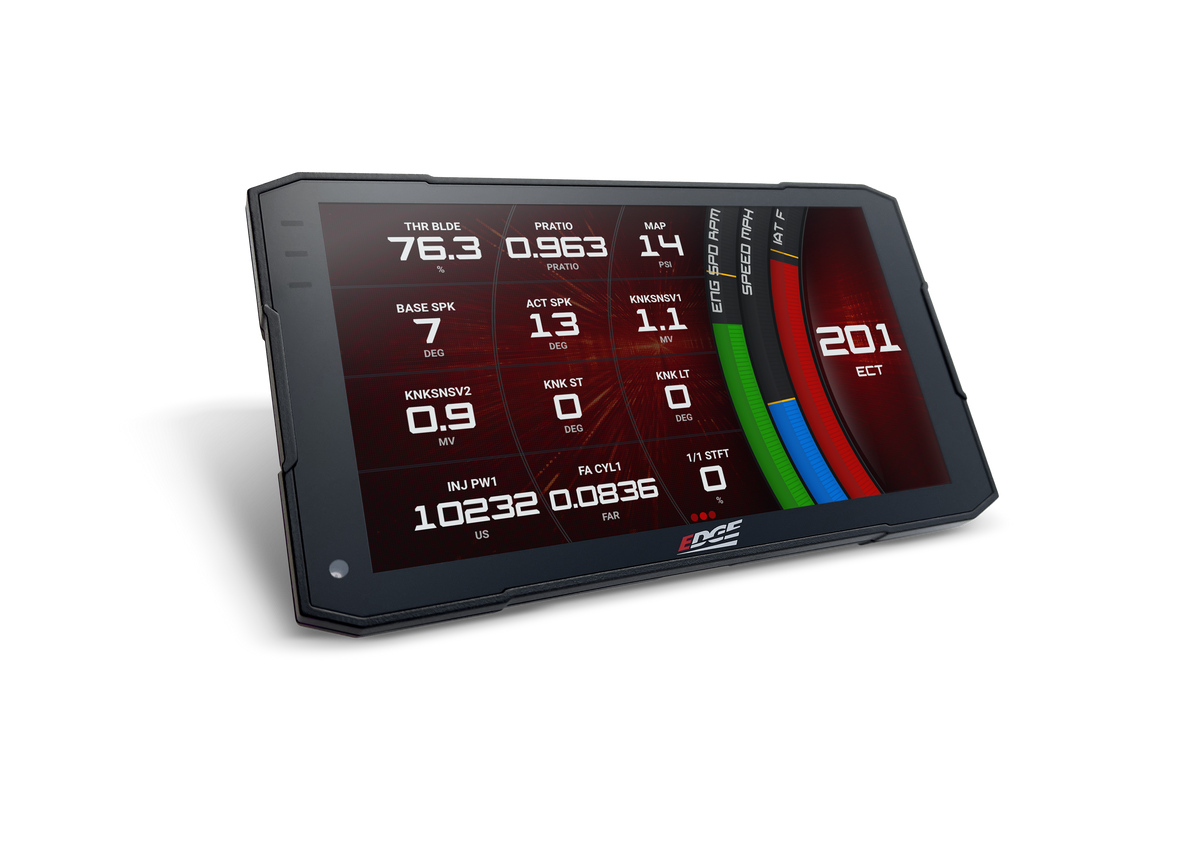

• Customizable gauges, alerts, and data logging
• Wi-Fi updates keep software current

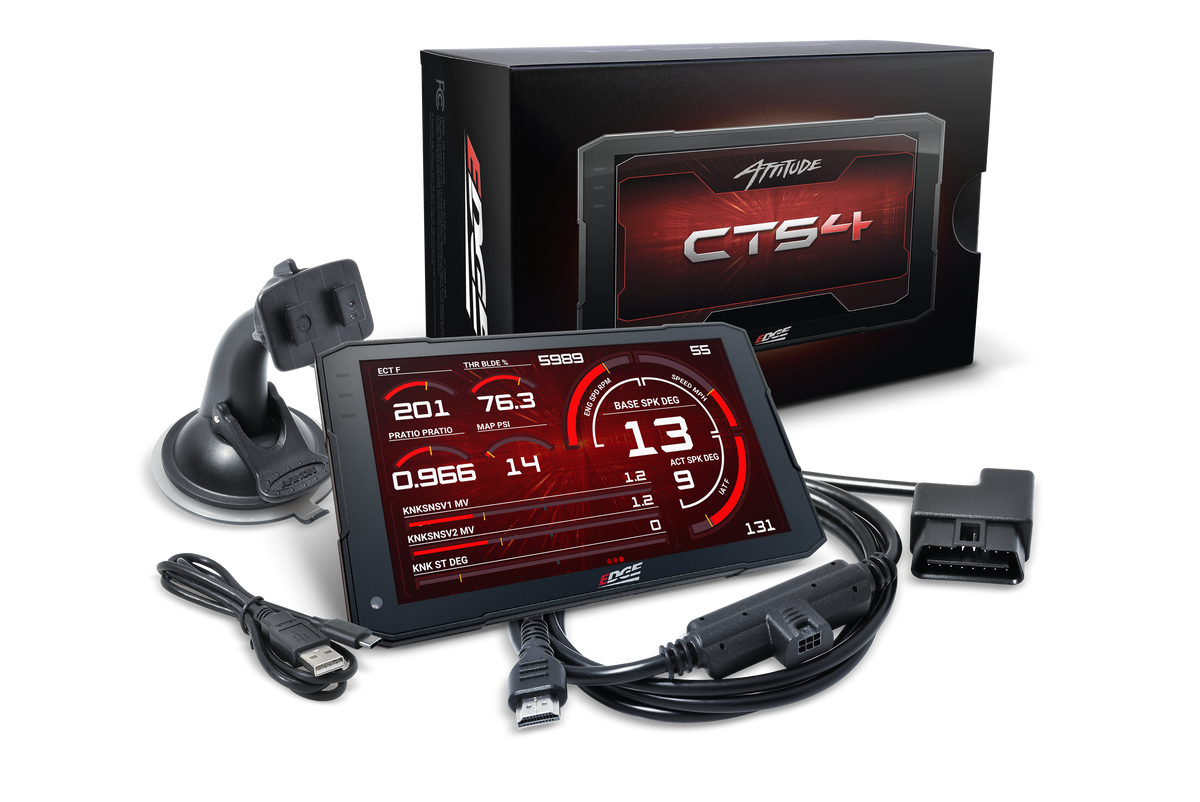

• New CTS4 mount and cable included
• Supports EAS sensors and video capability

Keep The Juice You Already Own And Just Upgrade What You See

If you already have a Juice with Attitude on your truck, you have already paid for the part that makes the power. What you may want now is a better view of what the truck is doing, and this upgrade kit delivers that. It lets owners of the CS2, CTS2, and CTS3 step up to Edge's newest CTS4 monitor without replacing the Juice module they already have. The new 5.5 inch color touchscreen has 21 percent more viewing area than the CTS3, so gauges and alerts are easier to read at a glance. A smooth 60 FPS refresh keeps the gauges moving fluidly, and Edge says a faster processor and more memory make the whole screen feel quicker, with 70 percent faster cold boot up and 50 percent faster PID changes. You keep supported on the fly power level control, now through the new interface. The kit comes with a new CTS4 mount and cable, so you are not hunting down hardware. For a truck that already makes the power you want, this is a straightforward way to bring the display up to date.

Processor, Memory, And Screen Upgrades Compared To The CTS3 You Might Be Replacing

The Edge 83601-4 is a CTS4 in cab monitor upgrade kit for owners of an existing Juice with Attitude CS2, CTS2, or CTS3 system, and it is not a performance module on its own. It is listed for Dodge Ram 2500 and 3500 Cummins trucks from 1998.5 to 2021 and GM Sierra and Silverado 2500HD and 3500HD Duramax trucks from 2001 to 2007. The CTS4 uses a 1.7GHz dual core 64 bit processor, which Edge rates at 3.4 times the processing power of the CTS3, along with 2GB of RAM, a 300 percent increase in memory. Its 5.5 inch high resolution color touchscreen has 21 percent more viewing area than the CTS3, an auto dimming screen, and a 60 FPS refresh rate. Edge reports 50 percent faster PID changes and 70 percent faster cold boot up. The monitor supports customizable gauge layouts, alerts and records, data logging with 5 volt inputs, performance tests, a speedometer, and video capability, and it reads and clears supported trouble codes. It is compatible with Edge's Expandable Accessory System, and Wi-Fi connectivity keeps the software updated. The kit includes a CTS4 mount and cable, mounting hardware, software, and an instruction manual.

Fitment: 1998.5, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021 Dodge RAM 2500/3500 Cummins; 2001, 2002, 2003, 2004, 2005, 2006, 2007 GM Sierra/Silverado 2500HD/3500HD Duramax; requires an existing compatible Edge Juice with Attitude CS2, CTS2, or CTS3

Notes:

• Requires an existing compatible Edge Juice with Attitude CS2, CTS2, or CTS3 system, this kit is the in cab monitor only and does not add power on its own
• Available power levels, monitoring parameters, controls, and functionality vary by vehicle application and by your existing Juice module
• Retains supported on-the-fly Juice power level adjustments through the CTS4 display
• Speed, memory, display, and boot-time figures are Edge's comparisons to the previous CTS3 generation
• Includes a CTS4 mount and cable, mounting hardware, software, and an instruction manual, a case and an AC adapter are not included
• Pods and mounts are available for the CTS4
• Not legal for sale or use in California, Edge states CARB testing is pending and no E.O. number has been issued, the spec table lists the kit as not 50-state legal and not CARB compliant
• Edge states this part is legal under the EPA Tampering Policy dated November 23, 2020, in states that accept those provisions
• The spec table lists the kit as not a custom tuner and not upgradable
• California Proposition 65 warning applies to this product
