Juice w/ Attitude CTS4

Features:

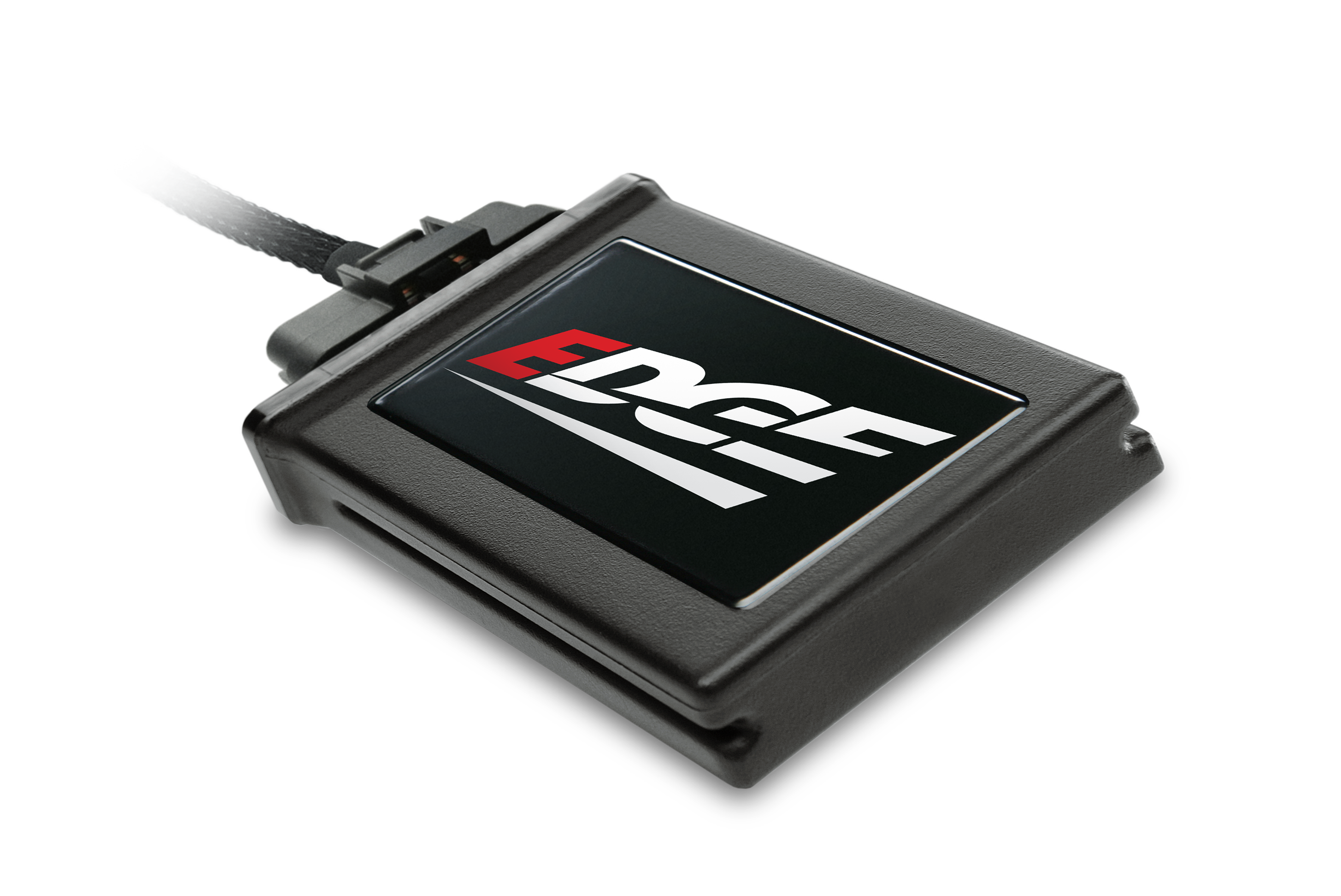

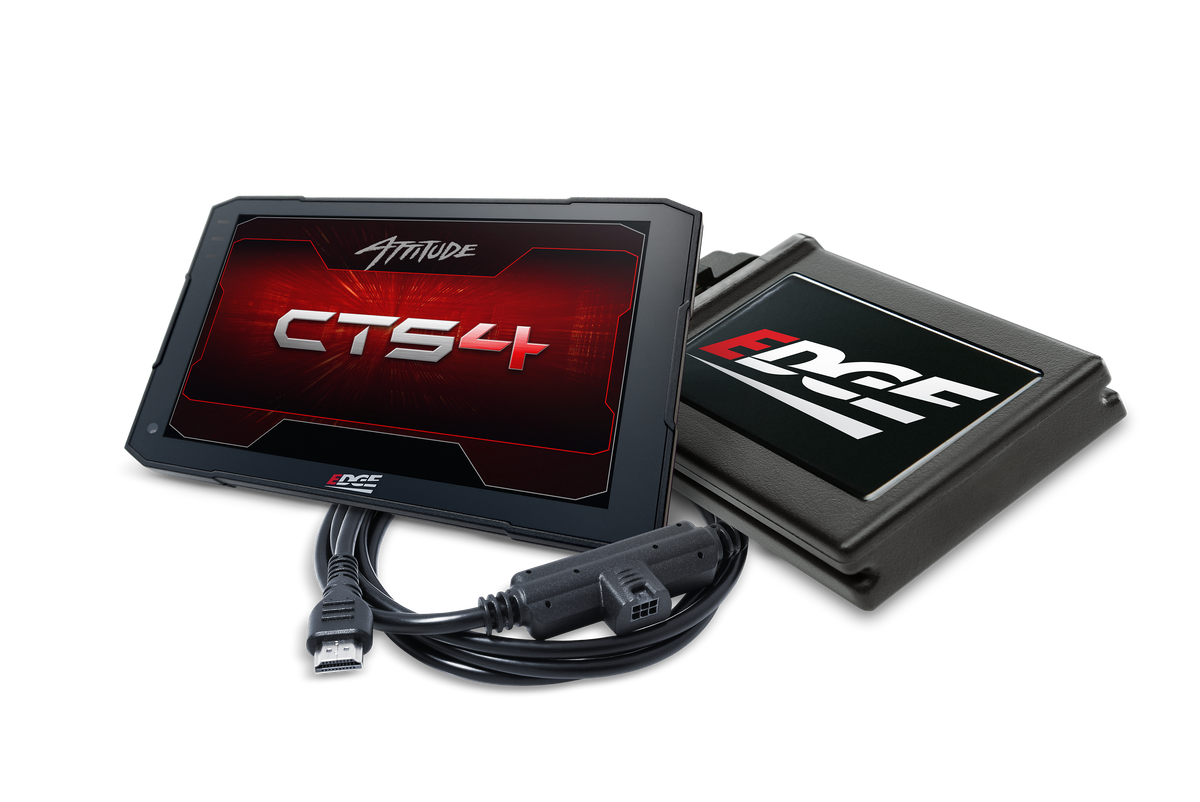

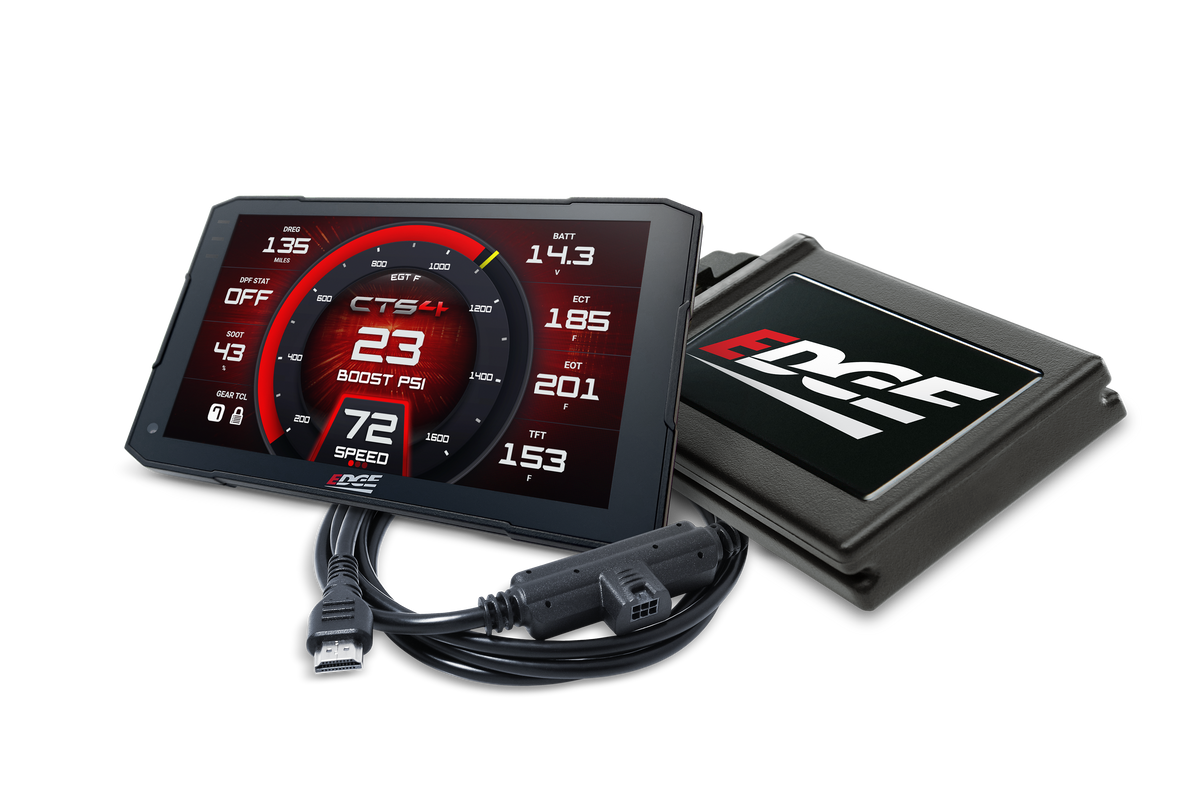

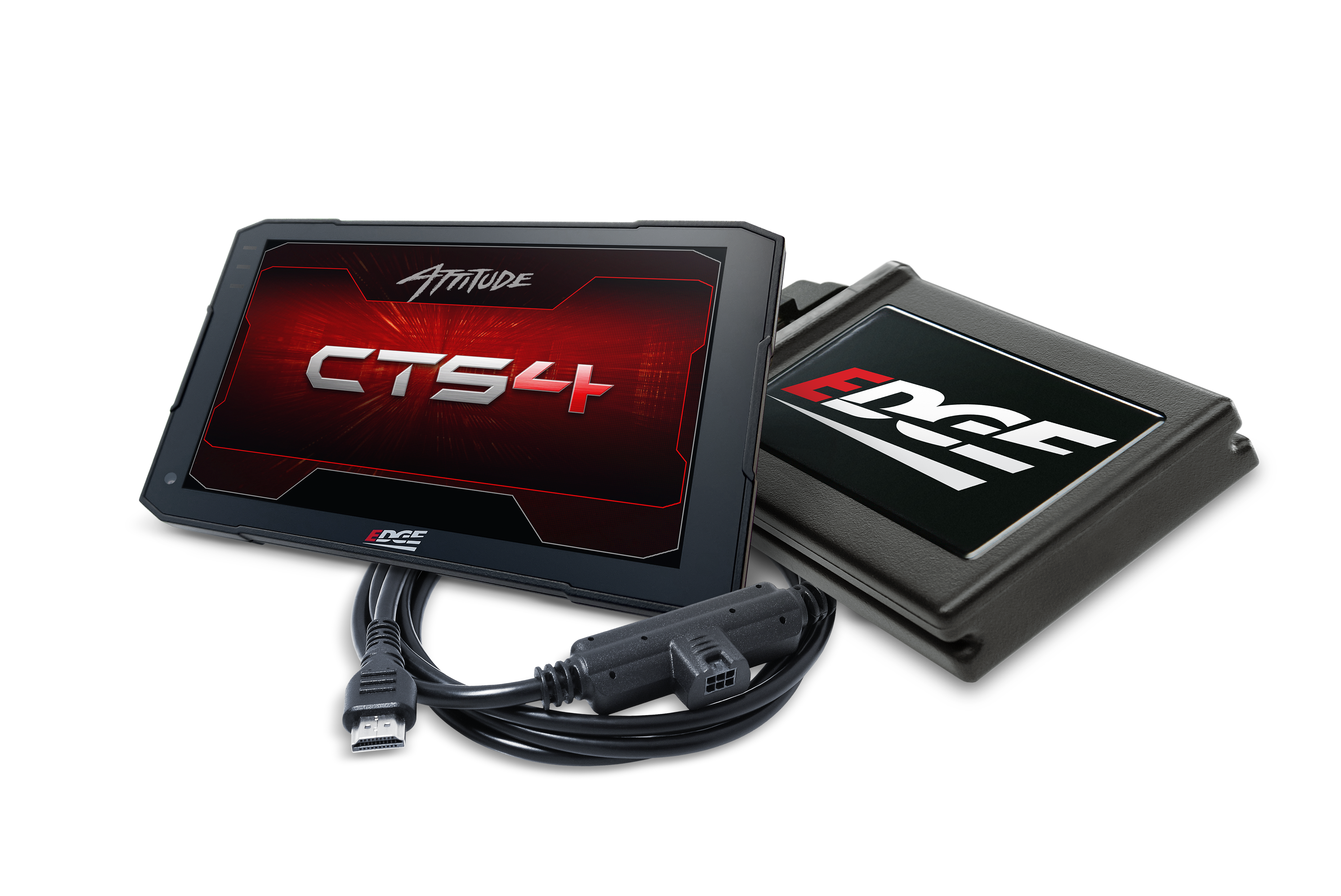

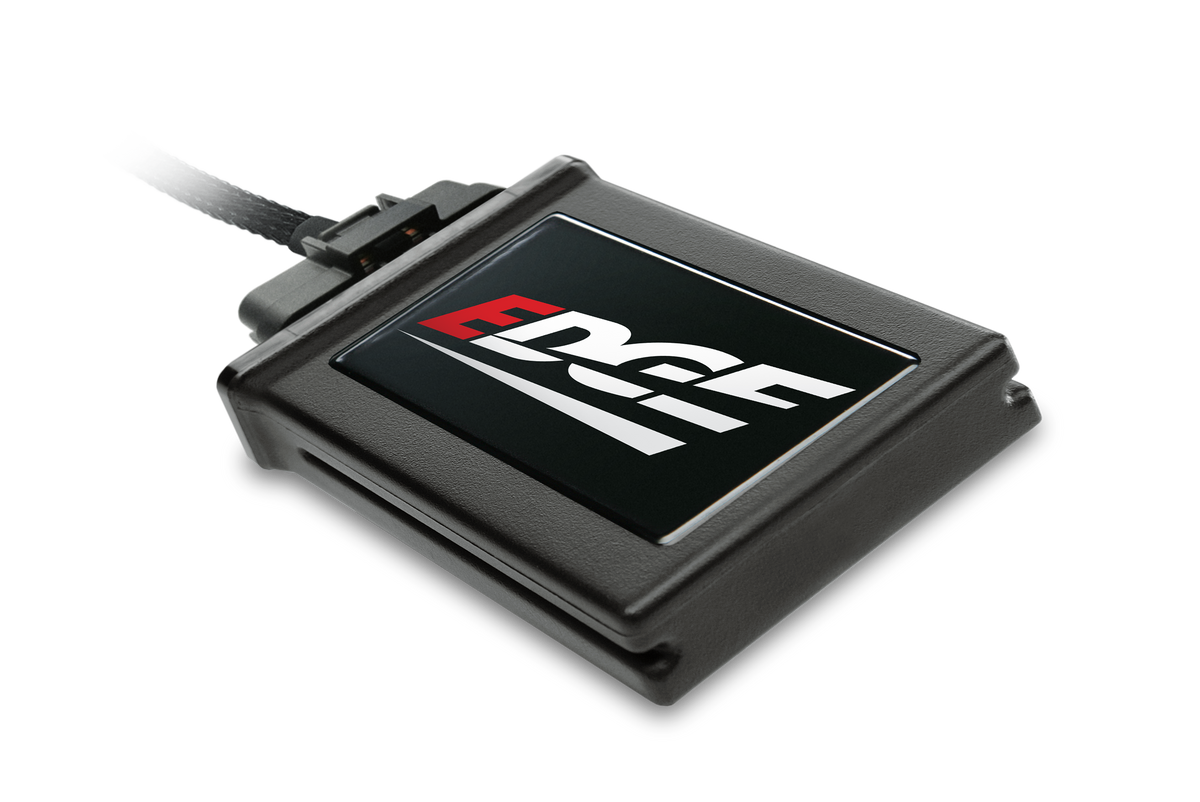

• Juice inline module plus Attitude CTS4 monitor
• Up to +80 HP and +200 lb-ft, per Edge
• 5 power levels, change on the fly
• Optional Hot Unlock level via internet update
• EGT probe included with adjustable setpoint
• Built-in safety backdowns with user-defined limits
• Cold engine defuel control
• Turbo timer, EGT-based or time-based
• Boost setpoint levels on supported applications
• Tire size adjustment from 1 to 50 inches

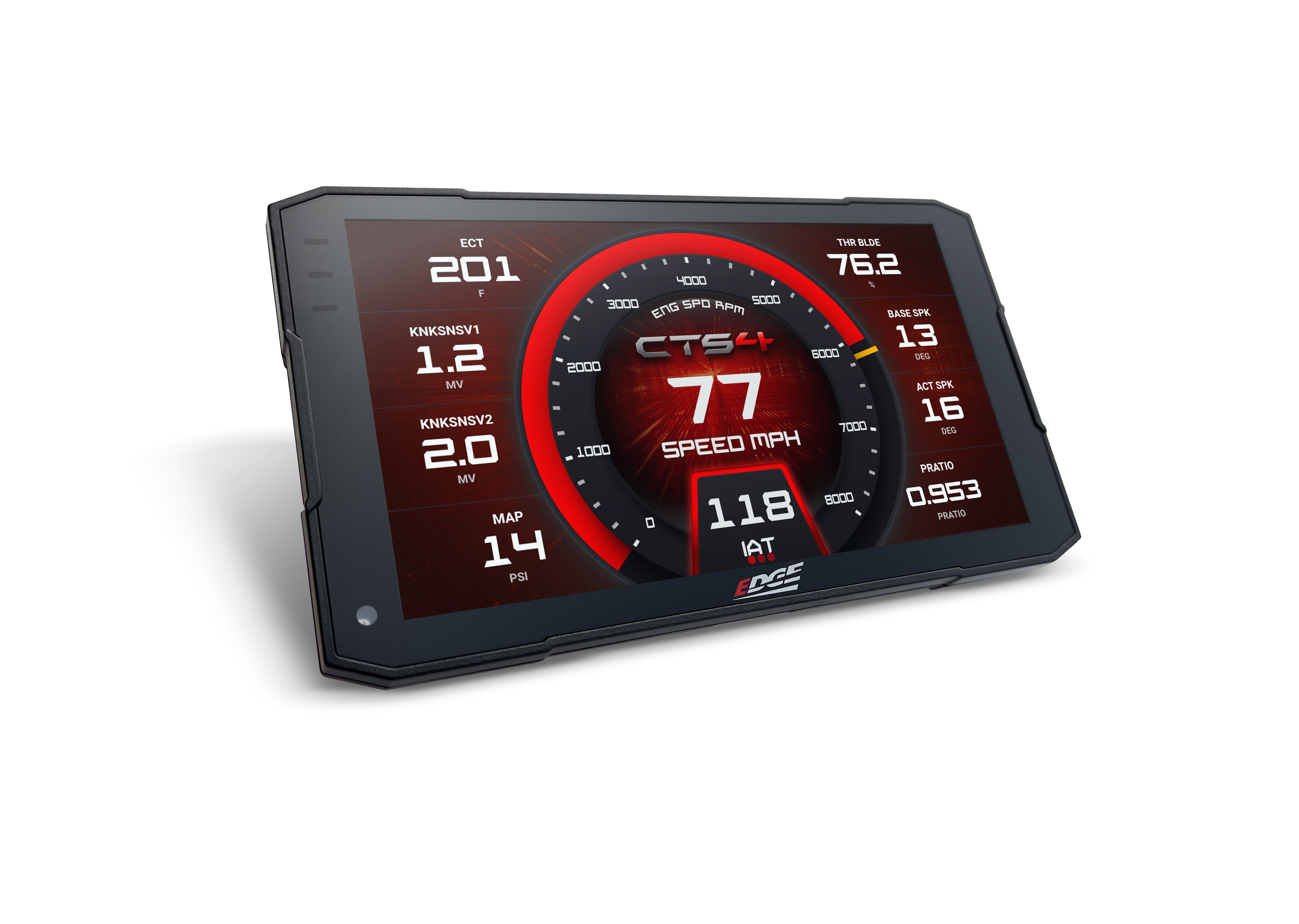

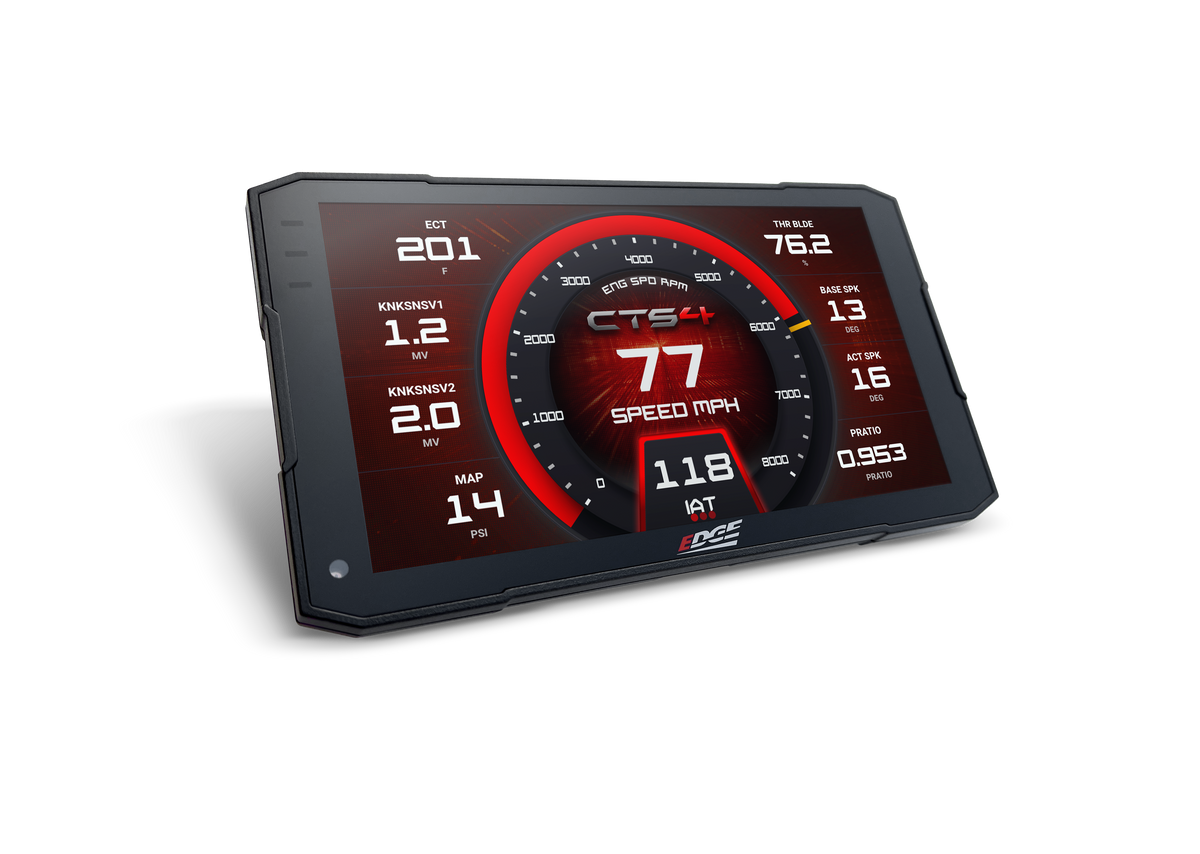

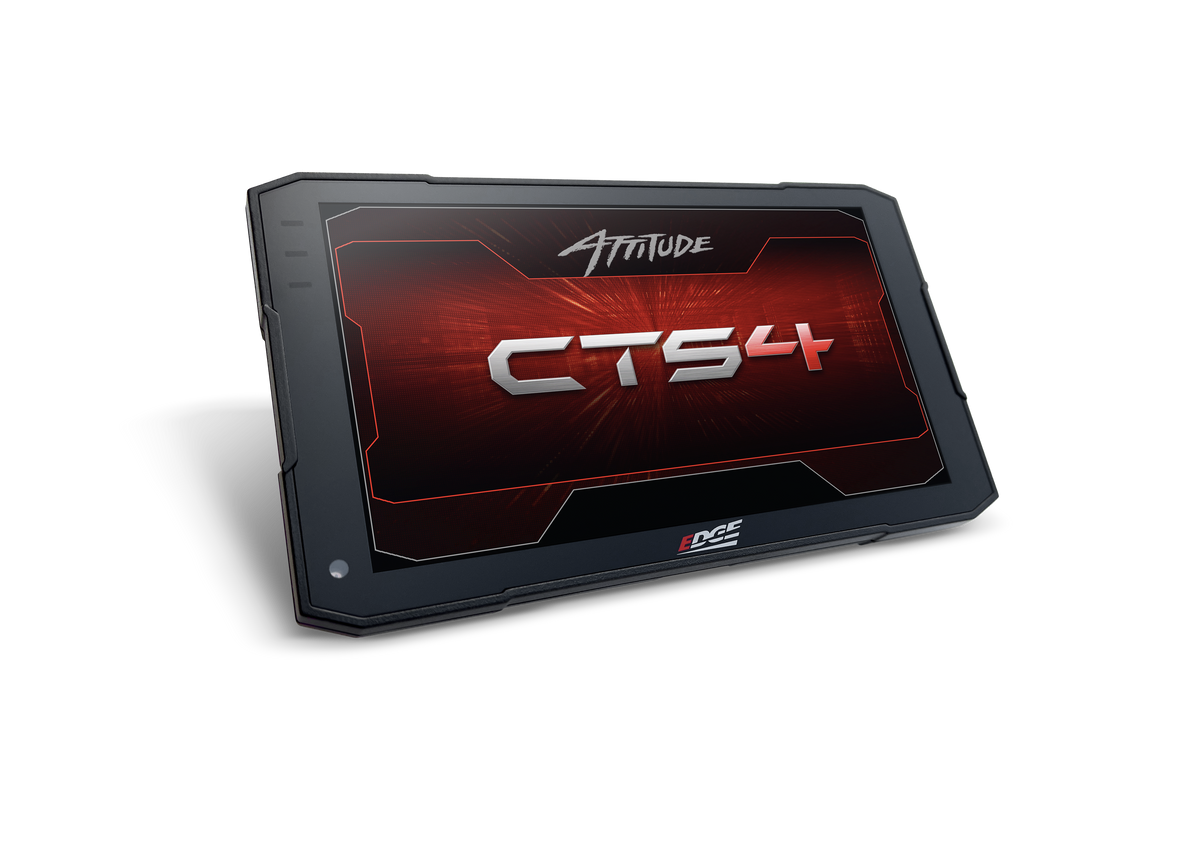

• Color touchscreen with data logging and alerts
• Read and clear diagnostic trouble codes

Switch Your Fourth Generation Ram Between Commuter And Tow Rig At The Touch Of A Screen

Your 2013 to 2018 Ram probably does two jobs, hauling a trailer on the weekend and getting you to work during the week, and the Edge Juice with Attitude CTS4 is built around that reality. Edge lists five power levels that you switch from the monitor while you drive, so there is no stopping to reflash the truck when the job changes. Level 1 is a modest 25 horsepower and 70 lb-ft of torque, which is a gentle step up for the commute. Level 5 reaches 80 horsepower and 200 lb-ft, and Edge says an optional Hot Unlock sixth level can add up to 100 horsepower and 300 lb-ft through an internet update on supported applications. The included EGT probe lets you set a maximum EGT, and Edge says supported backdowns reduce power on their own when a limit you set is reached. A turbo timer helps manage cooldown after a hard run, and cold engine defuel control keeps the added power in check until the engine warms up. You can watch all of it on the Attitude CTS4's color touchscreen, which also logs your data and reads and clears trouble codes. For a 6.7L Cummins that tows hard and drives daily, this is a flexible way to add power without giving up control.

Turbo Timer, Boost Setpoints, And EGT Limits Working Alongside A Color Touchscreen

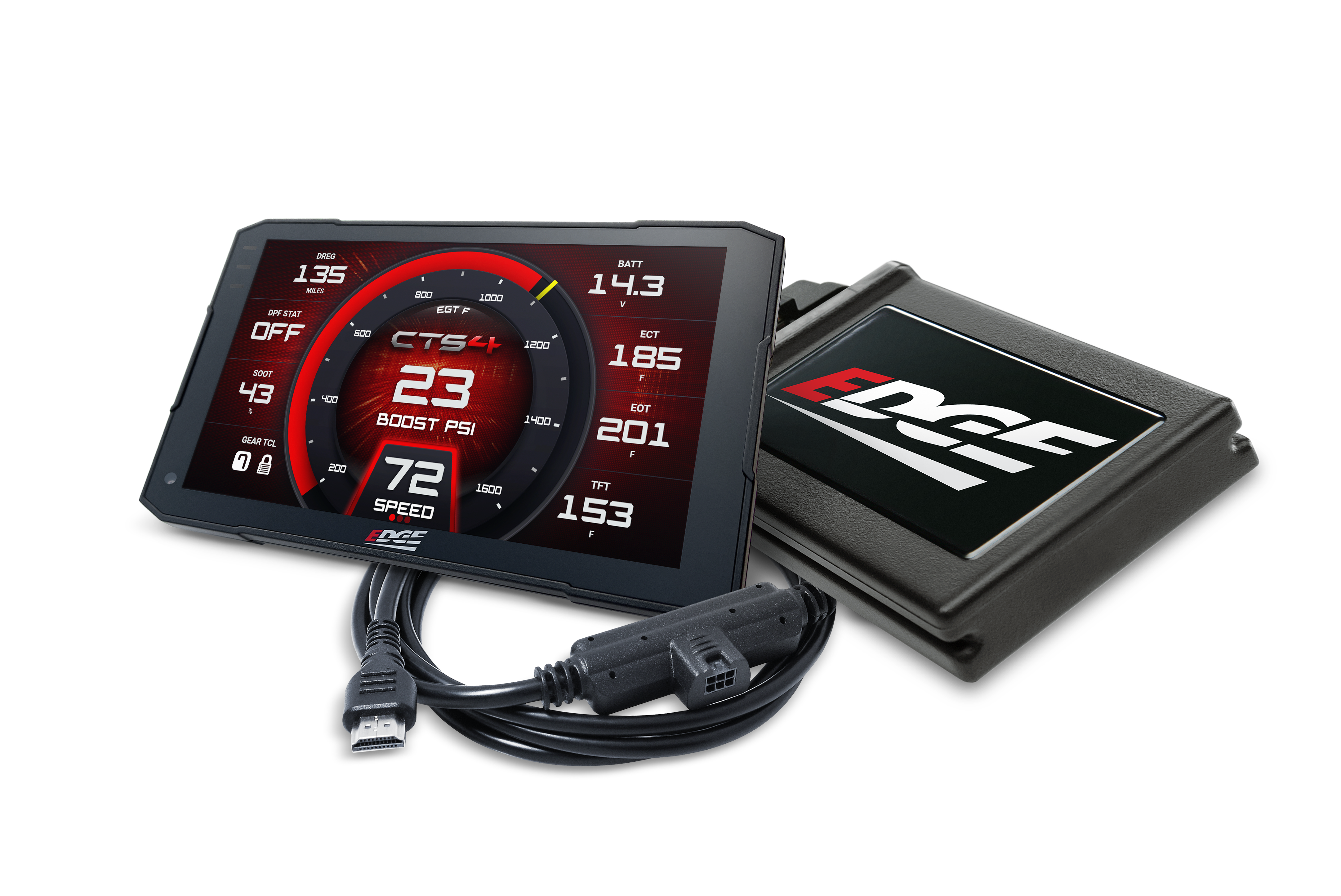

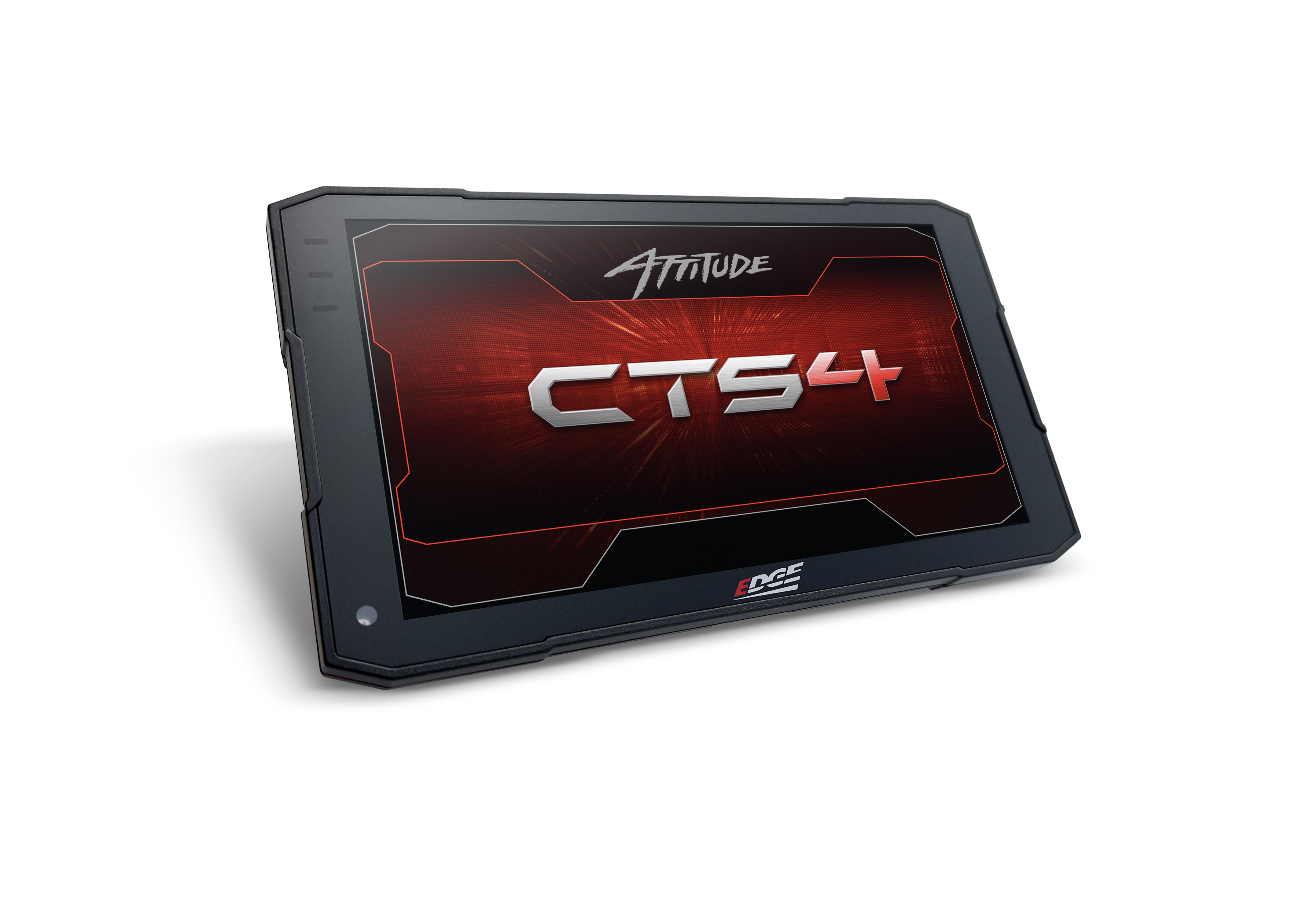

The Edge 31507-4 is a Juice inline performance module with an Attitude CTS4 digital monitor for 2013-2018 Dodge Ram 2500 and 3500 trucks with the 6.7L Cummins. The CTS4 has a color touchscreen with an auto dimming screen and a speedometer, and it offers in cab monitoring, 5 volt data logging inputs, alerts and records, performance tests, and video capability. It reads and clears supported trouble codes, updates over Wi-Fi, and works with compatible EAS sensors and camera options. On the Juice side, Edge lists five power levels that range from 25 horsepower and 70 lb-ft at level 1 to 80 horsepower and 200 lb-ft at level 5. An optional Hot Unlock level 6 adds more fuel and RPM for up to 100 horsepower and 300 lb-ft through an internet update. Edge cautions that gains, levels, and features vary significantly by model year, engine, and application. Protection settings include supported backdowns, a maximum EGT setpoint using the included EGT probe, cold engine defuel control, boost setpoint levels 1 through 5 on supported applications, and a turbo timer. Tire size can be adjusted from 1 to 50 inches, and the kit includes software and an instruction manual, with pods and mounts available for the monitor.

Fitment: 2013, 2014, 2015, 2016, 2017, 2018 Dodge RAM 2500/3500 6.7L Cummins

Notes:

• Fits trucks with the 6.7L Cummins, the 5.9L Cummins ended with the 2007 model year, confirm your truck's engine and model year before ordering
• Not legal for sale or use in California, Edge states CARB testing is pending and no E.O. number has been issued, the spec table lists the kit as not 50-state legal and not CARB compliant
• Edge states this part is legal under the EPA Tampering Policy dated November 23, 2020, in states that accept those provisions
• Horsepower and torque gains, power levels, Hot Unlock availability, boost control, tire size adjustment, and safety features vary significantly by model year, engine, and application, verify features and gains for your truck before ordering
• Edge lists the power levels as 25 hp/70 lb-ft, 40 hp/90 lb-ft, 50 hp/120 lb-ft, 65 hp/160 lb-ft, and 80 hp/200 lb-ft, and up to 100 hp/300 lb-ft with Hot Unlock, these are Edge's claims, results will vary
• Includes an EGT probe
• Hot Unlock adds a sixth power level through an internet update on supported applications
• Compatible EAS sensors and camera options are available to expand the system
• The Juice is not a custom tuner and does not accept custom tunes
• Software and an instruction manual are included, a case and an AC adapter are not
• Pods and mounts are available for the Attitude CTS4
• California Proposition 65 warning applies to this product
