Juice w/ Attitude CTS4

Features:

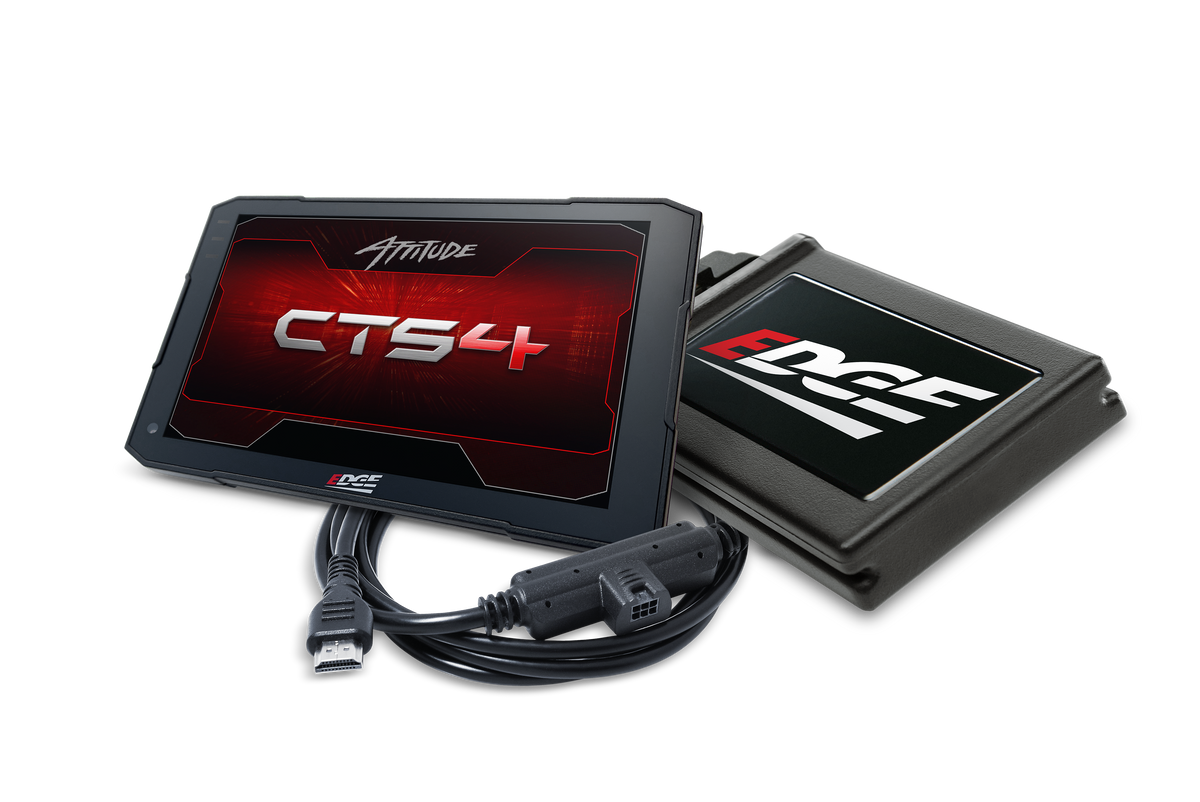

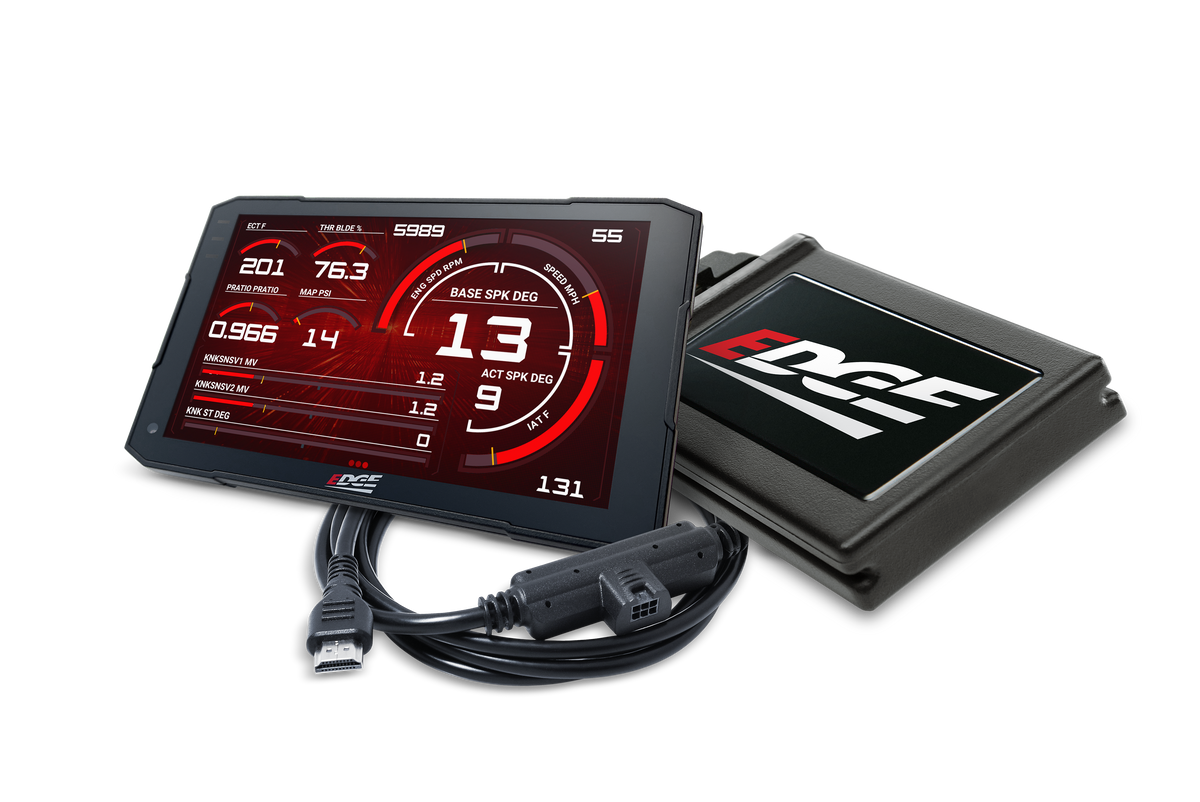

• Juice inline module plus Attitude CTS4 monitor
• Up to +80 HP and +200 lb-ft, per Edge
• 5 power levels, change on the fly
• Optional Hot Unlock level via internet update
• EGT probe included with adjustable setpoint
• Built-in safety backdowns with user-defined limits
• Cold engine defuel control
• Turbo timer, EGT-based or time-based
• Boost setpoint levels on supported applications
• Tire size adjustment from 1 to 50 inches

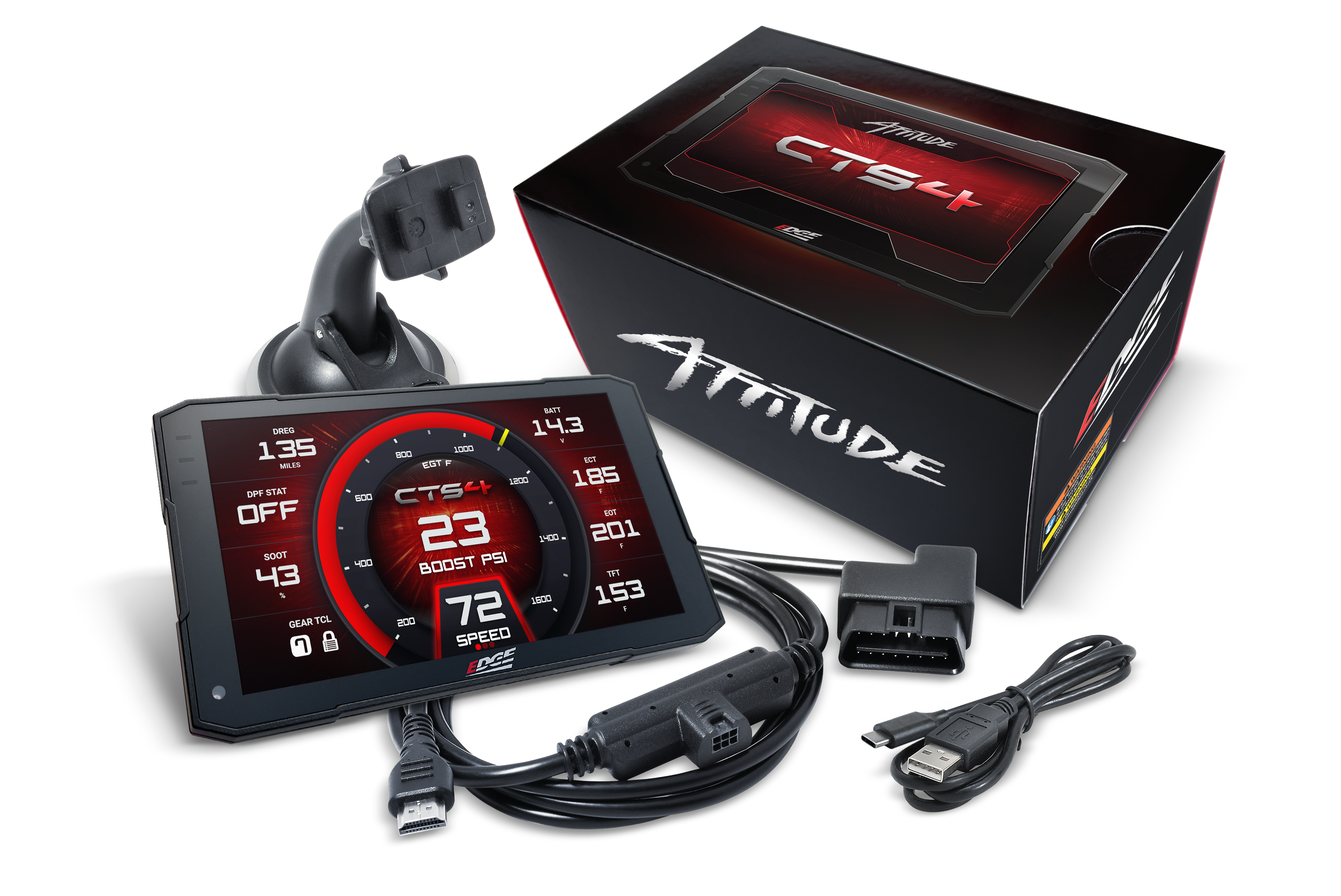

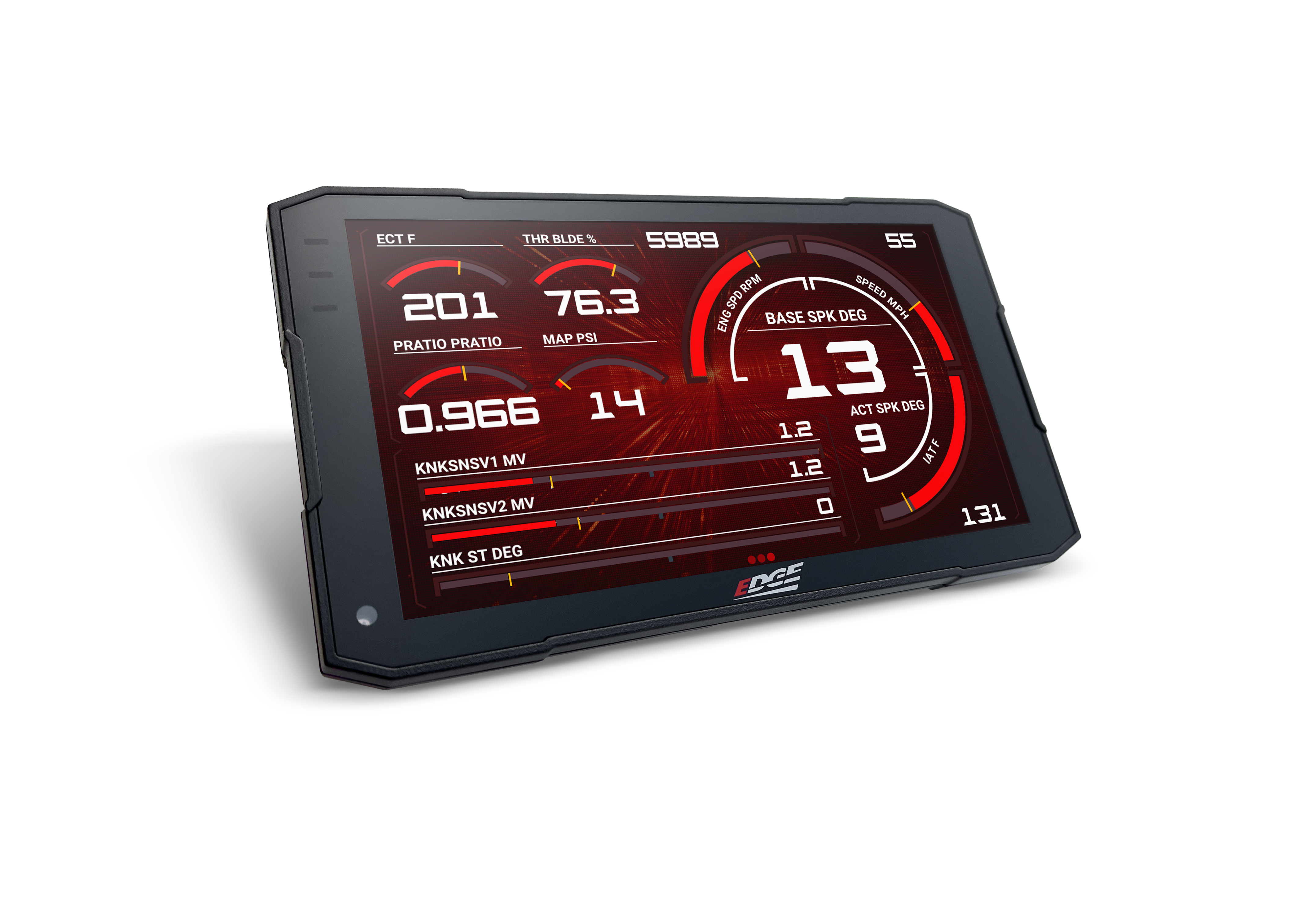

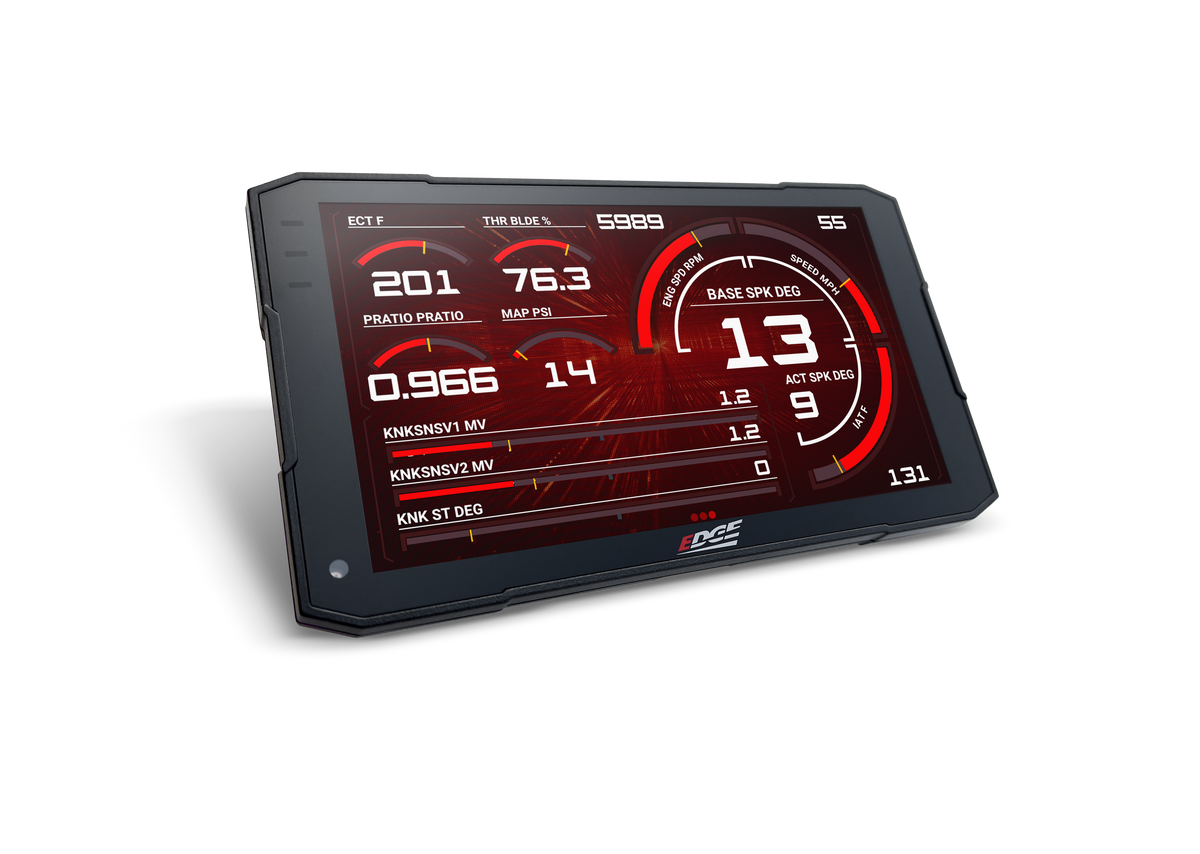

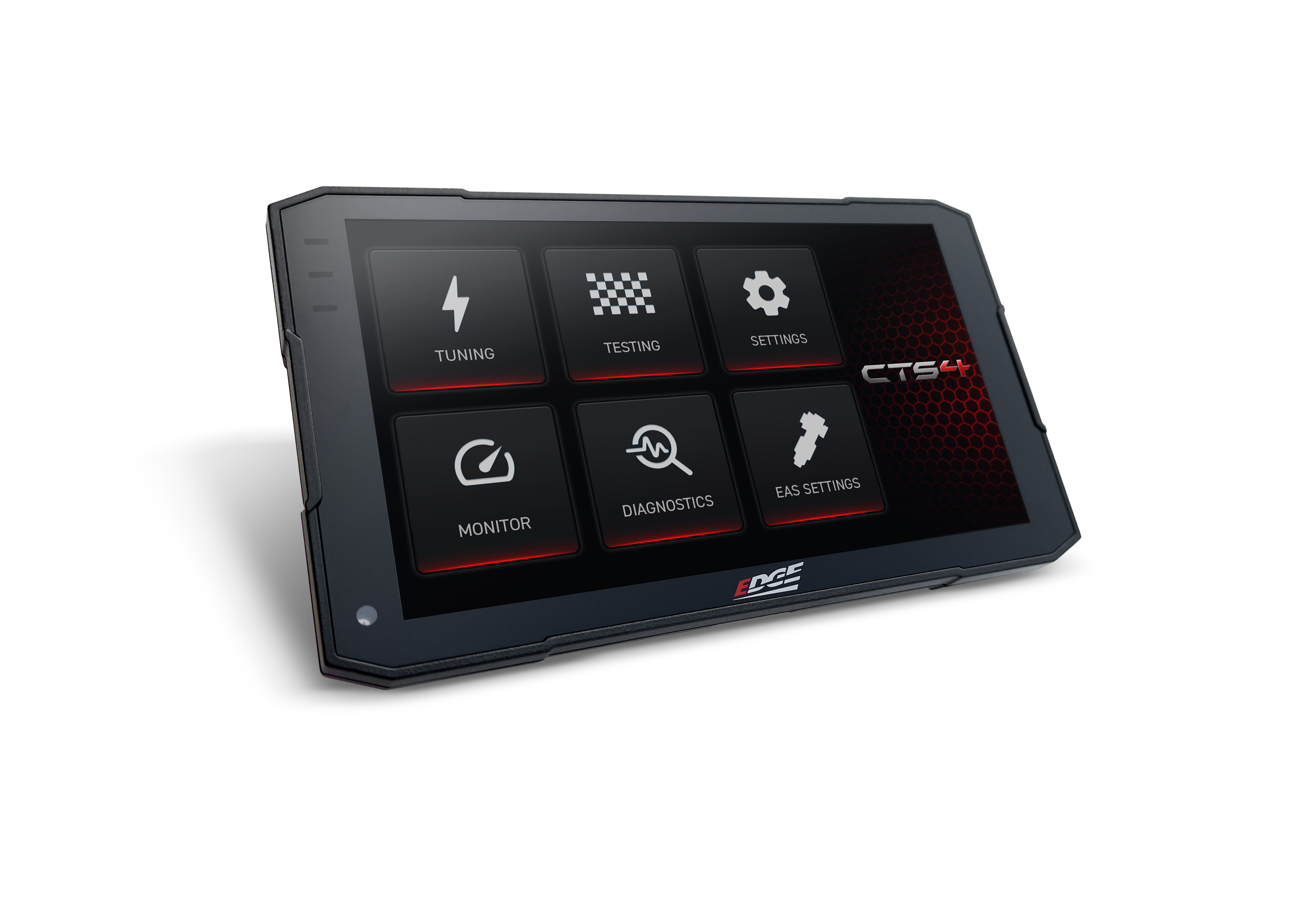

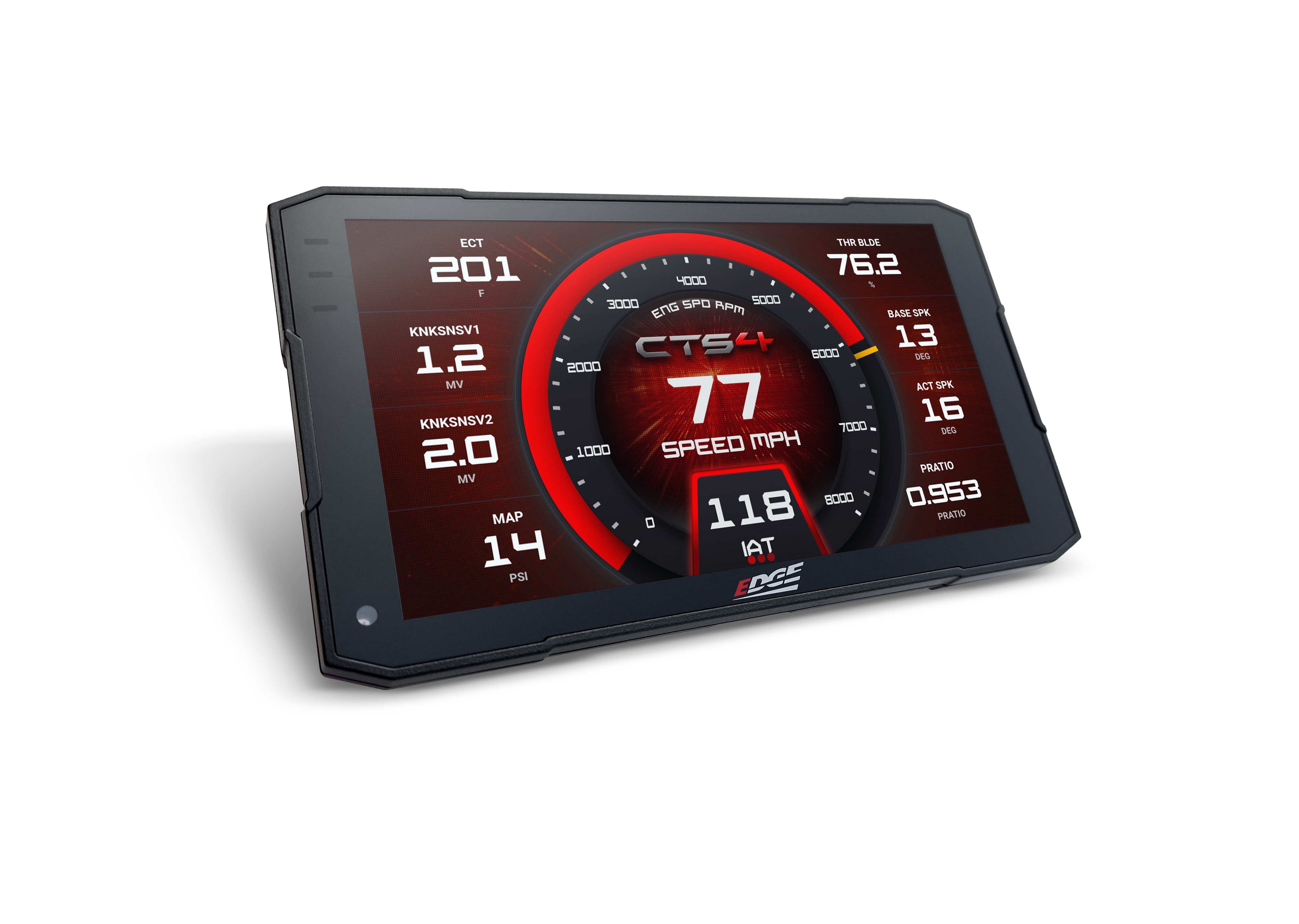

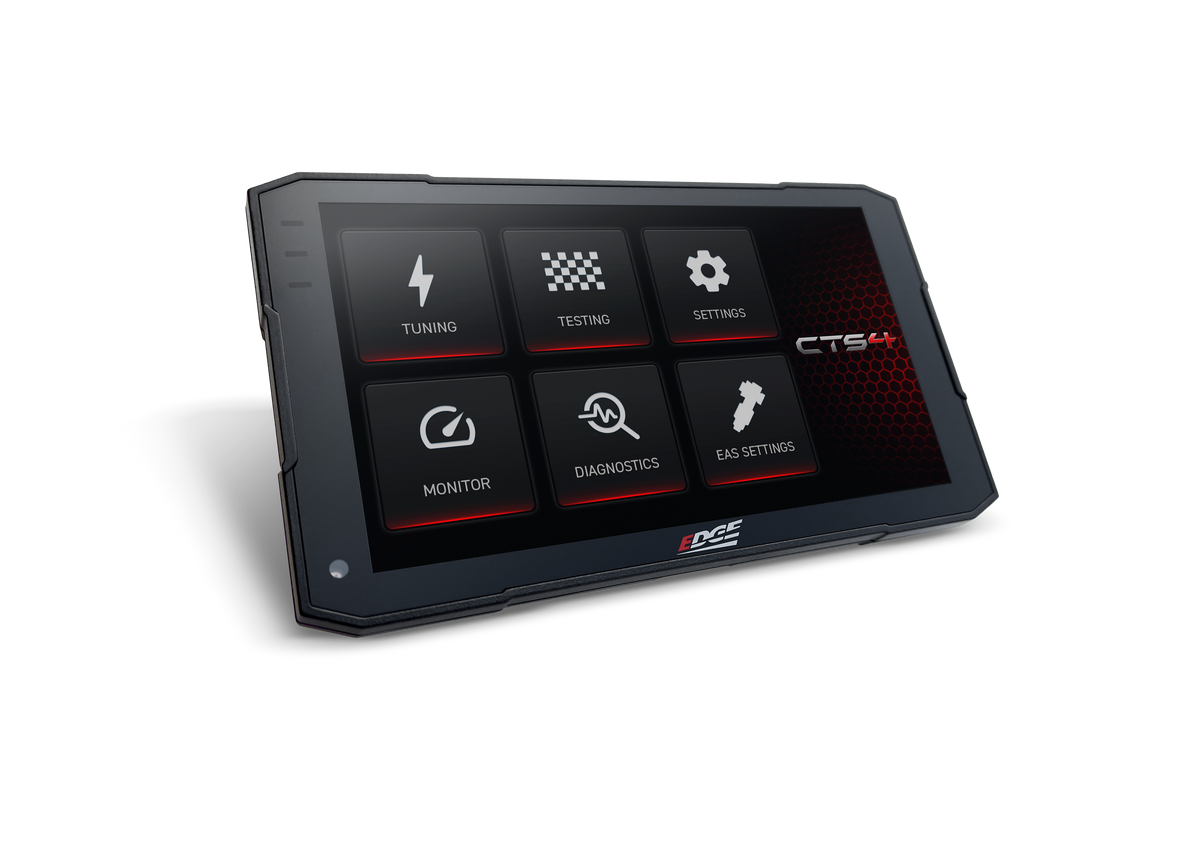

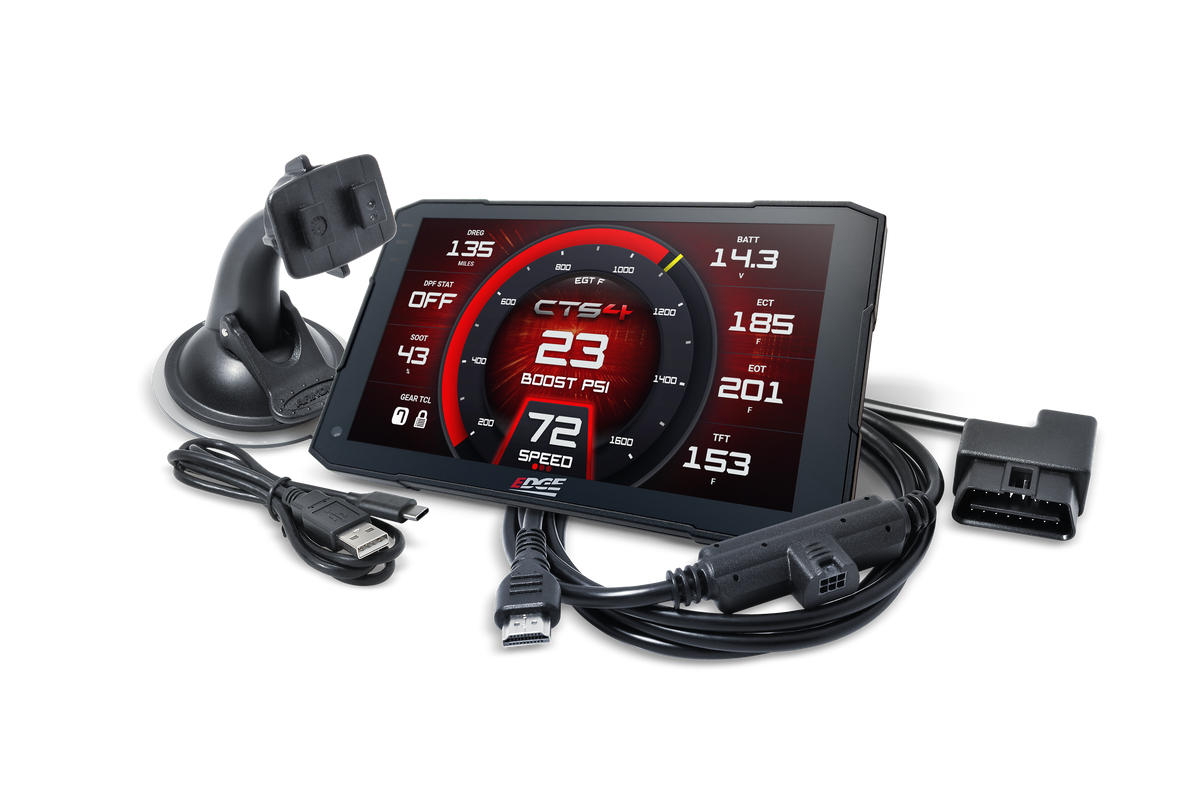

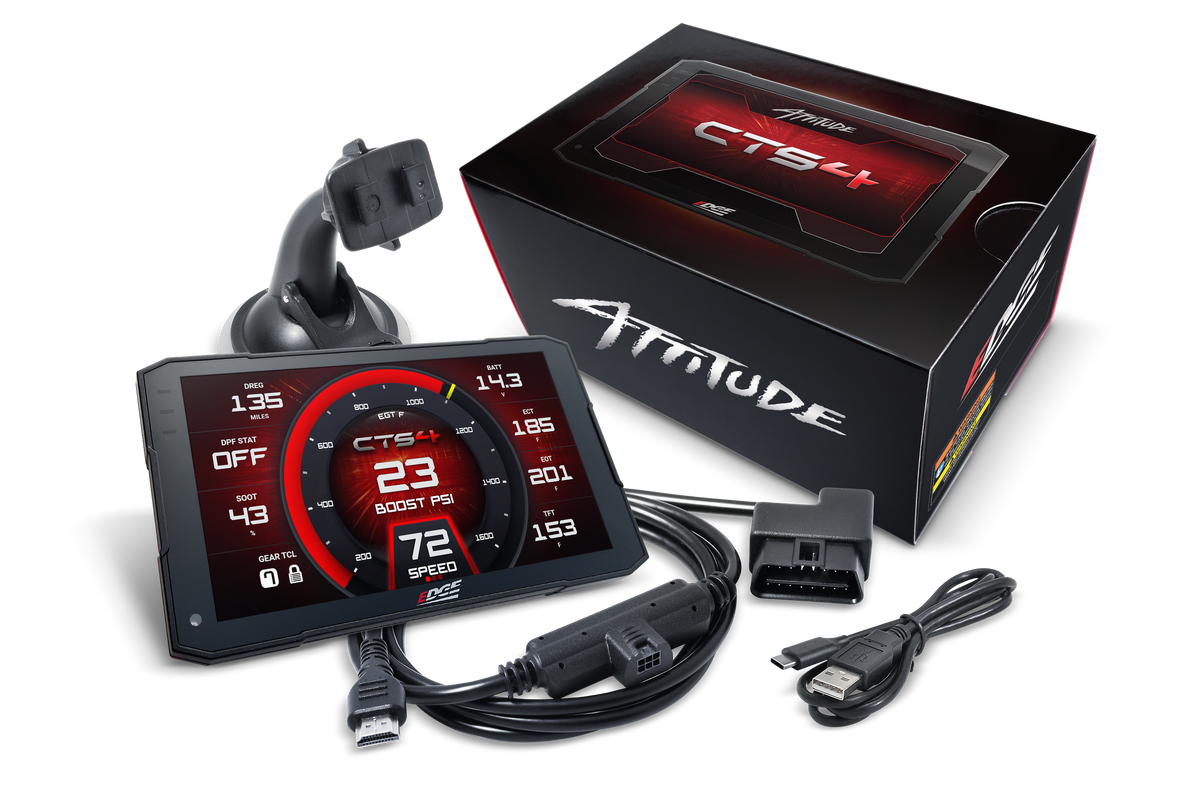

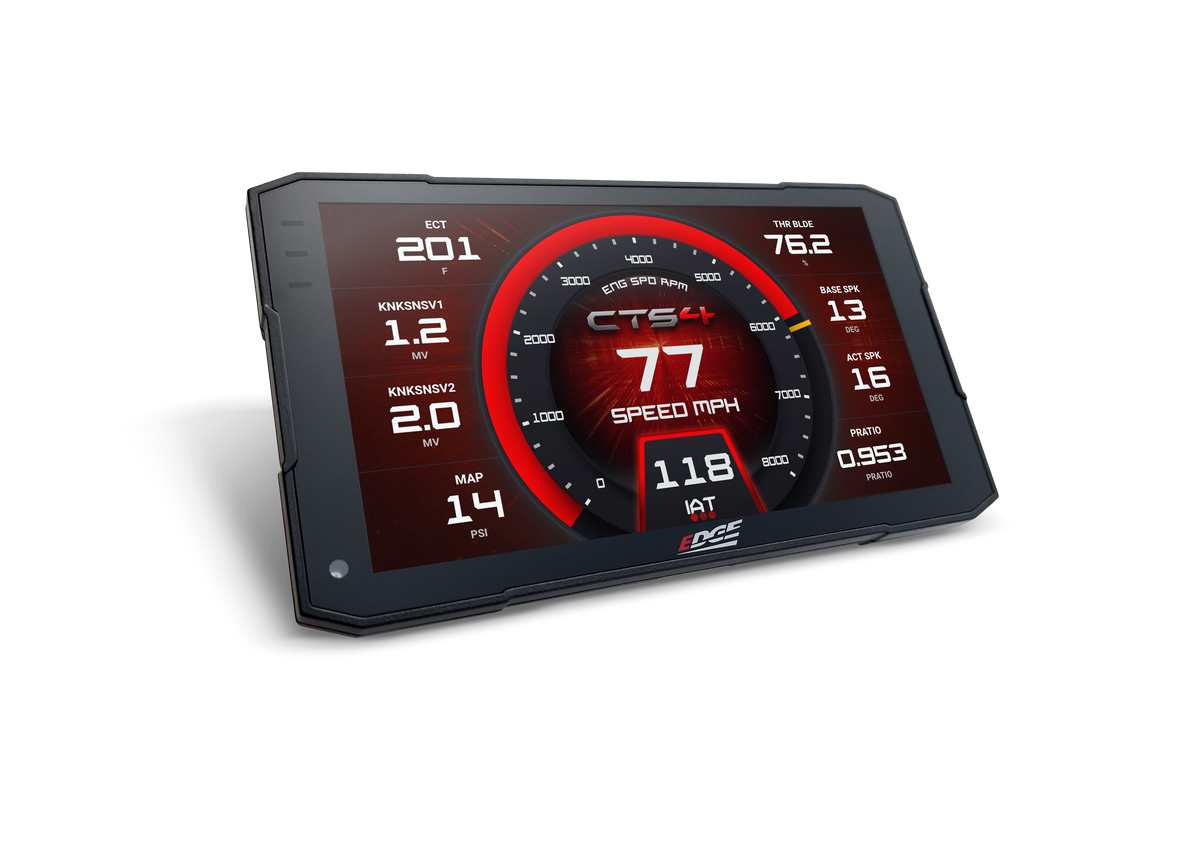

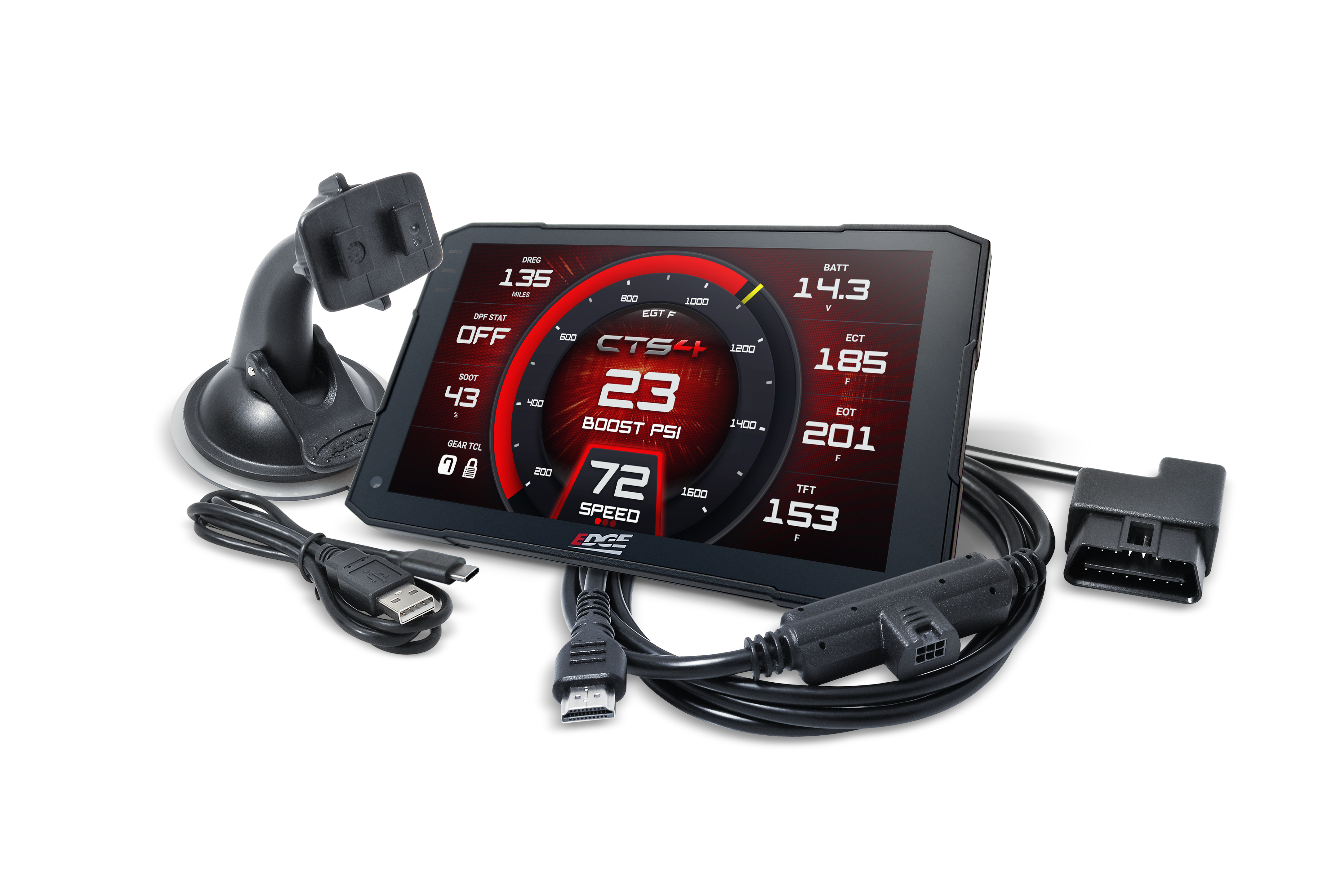

• Color touchscreen with data logging and alerts
• Read and clear diagnostic trouble codes

Give Your Early 6.7L Cummins A Stronger Pull Without Touching The ECM

The first 6.7L Cummins trucks are tough, but anyone who tows with one knows there is room to give it a little more. The Edge Juice with Attitude CTS4 adds that with an inline module that changes how the truck performs without reflashing the ECM. Edge lists five power levels that you choose on the fly from the monitor, starting at a gentle 25 horsepower and 70 lb-ft of torque and reaching 80 horsepower and 200 lb-ft at level 5. If you want more, Edge says an optional Hot Unlock sixth level can bring gains of up to 100 horsepower and 250 lb-ft through an internet update on supported applications. Because the power level is always your choice, you can step up when a trailer is hooked up and step back down for the commute. The included EGT probe lets you set a maximum EGT, and Edge says built in backdowns automatically reduce power when a limit you set is reached. Cold engine defuel control and a turbo timer look after the engine at the start and end of each drive. The Attitude CTS4 ties it together on a color touchscreen that shows your gauges and logs your data, so you always know where the truck stands.

Five Power Levels, One Optional Unlock, And Every Protection Setting In The Monitor

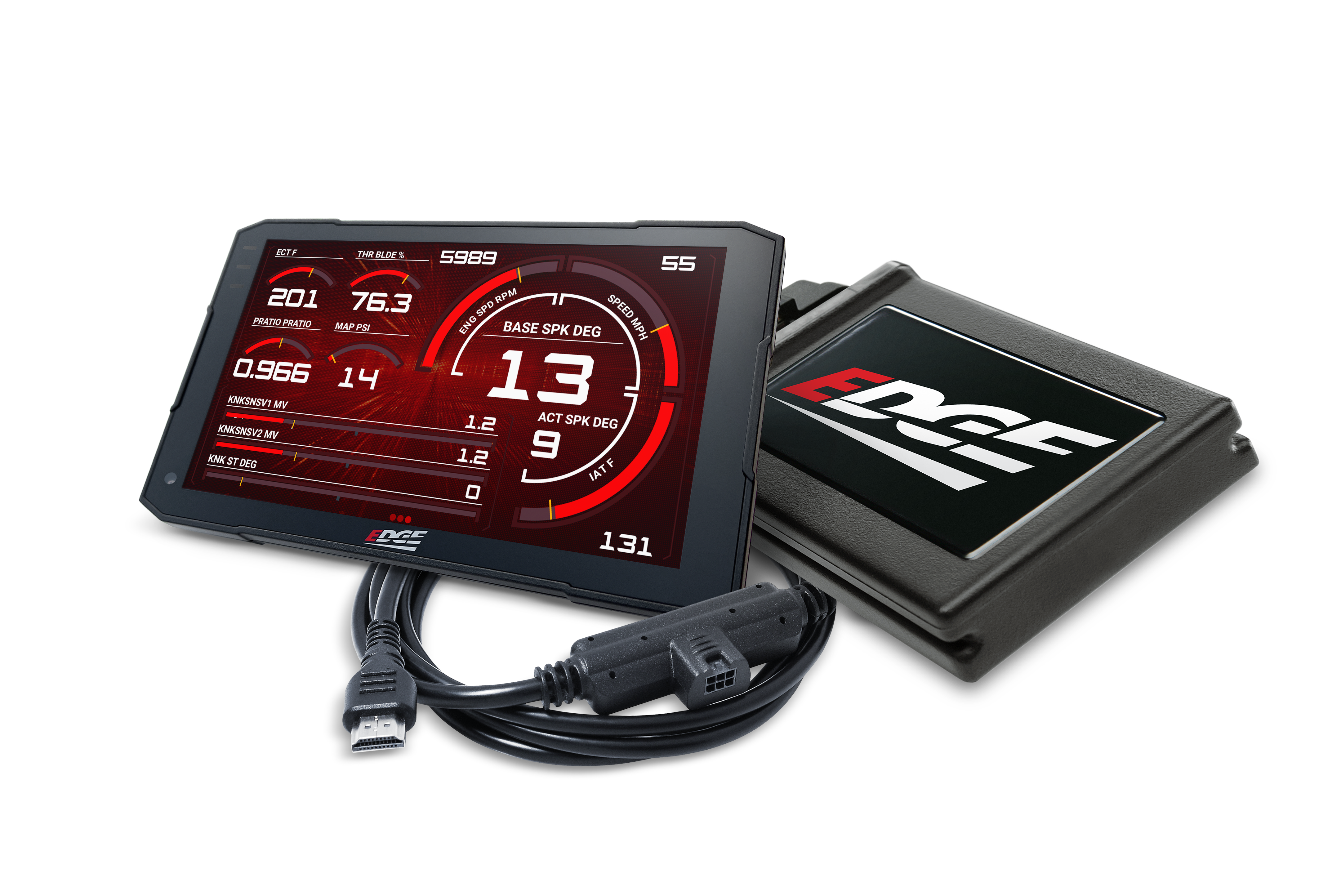

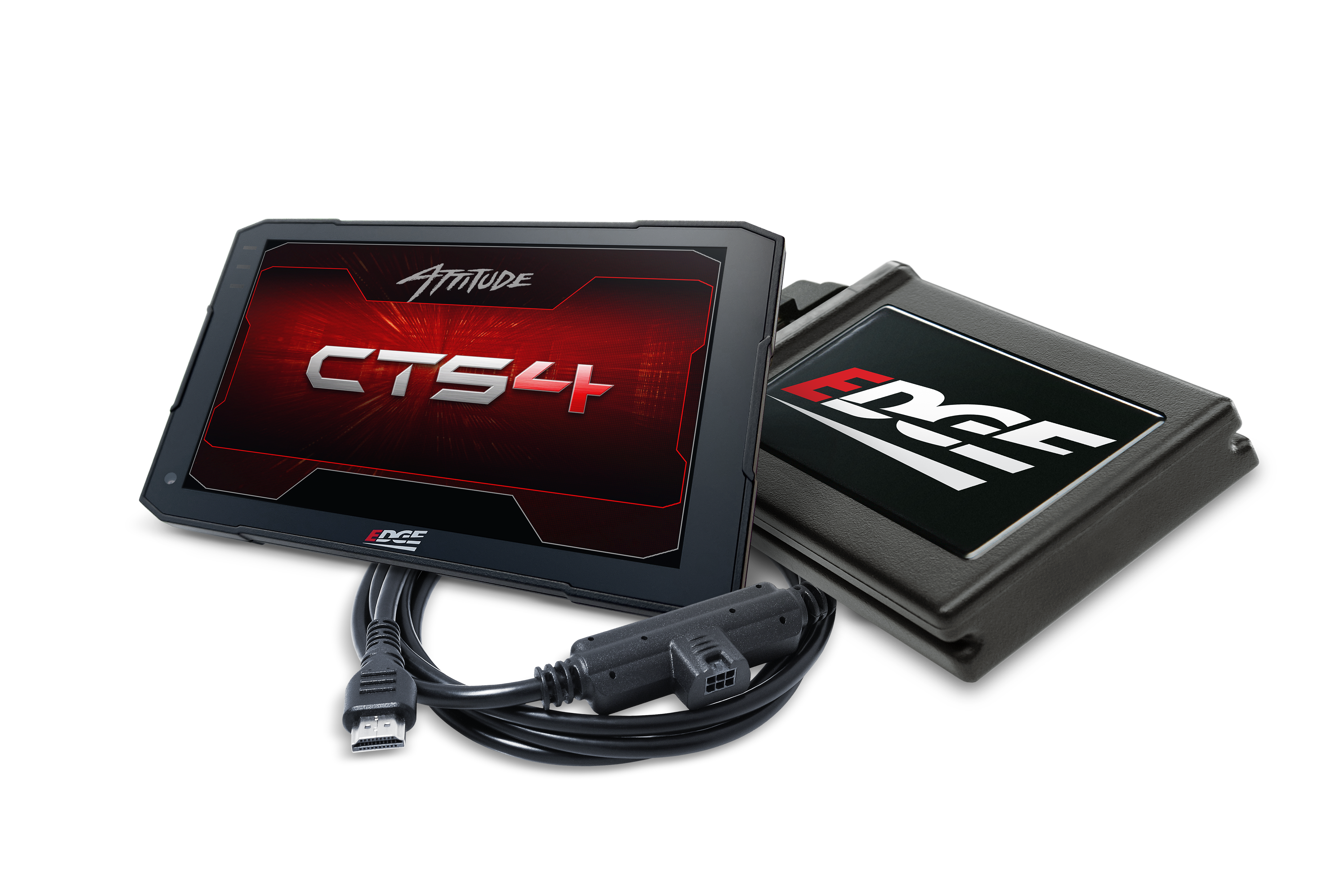

The Edge 31505-4 pairs the Juice inline performance module with the Attitude CTS4 digital monitor for 2007.5-2012 Dodge Ram 2500 and 3500 trucks with the 6.7L Cummins. Edge lists five power levels with gains of 25 horsepower and 70 lb-ft at level 1, 40 and 90 at level 2, 50 and 120 at level 3, 65 and 160 at level 4, and 80 and 200 at level 5. The optional Hot Unlock level 6 adds more fuel and RPM for up to 100 horsepower and 250 lb-ft, and Edge cautions that gains and features vary significantly by model year, engine, and application. The included EGT probe supports real time exhaust temperature monitoring and a maximum EGT setpoint, and supported backdowns reduce power when a user defined limit is reached. Other settings include cold engine defuel control, boost setpoint levels 1 through 5 on supported applications, a turbo timer with EGT based or time based options, and tire size adjustment from 1 to 50 inches. The CTS4 is a color touchscreen with an auto dimming screen, a speedometer, in cab monitoring, 5 volt data logging inputs, alerts and records, performance tests, video capability, and Wi-Fi updates. It reads and clears supported trouble codes, and compatible EAS sensors and camera options expand the system. The kit includes software and an instruction manual, and pods and mounts are available for the monitor.

Fitment: 2007.5, 2008, 2009, 2010, 2011, 2012 Dodge RAM 2500/3500 6.7L Cummins

Notes:

• Fits trucks with the 6.7L Cummins, the 5.9L Cummins ended with the 2007 model year, confirm your truck's engine and model year before ordering
• Not legal for sale or use in California, Edge states CARB testing is pending and no E.O. number has been issued, the spec table lists the kit as not 50-state legal and not CARB compliant
• Edge states this part is legal under the EPA Tampering Policy dated November 23, 2020, in states that accept those provisions
• Horsepower and torque gains, power levels, Hot Unlock availability, boost control, tire size adjustment, and safety features vary significantly by model year, engine, and application, verify features and gains for your truck before ordering
• Edge lists the power levels as 25 hp/70 lb-ft, 40 hp/90 lb-ft, 50 hp/120 lb-ft, 65 hp/160 lb-ft, and 80 hp/200 lb-ft, and up to 100 hp/250 lb-ft with Hot Unlock, these are Edge's claims, results will vary
• Includes an EGT probe
• Hot Unlock adds a sixth power level through an internet update on supported applications
• Compatible EAS sensors and camera options are available to expand the system
• The Juice is not a custom tuner and does not accept custom tunes
• Software and an instruction manual are included, a case and an AC adapter are not
• Pods and mounts are available for the Attitude CTS4

• California Proposition 65 warning applies to this product
