Juice w/ Attitude CTS4

Features:

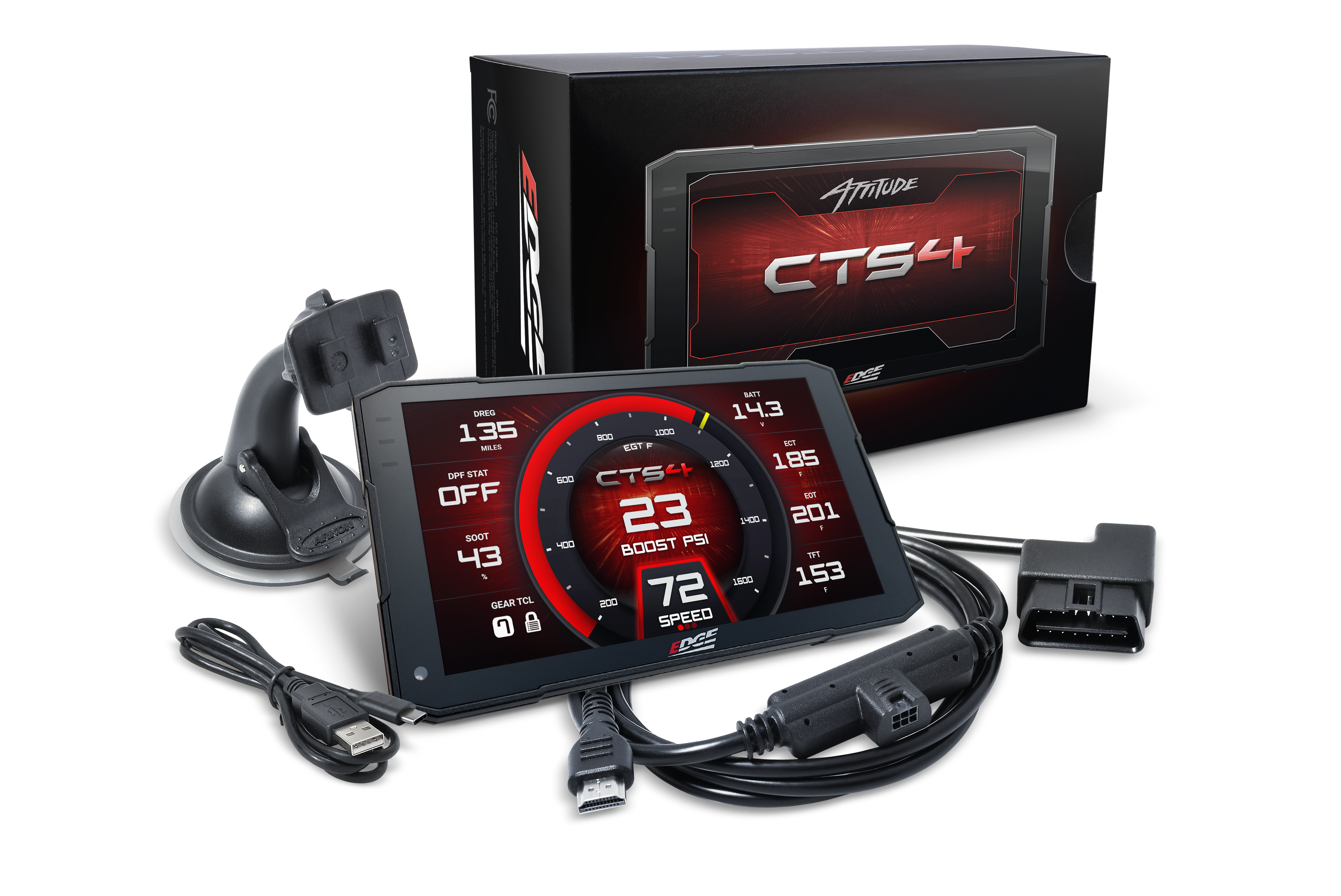

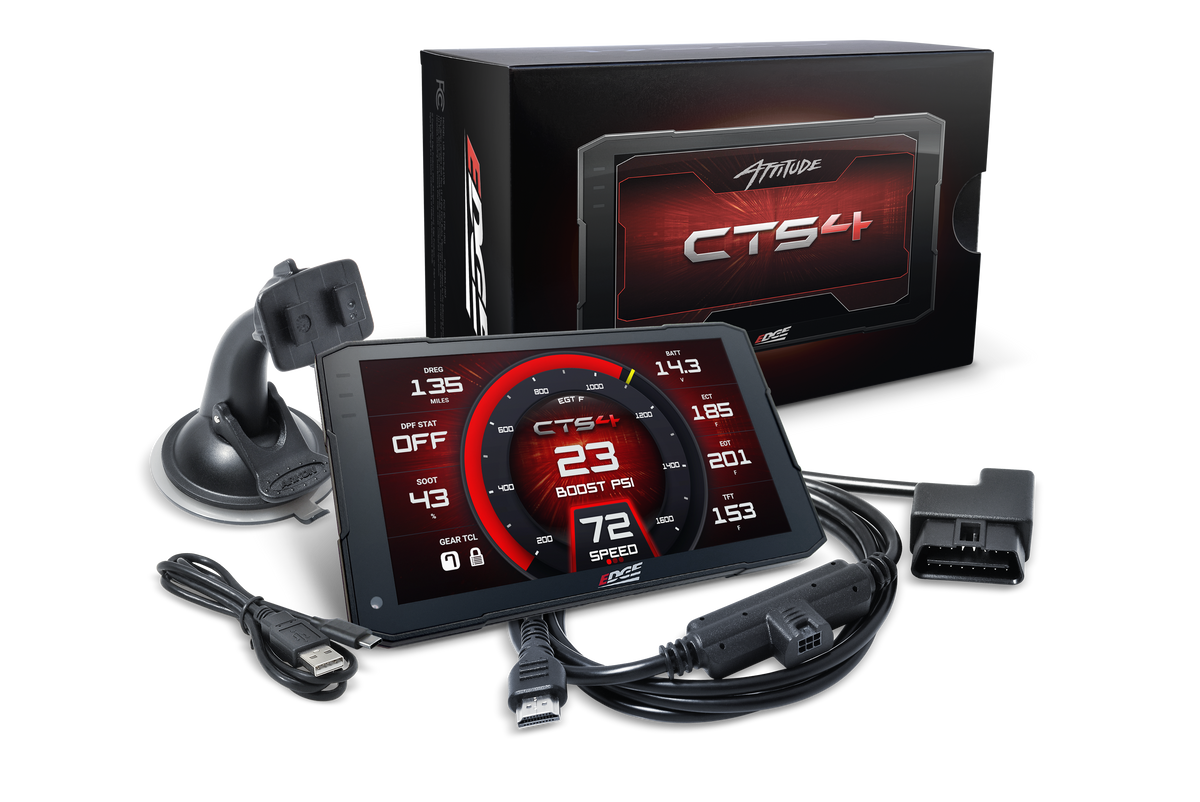

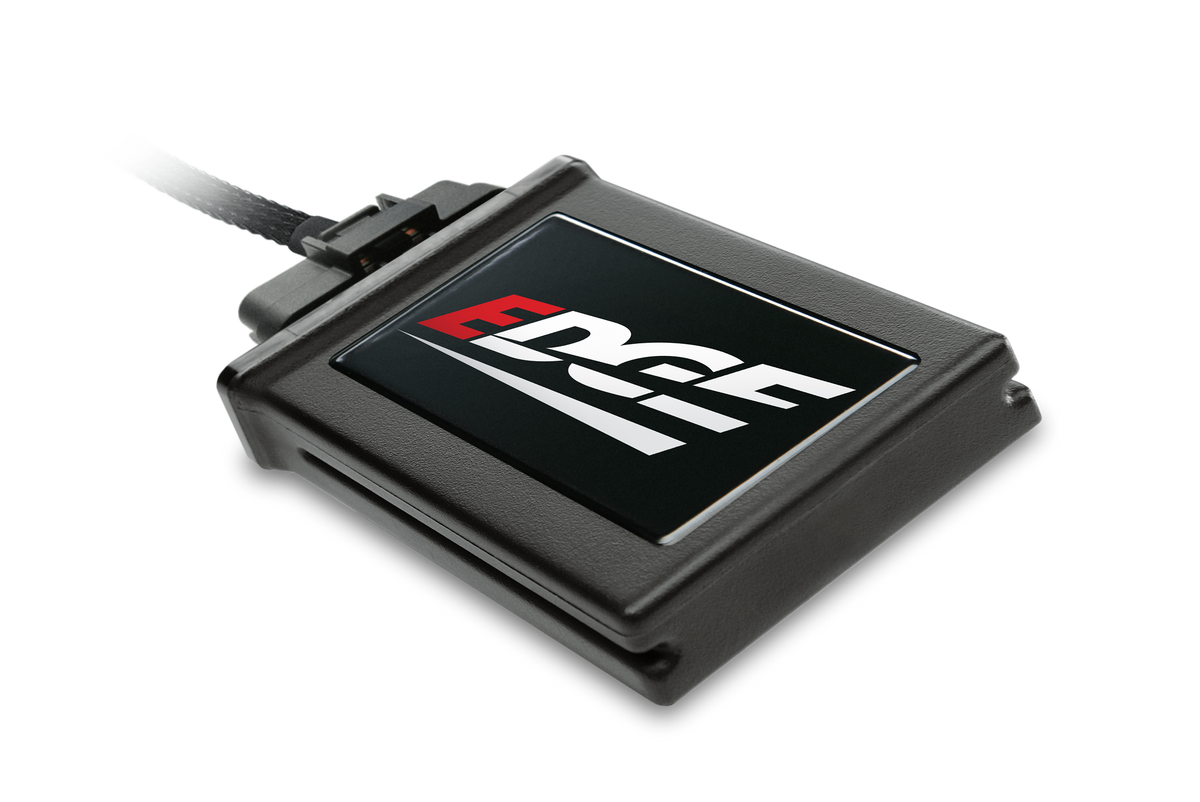

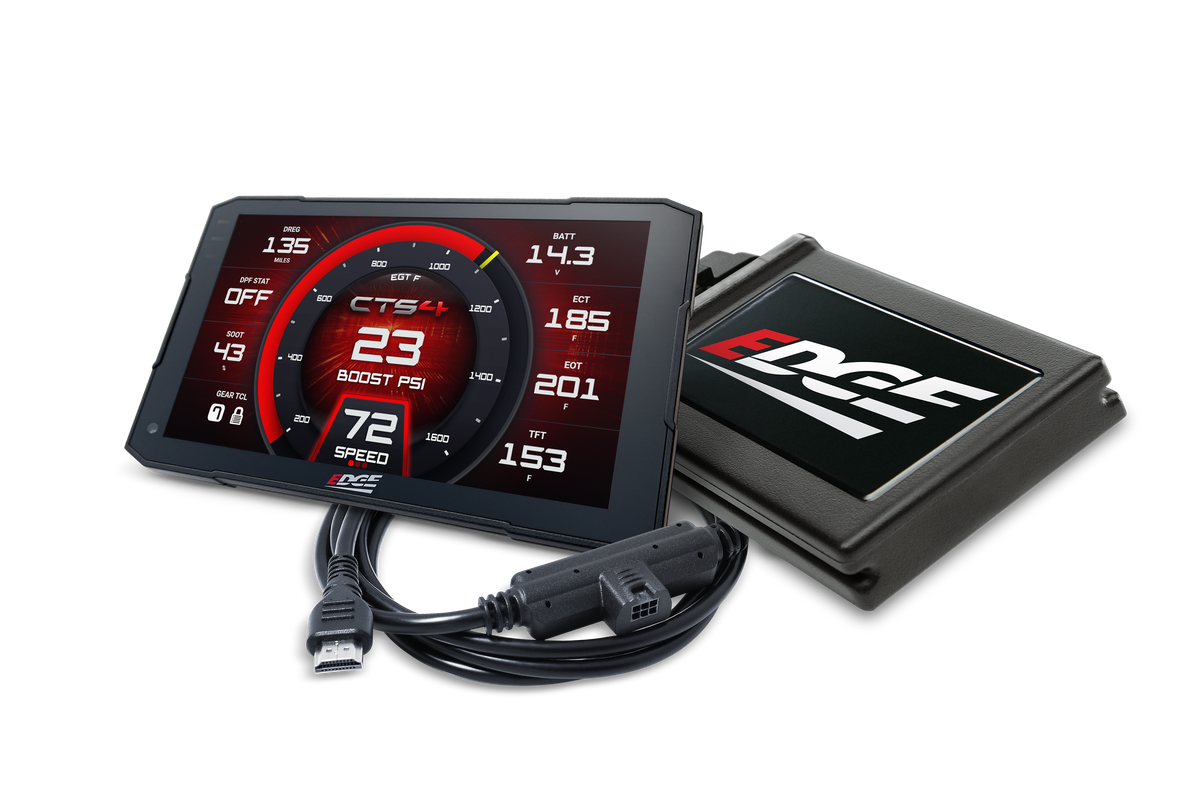

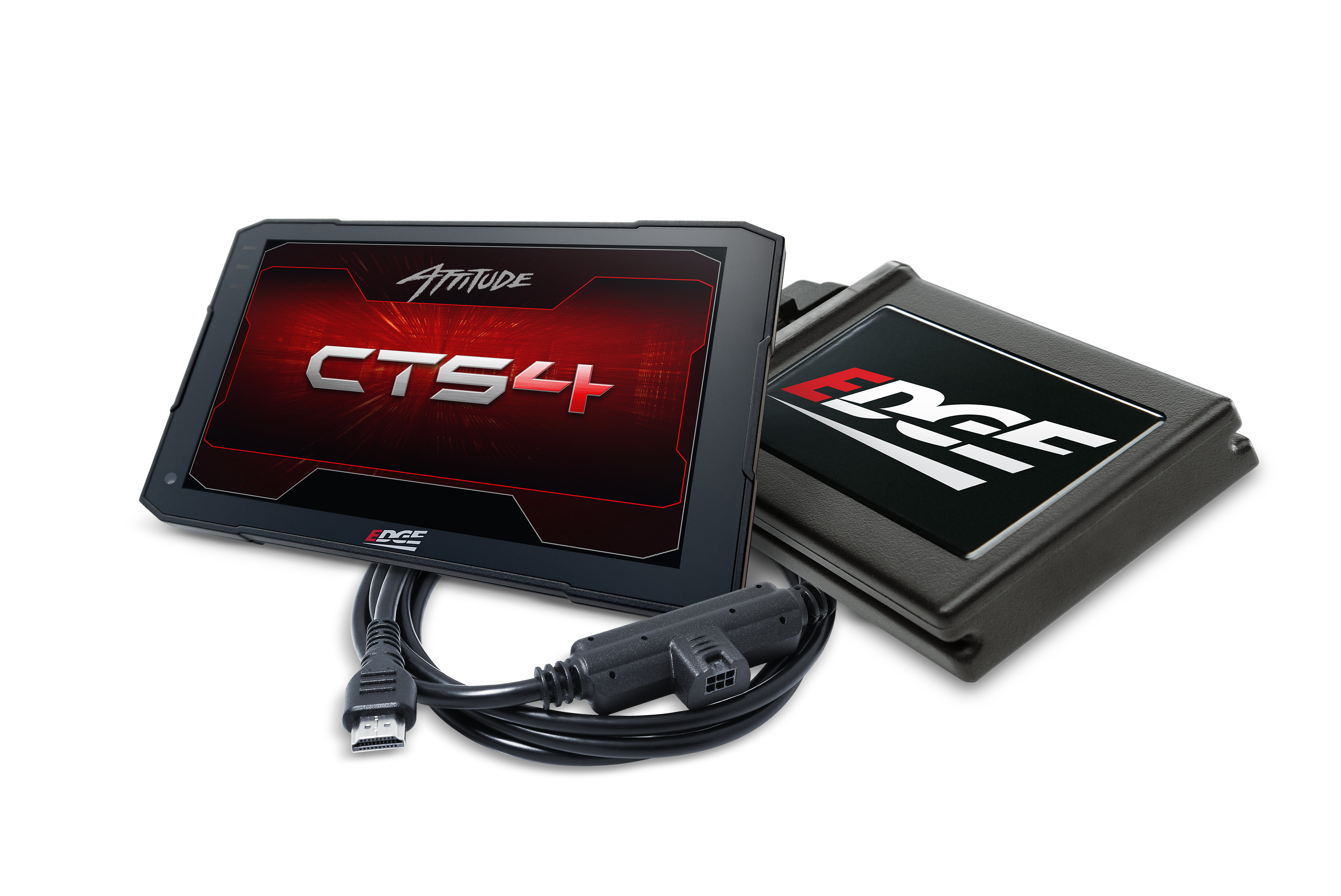

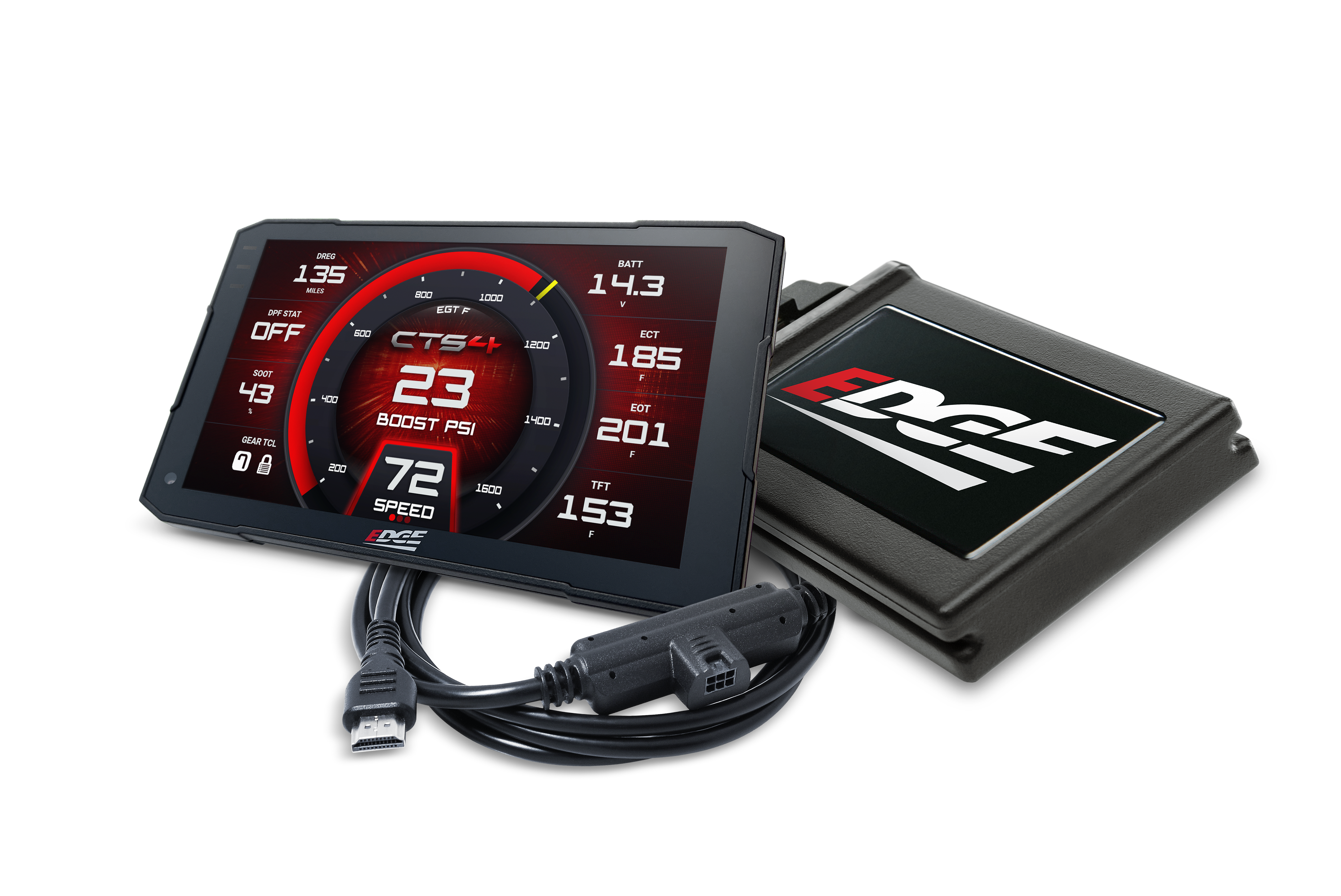

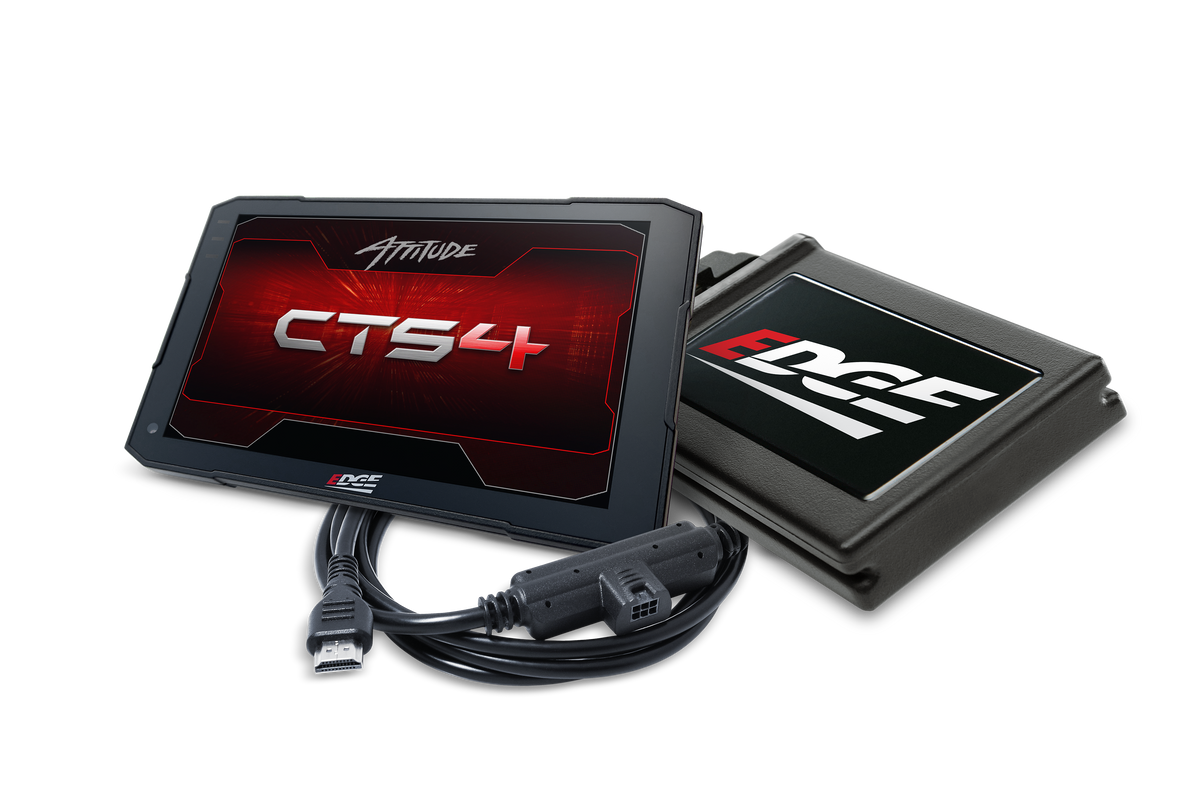

• Juice inline module plus Attitude CTS4 monitor
• Up to +100 HP and +250 lb-ft, per Edge
• 5 power levels, change on the fly
• Optional Hot Unlock level via internet update
• EGT probe included with adjustable setpoint
• Built-in safety backdowns with user-defined limits
• Cold engine defuel control
• Turbo timer, EGT-based or time-based
• Boost setpoint levels on supported applications
• Tire size adjustment from 1 to 50 inches

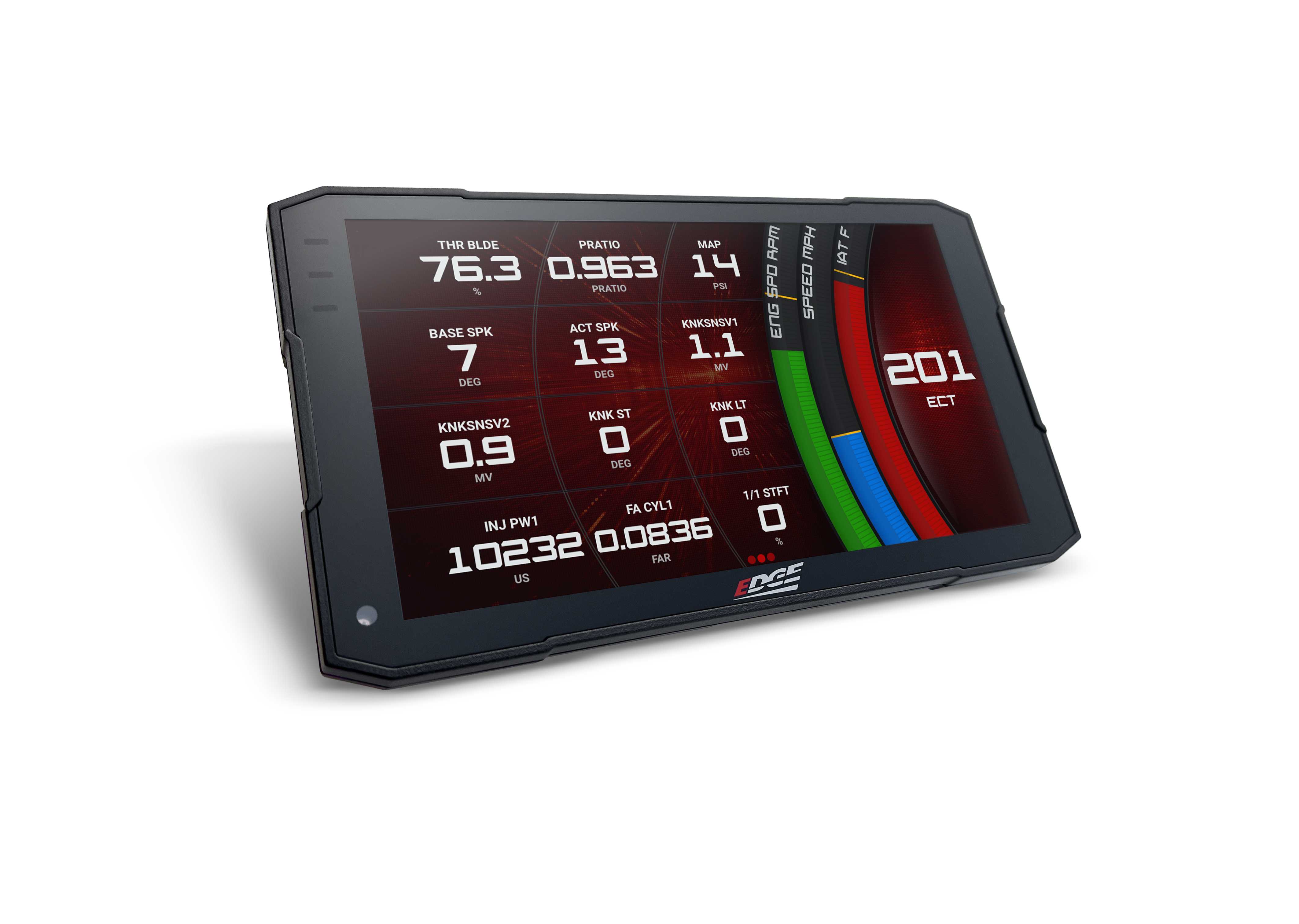

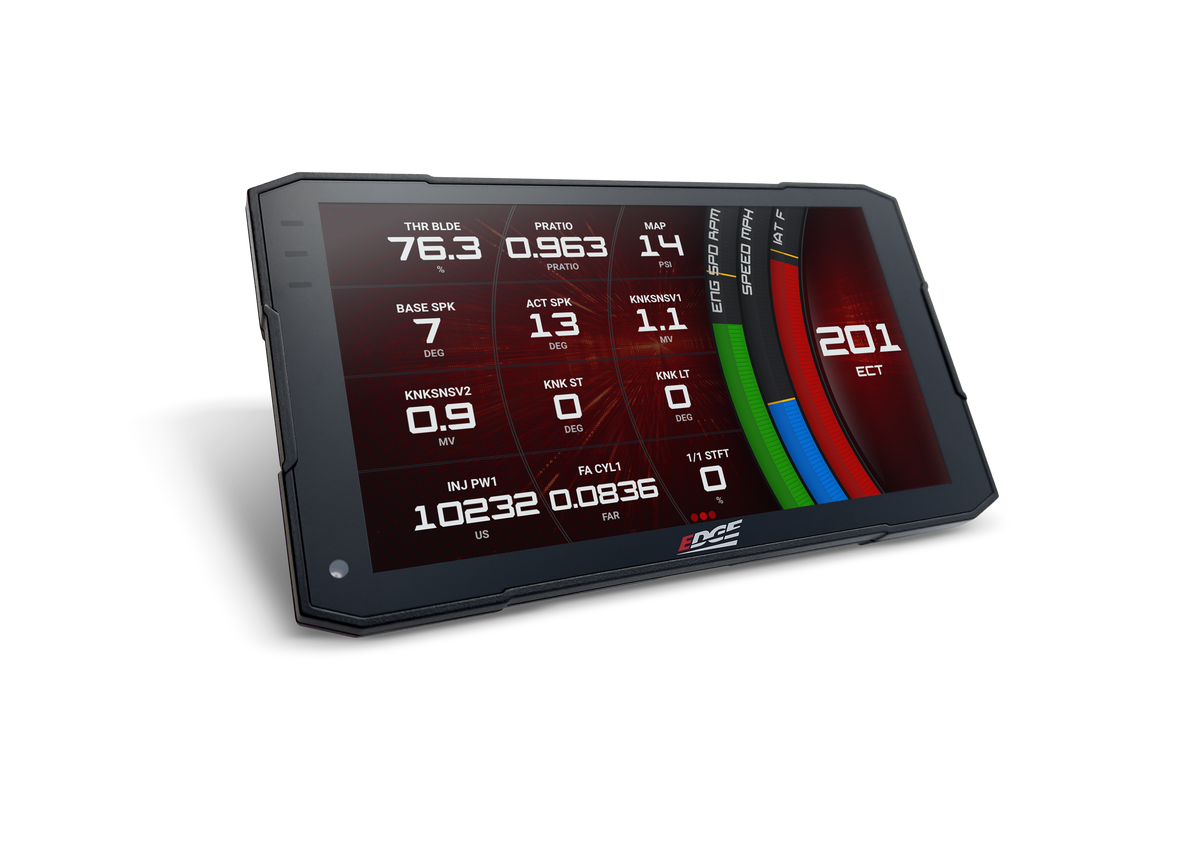

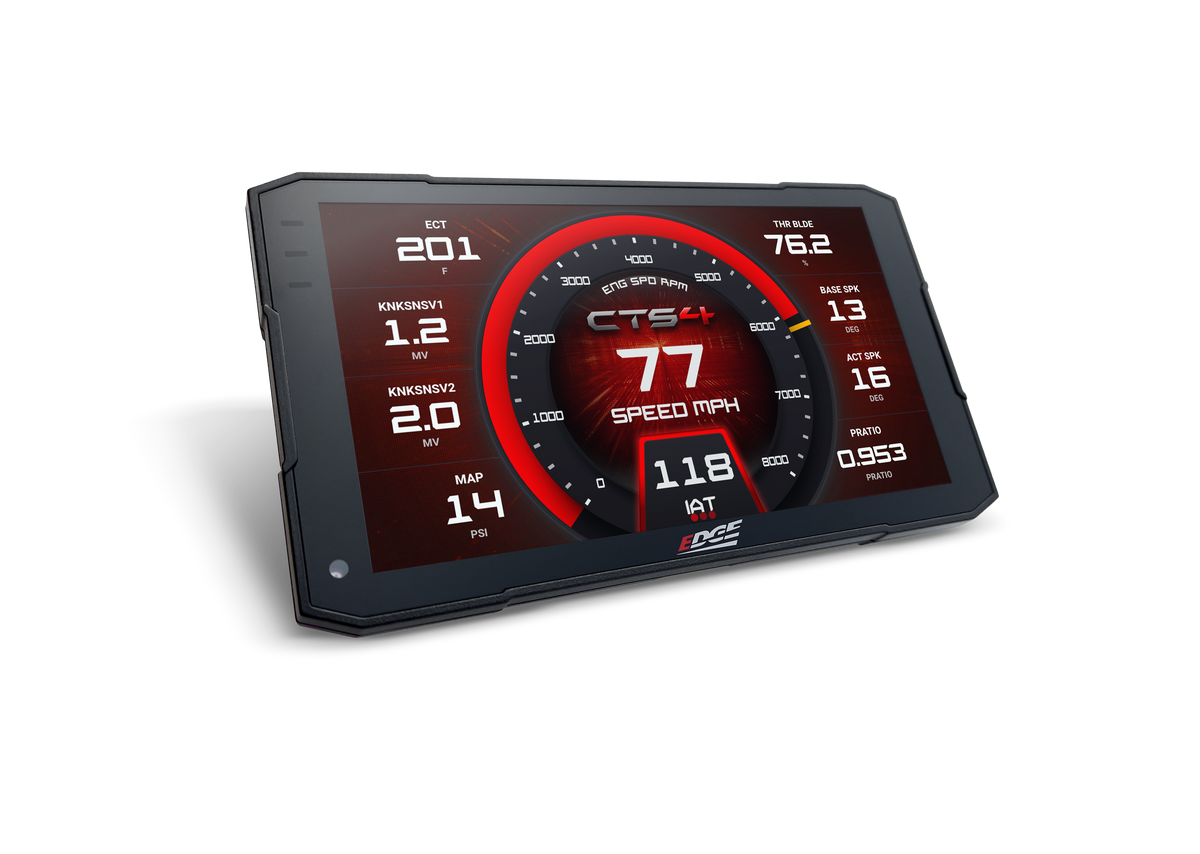

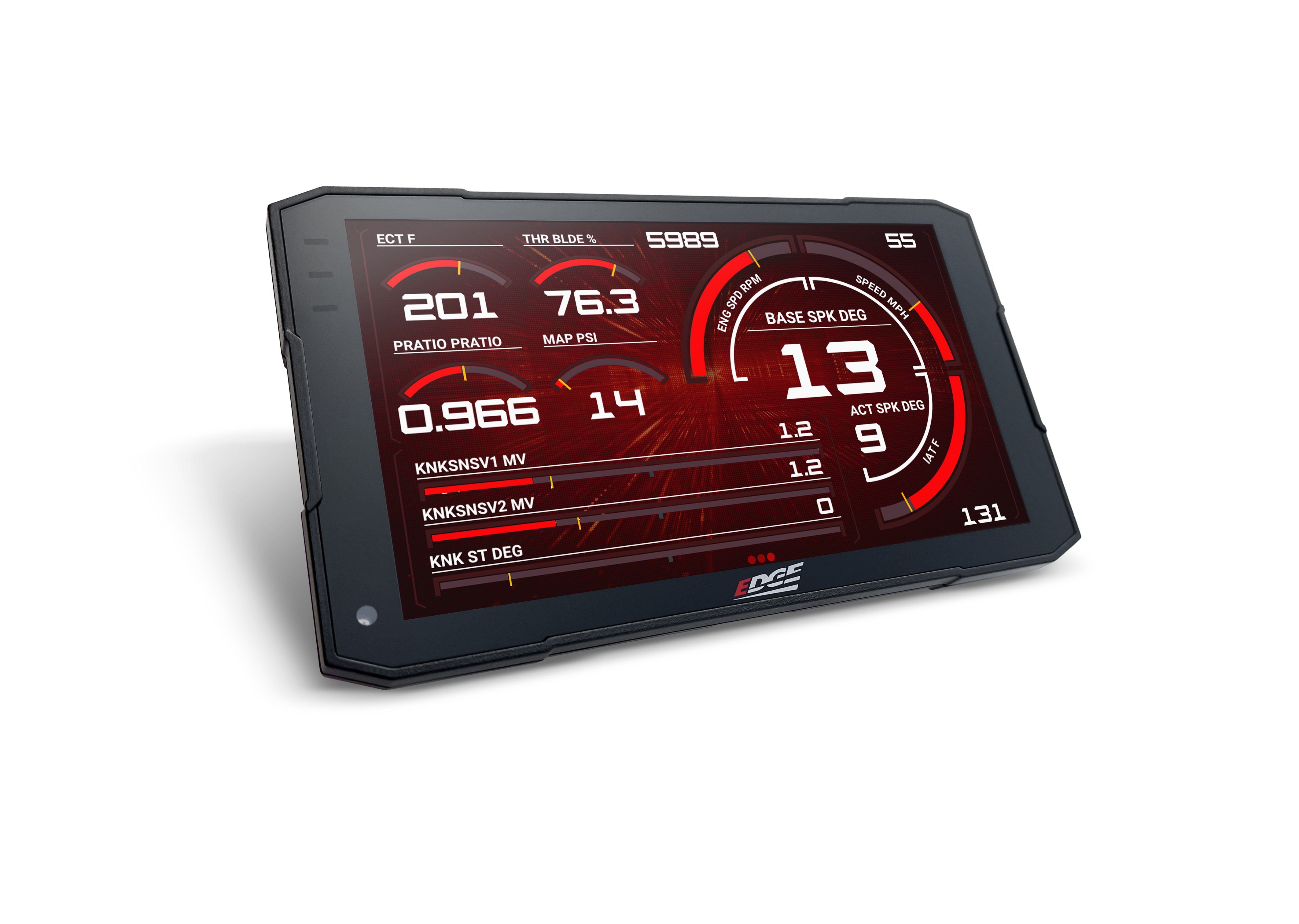

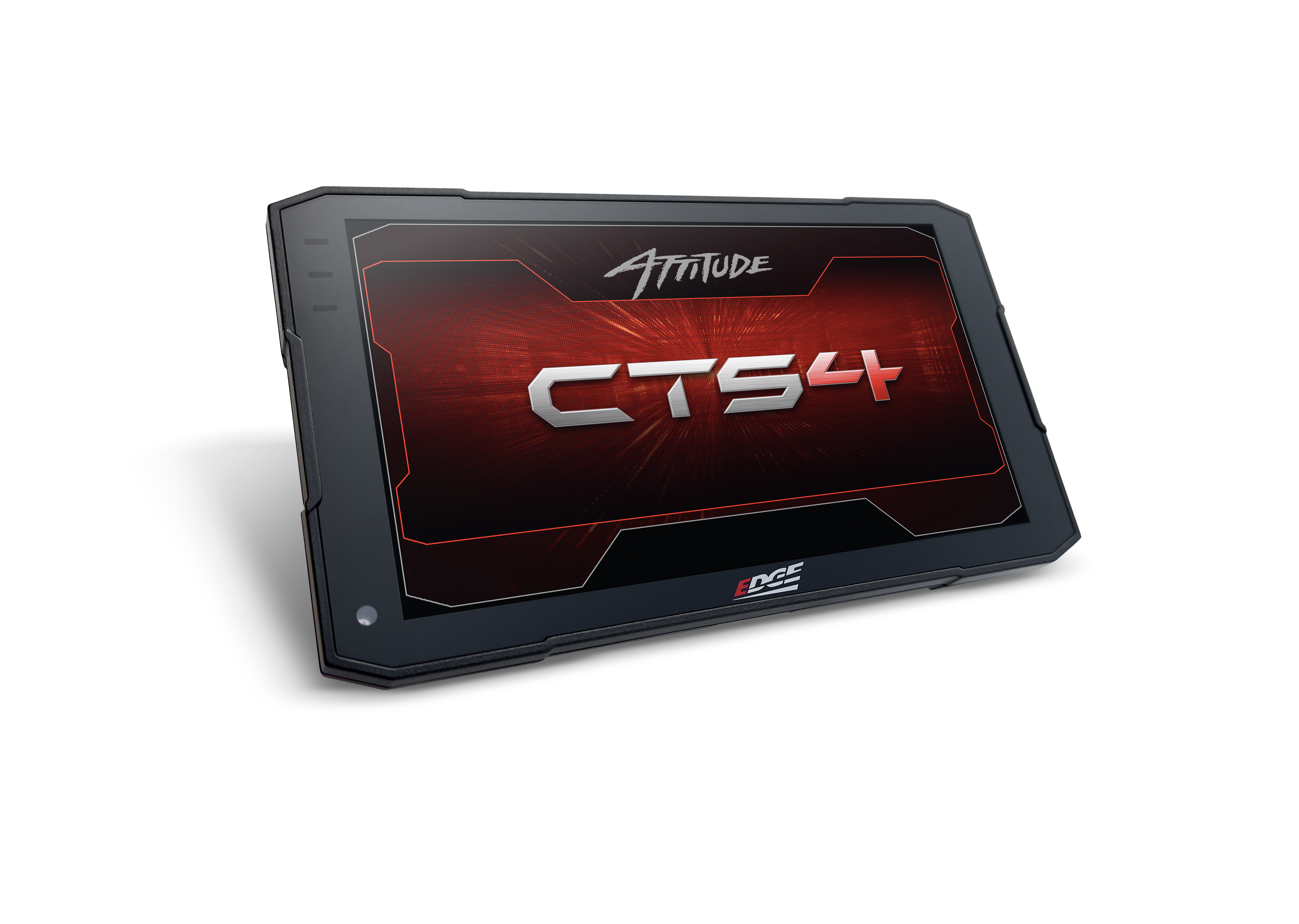

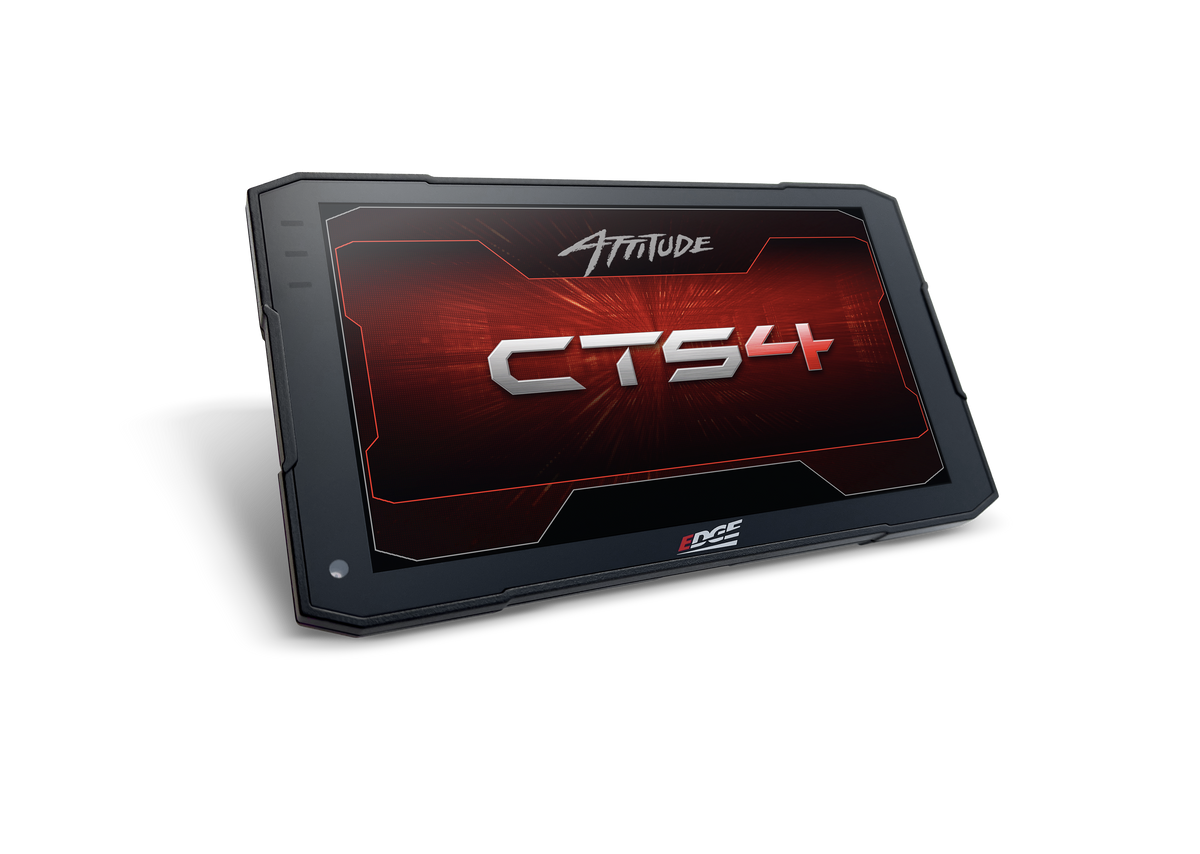

• Color touchscreen with data logging and alerts
• Read and clear diagnostic trouble codes

See What Your Cummins Is Doing Before You Ask It For More Power

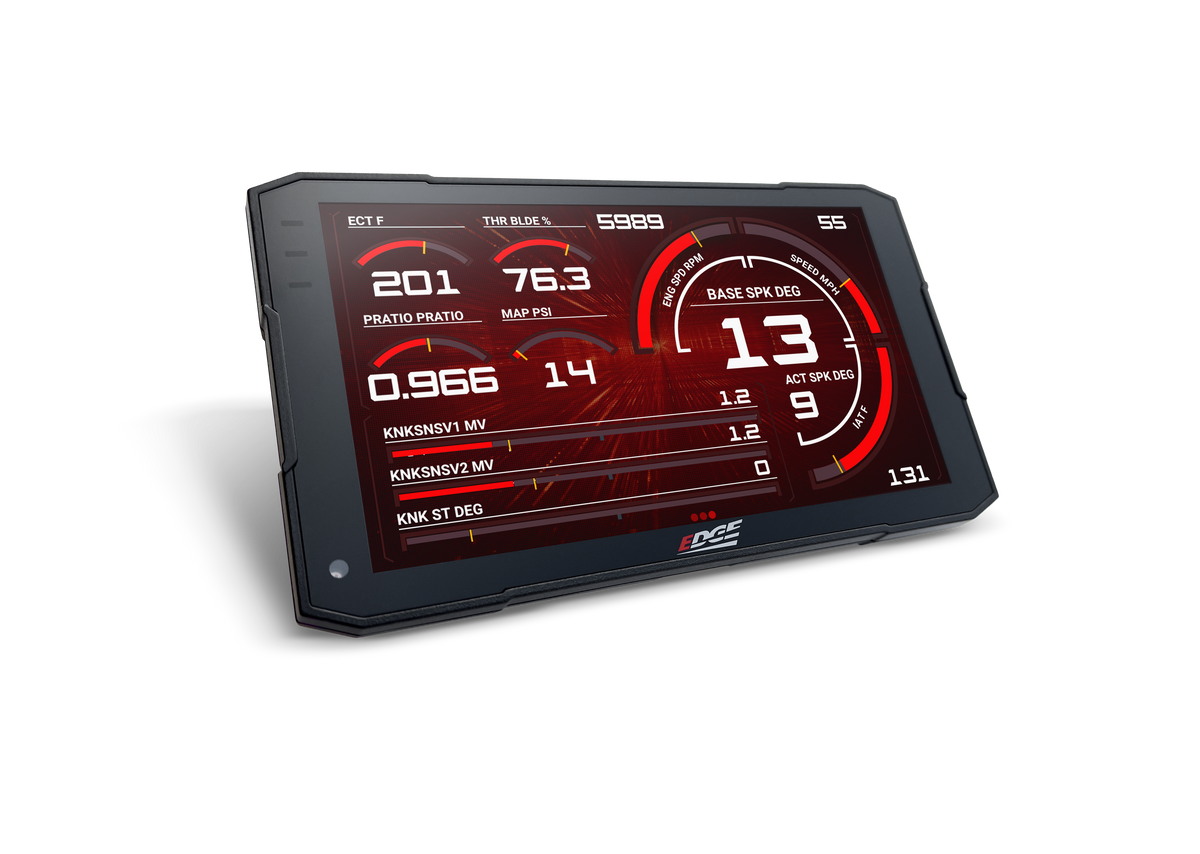

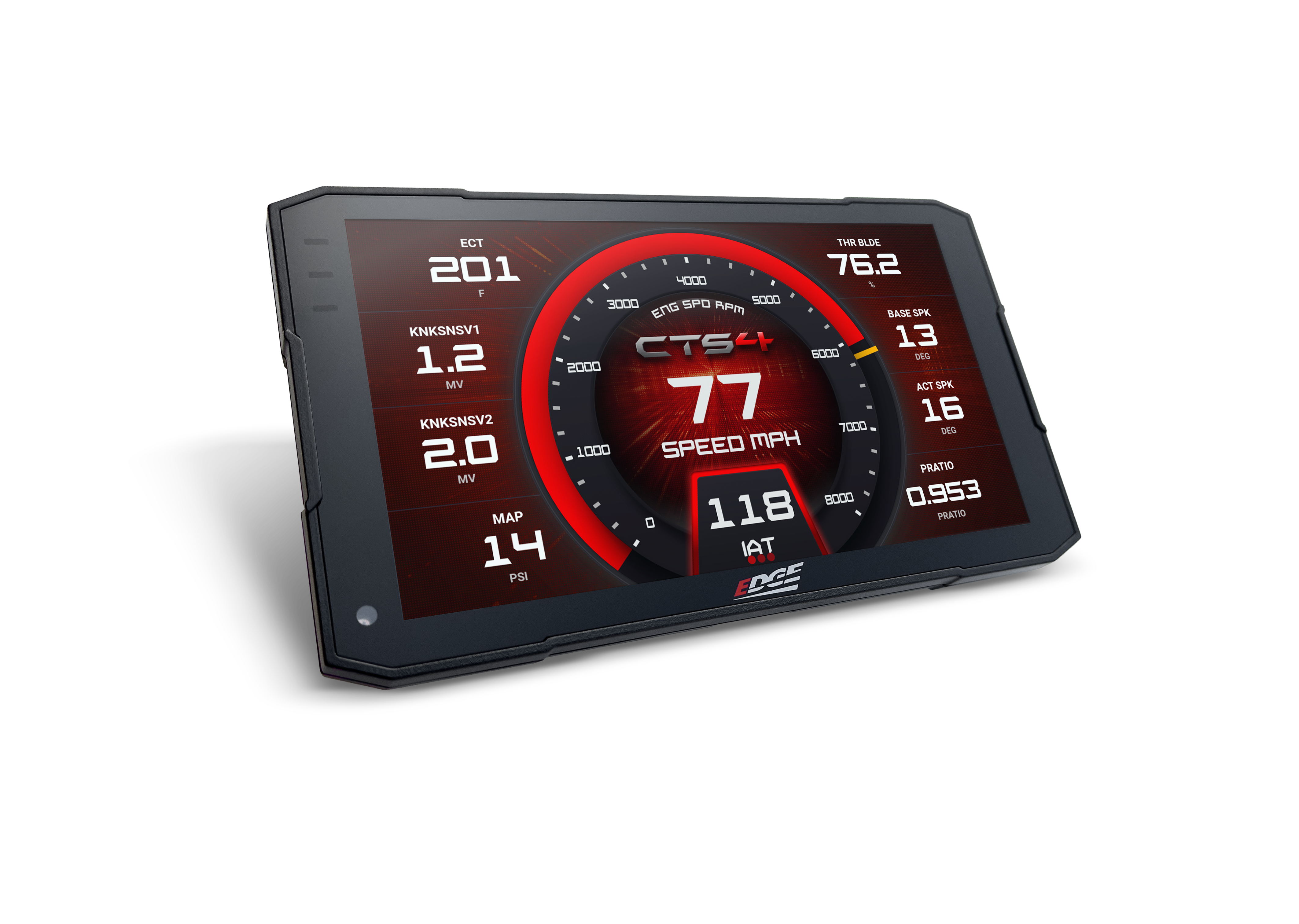

Part of owning an older Cummins is learning to trust your gauges, and the Edge Juice with Attitude CTS4 gives a 2004.5 or 2005 Ram a much better set of them. The color touchscreen sits in the cab and shows supported engine, drivetrain, temperature, and pressure readings, with an included EGT probe feeding the exhaust temperature to the display. That means you can watch what the engine is doing before you decide how much power to ask of it. Edge lists five power levels that you change on the fly from the monitor, starting at 25 horsepower and 80 lb-ft of torque and reaching 100 horsepower and 250 lb-ft at level 5. If you want to go further, Edge says an optional Hot Unlock sixth level can take gains up to 180 horsepower and 400 lb-ft through an internet update on supported applications. Along the way, safety backdowns reduce power automatically when a limit you set is reached, so you stay in control instead of guessing. A turbo timer and cold engine defuel control add a bit more care at the start and end of every drive. For an owner who wants a stronger Cummins and wants to see what it is doing, this kit puts both in one package.

Performance Settings, Protection Settings, And Monitor Functions Broken Into Three Groups

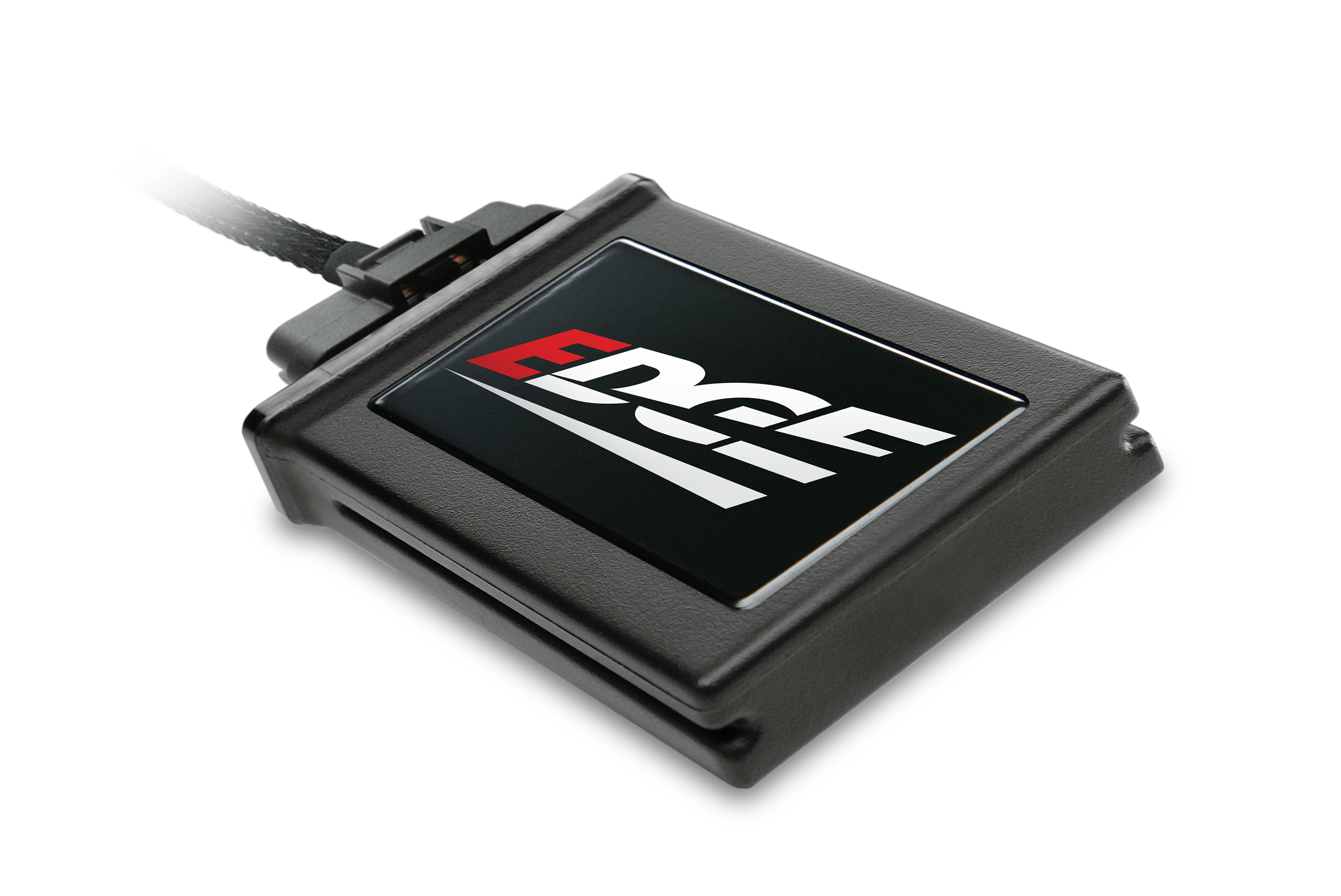

The Edge 31503-4 is a Juice inline performance module with an Attitude CTS4 digital monitor for 2004.5-2005 Dodge Ram 2500 and 3500 trucks with the 5.9L Cummins. On the performance side, the module offers five power levels from 25 horsepower and 80 lb-ft up to 100 horsepower and 250 lb-ft, with an optional Hot Unlock level 6 listed at up to 180 horsepower and 400 lb-ft. Edge cautions that horsepower, torque, available levels, and features vary significantly by model year, engine, and application. On the protection side, the included EGT probe supports a maximum EGT setpoint, supported backdowns can be enabled or disabled, and cold engine defuel limits added performance until the engine reaches an appropriate temperature. Boost setpoint levels 1 through 5 are available on supported applications, and a turbo timer can run on either EGT or time. The tire size setting adjusts from 1 to 50 inches. The monitor is a color touchscreen with an auto dimming screen, a speedometer, in cab monitoring, 5 volt data logging inputs, alerts and records, performance tests, video capability, and Wi-Fi updates. It can read and clear supported trouble codes, and compatible EAS sensors and camera options expand the system.

Fitment: 2004.5, 2005 Dodge RAM 2500/3500 5.9L Cummins

Notes:

• Not legal for sale or use in California, Edge states CARB testing is pending and no E.O. number has been issued, the spec table lists the kit as not 50-state legal and not CARB compliant
• Edge states this part is legal under the EPA Tampering Policy dated November 23, 2020, in states that accept those provisions
• Horsepower and torque gains, power levels, Hot Unlock availability, boost control, tire size adjustment, and safety features vary significantly by model year, engine, and application, verify features and gains for your truck before ordering
• Edge lists the power levels as 25 hp/80 lb-ft, 40 hp/120 lb-ft, 60 hp/150 lb-ft, 80 hp/200 lb-ft, and 100 hp/250 lb-ft, and up to 180 hp/400 lb-ft with Hot Unlock, these are Edge's claims, results will vary
• Includes an EGT probe
• Hot Unlock adds a sixth power level through an internet update on supported applications
• Compatible EAS sensors and camera options are available to expand the system
• The Juice is not a custom tuner and does not accept custom tunes
• Software and an instruction manual are included, a case and an AC adapter are not
• Pods and mounts are available for the Attitude CTS4

• California Proposition 65 warning applies to this product
