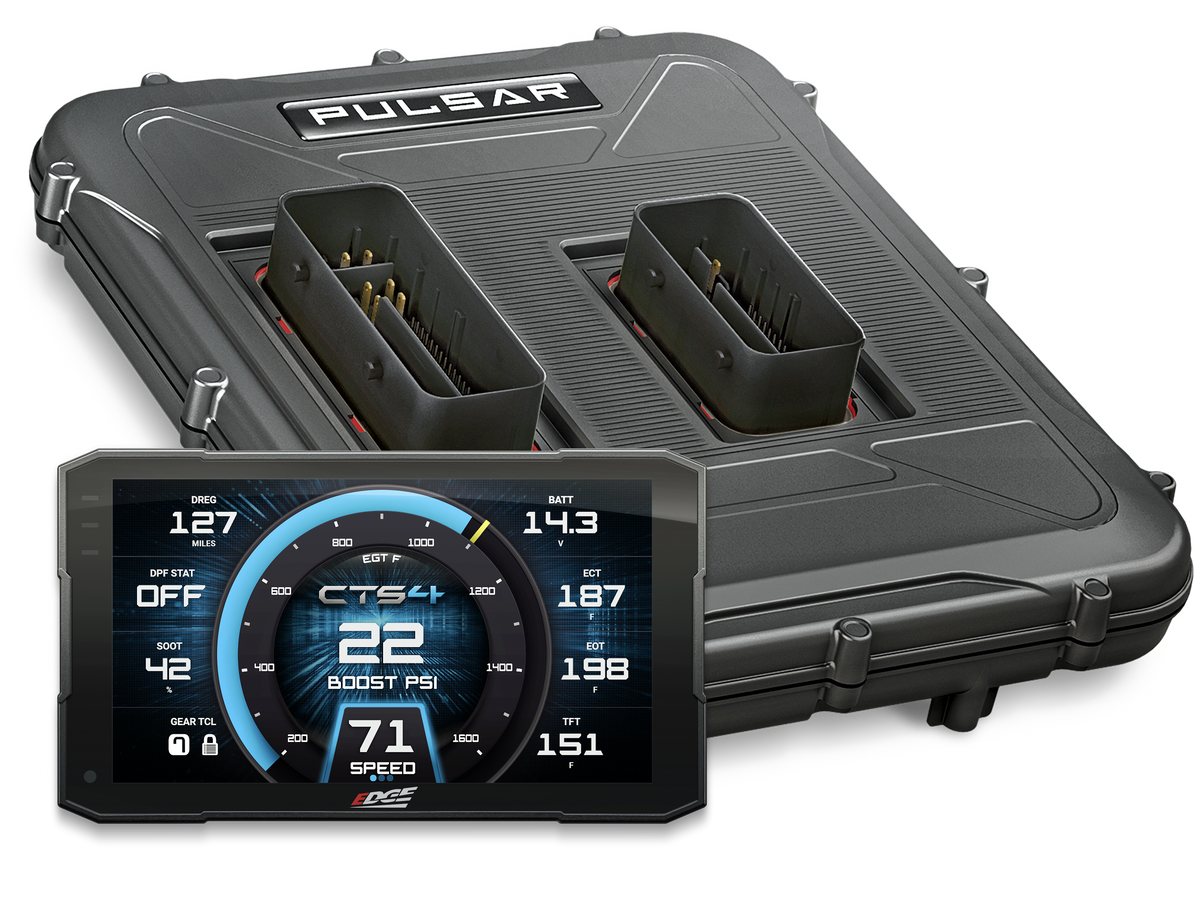

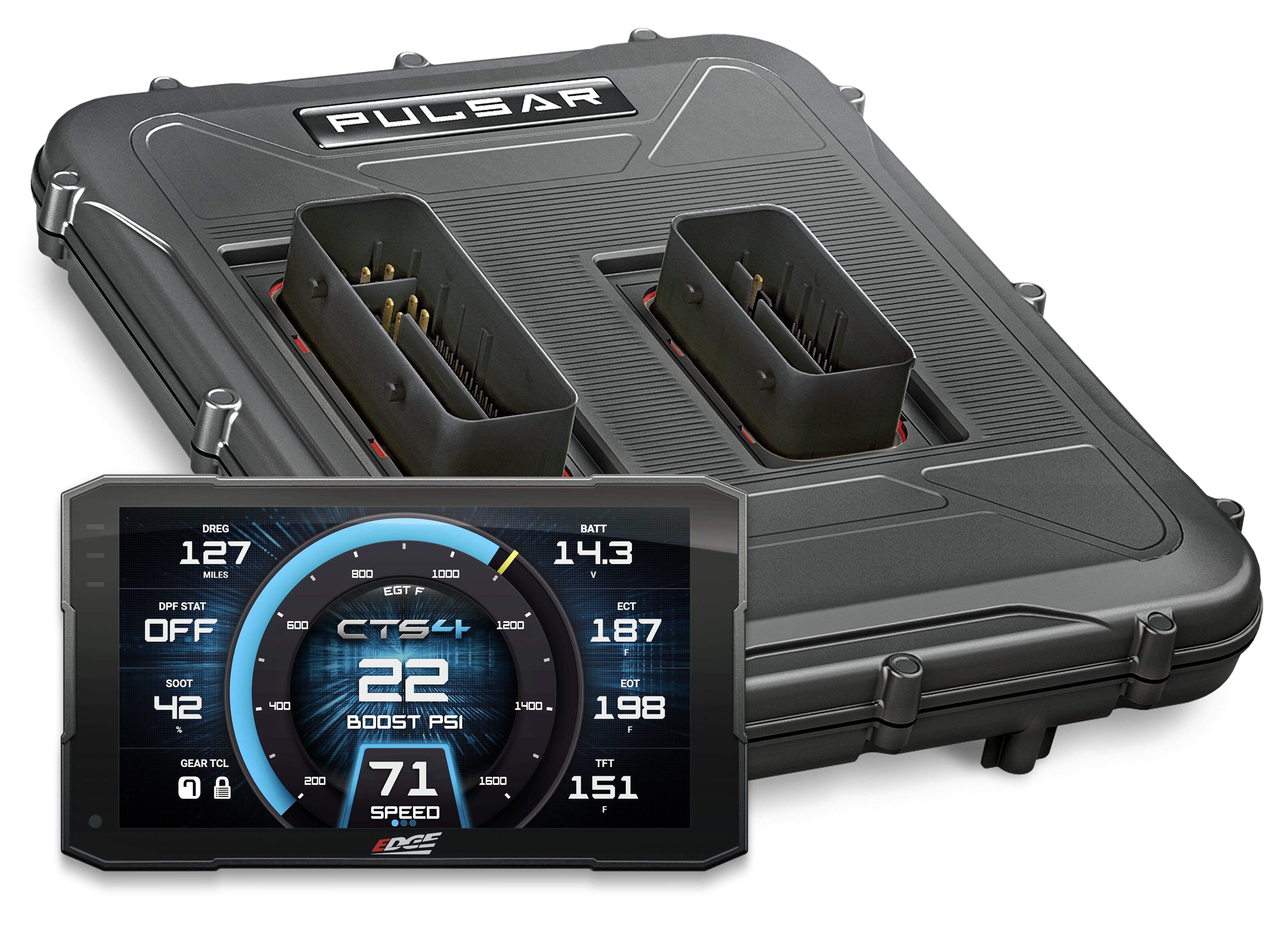

Pulsar V3 w/ Edge Insight CTS4

Features:

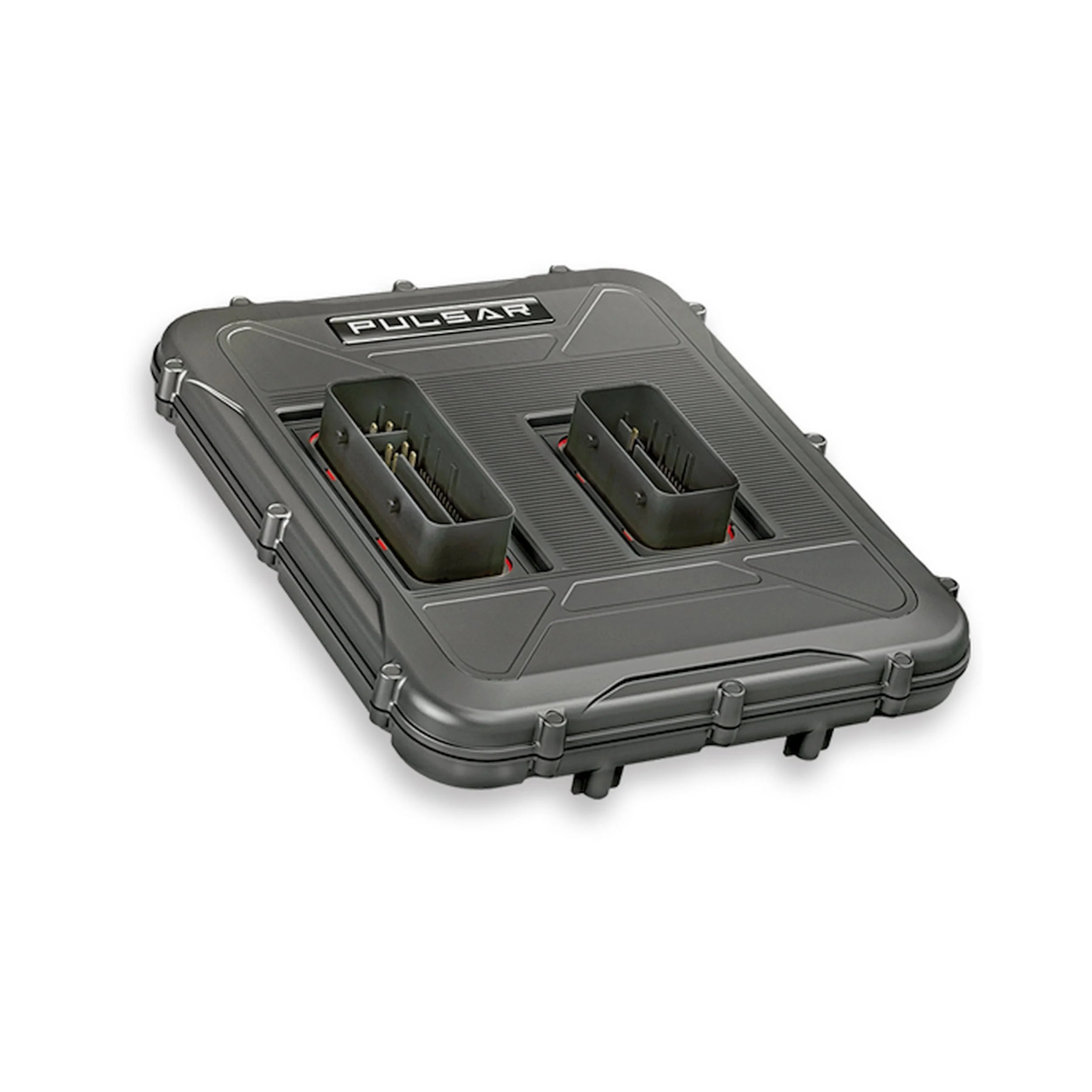

• Pulsar V3 inline module plus Insight CTS4 monitor
• Up to +136 HP and +291 lb-ft, per Edge
• 5 power levels, adjust with steering wheel buttons
• Plugs into factory connectors, no ECM flash
• Adjusts injection timing, pulse width, rail pressure, airflow
• Built-in throttle sensitivity booster
• EGT backdown and transmission slip backdown protection
• Cold engine protection and gear change backdown
• Adjustments for tire size and gear ratio

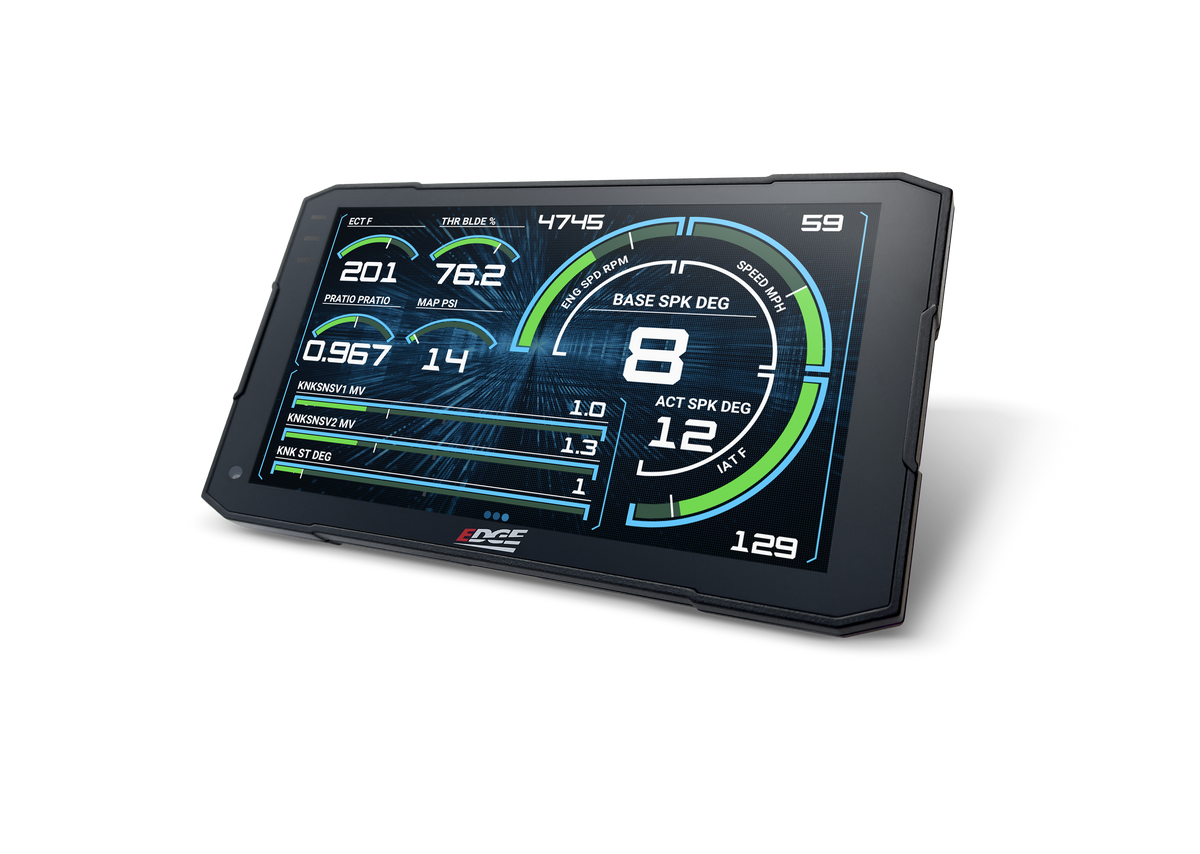

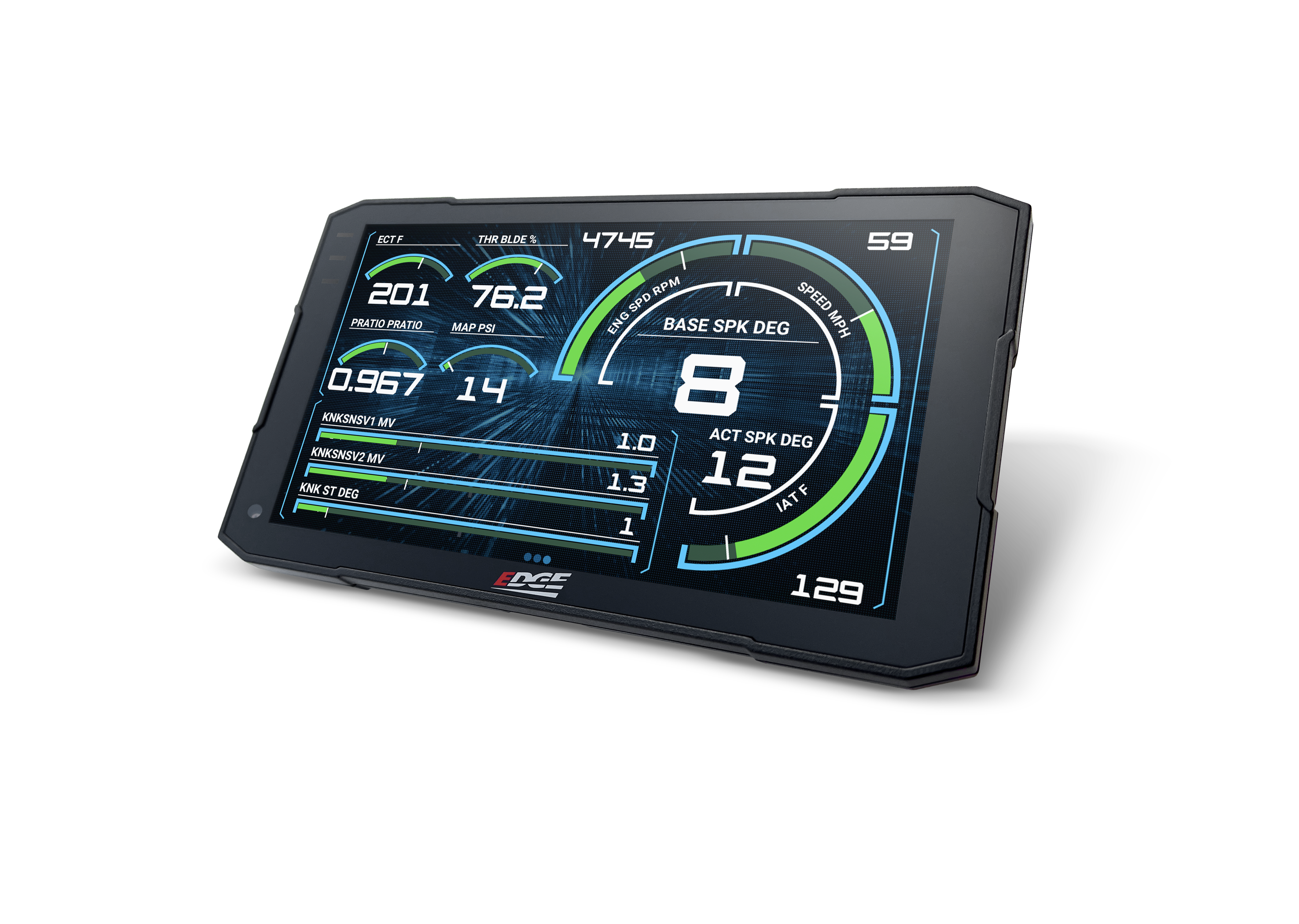

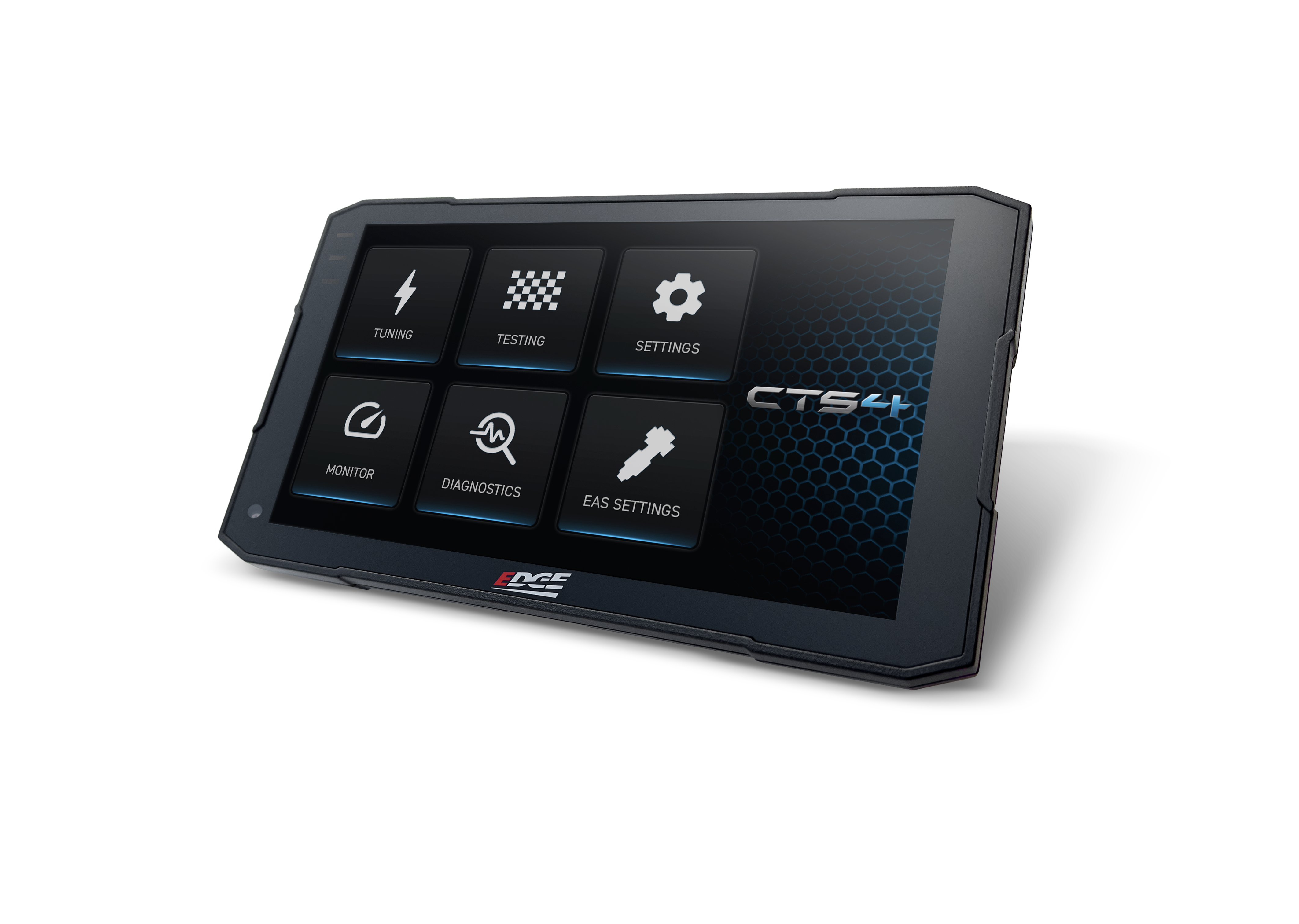

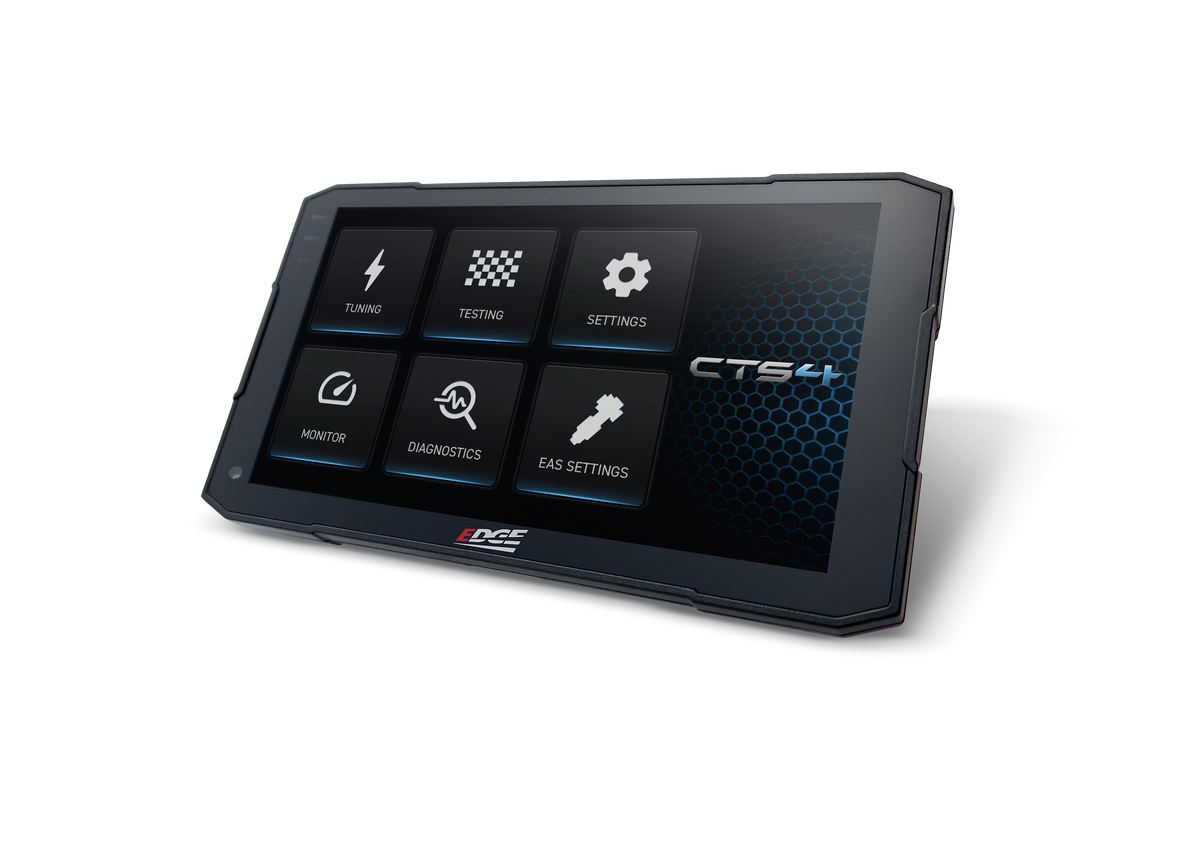

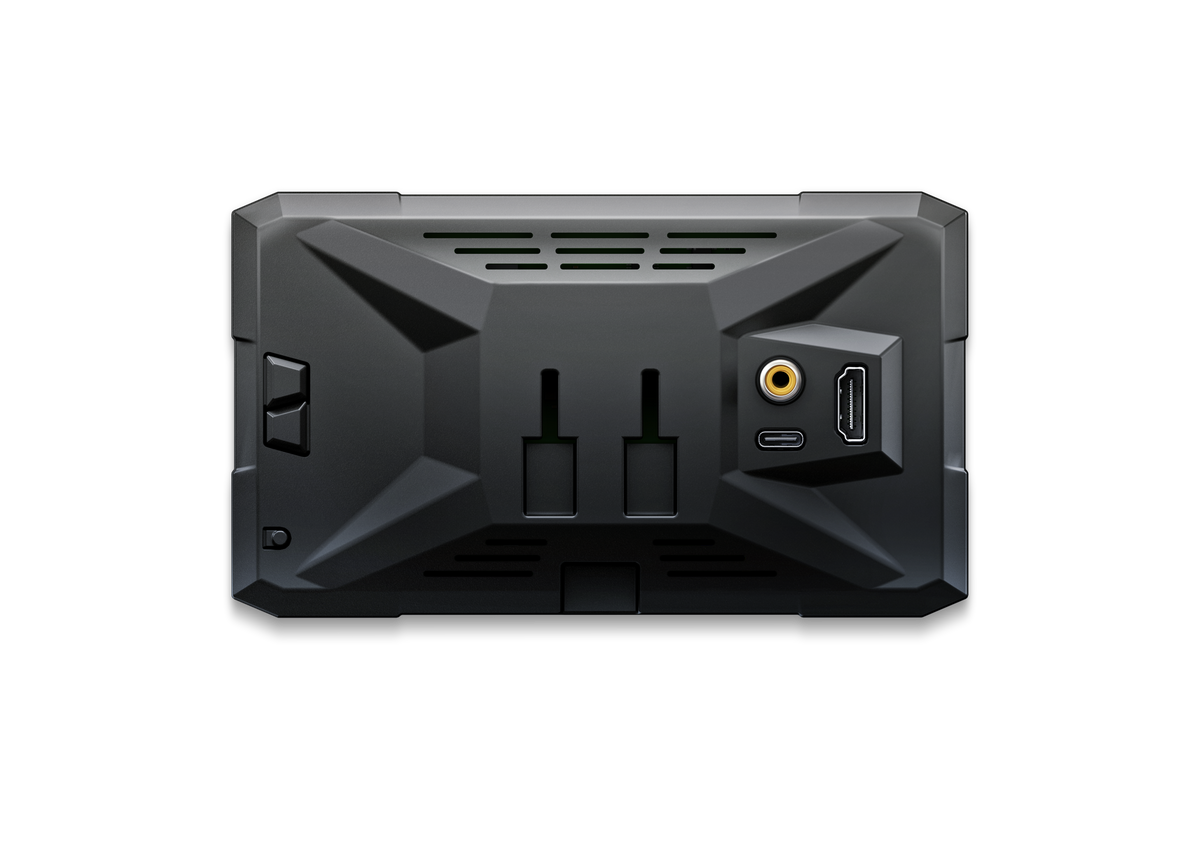

• Color touchscreen monitor with speedometer
• In-cab monitoring, data logging, trouble code clearing
• Updates managed through the Insight, Wi-Fi enabled

Skip The ECM Swap And Still Get Serious Power From Your L5P

If you want real power out of your L5P without mailing off your ECM, the Edge Pulsar V3 was built for that. It plugs inline with the factory connectors, so there is no ECM unlocking, no cross shipping, and no flash tuning to deal with. Edge rates it at up to 136 horsepower and 291 lb-ft of torque over the factory tuning. The V3 strategy works on four things at once, injection pulse width, injection timing, fuel rail pressure, and airflow, and Edge says it adds 50 percent more power than the original Pulsar. You choose from five power levels with the cruise control buttons on your steering wheel, so you can change them while you drive without ever touching a screen. A built in throttle sensitivity booster sharpens the pedal, and safety features like EGT backdown, transmission slip backdown, and cold engine protection help keep the truck within safe limits. This kit adds the Insight CTS4, a color touchscreen monitor, so you can watch what the truck is doing from the cab. For a 2020 to 2023 Silverado or Sierra HD that tows and works hard, it is a complete power and monitoring package.

Four Calibration Targets, Five Power Levels, And A Color Monitor In One Inline Kit

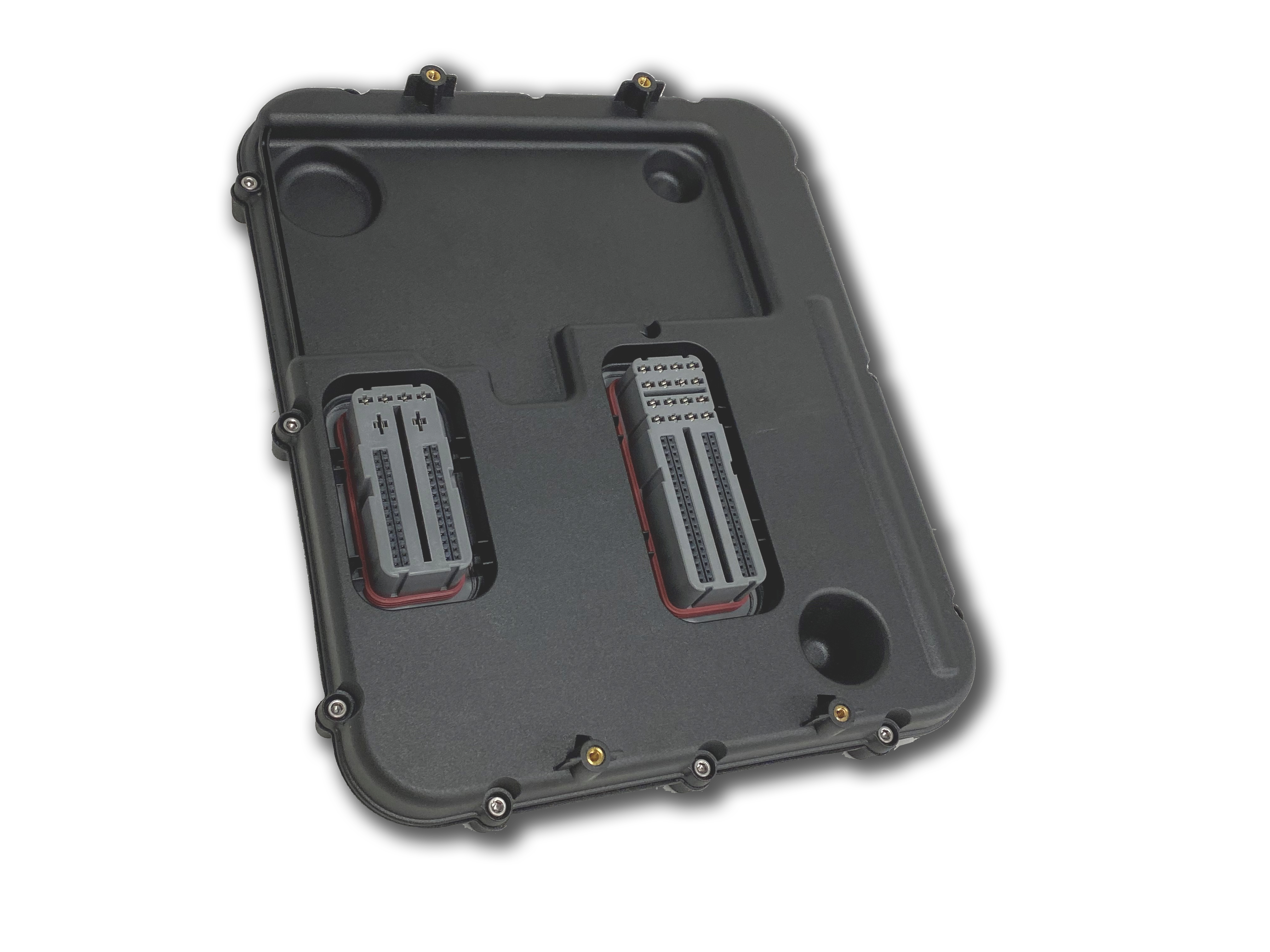

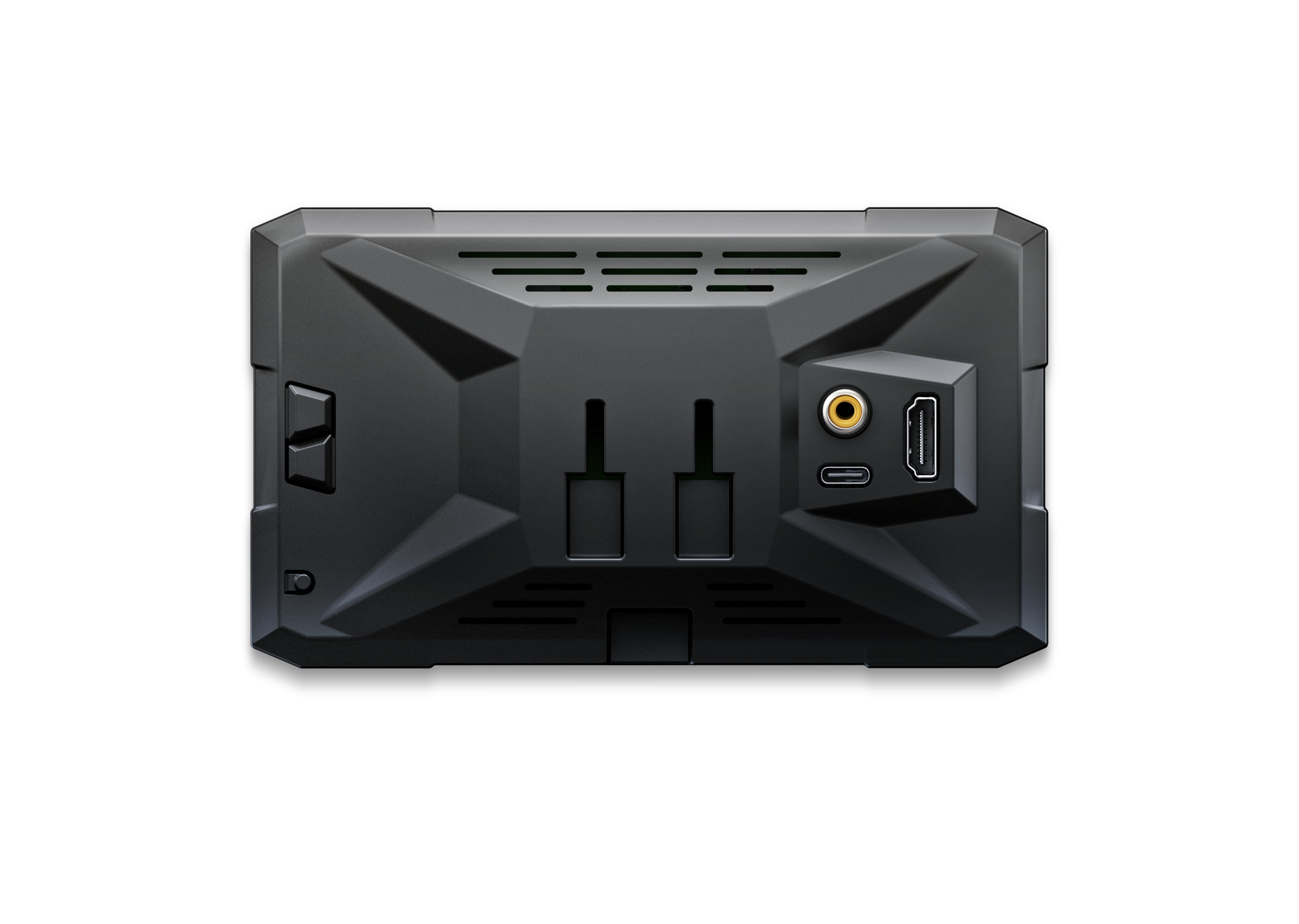

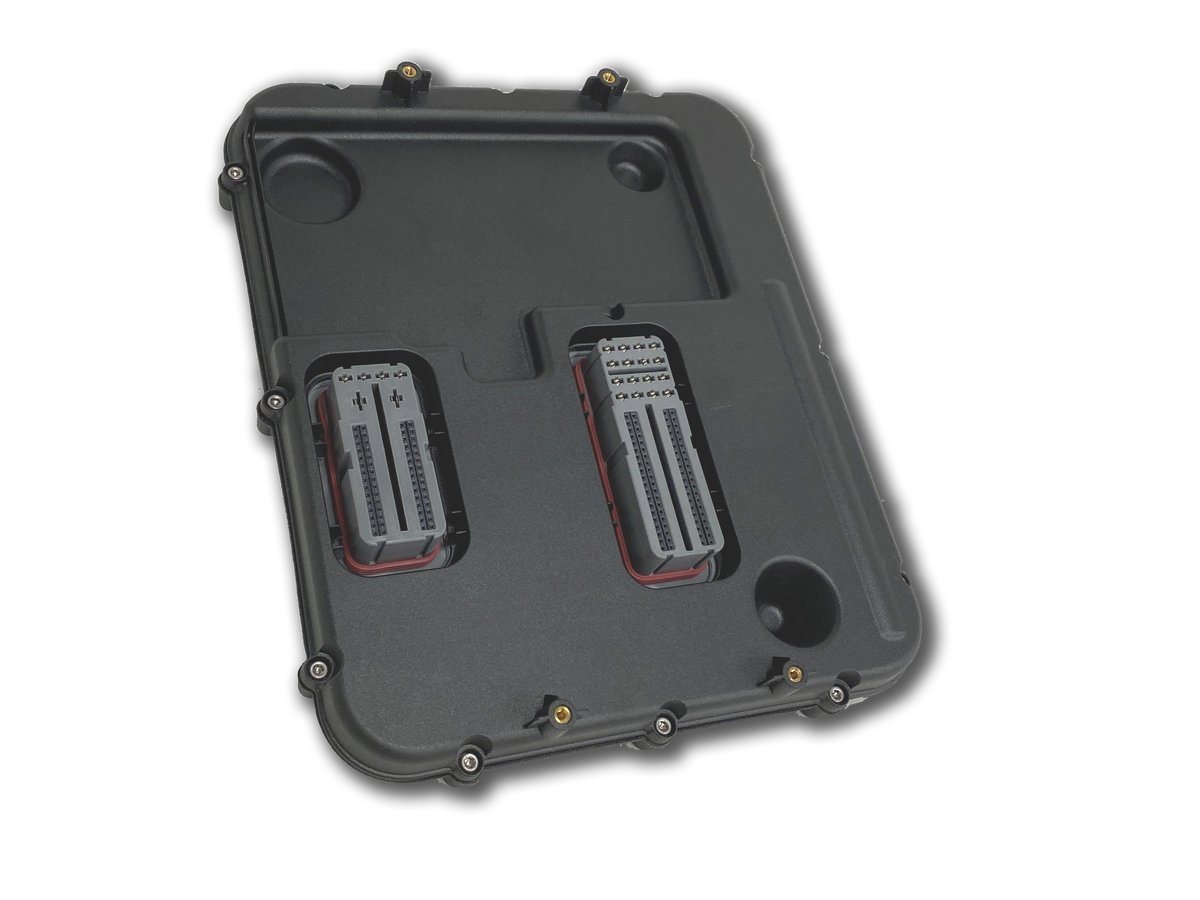

The Edge 22601-4 pairs the Pulsar V3 inline module with the Insight CTS4 in cab monitor for 2020-2023 Silverado and Sierra 2500HD and 3500HD trucks with the 6.6L Duramax L5P. The Pulsar connects directly to the truck's PCM through factory connectors, and Edge says it uses live data to adapt its signals, so the truck needs no ECM flash. The V3 strategy adjusts injection pulse width, injection timing, fuel rail pressure, and airflow, and the module has five power levels that you switch with the plus and minus cruise control buttons. Its built in features include a throttle sensitivity booster, adjustments for tire size and gear ratio, and a high idle setting. Safety features include EGT backdown, set at 1500 degrees in the Pulsar, transmission slip backdown that reduces power when clutch slip is detected, gear change backdown, and cold engine protection. The Insight CTS4 is a color touchscreen monitor with in cab monitoring, data logging with 5 volt inputs, a speedometer, video capability, and the ability to erase fault codes. It supports Wi-Fi updates, and Edge says updates for the Pulsar are managed through the Insight, so you do not need a computer. The kit includes software and an instruction manual, and pods and mounts are available for the monitor.

Fitment: 2020, 2021, 2022, 2023 GM Sierra/Silverado 2500HD/3500HD 6.6L Duramax L5P

Notes:

• Not legal for sale or use in California, Edge states CARB testing is pending and no E.O. number has been issued, the spec table lists the kit as not 50-state legal and not CARB compliant
• Edge states this part is legal under the EPA Tampering Policy dated November 23, 2020, in states that accept those provisions
• Fits 2020-2023 Chevrolet Silverado and GMC Sierra 2500HD/3500HD trucks with the 6.6L Duramax L5P
• Horsepower and torque gains of up to +136 hp and +291 lb-ft are Edge's claims, results will vary
• Power levels are changed with the factory cruise control plus and minus buttons on the steering wheel
• Physically changing the ring and pinion gears on late model GM trucks disables the factory cruise control, GM builds this into the engine calibration and full ECM tuning is required to turn it back on
• The Pulsar is not a custom tuner, it does not accept custom tunes, and the spec table lists the kit as not upgradable
• Software and an instruction manual are included, a case and an AC adapter are not
• Pods and mounts are available for the Insight CTS4

• California Proposition 65 warning applies to this product
