EZX + Insight CTS4 Kit

Features:

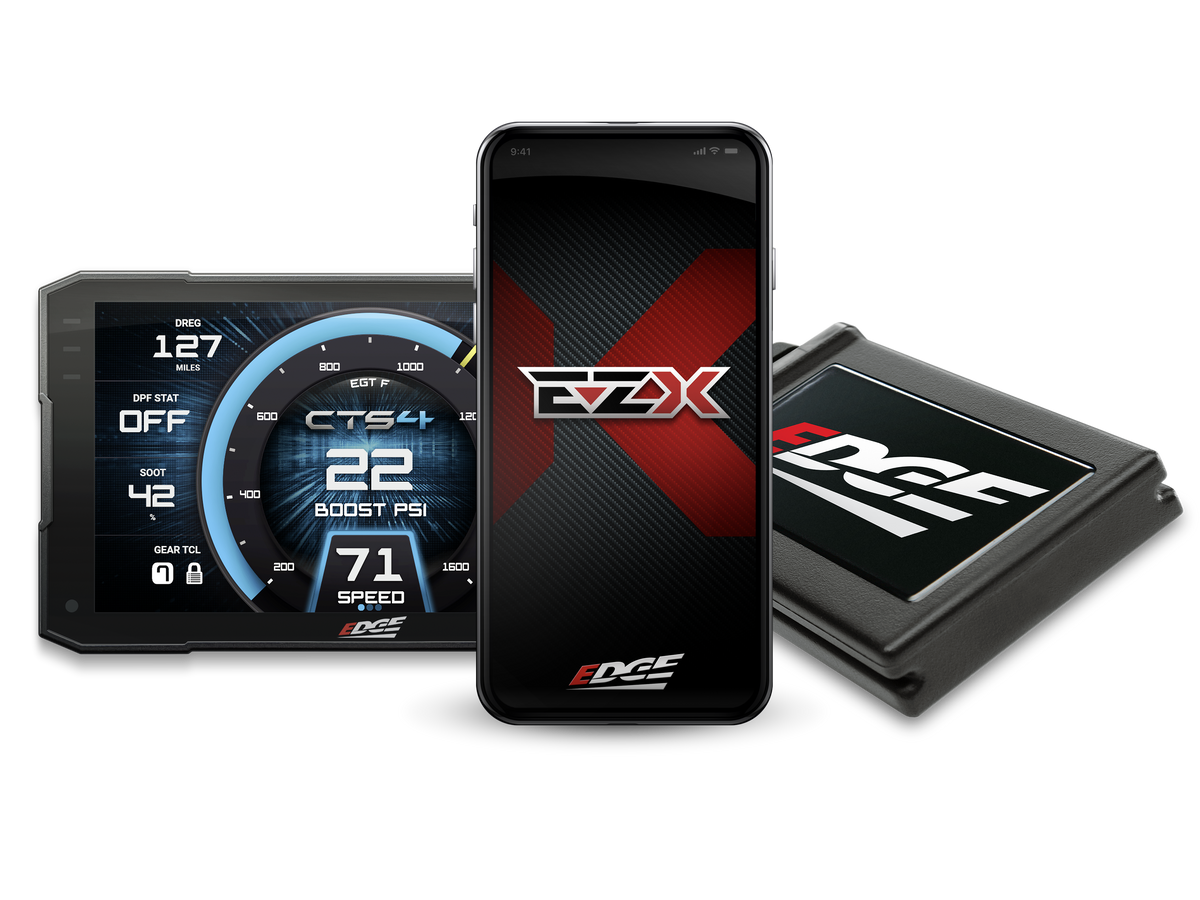

• EZX inline module plus Insight CTS4 monitor
• Plug-and-play, no cutting or splicing
• 5 power levels adjustable on the fly
• Up to +60 HP and +140 lb-ft, per Edge
• Control power levels with the Edge app
• Engine coolant protection built in

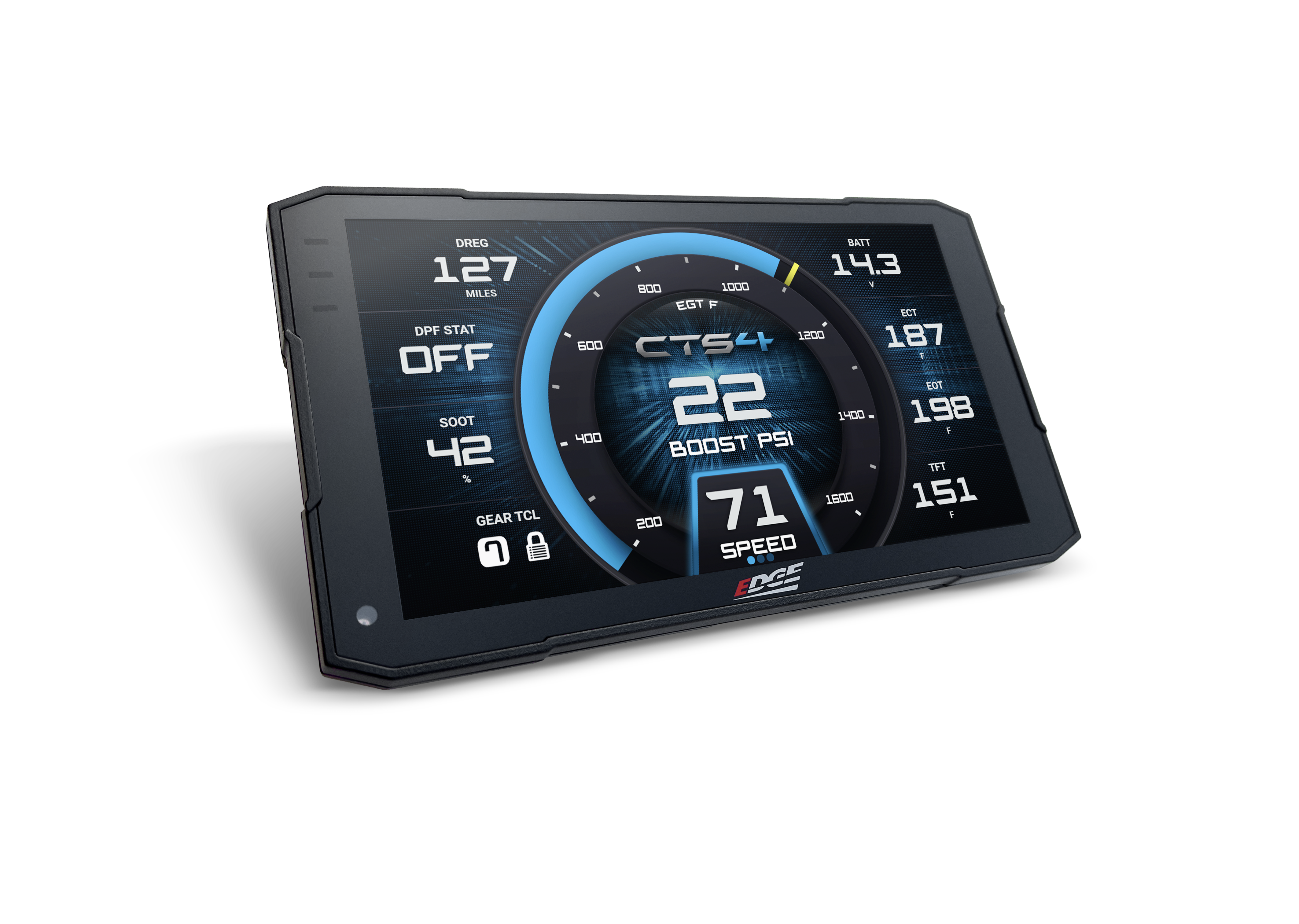

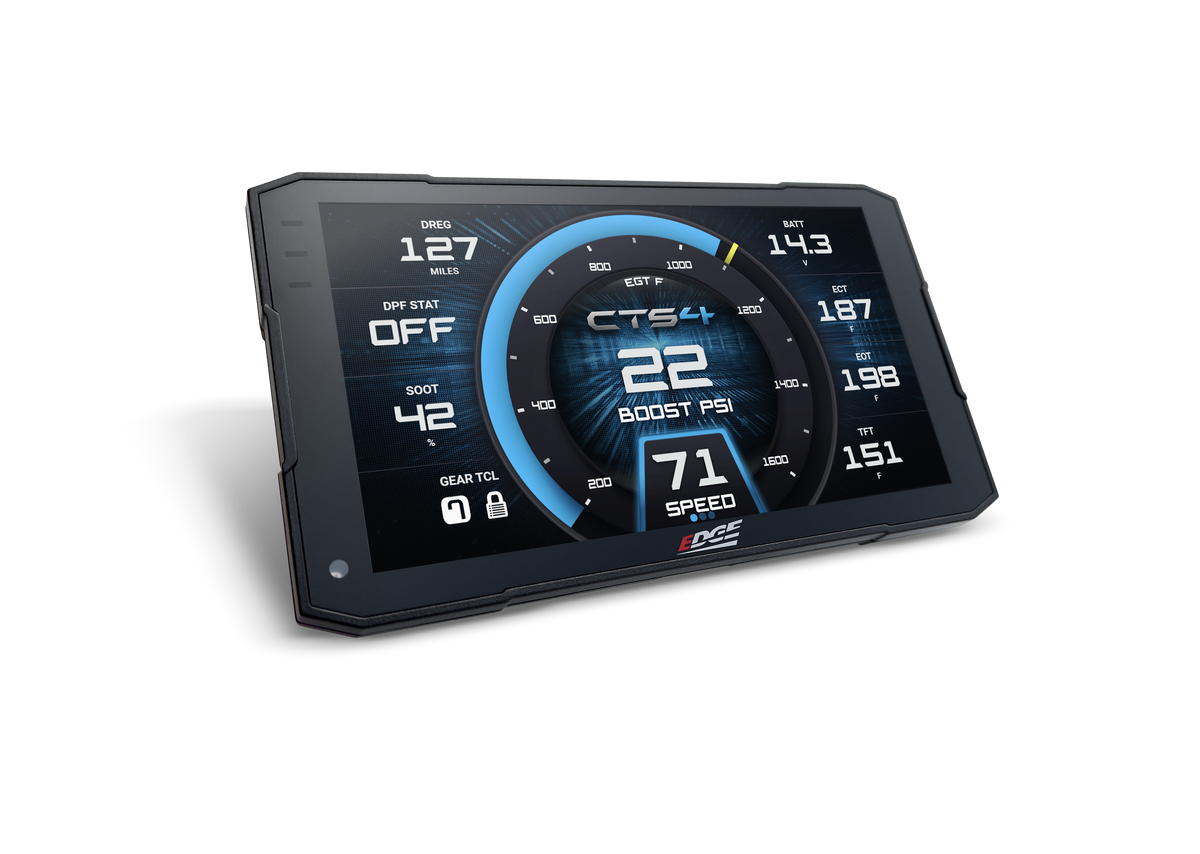

• Color touchscreen with auto-dimming display
• In-cab monitoring, data logging, alerts and records
• Read and clear diagnostic trouble codes
• Performance tests and video capability
• Wi-Fi updates and accessory system support
• Fits SO and HO trucks, F-250 to F-450

Pick Your Power Level And Keep Your Eyes On Every Number While You Tow

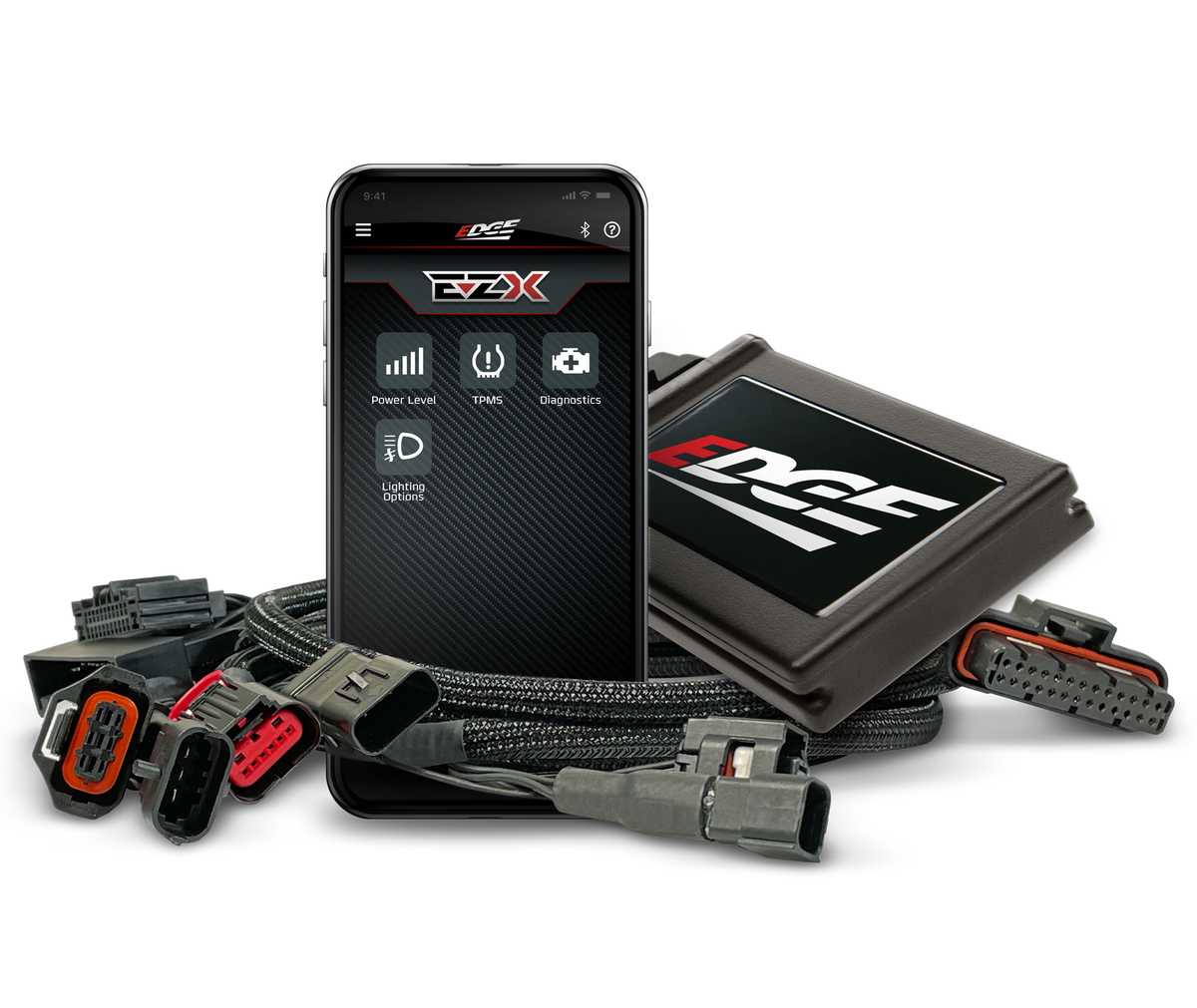

Some days your 6.7L Power Stroke needs every bit of power it can get, and other days you just want the truck to drive normally. The Edge EZX lets you have both by giving you five power levels you can change on the fly. You can step up for a heavy trailer and step back down for the commute. Edge rates the top level at up to 60 horsepower and 140 lb-ft of torque at the wheels, and you control it all from the Edge smartphone app. The module plugs into the factory system with no cutting or splicing, and Edge says it leaves no trace when it is removed. It also protects the engine by adding no power until the coolant reaches 120 degrees and backing power down if the coolant climbs to 240 degrees. This kit pairs the module with the Insight CTS4 monitor, which puts a color touchscreen in the cab so you can see what the truck is doing as you tow. For a 2023 to 2026 Super Duty owner, it is a clean way to add power and keep an eye on the truck at the same time.

Five Power Levels, Coolant Protection, And A Color Touchscreen Monitor Working Together

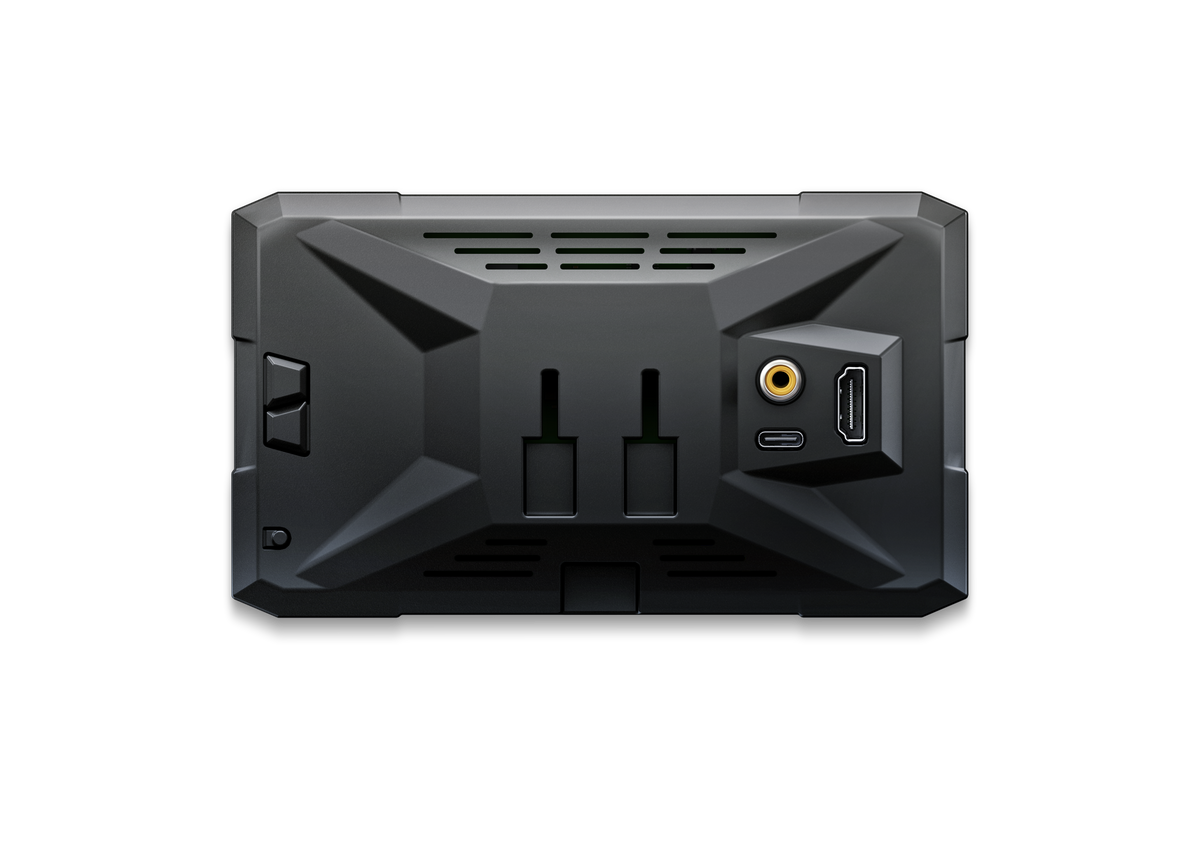

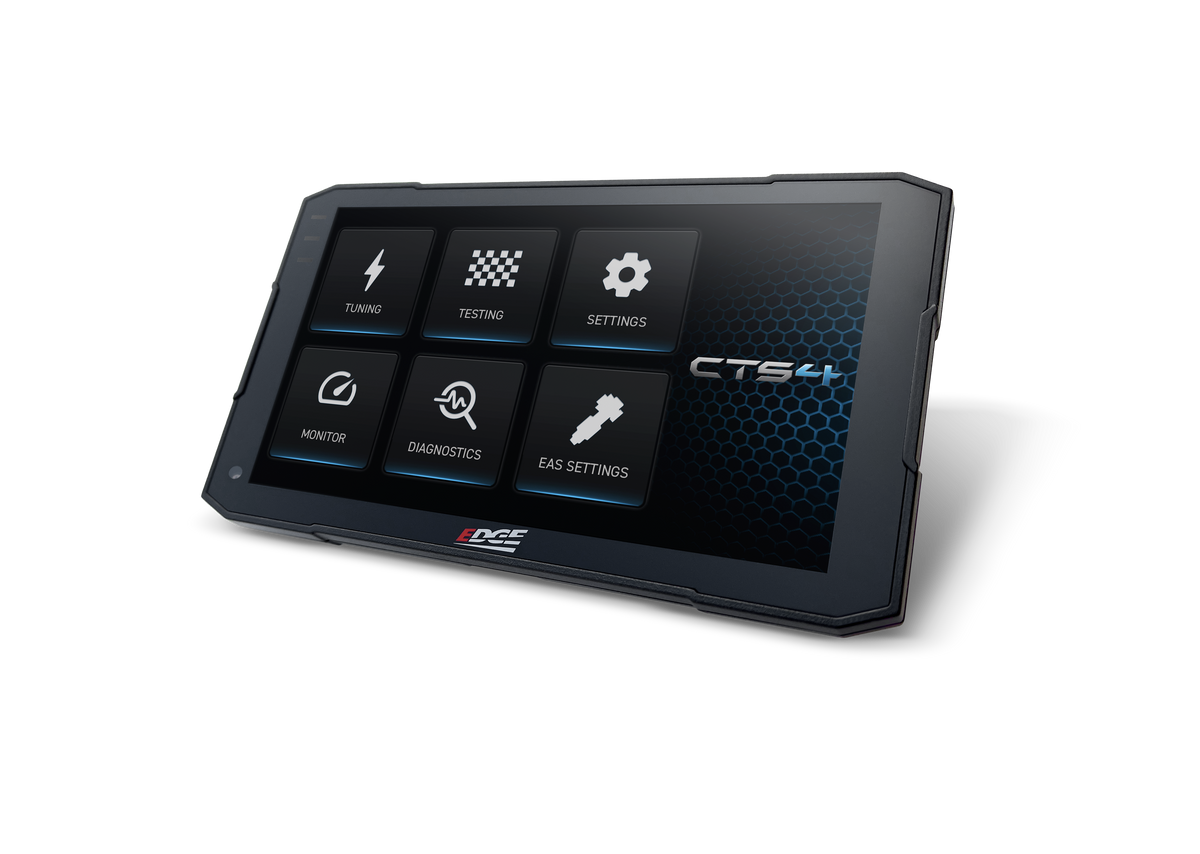

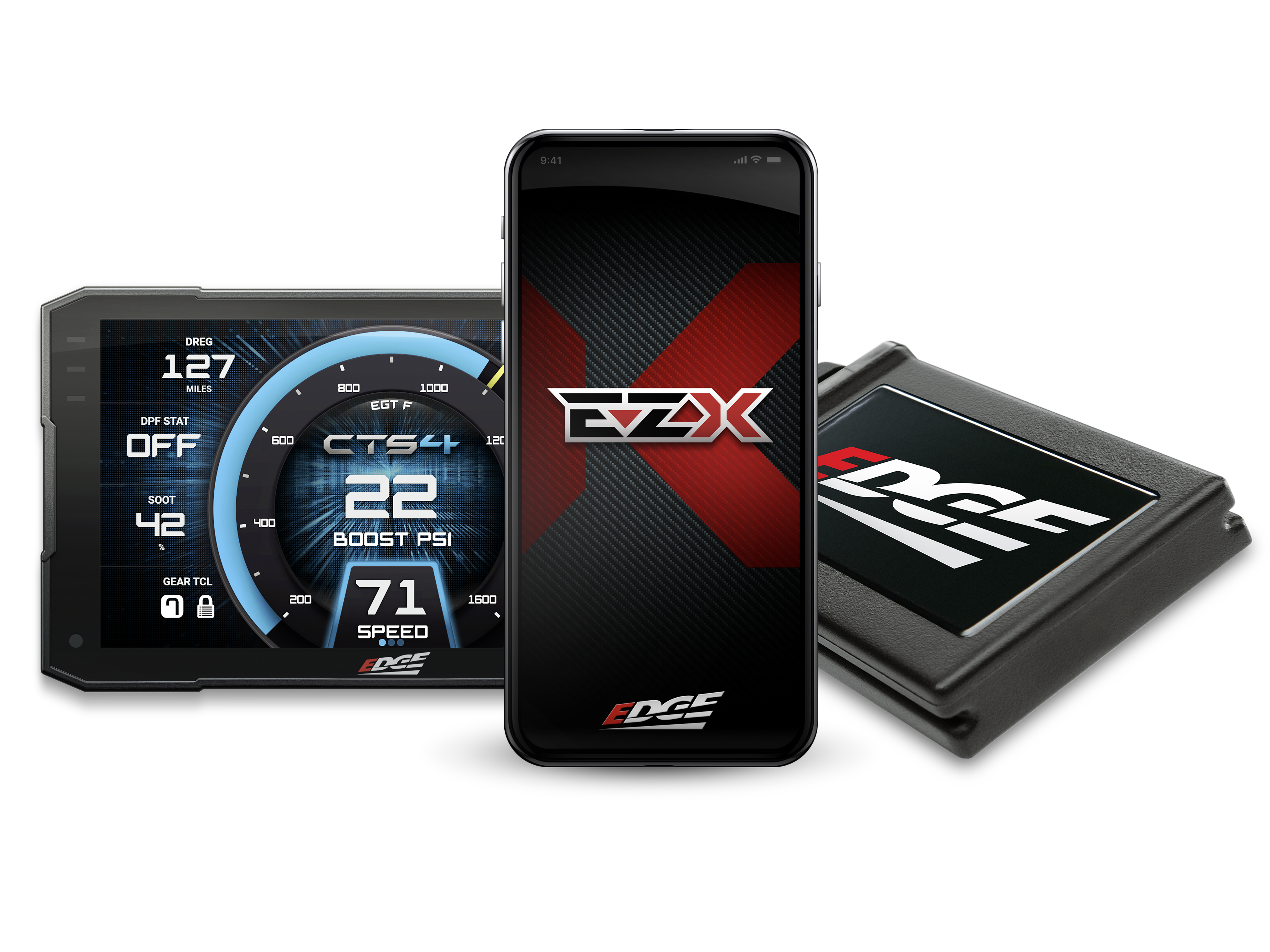

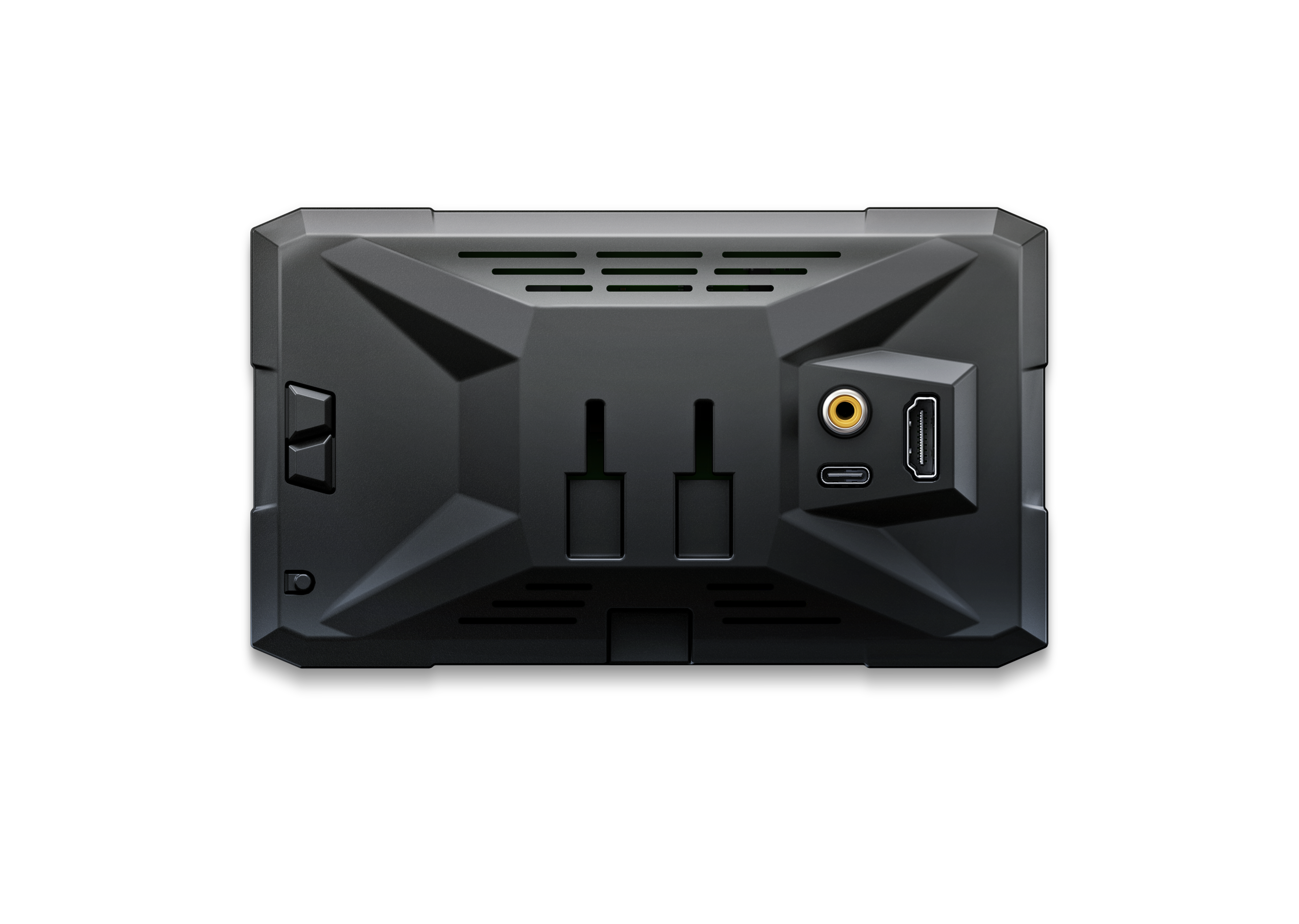

The Edge 12713-4 pairs the EZX inline performance module with the Insight CTS4 in cab monitor for 2023-2026 Ford F250, F350, and F450 trucks with the 6.7L Power Stroke, and Edge says the EZX supports both standard output and high output engines. The EZX plugs into the factory system without cutting or splicing. For standard output trucks, Edge lists five power levels, from 10 horsepower and 37 lb-ft of torque at level 1 to 60 horsepower and 140 lb-ft at level 5, and the throttle booster settings inside each level can be adjusted through the app. The module adds no power until the engine coolant reaches 120 degrees, and it backs the power down at 240 degrees. The app can also read and clear trouble codes and check emissions readiness status. The Insight CTS4 is a color touchscreen monitor with an auto dimming screen, a custom background feature, and Wi-Fi updates. It provides in cab monitoring, data logging with 5 volt inputs, alerts and records, performance tests, and video capability, and it works with Edge's Expandable Accessory System. Edge states the kit is legal under the EPA's Tampering Policy dated November 23, 2020, and that it is not legal for sale or use in California.

Fitment: 2023, 2024, 2025, 2026 Ford F250/F350/F450 6.7L Powerstroke Diesel

Notes:

• Not legal for sale or use in California, Edge states CARB testing is pending and no E.O. number has been issued, the kit is not 50-state legal or CARB compliant
• Edge states this part is legal under the EPA Tampering Policy dated November 23, 2020, in states that accept those provisions
• Fits 2023-2026 Ford F250/F350/F450 trucks with the 6.7L Power Stroke, standard output and high output
• Horsepower and torque figures are Edge's claims, up to +60 hp and +140 lb-ft at the wheels at the top power level, results will vary
• Edge lists the standard output power levels as 10 hp/37 lb-ft, 20 hp/48 lb-ft, 30 hp/62 lb-ft, 40 hp/75 lb-ft, and 60 hp/140 lb-ft
• Engine coolant protection adds no power until 120 degrees and backs the power down at 240 degrees
• The EZX is not a custom tuner and does not accept custom tunes
• Software and an instruction manual are included, a case and an AC adapter are not
• Pods and mounts are available for the Insight CTS4
• California Proposition 65 warning applies to this product
