KORE671116SOALB Kore Series Speed of Air Long Block

Features:

• Speed of Air Hyperformance pistons included
• CNC-machined turbulator dimples on piston tops
• Thermal barrier and anti-friction piston coatings
• Total Seal gapless piston rings standard
• Machined with Rottler equipment, better than OEM tolerances
• All new bearings, valves, seals, and gaskets
• Improved gasket sealing in common leak areas
• Cylinder heads installed on the short block
• Built in ISO 9001:2015 certified facility
• 1 year unlimited mileage warranty

Put A Smarter Piston Inside Your 6.7L Powerstroke Rebuild

When a 6.7L Powerstroke needs a replacement engine, most long blocks hand you back the same style of piston that was in the original. This DFC Diesel KORE Series long block does something different, because DFC partnered with Speed of Air on the pistons. The piston tops have precise, CNC machined indentations called turbulators, which are often described simply as dimples. According to DFC and Speed of Air, those dimples help the flame front burn closer to the cool walls of the combustion chamber, which improves combustion efficiency. They say that can mean better fuel mileage, more torque and horsepower, and better pulling power, though results will vary by truck and how it is driven. The pistons also carry a thermal barrier coating on the crowns and an anti friction coating on the skirts. Around those pistons you still get the KORE Series build, with Rottler machined tolerances better than OEM, all new bearings, valves, and seals, and Total Seal gapless rings as standard. DFC keeps the price in check by leaving out parts you can reuse, so you get a smarter piston without paying for a full premium build. For a 2011-2016 Super Duty owner who wants more than a like for like replacement, this is a good place to put your money.

CNC Machined Piston Dimples Backed By A Rottler Built Long Block

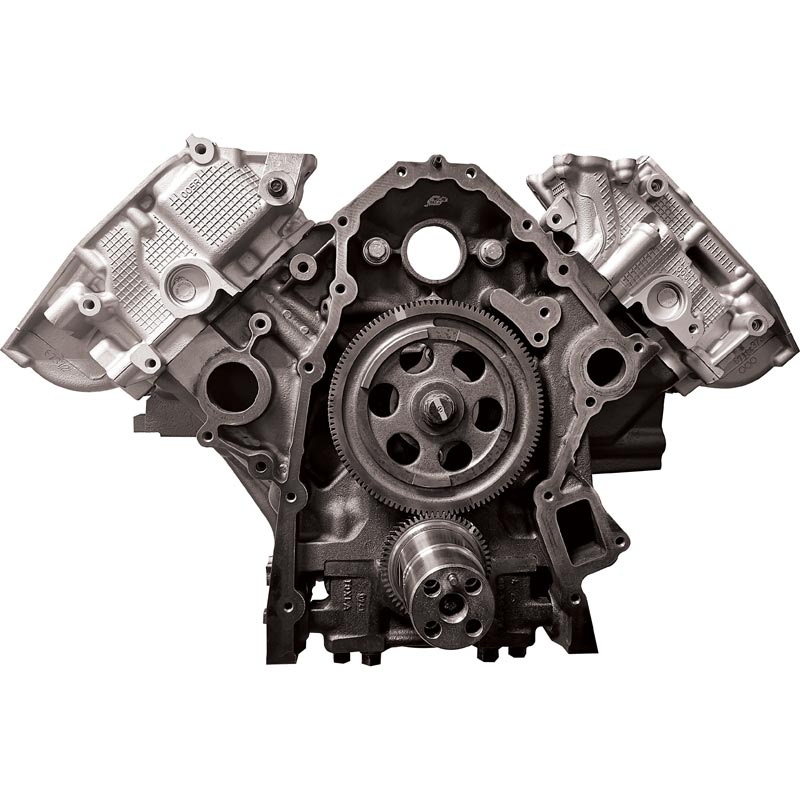

The DFC Diesel KORE671116SOALB is a remanufactured long block built for 2011-2016 Ford F250 and F350 Super Duty trucks with the 6.7L Powerstroke. It uses Speed of Air Hyperformance pistons, which have patented turbulator indentations CNC machined into the piston top to exacting tolerances under ISO 9001 quality standards. Speed of Air says these indentations create a thinner, well attached boundary layer between the air fuel mixture, its flame front, and the combustion chamber walls. That lets the flame burn closer to the cool metal walls, which raises combustion efficiency and supports lower fuel consumption, more torque and horsepower, and better pulling power. The pistons are also coated, with a thermal barrier on the crowns and an anti friction coating on the skirts. The rest of the engine follows DFC's KORE Series process, machined on Rottler equipment to tolerances better than OEM, with all new rings, bearings, gaskets, seals, valves, springs, hardened seats, stem seals, and cast guides. It includes Total Seal gapless piston rings and improved gasket sealing in common leak areas. The engine ships as a complete short block assembly with the cylinder heads installed. It is built in an ISO 9001:2015 certified facility and backed by a 1 year, unlimited mileage manufacturer warranty.

Fitment: 2011, 2012, 2013, 2014, 2015, 2016 Ford F250/F350 Super Duty 6.7L Powerstroke

Notes:

• Built with Speed of Air Hyperformance pistons
• Fuel mileage, power, and torque gains are manufacturer claims, results will vary
• Long block with cylinder heads installed
• New oil cooler required for warranty coverage, sold separately
• New air, oil, and fuel filters required for warranty coverage, sold separately
• New water pump required for warranty coverage, sold separately
• New lubricating oil required for warranty coverage, sold separately
• Injector return line seal kit and turbocharger gasket kit are not included

• Does not include front cover, rear cover, oil pump, upper or lower oil pan, oil pickup tube, rocker arms, pushrods, or valve bridges
• Customer is responsible for professionally testing, cleaning, and replacing injectors, injection pumps, and fuel system as needed
• Component brands may vary by build based on parts availability, cannot be specially requested
• $500 shipping charge/$2,800 core charge
• Engine shipping crate must be returned with core engine for full core credit
• Manufacturer warranty: 1 year, unlimited mileage
• Turbocharger replacement recommended over 125K miles, mandatory if shaft play present or engine was dusted
• Injector replacement highly recommended on higher mileage or contaminated fuel engines
• Evans Waterless Coolant recommended upgrade for corrosion and boilover prevention
• This product cannot be shipped to California
