Zone Offroad D68 5.5 inch Standard Lift Kit | 2014-2018 RAM 2500 4WD Gas

• Progressive rate front coil springs improve ride quality and offroad performance.
• Radius arm drop brackets to correct caster and improve suspension geometry.
• Forged pitman arm and track bar relocation bracket to correct steering angles and recenter front axle.
• Extended bump stops, sway bar relocation and brake line relocation to maintain factory-like operating angles.
• Bump stop extensions, track bar bracket and sway bar correction to correct suspension geometry.

Description

• Front Lift Height: 5.5"
• Rear Lift Height: 4.5"
• Front Lift Method: Radius Arms
• Rear Lift Method: Coil Springs
• Lift Type: Lift Kit
• Wheel Size: 17 x 9
• Back Spacing: 4.5"
• Max Tire Size: 35 x 12.5
• Wheel Size 2: 17 x 9
• Back Spacing 2: 5.75"
• Max Tire Size 2: 37 x 12.5
• Wheel Size 3: 20 x 9
• Back Spacing 3: 5.75"
• Max Tire Size 3: 37 x 12.5
• Is Adjustable: No
• Finish: Powdercoat
• Cutting Required: No
• Accommodates Factory Wheels: See Notes
• Welding Required: No

• Factory wheels fit when paired with factory / original equipment tire size.
• 6.4L Gas models will require exhaust modification to clear the front driveshaft.
• 5.7L Gas models may require modification.

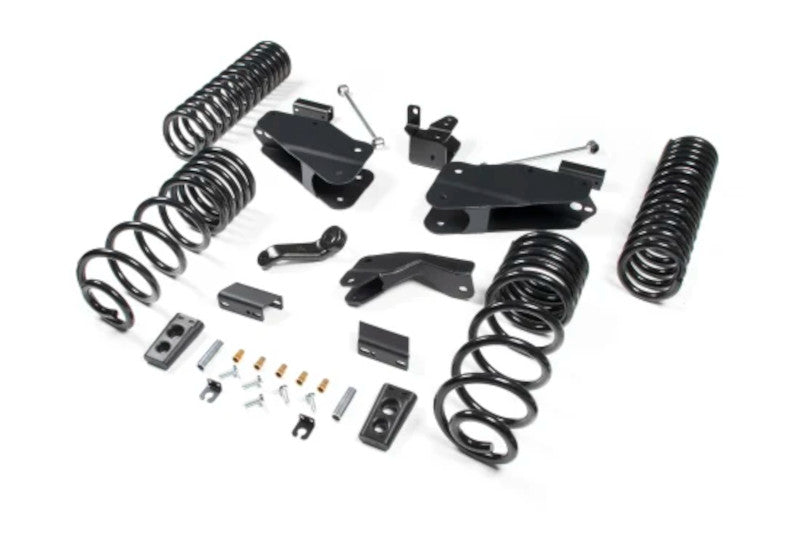

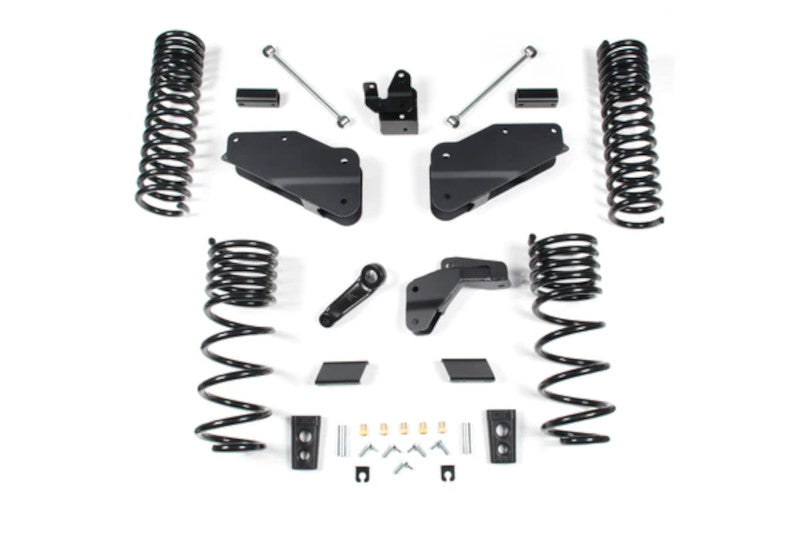

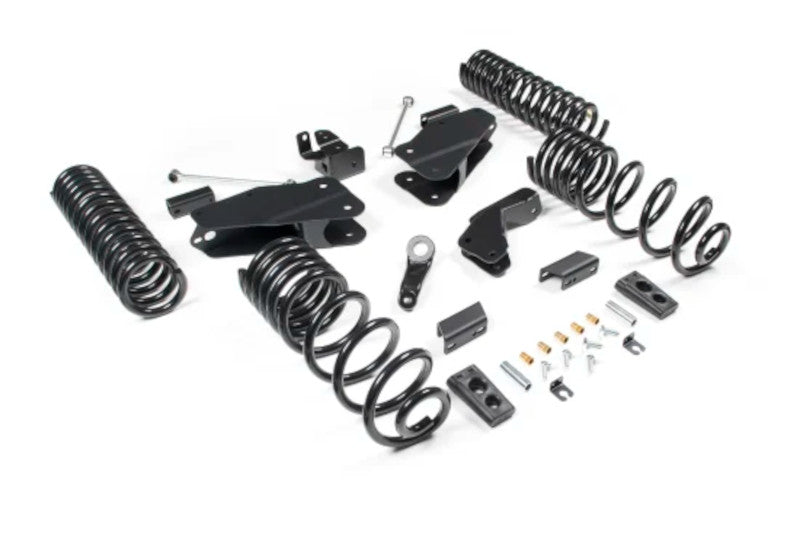

• All Necessary Mounting / Installation Hardware
• Bump Stops
• Coil Springs
• Dropped Pitman Arm
• Radius Arm Drop Brackets
• Sway Bar Relocation Brackets
• Track Bar Relocation Bracket
