D58 6.5" inch Radius Arm Lift Kit

Features:

• Progressive rate front coil springs improve ride quality and offroad performance.
• HD radius arm to correct caster while maximizing ground clearance.
• Forged pitman arm and track bar relocation bracket to correct steering angles and recenter front axle.
• Extended bump stops, sway bar relocation and brake line relocation to maintain factory-like operating angles.
• Bump stop extensions, track bar bracket and sway bar correction to correct suspension geometry.

6.5" inch Radius Arm Lift Kit

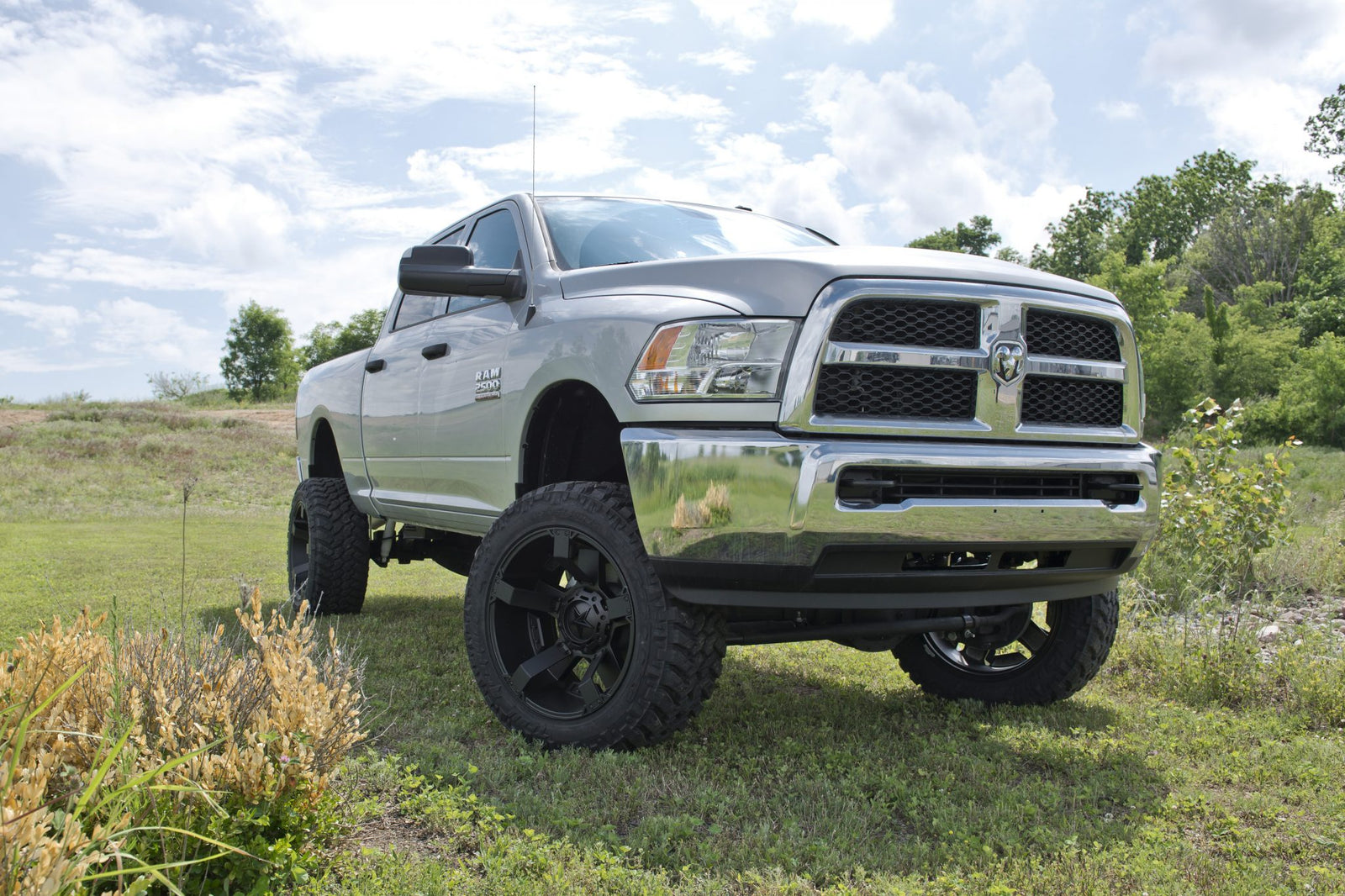

Take your RAM 2500 to new heights with this 6.5" lift kit from Zone Offroad. Kits include everything needed from front/rear coil springs and stout radius arms to steering correction and rear lift to level the stance. Get the look, performance, and capability your truck deserves with clearance for up to 37" tires.

Vehicle Fitment: 2014, 2015, 2016, 2017, 2018 Dodge Ram 2500 4WD/Diesel

Quick Specs:

• Front Lift Height: 6.5"
• Rear Lift Height: 4.5"
• Front Lift Method: Radius Arm Drop
• Rear Lift Method: Coil Springs
• Lift Type: Lift Kit
• Wheel Size: 17 x 9
• Back Spacing: 4.5"
• Max Tire Size: 37 x 12.5
• Wheel Size 2: 18 x 9
• Back Spacing 2: 5.75"
• Max Tire Size 2: 37 x 12.5
• Wheel Size 3: 20 x 9
• Back Spacing 3: 5.75"
• Max Tire Size 3: 37 x 12.5
• Is Adjustable: No
• Finish: Powdercoat
• Cutting Required: No
• Accommodates Factory Wheels: See Notes
• Welding Required: No

Important Notes:

• Front driveline vibration may occur at speeds over 35 mph when in 4WD. If this occurs, install the appropriate optional t-case indexing kit. Models with a 6 bolt transfer case use part # D5623. Models with an 8 bolt transfer case use part #D5813.
• Fitment: Does NOT work for models with factory rear airbag suspension.
• Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
• Will not fit Power Wagon models.

In the Box:

• All Necessary Mounting / Installation Hardware
• Bump Stops
• Coil Springs
• Dropped Pitman Arm
• Sway Bar Relocation Brackets
• Track Bar Relocation Bracket
• Radius Arms
