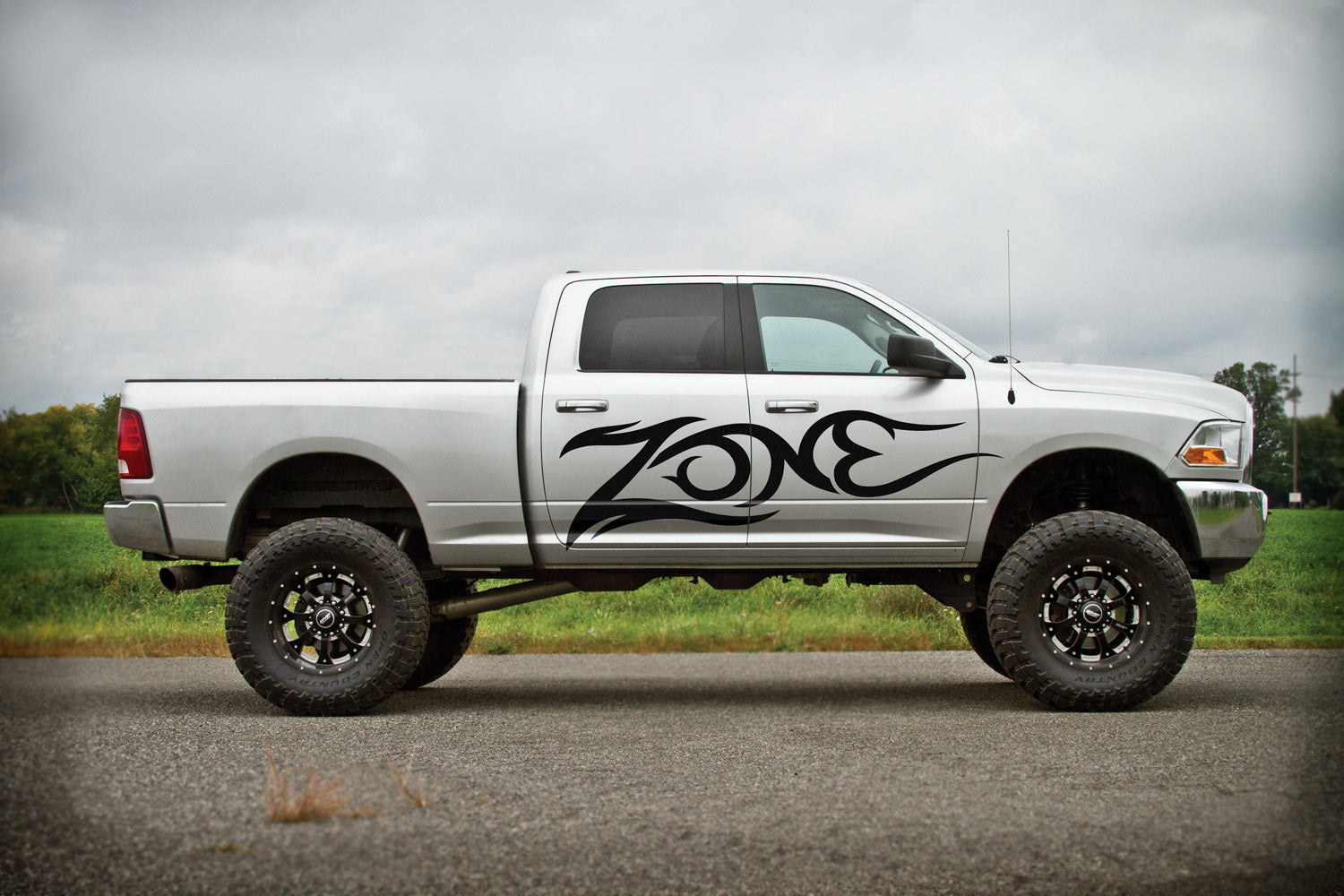

D36 8" inch Coil Spring Lift Kit

Features:

• Fits 2009-2013 RAM 2500/3500 6.7L
• Diesel 4WD models only
• 8 inch front coil spring lift
• 5 inch rear cast block lift
• Clears up to 38 inch tires
• 100 percent bolt on installation
• No cutting or welding required
• High strength control arm brackets
• Track bar relocation bracket included
• Dropped pitman arm for steering correction
• Transfer case indexing ring included
• Powdercoated components for durability

Go Big With A Stance That Demands Attention Everywhere You Drive

If you have been thinking about going all in on your 2009-2013 RAM 2500 or 3500 6.7L Cummins, the Zone Offroad D36 8 inch Lift Kit is how you make it happen. This is the highest lift option in the lineup, giving your truck the clearance to run up to 38 inch tires without sacrificing control. The 8 inch front coil springs and 5 inch rear cast blocks create a tall, aggressive profile that completely changes the presence of your diesel. Additionally, the extra ride height opens the door for larger wheels in 17, 18, or 20 inch sizes with the right backspacing. Even with that added height, the system is designed to keep the truck composed and predictable on the highway. It is the kind of setup that turns heads at a stoplight and still feels confident cruising down the interstate. If you want your Cummins to stand apart from the crowd, this kit delivers the attitude and clearance to back it up.

Engineered Lift Components Built For Diesel Weight And Geometry Correction

The D36 kit is specifically designed for 2009-2013 RAM 2500 and 3500 4WD diesel models, with lift springs tuned for the added weight of the 6.7L Cummins. High strength control arm relocation brackets are included to correct suspension geometry and maintain proper caster after the full 8 inch front lift. A dropped pitman arm and track bar relocation bracket help keep steering angles in check, which is critical for stable handling at higher ride heights. Furthermore, the system includes rear cast lift blocks and U bolts to provide 5 inches of rear lift while retaining factory leaf springs. Brake line brackets are supplied to ensure adequate slack throughout suspension travel. The included transfer case indexing ring can help address potential driveline angles, and additional solutions are available for two piece rear driveshaft applications if needed. With a durable powdercoat finish and a 100 percent bolt on design that requires no cutting or welding, this kit offers a complete and well thought out solution for building a properly lifted diesel truck.

Fitment:

• 2009, 2010, 2011, 2012, 2013 Dodge RAM 2500/3500 6.7L Cummins 4WD


Quick Specs:

• Front Lift Height: 8"
• Rear Lift Height: 5"
• Front Lift Method: Coil Springs
• Rear Lift Method: Cast Blocks
• Lift Type: Lift Kit
• Wheel Size: 17 x 9
• Back Spacing: 5"
• Max Tire Size: 38 x 13.5
• Wheel Size 2: 18 x 9
• Back Spacing 2: 5"
• Max Tire Size 2: 38 x 13.5
• Wheel Size 3: 20 x 9
• Back Spacing 3: 5"
• Max Tire Size 3: 38 x 13.5
• Finish: Powdercoat
• Cutting Required: No
• Accommodates Factory Wheels: See Notes
• Welding Required: No

Important Notes:

• Diesels Only! Lift springs are designed for heavier diesel models only. Using lift springs with lighter gas models may cause excessive lift and is NOT recommended.
• Driveline Notice: Although rare, if you experience front driveline vibration, install the optional transfer case indexing ring.
• Fitment: This kit is not designed for dually models, but may me easily adapted to accommodate your truck. Please contact customer support and they will help you find a solution.
• Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid/eliminate driveshaft vibration.
• Wheels/Tires: Adding larger-than-stock wheels? Add front bumper spacers to your kit for additional clearance as some wheel/tire combos may not fully clear the bumper’s stock location.

In the Box:

• All Necessary Mounting/Installation Hardware
• Brake Line Brackets
• Coil Springs
• Control Arm Relocation Brackets
• Dropped Pitman Arm
• Rear Lift Block & U-Bolt Kit
• Track Bar Relocation Bracket
• Transfer Case Indexing Ring
