D136 4.5" inch Radius Arm Lift Kit - 2 Rear Blocks

Features:

• Progressive rate front coil springs improve ride quality and offroad performance
• HD radius arm to correct caster while maximizing ground clearance
• Forged pitman arm and track bar relocation bracket to correct steering angles and recenter front axle
• Bump stop relocation, sway bar relocation and brake line relocation to maintain factory-like operating angles
• Replacement rear lift blocks and u-bolts to lift and level the stance

4.5" inch Radius Arm Lift Kit

Take your RAM 3500 to new heights with this 4.5" lift kit from Zone Offroad. Kits include everything needed from full length coil springs and stout radius arms to steering correction and rear lift to level the stance. Get the look, performance, and capability your truck deserves with clearance for up to 37" tires.

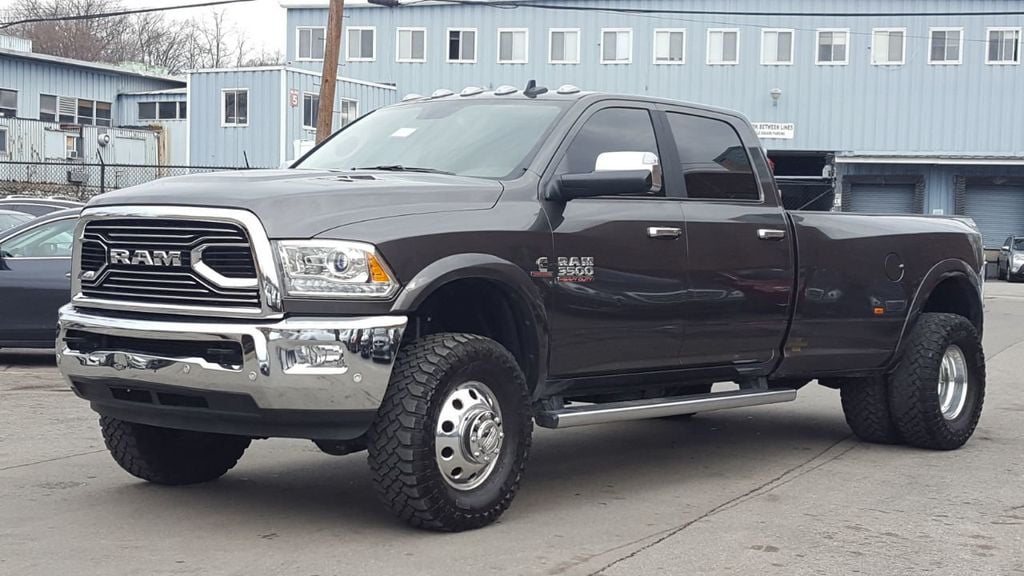

Fitment: 2013, 2014, 2015, 2016, 2017, 2018 Dodge Ram 3500 4WD Diesel

Quick Specs:

• Front Lift Height: 4.5"
• Rear Lift Height: 2"
• Material: Steel
• Front Lift Method: Radius Arms
• Rear Lift Method: Coil Springs
• Lift Type: Lift Kit
• Wheel Size: 17 x 9
• Back Spacing: 4.5"
• Max Tire Size: 35 x 12.5
• Wheel Size 2: 18 x 9
• Back Spacing 2: 5.75"
• Max Tire Size 2: 37 x 12.5
• Wheel Size 3: 20 x 9
• Back Spacing 3: 5.75"
• Max Tire Size 3: 37 x 12.5
• Finish: Powdercoat
• Cutting Required: No
• Accommodates Factory Wheels: See Notes
• Welding Required: No

Important Notes:

• Although very rare, front driveline vibration may occur at speeds over 35 mph when in 4WD. If this occurs, install the appropriate optional t-case indexing kit. Optional t-case indexing ring kit recommended to reduce front driveline angle. Models with a 6 bolt transfer case use part # D5623. Models with an 8 bolt transfer case use part #D5813.
• Fitment: Does NOT work for models with factory rear airbag suspension.
• Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid/eliminate driveshaft vibration.

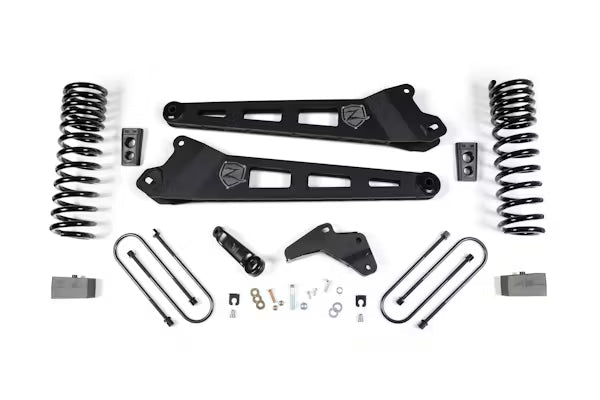

In the Box:

• Ram Rear 2" Block Kit - 4in U-bolts (ZOND1207)
• 13 Ram 4.5in Rplmt Radius Arm Box Kit (ZOND1402)
• 2014-2024 Ram 2500 / 2013-2023 Ram 3500 Replacement Radius Arm Box Kit (ZOND1410 x2)
• 2014-2024 Ram 2500 / 2013-2023 Ram 3500 Coils 4.5in Diesel - 5.5in Gas (ZOND3401)
• 13 3500/14 2500 Ram 4.5in Coils-Pass-Dsl (ZOND3402)
