D122 5.5 inch Radius Arm Lift Kit - 5 Rear Blocks, with Overload

Features:

• High strength progressive rate front coil springs for a great ride on any terrain
• Heavy duty 1/4" steel, laser cut, internally gusseted radius arms improve strength, offer more ground clearance and correct caster
• HD track bar relocation bracket to correctly position front axle under the truck
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles
• Allows clearance for up to 37” tires

Description

Take your RAM 3500 to new heights with this 5.5" radius arm lift kit from Zone Offroad. Kits include everything needed from full length coil springs and heavy duty radius arms to steering correction and rear lift to level the stance. Get the look, performance, and capability your truck deserves with clearance for up to 37" tires.

Vehicle Fitment:

• 2019-2023 Dodge Ram 3500 4WD Gas
• Fits models with rear overload springs

Quick Specs:

• Front Lift Height: 5.5"
• Rear Lift Height: 5"
• Material: Steel
• Front Lift Method: Coil Springs
• Rear Lift Method: Block Kit
• Lift Type: Suspension
• Wheel Size: 20 x 9
• Back Spacing: 4.5"-5.5"
• Max Tire Size: 37 x 12.5
• Wheel Size 2: 18 x 9
• Back Spacing 2: 4.5"-5.5"
• Max Tire Size 2: 37 x 12.5
• Finish: Powdercoat
• Cutting Required: No
• Welding Required: No

Important Notes:

• Will not fit Cab and Chassis models
• Will NOT fit rear air-ride equipped models
• Gas models only
• Exhaust modification is required to clear front driveshaft. Vehicle can be driven w/o front driveshaft to an exhaust shop.
• Does not fit Vehicles with a Manual Shift Transfer Case
• Trucks equipped with a 2-piece rear driveshaft require carrier bearing shim kit D5406 (not included with kit)

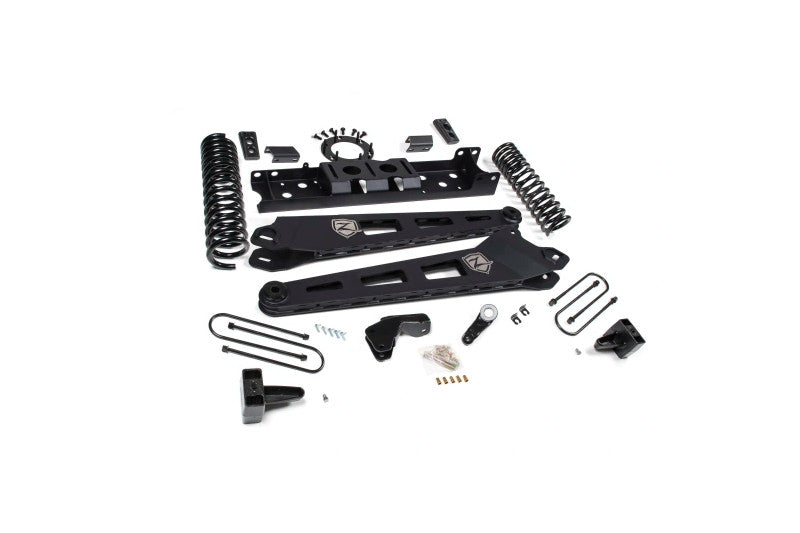

In the Box:

• 2014-2024 Ram 2500 / 2013-2023 Ram 3500 Replacement Radius Arm Box Kit (ZOND1410 x2)
• 2019-2023 Ram 3500 5in Rear Box 4 3/8" U-bolt w/ overload (ZOND1517)
• 2019-2024 Ram 2500 / 2019-2023 Ram 3500 6.5in Rplmt Radius Arm Box Kit (ZOND1604)
• 2014-2024 Ram 2500 / 2013-2023 Ram 3500 Coils 4.5in Diesel - 5.5in Gas (ZOND3401 x2)
• 2019-2024 Ram 2500 / 2013-2023 Ram 3500 T-Case Index - 6 Bolt - Gas (ZOND5624)
