Zone Offroad D115F 6.5 inch Radius Arm Lift Kit - FOX Shocks, 8 Bolt, 5 Rear Blocks, w/o Overload | 2019-2024 RAM 3500 6.7L Cummins 4WD

Features:

• High strength progressive rate front coil springs for a great ride on any terrain
• Heavy duty 1/4" steel, laser cut, internally gusseted radius arms improve strength, offer more ground clearance and correct caster
• HD track bar relocation bracket to correctly position front axle under the truck
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember/t-case indexing ring to correct front driveline angles
• FOX adventure series IFP gas shocks to improved ride and offroad performance
• Allows clearance for up to 37” tires

Description

Take your RAM 3500 to new heights with this 6.5" radius arm lift kit from Zone Offroad. Kits include everything needed from full length coil springs and heavy duty radius arms to steering correction and rear lift to level the stance. Get the look, performance, and capability your truck deserves with clearance for up to 37" tires.

Vehicle Fitment:

• 2019, 2020, 2021, 2022, 2023, 2024 RAM 3500 4WD Diesel
• Fits models without rear overload springs
• Fits models with 8 bolt transfer case

Quick Specs:

• Front Lift Height: 6.5"
• Rear Lift Height: 5"
• Material: Steel
• Front Lift Method: Coil Springs
• Rear Lift Method: Block Kit
• Lift Type: Suspension
• Wheel Size: 20 x 9
• Back Spacing: 4.5"-5.5"
• Max Tire Size: 37 x 12.5
• Wheel Size 2: 18 x 9
• Back Spacing 2: 4.5"-5.5"
• Max Tire Size 2: 37 x 12.5
• Finish: Powdercoat

Important Notes:

• Does not fit Dually Models with 8-bolt transmissions (Aisin).
• T-case indexing ring available for 6-bolt and 8-bolt equipped models, check vehicle before ordering
• Will not fit Cab and Chassis models
• Will NOT fit rear air-ride equipped models
• Diesel models only
• Will NOT Fit Mega Cab Aisin Transmissions (8-bolt)
• Does not fit Vehicles with a Manual Shift Transfer Case
• Trucks equipped with a 2-piece rear driveshaft require carrier bearing shim kit D5406 (not included with kit)

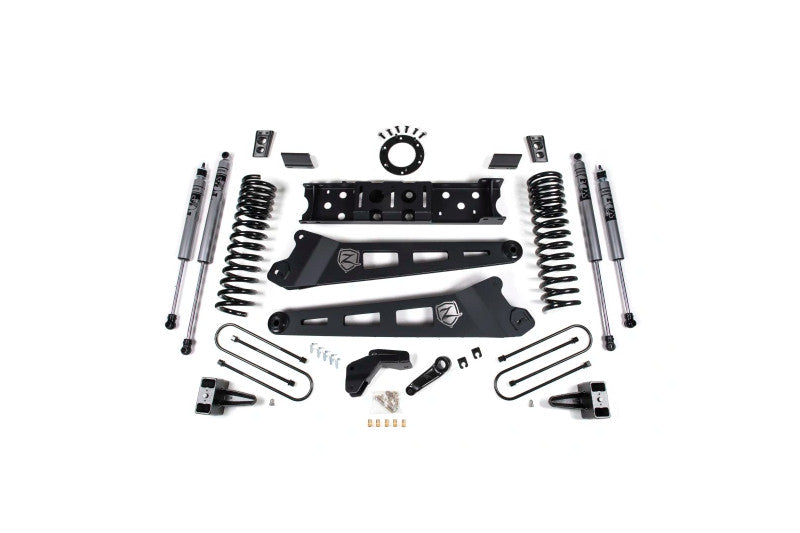

In the Box:

• Fox Adv Shock 28.24 x 17.15 x 2-S50/EB1 (FOX98450742 x2)
• Fox Adv Shock 33.85 x 20.76 x 2-EB1/EB1 (FOX98450761 x2)
• 2014-2024 Ram 2500 / 2013-2023 Ram 3500 Replacement Radius Arm Box Kit (ZOND1410 x2)
• 2019-2023 Ram 3500 5in Rear Box 4 3/8" U-bolt w/o overload (ZOND1516)
• 2019-2024 Ram 2500 / 2019-2023 Ram 3500 6.5in Rplmt Radius Arm Box Kit (ZOND1604)
• 2014-2024 Ram 2500 / 2013-2023 Ram 3500 Coils 6.5in Diesel (ZOND3602 x2)
• 2019-2023 Ram 3500 T-Case Index Kit - 8 Bolt (ZOND5823)
