Carli CS-F45-PT25-17 4.5 inch Pintop Lift System | 2017-2023 Ford F250/F350 Super Duty 4WD 6.7L Powerstroke

Features:

• King Front & Rear RR Performance Shocks
• Massive 2.5" diameter shock bodies
• Premium Leveling Coils
• Overall 4.5" lift
• Adjustable Track bar
• Extended Brake Lines
• Great for on and off-road
• Enhanced Ride and Performance Quality
• Limited Lifetime Warranty

High-Quality PinTop Suspension Lift Kit for Super Dutys

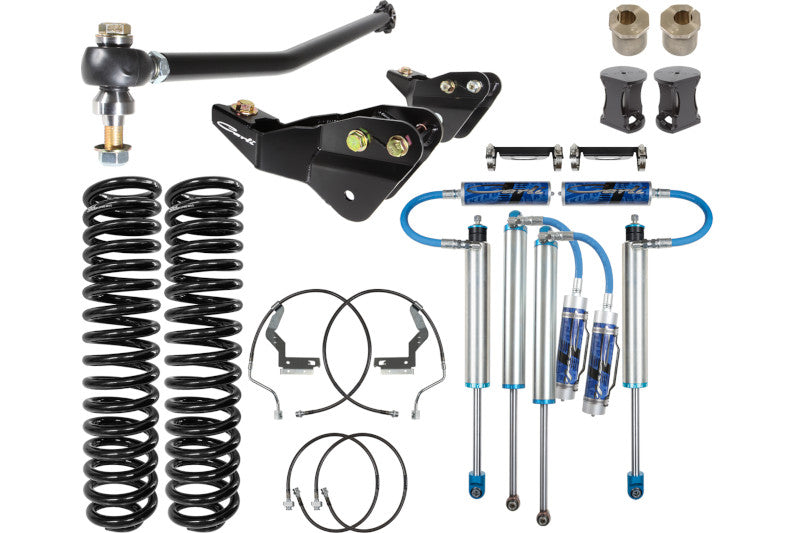

If you want to give your 2017-2023 Ford Super Duty a major upgrade in both performance and appeal, check out the Carli 4.5" PinTop Lift System! This premium aftermarket suspension lift kit is the upgraded version of Carli's BackCountry System, so you can expect more control and improved bottom-out resistance without compromise. This kit includes everything you'll need to acheive a more commanding view of the road, improved off-road performance, and a boost in overall exterior style. Each package comes equipped with Carli's Premium 4.5"/5.5" Leveling Front Coils that prop up your truck's front-end, giving you improved ground clearance over uneven terrain while helping to accommodate for larger tire/wheel combinations. You'll also receive a full set of front and rear King Performance shocks with remote reservoirs which provide impressive damping characteristics while delivering improved handling and stability when you're behind the wheel. The reservoirs promote faster heat dissipation to help keep you moving forward even when your applications become extreme. This kit also helps out during any towing/hauling applications as it works to keep you in control even when your ride is under a heavy load.

Added Suspension Components for Impressive Capability

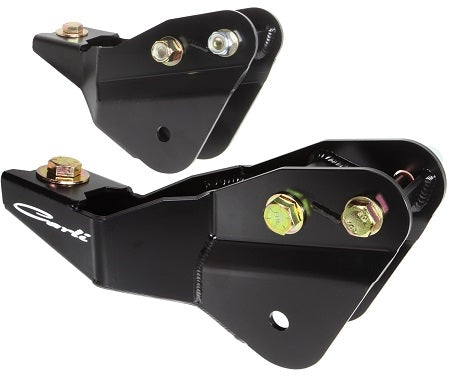

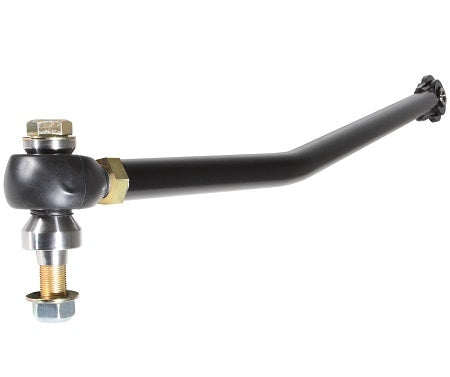

Along with it's major performance benefits, the Carli PinTop Lift System comes equipped with an adjustable track bar that works to reduce body roll and sway when you head well off the beaten path. This kit also comes standard with 1 degree correction shims that provide proper tracking when you add on larger tires. You'll also benefit from the included reservoir mounts that keep the shocks stable in every situation. Moreover, this kit comes equipped with a Radius Arm Drop Brackets and Crossmember Kit that allows for an increase in wheel travel and corrected suspension geometry, giving your ride superior performance no matter the terrain. The Radius Arm Drops and included brake line tabs even help accommodate for the massive increase in ride height.

Vehicle Fitment:

• 2017, 2018, 2019 Ford F-250/F-350 4x4 Diesel - 4.5" of Lift
• 2020, 2021, 2022, 2023 Ford F-250/F-350 4x4 Diesel - 5.5" of Lift

Notes:

• Fits 2017–2022 Ford F250/F350 4WD 6.7L Powerstroke only

• Delivers 4.5" lift on 2017–2019 trucks
• Delivers 5.5" lift on 2020–2023 trucks
• Includes King 2.5 remote-reservoir front and rear shocks
• Progressive front coils tuned for diesel Super Duty trucks
• Adjustable track bar helps reduce body roll
• Radius arm drop brackets correct suspension geometry
• Extended brake lines and bump stop drops included
• Requires sway bar drop brackets or Carli sway bar
• Requires Carli full progressive rear leaf springs for best results
• Supports 37" E-rated tires with minor trimming
• Recommends 17–18" wheels, max 9" wide, 5" backspacing
• No permanent modifications required for installation
• Includes all hardware and detailed instructions
• Backed by Carli's Limited Lifetime Warranty
