Carli CS-DUC35-12-D 3" inch Long Arm Unchained Lift System | 2012-2013 RAM 2500/3500 6.7L Cummins 4WD SRW

Features:

• Front & Rear Performance Shocks
• External remote reservoirs
• Massive 3.5/3.0" diameter shock bodies
• Long Arm System
• Premium Front Leveling Coils
• Overall 3" lift
• Adjustable Track bar
• Superior Performance Upgrade
• Great for on and off-road
• Limited Lifetime Warranty

Massive Suspension Upgrade for Ram 2500/3500

The Carli 3" Long Arm Unchained Lift System is one of the most heavy-duty suspension upgrades Carli offers for the Ram 2500/3500 platform, boasting Carli Signature tuned, King 3.5/3.0 Remote Reservoir shocks on all four corners. These shocks are some of the best you'll find on the aftermarket, featuring massive 3.5" diameter shock bodies for the front and BP 3.0s for the rear paired with machined 17-4 stainless shafts that add a ton of durability to your ride. Unlike standard shafts, there's no coating to wear off, so inclement weather is far less likely to hurt them. The shocks also come equipped with large external remote reservoirs that allow for a larger volume of suspension fluid, resulting in faster heat dissipation even when your applications become extreme. The Unchained System also includes a set of 3" Multi Rate Front Coil Springs that prop your truck's front-end up to give you a more commanding view of the road. Whether you're ripping through the desert, rock crawling through the mountains, towing a heavy load or simply just riding around town, the Carli Unchained Lift System will take you further so you can explore more.

Long Arm System for Optimized Suspension Travel

The Carli 3" Long Arm Lift Kit features Long Arm Control Arms for both the front and rear axles, giving you optimal ride quality for both on and off-road conditions. The Long Arm System improves overall suspension articulation and geometry, giving you a smoother and more quieter ride even when your applications become extreme. To accommodate for this system, Carli includes extended shock towers, frame drop brackets, crossmember brace, and extended brake lines which work together to provide consistent and reliable suspension operation each time you get behind the wheel. It's important to note this system also requires the use of weld-in rear shock mounts that accommodate for the massive shock diameters. What's more, an included adjustable track bar adds even more functionality to your ride by reducing body roll and sway when you head well off the beaten path.

Fitment:

• 2012, 2013 Dodge Ram 2500 4x4 Diesel SRW
• 2012 Dodge Ram 3500 4x4 Diesel SRW

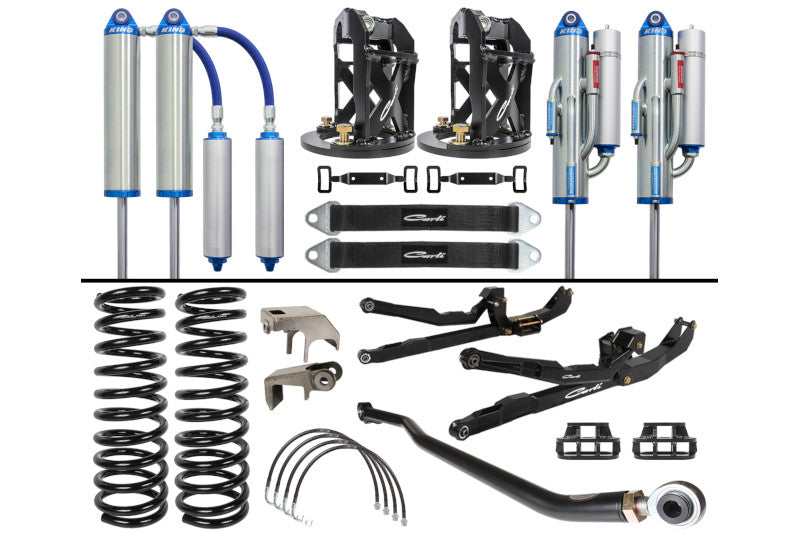

Base Kit Includes: Front & Rear Carli Tuned King 3.5/3.0 RR BP Shocks, Front Multi Rate Coil Springs, Adjustable Track Bar, Reservoir Mounts, Shock Towers, Weld-In Rear Shock Mounts, Limit Strap Kit, Long Arm System, Frame Drop Brackets, Crossmember Brace, Front Bump Stop Drops, Extended Brake Lines, Crossmember Gusset Kit, Hole Saw and Arbor Kit

Wheel Recommendations: This system will fit up to a 37" Tire when utilizing wheels with 4.5" of backspacing. A 17-18" diameter wheel will allow for optimal ride quality.

Note: It is recommended to install a torsion sway bar and Full progressive leaf springs along with this kit for optimal ride quality.
