Carli CS-DPT25-LVL-1419-D 2.5 inch Pintop Lift System | 2014-2024 RAM 2500 6.7L Cummins 4WD

Ram 2500 4x4 Carli 2.5" Pintop Lift System Features:

• Premium RR Front & Rear Shocks
• Zinc Plating for Corrosion Resistance
• Overall 2.5" lift
• Linear Rate coil springs
• Adjustable track bar
• Front Reservoir mounts
• Levels Out Vehicle Stance
• Enhanced Ride and Performance Quality
• Limited Lifetime Warranty

High-Quality Pintop Lift System for Ram 2500

The Carli 2.5" Pintop Lift System for your 2014-2023 Ram 2500 4x4 was designed for the customer who refuses to keep the rubber on the tarmac and has an eye for quality along with an appreciation for bang-for-their-buck. At the heart of this system is a 2.5" lift, Linear Rate Coil Spring Kit which adds 2.5" of ride height to your truck's front-end, offering up a more commanding view of the road while accommodating for larger tire/wheel combinations. The springs are then paired with a set of Carli Tuned King 2.5 RR Front Shock Absorbers which provide superior ride quality and handling for both on and off-road applications. At the rear, you'll find custom tuned piggyback shock absorbers which have been optimized to allow for the maximum performance of the factory leaf springs, keeping you level and stable each time you get behind the wheel. The rear springs remain virtually unmodified so you can expect the same tow quality that you already know and love with the benefit of having more capability to tackle demanding off-road trails.

Adjustable Track Bar & Reservoir Mounts

Aside from the major performance benefits the Pintop system offers, Carli includes some additional suspension components to add more functionality to your daily driving activities. This kit comes standard with an adjustable track bar that helps reduce body and keep you stable when you head well off the beaten path. The track bar re-centers your truck's axle to help accommodate for its new ride height. What's more, the included reservoir mounts hold the external reservoirs over the front tire to ensure consistent and reliable operation of your truck's suspension. You'll find external reservoirs on all four corners which provide faster heat dissipation and a larger volume of shock oil to help keep you in control even when you're out pushing things to the limit.

Premium Construction & Warranty Info

Carli manufactured their 2.5" Pintop Suspension Lift System using only premium materials and the latest design techniques to ensure a perfect fit and function on your 2014-2023 Ram 2500. Each component of this kit was thoroughly tested to verify consistent and reliable performance of your suspension each time you set off for adventure. Each shock and spring is custom Carli tuned to your specific application, giving you more peace of mind on every adventure. Each shock is also built around a massive 2.5" diameter body which adds a ton of strength to your suspension for demanding conditions. When it comes to installation, this kit mounts directly to your truck using the included hardware and instructions provided by Carli, and requires zero permanent modifications. Best of all, Carli Suspension backs this kit with a Limited Lifetime Warranty to help keep your investment protected.

Vehicle Fitment:

• 2014-2023 Dodge Ram 2500 4x4 Diesel
• Does not work with Rear Auto-Level Air Suspension

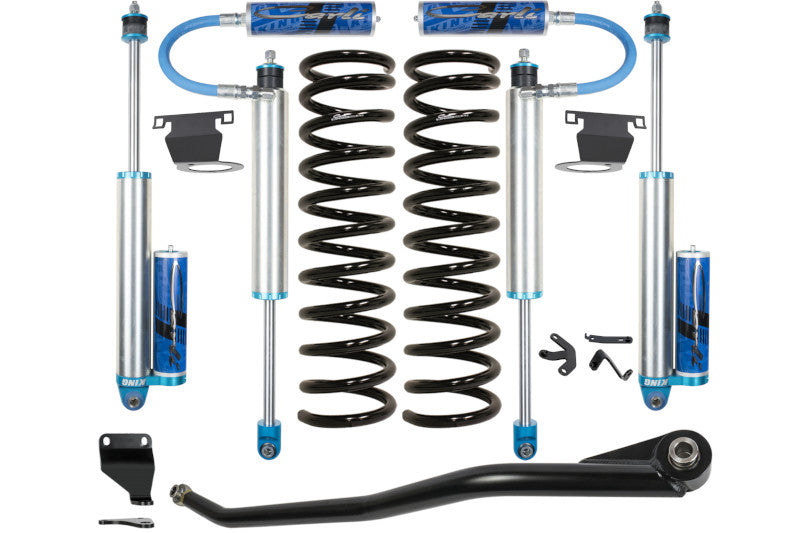

Base Kit Includes: Front 2.5 Leveling Coils, Carli Custom Tuned King 2.5 Front & Rear RR Shocks, Reservoir Mounts, Rear E-Brake Relocation Brackets, and Adjustable Track Bar.

Wheel & Tire Fitment: Carli Recommends a 35" tire on a wheel that's no more than 9" wide with 5.5"-6" of backspacing. An 18" diameter wheel will be best to ensure optimal ride quality.

Year Ranges	Make	Model	Series	Engine
2014-2024	RAM		2500	6.7L Cummins

Property	Values
Year Ranges	2014-2024
Make	RAM
Model
Series	2500
Engine	6.7L Cummins
