6" inch Pintop Lift System

Features:

• Front & Rear Performance Shocks
• External remote reservoirs
• Impressive 2.5" diameter shock bodies
• Premium Front Leveling Coils
• Overall 6" lift
• Adjustable Track bar
• Superior Performance Upgrade
• Great for on and off-road
• Limited Lifetime Warranty

Massive Suspension Upgrade for Ram 2500/3500

The Carli 6" Pintop Lift System is one of the most heavy-duty suspension upgrades Carli offers for the Ram 2500/3500 platform, boasting Carli Signature tuned, King 2.5 Remote Reservoir shocks on all four corners. These shocks are some of the best you'll find on the aftermarket, featuring 2.5" diameter shock bodies paired with machined 17-4 stainless shafts that add a ton of durability to your ride. Unlike standard shafts, there's no coating to wear off, so inclement weather is far less likely to hurt them. The shocks also come equipped with external remote reservoirs that allow for a larger volume of suspension fluid, resulting in faster heat dissipation even when your applications become extreme. The Pintop System also includes a set of 6" Multi Rate Front Coil Springs that prop your truck's front-end up to give you a more commanding view of the road. Whether you're ripping through the desert, rock crawling through the mountains, towing a heavy load or simply just riding around town, the Carli Pintop Lift System will take you further so you can explore more.

Accommodations for Massive Ride Height

Lifting your truck by 6 inches is certainly no easy task; however, Carli makes it simpler on your end by including all of the necessary components to accommodate for this massive ride height increase. You'll find an adjustable track bar paired with a drop bracket that works to reduce body roll and sway over uneven terrain, all while ensuring suspension geometry remains correct. What's more, radius arms and a crossmember brace help maximize suspension articulation to give you superior quality over practically any terrain on the planet. You'll also benefit from the front and rear bump stops which alleviate stress on various suspension components, offering up superior longevity for your ride.

Fitment:

• 2012, 2013 Dodge Ram 2500 4x4 Diesel SRW
• 2012 Dodge Ram 3500 4x4 Diesel SRW

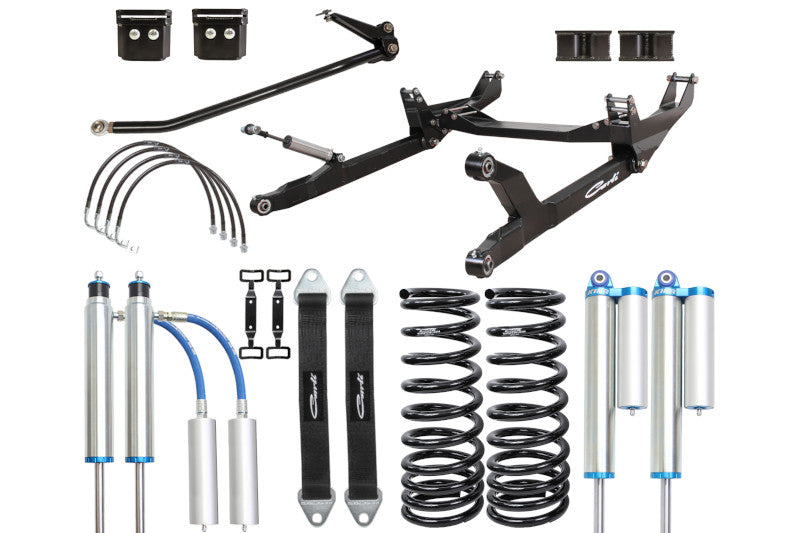

Base Kit Includes: Front & Rear Carli Tuned King 2.5 RR Shocks, Front Multi Rate Coil Springs, Adjustable Track Bar, Track Bar Drop Bracket, Reservoir Mounts, Radius Arm Kit, Limit Strap Kit, Frame Drop Brackets, Crossmember Brace, Front & Rear Bump Stop Drops, Extended Brake Lines.

Wheel Recommendations: This system will fit up to a 37" Tire when utilizing wheels that are no more than 9" with 4.5" of backspacing. A 17-18" diameter wheel will allow for optimal ride quality.
