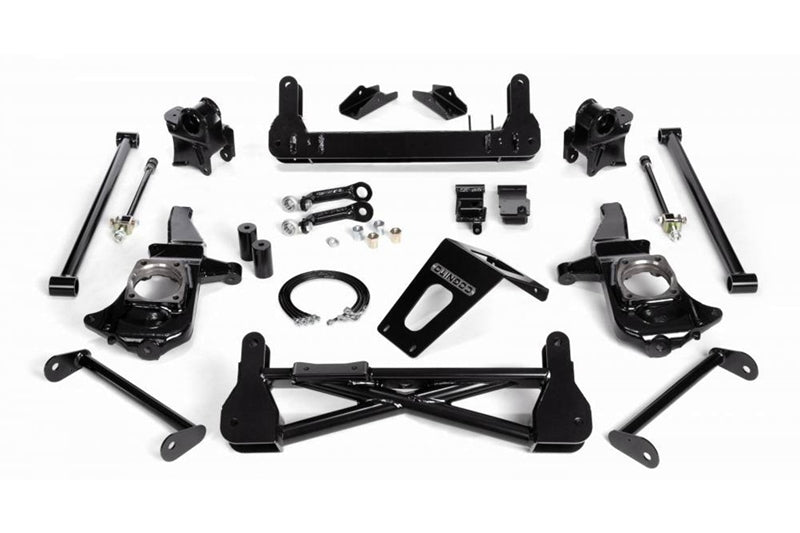

7-9" inch Non-Torsion Bar Drop Front Suspension Lift Kit

Features:

• Fits 2011-2012 GM 2500HD/3500HD 2WD
• Designed for non-StabiliTrak models
• Adjustable 7 to 9 inch lift
• Maintains stock tie rod angles at 7 inches
• Non-torsion bar drop design
• Increases track width 1.2 inches per side
• Includes Pitman and Idler Arm Support
• Integrated front skid plate for rigidity
• Powder coated semi-gloss black steel brackets
• Includes extended stainless steel brake lines
• Limited lifetime warranty included

Command A Taller Stance With Confidence Built In

If you are ready to give your 2011-2012 Silverado or Sierra 2500HD or 3500HD 2WD a serious attitude adjustment, this Cognito 7-9 inch front lift kit delivers the height and the strength to back it up. Right out of the gate, the non-torsion bar drop design keeps the torsion bars tucked in their factory location, so you are not sacrificing ground clearance under the chassis just to gain lift. Set at 7 inches, the truck maintains stock tie rod angles, which helps preserve steering feel and long term reliability. Bump it up to 9 inches and you get an even more commanding presence with only a slight increase in tie rod angle. Additionally, the included Cognito Pitman and Idler Arm Support Kit corrects a known weak point in the factory steering system, giving you tighter control and added durability. The integrated skid plate ties the front and rear crossmembers together for extra rigidity, which you will appreciate when the truck is loaded down or seeing rough terrain. Finished in semi gloss black powder coat and backed by a limited lifetime warranty, this kit is built to look right and perform hard for years to come.

Engineered Geometry And Steering Support For Serious Front End Performance

This Cognito 110-K0536 lift kit is purpose built for 2011-2012 GM 2500HD and 3500HD 2WD trucks without StabiliTrak, focusing on proper suspension geometry and long term component life. The adjustable 7-9 inch lift height allows you to dial in your stance while maintaining stock tie rod angles at the 7 inch setting. Furthermore, the kit increases front track width by 1.2 inches per side, which helps retain proper caster settings and supports stable handling characteristics. The non-torsion bar drop configuration keeps the torsion bars in their original position, avoiding the clearance loss common with traditional drop bracket systems. A heavy duty skid plate connects the included front and rear crossmembers, reinforcing the entire front suspension structure under load. Extended stainless steel braided brake lines are supplied to accommodate the added suspension travel and maintain safe braking performance. Sway bar end links and all required mounting hardware are included, ensuring a straightforward installation for a properly equipped shop, while allowing you to select shocks and rear lift components that match your specific build goals.

Fitment: 2011, 2012 GM Silverado/Sierra 2500HD/3500HD 2WD Non-Stabilitrak

Notes:

• Fits 2011-2012 GM 2500HD/3500HD 2WD only
• Designed for non-StabiliTrak models only
• Front lift kit only, rear components not included
• Shocks are not included with this kit
• Extended brake lines are included and required
• Track width increases 1.2 inches per side
• 9 inch setting increases tie rod angles slightly
• Professional installation and alignment recommended
• Wheel and tire fitment should be verified before purchase
• Limited lifetime warranty applies to Cognito components
