CS-DFSP-19-425 Full Progressive Leaf Spring Kit – for 2″ Lift

Features:

• 1-2" of rear lift
• Full length two stage progressive spring pack
• Built by Deaver Spring Mfg for Carli
• Softens initial spring rate at ride height
• Minimizes axle wrap and wheel hop
• Up to 15" of suspension travel
• Maintains slight rear-high stance with Carli 3" systems
• Smooth, comfortable street driving
• For daily drivers and weekend warriors

Smooth Street Manners Without Giving Up The Weekend Trail

If your RAM 3500 is a daily driver during the week and a trail rig on the weekend, the stock leaf springs are not really built for either job. Carli Suspension had Deaver Spring Mfg build these full length progressive spring packs specifically for this truck, and the goal was a balance of on and off road comfort. They use a two stage design, so the initial spring rate is softer at ride height, which is what gives you a smoother and more comfortable ride on pavement. As you load the truck or get deeper into the travel, the pack stiffens up so you still have a respectable weight capacity for work. The springs add 1 to 2 inches of rear lift, and that keeps a slight rear-high stance when you pair them with Carli's 3 inch systems. They also work to minimize axle wrap and wheel hop, which is the shudder and hop you feel when a heavy truck puts power down on a rough surface. With the factory shackle you get up to 15 inches of suspension travel, so the truck can actually use the suspension on a trail. For a diesel 3500 that has to work all week and play on weekends, this pack is built for exactly that mix.

Two Stage Deaver Spring Packs Built Exclusively For Carli

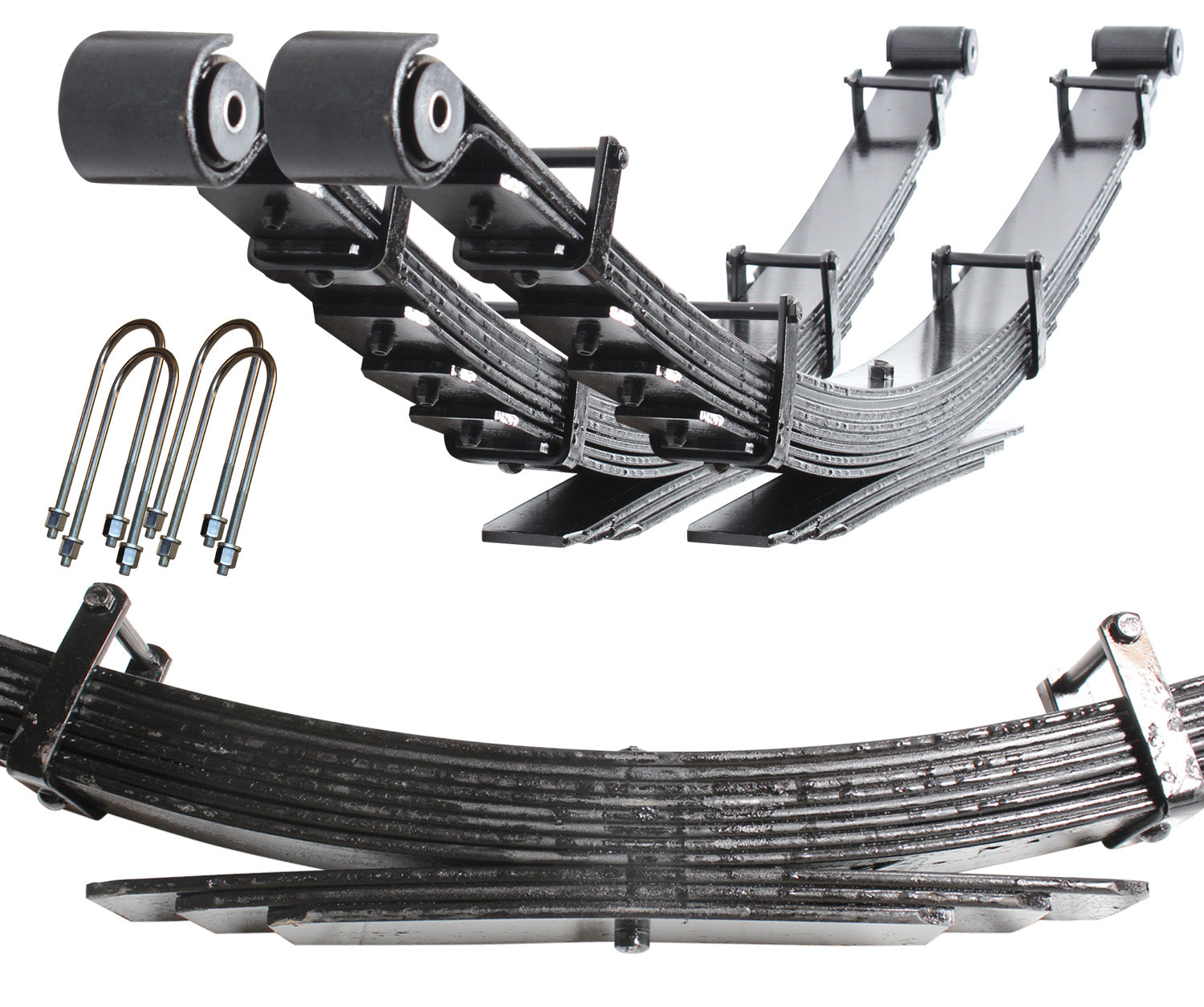

The Carli Suspension CS-DFSP-19-425 is a full progressive leaf spring kit engineered for 2019-2025 RAM 3500 4x4 diesel trucks with a 4.25 inch axle tube. The spring packs are full length and built by Deaver Spring Mfg specifically for Carli Suspension. They use a two stage design that softens the initial spring rate at ride height while still keeping a respectable weight capacity for the truck. The kit provides 1 to 2 inches of rear lift and maintains a slight rear-high stance when paired with Carli 3 inch systems. It minimizes axle wrap and wheel hop and is capable of 15 inches of suspension travel when used with the factory shackle. Buyers should know that these springs reduce the truck's payload to a light 3/4-ton capacity. The kit will not fit trucks equipped with factory air-assist, and it is built for the 4.25 inch axle tube configuration only.

Fitment: 2019, 2020, 2021, 2022, 2023, 2024, 2025 RAM 3500 4X4 Diesel with 4.25" axle tube & 1-2" of rear lift

Notes:

• Reduces payload to a light 3/4-ton capacity
• Will not fit trucks with factory air-assist
• For Ram 3500 4x4 diesel trucks with a 4.25" axle tube only, confirm your axle tube size before ordering
• Provides 1" to 2" of rear lift and keeps a slight rear-high stance with Carli 3" systems
• Up to 15" of suspension travel when used with the factory shackle
• Two stage spring pack built by Deaver Spring Mfg exclusively for Carli Suspension
• California Proposition 65 warning applies to this product
