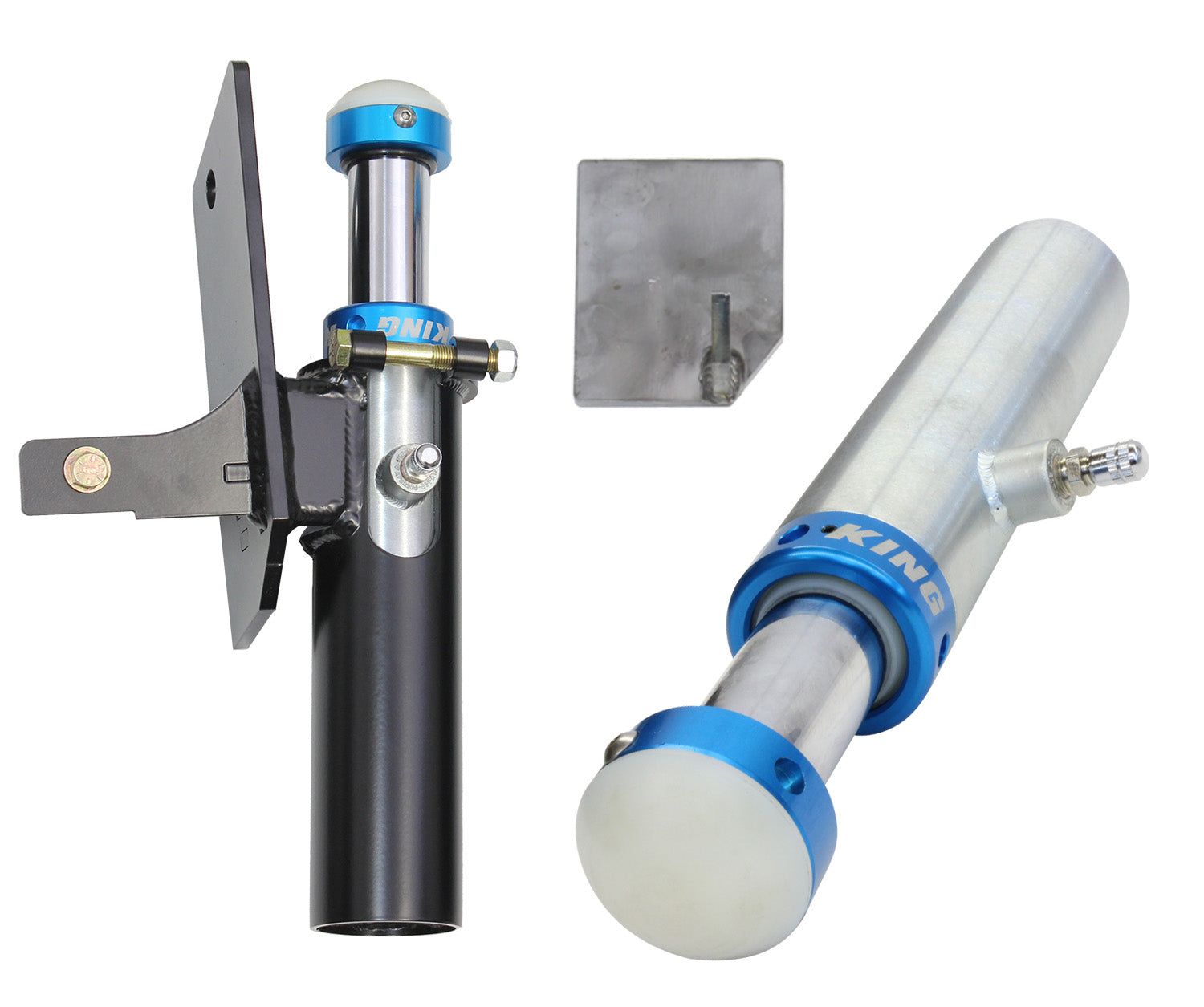

Front Hydraulic Bump Stops

Features:

• Fits 2003-2012 RAM 2500/3500 4WD
• Designed for 3 inch lifts
• First hydraulic bump stop for RAM
• Does not reduce wheel travel
• Engages final 2.5 inches travel
• Acts as secondary suspension system
• Prevents harsh bottoming out
• Dissipates impact energy as heat
• Controlled slower rebound rate
• Reduces suspension bounce back
• Improves high speed off road control
• Protects suspension components from damage

Take The Hit Without Losing Control On The Trail

If you have ever pushed your 2003-2012 RAM 2500 or 3500 hard off road, you know how violent a full bottom out can feel. The Carli Front Hydraulic Bump Stops are built to take that punishment and turn it into controlled energy instead of a harsh impact. Designed specifically for 4WD Cummins trucks with 3 inch lifts, this system acts like a secondary suspension that only comes into play when you truly need it. The final 2.5 inches of travel are slowed and controlled, helping prevent that jarring hit that rattles your dash and unsettles the truck. Additionally, because they do not reduce overall wheel travel, you keep the articulation and performance your suspension was designed to deliver. The result is a truck that feels more composed when you are moving fast through rough terrain. If you want to drive with confidence and protect your investment at the same time, this upgrade makes a serious difference.

Hydraulic Damping Technology Designed For Controlled Compression And Rebound

The CS-DHYDRO-F kit is the first hydraulic bump stop system developed specifically for the 2003-2012 RAM 2500 and 3500 platform. Unlike traditional rubber bump stops, these hydraulic units absorb impact energy and dissipate it as heat during compression. This reduces the amount of stored energy that would otherwise force the suspension to rebound aggressively. Furthermore, the rebound is tuned to extend at a slower rate, which helps prevent the axle from bouncing back upward and upsetting the chassis. By controlling both compression and rebound during the final 2.5 inches of travel, the system maintains better tire contact and vehicle stability at speed. The design protects critical suspension components from repeated harsh impacts while keeping steering and handling more predictable. For serious off road drivers who demand control without sacrificing travel, this hydraulic bump stop system delivers a purpose built solution.

Fitment: 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012 Dodge RAM 2500/3500 5.9L/6.7L Cummins 4WD w/ 3" inch Lifts

Notes:

• Fits 2003-2012 RAM 2500/3500 4WD
• Designed for trucks with 3 inch lifts
• Not intended for stock height suspension
• Engages only during final compression travel
• Will not increase total wheel travel
• Recommended for aggressive off road use
• Professional installation recommended
• Periodic inspection advised after heavy use
• Works as secondary suspension system
• Compatible with Carli suspension systems
