Carli CS-FLVL-EV25-17 2.5/3.5 inch E-Venture Leveling Kit | 2017-2022 Ford F250/F350 Super Duty 4WD

Features:

• 2.5" to 3.5" front lift height
• Includes Carli tuned 2.5" SDI shocks
• Real-time ECU and touchscreen control
• Monitors terrain 250 times per second
• Adjustable modes for street, desert, mountain
• Supports 37x12.5" tires with trimming
• Includes front coils, track bar, brake lines
• 9" front and 13" rear suspension travel
• Customizable ride tuning via touch screen
• Hard-anodized aluminum shocks with stainless shafts
• Designed specifically for diesel 4WD models
• Optional rear load support control included

Experience Suspension That Adapts As Fast As You Drive

If you’ve ever wished your suspension could think a few steps ahead of the terrain, the Carli E-Venture Leveling Kit is your answer. This isn’t just a lift kit, it’s a smart, performance-driven system that transforms how your Super Duty drives on and off the pavement. With 2.5 to 3.5 inches of lift depending on the model year, your truck gains a bolder stance and improved clearance for tires up to 37 inches. But where this kit really shines is in how it reacts, literally. It processes terrain data from factory sensors 250 times per second, adjusting damping at each corner for a smooth, controlled ride over potholes, gravel, and washboard trails. You can switch between refined driving modes like Street, Desert, and Mountain with the touch of a screen, each one tailored for a completely different feel behind the wheel. Whether you're towing, crawling, or highway cruising, this system adapts in real time to keep the ride dialed exactly how you want it.

Smart Technology Meets Precision Built Suspension Control

The Carli CS-FLVL-EV25-17 E-Venture System brings together cutting-edge electronics and premium suspension hardware for 2017–2022 Ford F250 and F350 4WD diesel models. Up front, custom Carli-tuned coil springs provide up to 3.5 inches of lift, paired with a high-clearance bump stop drop, extended stainless brake lines, and a track bar to maintain geometry. At the core of this system are 2.5-inch SDI shocks featuring billet rod ends, hard-anodized aluminum bodies, and 17-4 stainless shafts, all controlled by a proprietary ECU and touchscreen interface mounted inside the cab. The system gathers live data from an engine-mounted IMU sensor and your truck’s OBDII port, measuring roll, pitch, throttle, brake pressure, and more, to instantly adjust damping across all four shocks. This translates to smoother transitions over uneven terrain and less body movement in every situation. Carli even includes rear load adjustment, letting you fine-tune support when towing or hauling. It’s the most dynamic and customizable suspension Carli has ever offered, engineered to deliver unmatched ride quality no matter how or where you drive.

Fits: 2017, 2018, 2019, 2020, 2021, 2022 Ford F250/F350 Super Duty 4WD

Notes:

• Fits 2017–2022 Ford F-250/F-350 4WD with 6.7L Powerstroke
• Not compatible with 2023 or newer model years
• Not compatible with gas engine models
• Provides 3.5" lift on 2020–2022 models and 2.5" on 2017–2019
• Provides 1.5" lift on 2020–2022 Tremor models
• Supports up to 37x12.5" tires with trimming
• Factory wheels should not be used with oversized tires
• Touchscreen allows on-the-fly adjustment of shock settings
• Includes Mountain, Street, Desert, and Pro drive modes
• IMU and OBDII sensors allow terrain-aware damping control

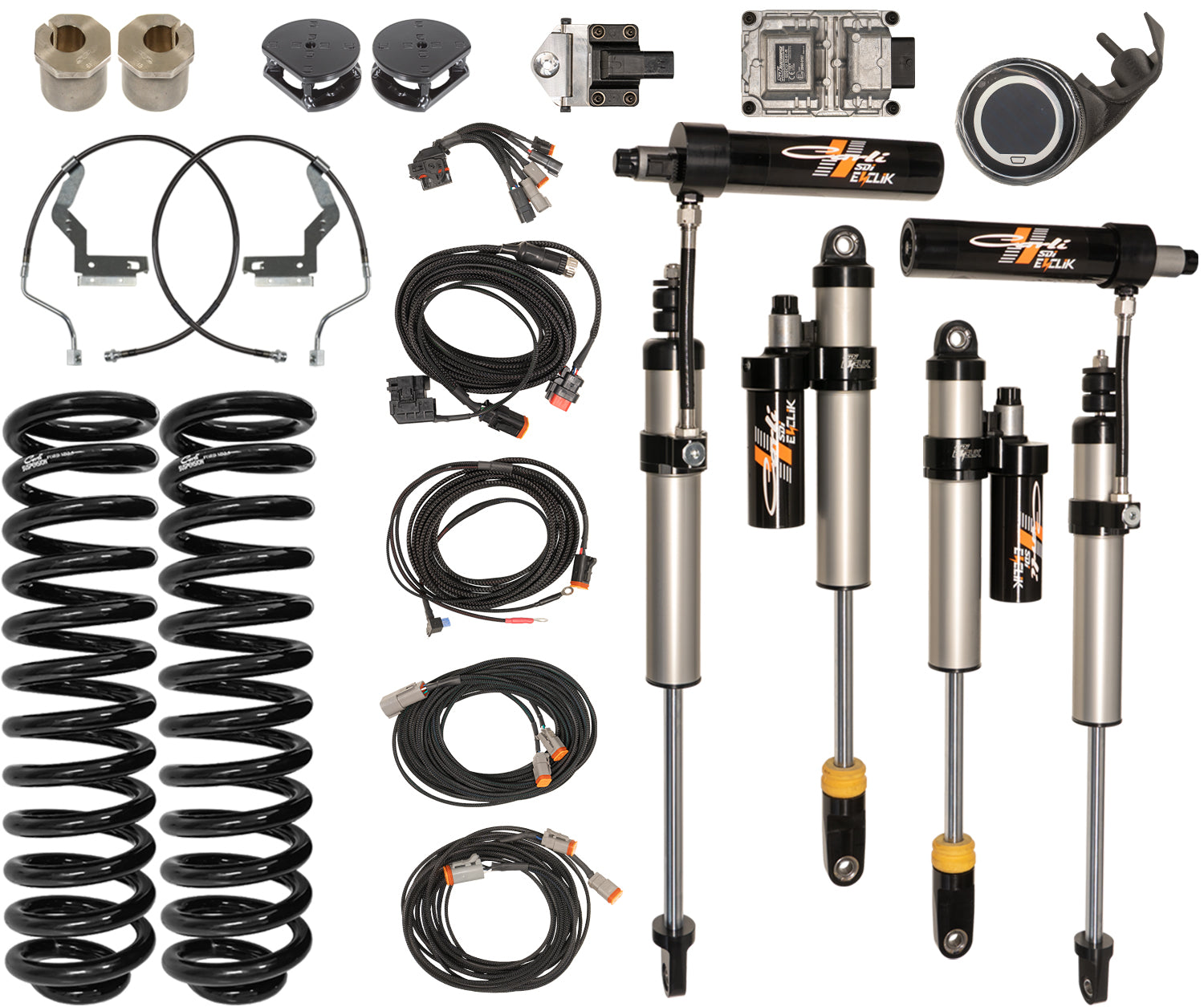

• System includes ECU, sensors, harnesses, and custom shocks
• Recommended to pair with Carli Torsion Sway Bar for best results
