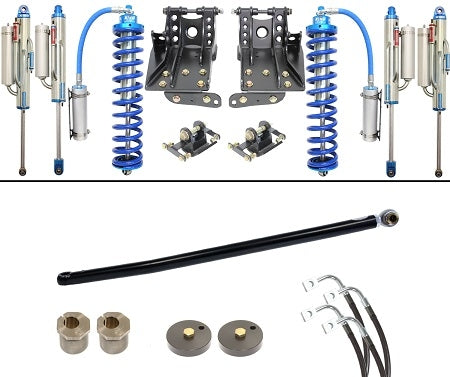

2.5" inch Coilover Bypass Leveling System

Features:

• Carli tuned King 2.5 inch coilovers
• Front 2 tube bypass shocks
• Rear 3 tube bypass shocks
• 2.5 to 3.5 inch front lift
• Up to 2 inch rear lift
• 8 inch front wheel travel
• 13 inch rear wheel travel
• Height adjustable for added weight
• Custom pistons tuned for Super Duty
• 17-4 stainless shock shafts
• Full progressive rear spring pack
• Adjustable bypass zones for tuning

Take Your Super Duty Beyond The Limits Of A Basic Leveling Kit

If you are looking at your 2011-2016 Ford F250 or F350 and thinking a simple spacer kit will not cut it, you are absolutely right. The Carli 2.5 inch Coilover Bypass Leveling System is built for truck owners who actually use their suspension and want it to perform when the terrain gets rough. Up front, you get Carli custom tuned King 2.5 inch remote reservoir coilovers paired with 2 tube bypass shocks that deliver impressive control without beating you up on the street. Out back, the 3 tube bypass shocks and full progressive spring pack transform how the truck reacts to big hits, washboard roads, and fast desert sections. Additionally, the system is height adjustable about 1 inch to compensate for heavy bumpers or a winch, so you can dial in stance and geometry properly. With 8 inches of front travel and 13 inches in the rear, the truck feels more composed and planted when the terrain gets unpredictable. This is one of Carli most capable off road systems, yet it still drives with surprising refinement on pavement.

Precision Tuned King Bypass Technology For Maximum Control

At the core of this system are Carli specific, blueprinted King 2.5 inch shocks on all four corners, each tuned around custom pistons designed specifically for the heavy Super Duty platform. The external bypass tubes feature one way check valves that allow fluid to bypass the main piston in certain zones of travel, creating a supple ride at cruising height and ramping up damping when a large hit is encountered. As the shock moves deeper into the stroke, the ports close and force fluid through the valving, dramatically increasing resistance and acting like a tunable internal bump stop. On rebound, oversized tubes allow rapid shaft return to keep the tires planted, then progressively slow extension near top out for control and stability. Furthermore, the shafts are machined from solid 17-4 stainless steel, eliminating coatings that can wear off and improving long term durability. The rear full progressive spring pack eliminates the need for blocks, extends travel, and reduces wheel hop, though it does trade about 15 percent of load capacity compared to a stock F250. Fully adjustable and delivered with Carli recommended settings, this system gives you the ability to tailor ride comfort and off road performance to match exactly how you use your truck.

Fitment: 2011, 2012, 2013, 2014, 2015, 2016 Ford F250/F350 Super Duty

Notes:

• Fits 2011-2016 Ford F250 and F350 only
• Off road oriented suspension system
• Approximately 15 percent reduced load capacity
• Bypass shocks produce audible clicking
• Height adjustable about 1 inch
• Professional installation strongly recommended
• Differential guard recommended for protection
• High mount steering stabilizer recommended
• Fabricated radius arms recommended
• Roll cage recommended for aggressive use
• 37 inch tires may require trimming
• 17 to 18 inch wheels recommended
