Carli CS-F45-EV25-17 4.5/5.5 inch E-Venture Adjustable Lift System | 2017-2024 Ford F250/F350 Super Duty 4WD 6.7L Powerstroke

Features:

• Fits 2017–2024 F250/F350 4WD diesel models only
• Provides 4.5" to 5.5" front lift depending on year
• Not recommended for gas or 2WD models
• Includes SDI-tuned 2.5" electronic reservoir shocks
• Touchscreen control with user-selectable drive modes
• Reads terrain 250 times per second for live tuning
• Supports Mountain, Street, and Desert ride modes
• Features independent front and rear shock adjustability
• Rear Load Control adjusts damping when towing/hauling
• Pro Mode allows fine-tuning of shock response profiles
• Recommended with Carli torsion sway bar for best feel
• Optimized for 37" tires on 17–18" wheels with 5" backspacing

Let Your Truck Think While You Drive

Imagine a suspension system that reads the road faster than you can react and adapts instantly to give you the perfect ride no matter what you're doing. That’s exactly what the Carli E-Venture Lift System delivers. Designed for 2017–2024 Ford F250 and F350 diesel trucks, this kit gives you up to 5.5 inches of front lift and pairs it with the kind of intelligent damping you’d expect from top-tier off-road race tech. Whether you’re towing, crawling through rocky terrain, or cruising down the highway, this system actively adjusts itself 250 times per second to maintain comfort, control, and a level chassis. You can fine-tune your ride with three user-friendly modes, Mountain, Street, and Desert, each with a noticeable feel behind the wheel. The touchscreen controller sits right within reach and puts all the power at your fingertips without being in the way. From late-night drives to heavy weekend hauls, the E-Venture system transforms your Super Duty into a smarter, smoother, and more capable machine.

Precision Engineering Meets Cutting Edge Suspension Control

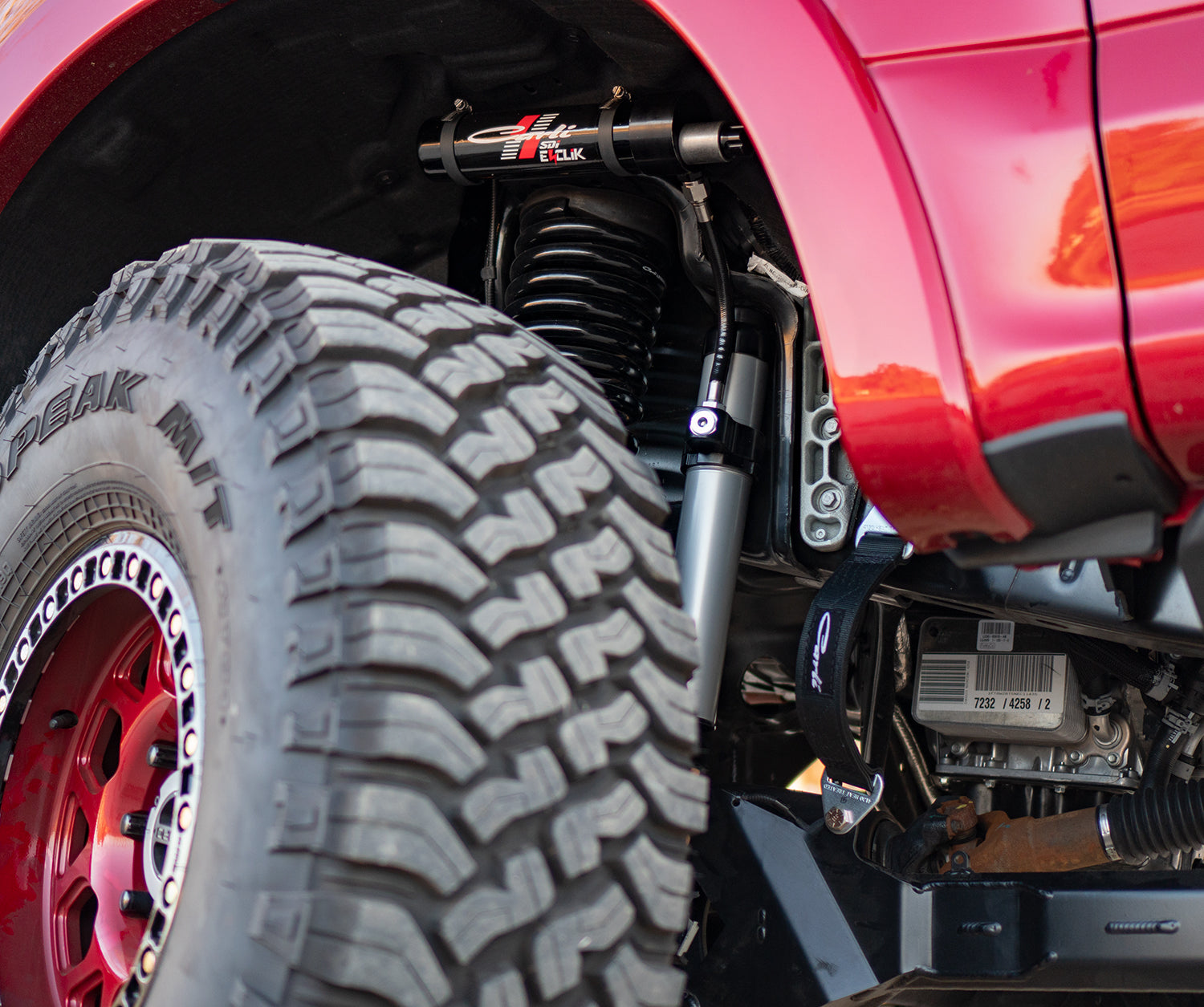

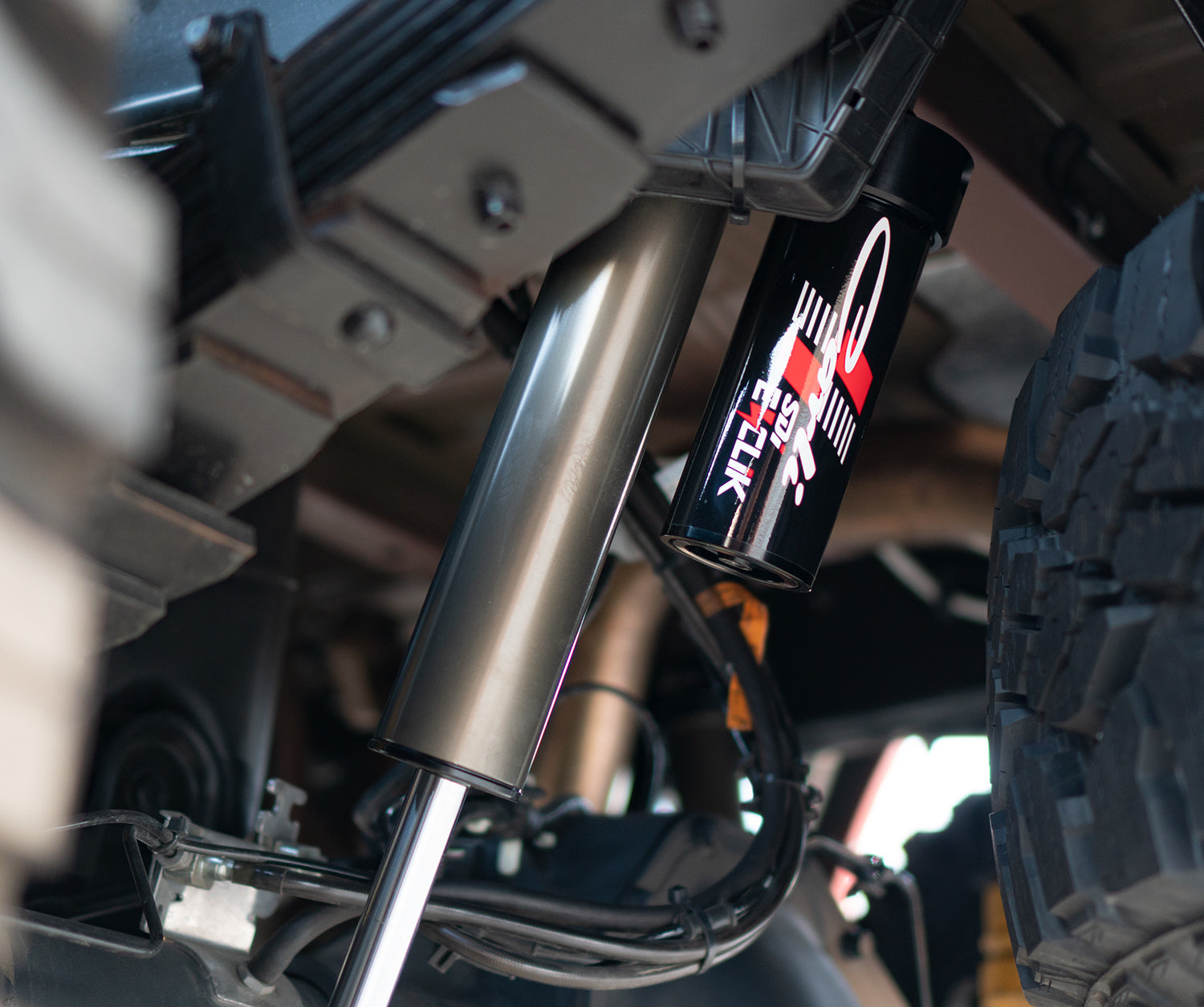

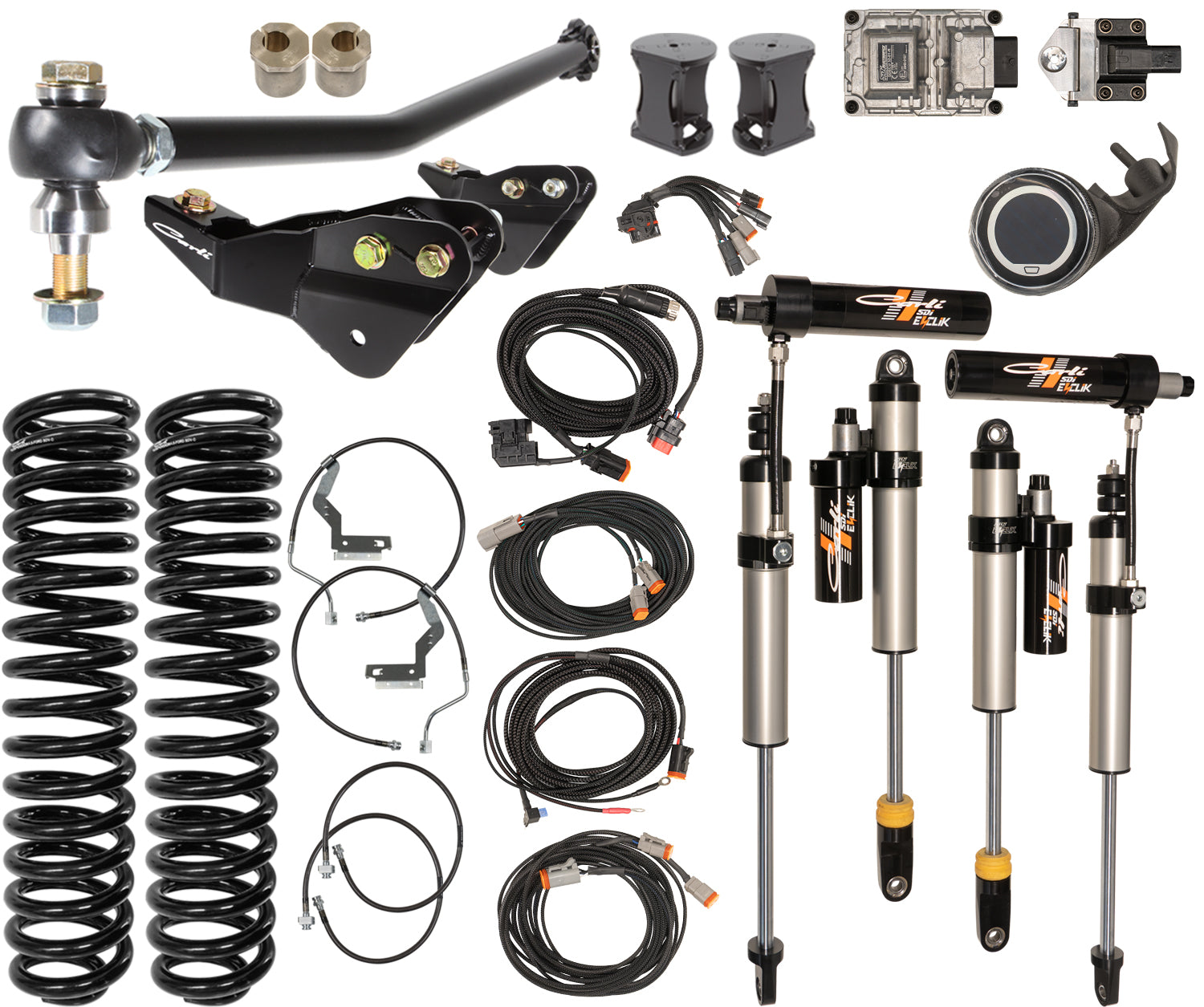

The CS-F45-EV25-17 system is built on a foundation of serious tech and rock-solid components tailored to the 6.7L Powerstroke platform. At the heart of it are Carli’s multi-rate coil springs and SDI-tuned 2.5-inch shocks with remote reservoirs, hard-anodized aluminum bodies, and 17-4 stainless shafts designed to endure everything from mud to mountain passes. The brain of the system, an ECU mounted in-cab, receives real-time data from factory sensors and an IMU to analyze brake pressure, steering angle, throttle input, and body pitch. That information drives shock response on all four corners individually to smooth out every bump and reduce body roll without driver input. With Pro Mode enabled, experienced users can even fine-tune specific shock behaviors like roll and throttle response. Radius arm drop brackets, bump stop extensions, caster shims, stainless steel brake lines, and an adjustable track bar all come standard to preserve geometry and increase articulation. Pair this system with Carli’s recommended sway bar for the full benefit, especially when running 37-inch tires on a proper wheel setup. The result is a system that performs as sharply as it looks.

Fits: 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024 Ford F250/F350 Super Duty 4WD 6.7L Powerstroke

Notes:

• Fits 2017–2024 Ford F250/F350 4WD diesel trucks only
• Not compatible with gas engine or 2WD configurations
• Provides 4.5" lift for 2017–2019 models
• Provides 5.5" lift for 2020–2024 models
• Tremor models will gain only 3.5" of front lift
• Requires sway bar option for complete functionality
• Rear lift setup must be selected separately
• Add-a-pack not recommended for F-350 or high capacity tow
• Factory wheels not safe for use with oversized tires
• Designed specifically for 37" tires on 17–18" wheels
• Touchscreen must be mounted using included hardware
• Pro Mode allows full tuning of vehicle response
