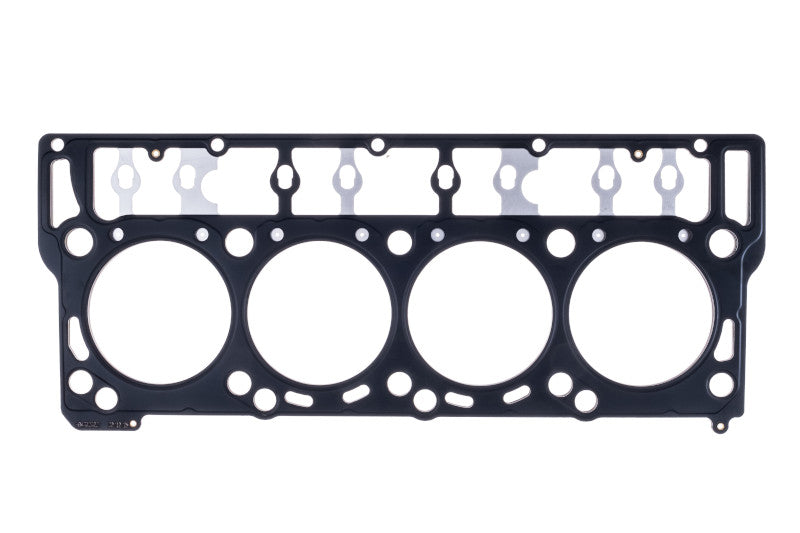

Cometic C5610-077 MLX Cylinder Head Gasket - .077 inch Bore 103MM Revision A | 2008-2010 Ford F250/F350 6.4L Powerstroke

Features:

• Fits 2008–2010 6.4L Powerstroke Super Duty
• .077" compressed thickness for enhanced sealing
• 103mm round bore for precise cylinder fit
• Six-layer stainless steel MLX construction
• Reinforced with armor-clad and graphite layers
• Galvanized steel core for added strength
• Revision A includes updated sealing improvements
• Ideal for high-boost and tuned applications
• Seals uneven or aged mating surfaces
• No re-torque required after installation
• Built for heavy-duty and performance use
• Resists heat, pressure, and combustion stress

This Gasket Was Built For Big Boost And Bigger Demands

If you're pushing your 2008–2010 6.4L Powerstroke harder than ever, the Cometic C5610-077 MLX Cylinder Head Gasket is exactly what you need to keep that power sealed tight. Whether you’re running higher boost levels, towing heavy, or daily driving a tuned setup, this gasket steps up with strength and confidence. With its six-layer stainless steel construction and thicker .077-inch compressed profile, it's designed to handle extreme conditions without giving in to pressure or heat. It’s ideal for trucks that have seen some miles or engines that need just a little more cushion between the block and the head. You also get the peace of mind that comes with not needing to re-torque after installation, which saves time and effort in the garage. Revision A means you’re getting Cometic’s latest improvements and performance refinements, built from real-world testing and feedback. When your Powerstroke is built for serious work or power, this gasket is ready to keep things locked down and leak-free.

Engineered For Serious Pressure And Sealing Stability

The Cometic C5610-077 MLX Cylinder Head Gasket is purpose-built for the demands of the 6.4L Powerstroke engine platform, offering a precise 103mm round bore and a substantial .077-inch compressed thickness. This version features six layers of multi-layered stainless steel, giving it an advantage in strength and stability compared to traditional designs. It's equipped with a galvanized steel core and reinforced with armor-clad and graphite sealing surfaces to manage irregularities in head or block surfaces, which is especially useful for high-mileage or performance-tuned engines. The MLX configuration includes a stopper layer that increases localized sealing around the combustion chamber, helping prevent leaks even under high boost pressures. With Revision A updates, this gasket reflects Cometic’s ongoing improvements for fitment, longevity, and sealing reliability. The thicker design provides more tolerance in engines with minor warping or decking variations, reducing the chance of future failures. It’s a trusted choice for diesel builders and enthusiasts looking for advanced materials and dependable performance in demanding conditions.

Fits: 2008, 2009, 2010 Ford F250/F350 6.4L Powerstroke

Notes:

• Ensure compatibility with 2008–2010 Ford Super Duty 6.4L Powerstroke engines
• Features a 103mm round bore and .077" compressed thickness
• Constructed with six layers of stainless steel for enhanced durability
• Incorporates a stopper layer for optimal combustion chamber sealing and improved clamp load around the cylinder
• Outer layers coated with high-temperature polymer for improved sealing
• Reinforced with armor-clad, graphite, and galvanized steel materials for sealing irregular surfaces
• No re-torque required after installation, simplifying maintenance
• Suitable for high-performance and high-load applications
• Manufactured to order; allow 2–3 weeks for production and shipping
• Professional installation recommended to ensure proper sealing
