C12F 5" inch Lift Kit with Fox Shocks (without Overload)

• Heavy-duty differential skid slate improves offroad protection.
• High-strength, 1/4" steel construction crossmembers corrects lower control arm geometry.
• High-strength, CNC machined, replacement steering knuckles improve strength while correcting steering angles.
• No differential trimming required.
• Rear lift block and longer U-bolts for easy installation and level stance.

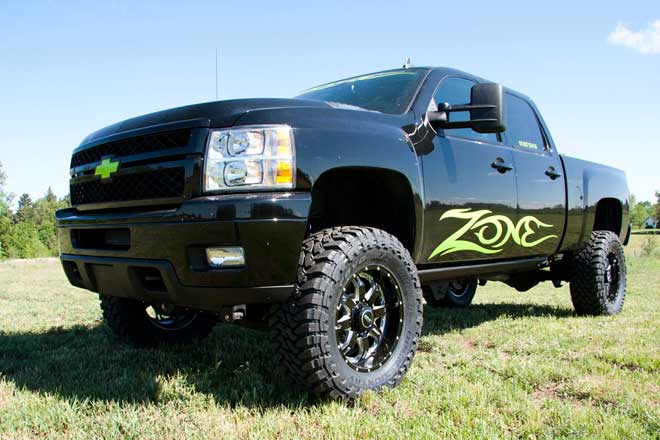

This Lift Kit Turns Your HD Truck Into A Head Turning Beast
When you're ready to lift your truck, there's no reason to settle for anything halfway. This 5-inch lift kit with Fox 2.0 IFP shocks gives your Silverado or Sierra HD the bold stance it deserves while delivering ride quality that holds up on the road and off. With clearance for up to 35-inch tires, your truck will instantly look more capable and more aggressive, whether you're hauling, adventuring, or just pulling into the driveway. The included Fox shocks smooth out the ride and help keep control tight, giving you the confidence to push your build without sacrificing comfort. You’re not just getting a cosmetic upgrade, this kit includes all the right components to ensure your suspension geometry and steering feel stay right where they need to be.

Suspension Geometry Strength And Damping Tuned For Your Truck
This 5-inch lift kit is engineered for 2011-2019 GM Silverado and Sierra 2500HD and 3500HD trucks and is designed to provide increased clearance without compromising factory suspension geometry. The system uses heavy-duty 1/4-inch steel crossmembers to reposition the lower control arms, correcting their angle and maintaining proper alignment across the full range of travel. CNC-machined steering knuckles are included to preserve factory steering angles and improve strength under heavy use. A differential skid plate adds protection on rough terrain, while the torsion bar drop setup maintains proper front lift height with improved ride stability. In the rear, 3-inch cast lift blocks and longer U-bolts raise the back end while preserving towing and load capacity.

• 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019 GM Silverado/Sierra 2500HD/3500HD

• Front Lift Height: 5"
• Rear Lift Height: 3"
• Material: Steel
• Front Lift Method: Torsion Bar Drop
• Rear Lift Method: Cast Blocks
• Lift Type: Lift Kit
• Wheel Size: 17 x 9
• Back Spacing: 4.75"
• Max Tire Size: 35 x 12.5
• Wheel Size 2: 20 x 9
• Back Spacing 2: 6"
• Max Tire Size 2: 285 x 65
• Wheel Size 3: 20 x 9
• Back Spacing 3: 6"
• Max Tire Size 3: 35 x 12.5
• Finish: Powder coat
• Cutting Required: Yes
• Welding Required: No

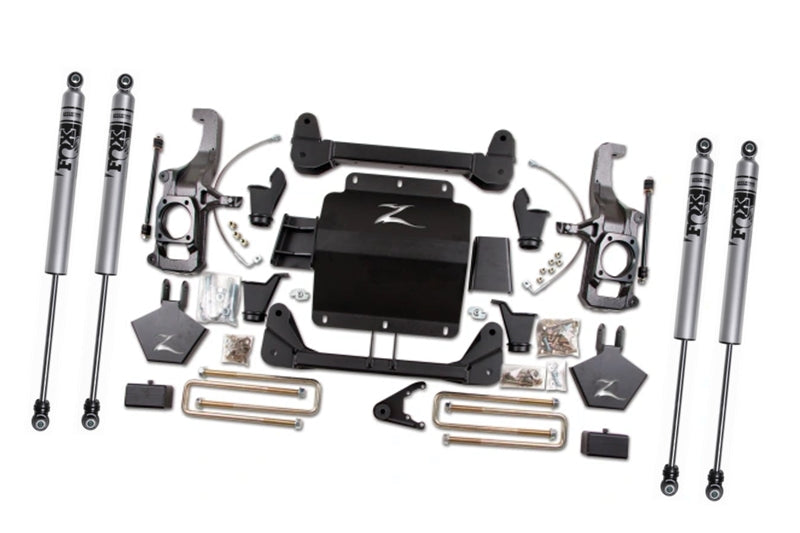

• All Necessary Mounting / Installation Hardware
• Crossmembers
• Differential Drop Brackets
• Skid Plate
• Steering Knuckles
• Torsion Bar Relocation Brackets
• (4) Fox 2.0 IFP Shocks
