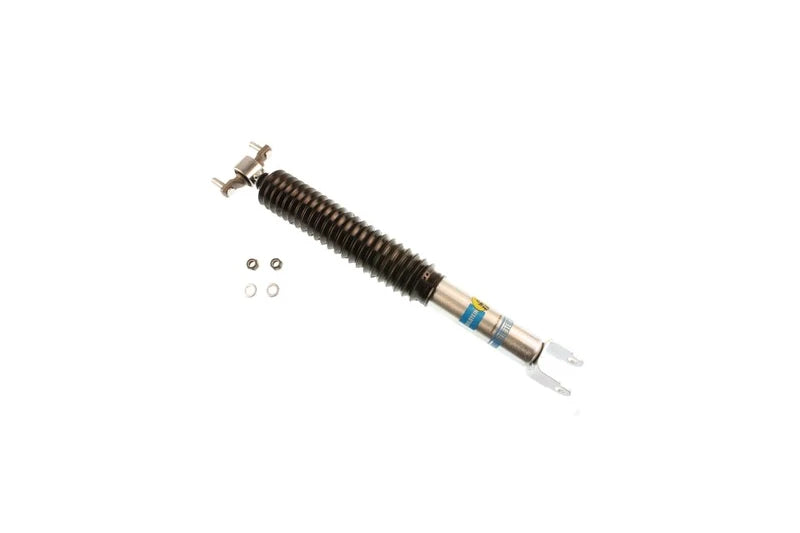

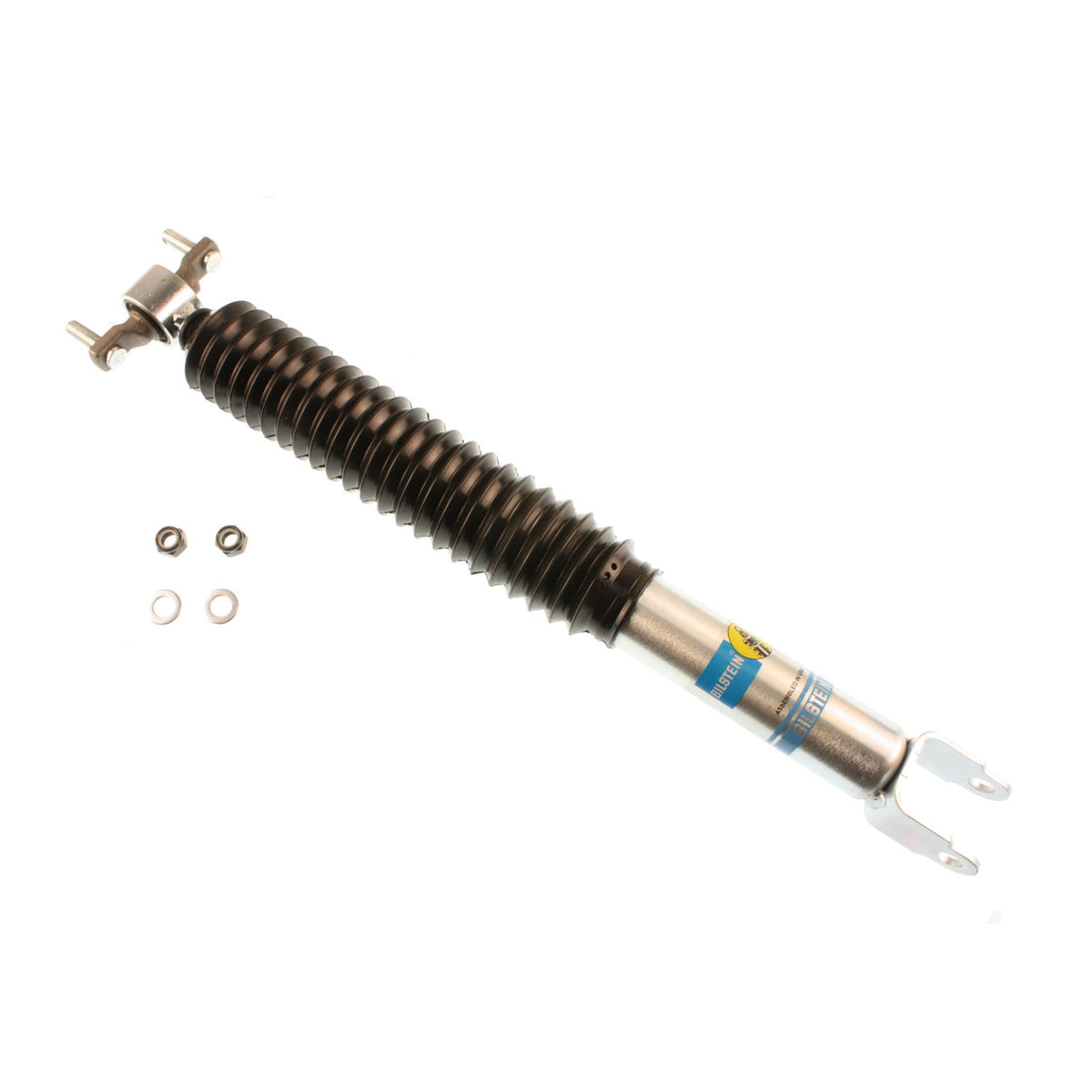

B8 5100 Front Shock - for 4-6" Lift - (Single)

Features:

• Supports 4-6" of front lift
• Premium 5100 Series Front Shock Absorber
• Monotube gas pressure technology
• Specifically engineered for performance
• Multi-layer zinc finish for durability
• Accepts stock springs and upper mounts
• Used in conjunction with stock coils
• Road-tested by Bilstein
• Straightforward installation
• Backed by a Lifetime Warranty
• Sold Individually

Provides Front Leveling and Improved Handling

Adding some front leveling and improving your truck's front-end handling doesn't have to break the bank, and this Bilstein 5100 Front Shock Absorber is here to prove it. Designed for trucks with 4-6" of front lift, this premium shock absorber will help level out your truck while greatly improving it's ability to handle over your stock strut assemblies. This results in improved on and off-road performance without the need to invest in a complete suspension overhaul. These are the perfect shocks for anybody with a do-it-all, general-purpose truck that needs better control and ride quality on the road while getting just enough front ride height to squeeze on larger tires and wheels. The leveling is achieved by using the 5100's built-in slots and removable spring perch that can be placed in any of the grooves. These shocks drop directly in place of your stock strut assemblies and accept your factory coil spring and upper mount.

High-Quality Piston and Valving for improved Performance

Just like all of Bilstein's high-quality suspension components, the 5100 series front shocks are built from the ground up for performance, longevity, and reliability. The shocks are built around a 46mm digressive piston with a nitrogen gas-charged monotube design. The valving has a self-adjusting, deflective disc that makes these shocks effective for a wide range of applications including towing, off-roading, and and general work situations. Additionally, the shock body is made from zinc-plated steel with a unique coating that combats the damaging effects of rust and corrosion. When it comes to installation, these shocks can be directly bolted-on for a simple and straightforward process you can complete at home. Best of all, this front shock absorber comes backed by a Limited Lifetime Warranty to help keep your investment protected.

Fitment: 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026 GM Silverado/Sierra 6.6L Duramax 2500HD/3500HD w/ 4-6" Front Lift

Notes:

• Fits 2011-2026 GM Silverado and Sierra 2500HD/3500HD models.
• Designed for trucks with 4-6" of front lift.
• This front shock does not lift or level the truck.
• Direct fit replacement using factory mounting points.
• Non-adjustable damping is pre-tuned for this application.
• Ideal for lifted trucks, towing, and off-road use.
• Includes a black bellows boot for shaft protection.
• Does not include a reservoir or spring seat.
• Uses a clevis lower mount and bar pin upper mount.
• Zinc plated finish helps resist corrosion.
• Sold individually. Order two for a front pair.
• Backed by Bilstein's Limited Lifetime Warranty.
• Product images may be representative.
