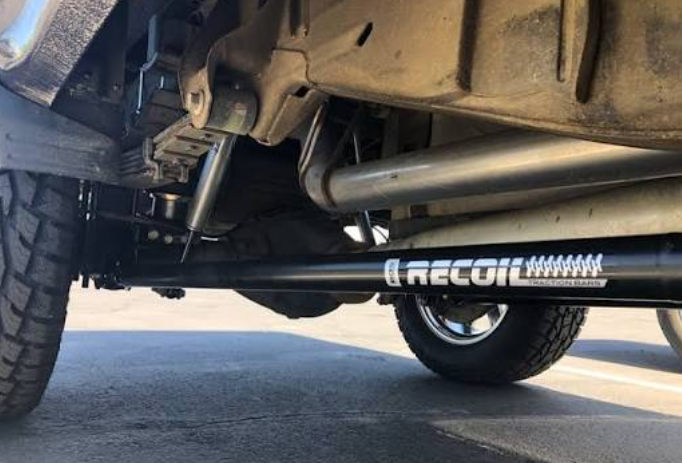

Recoil Traction Rear Bar Kit - for 0-6" Lift - (Pair)

Features:

• Fits 2017–2026 Ford F250 and F350
• Designed for 3.5-4" inch axles
• Eliminates axle wrap under heavy acceleration
• Dual-stage internal compression spring design
• Adjustable spring preload while on the vehicle
• Full floating design for bind-free articulation
• Forged flex ends with high misalignment capability
• Heavy wall steel tubing with durable finish
• Mounts with included hardware and brackets
• Improves traction without limiting suspension travel
• Reduces wheel hop and drivetrain stress
• Built for extreme off-road and towing use

Take Back Control When You Put Down Power

If your Super Duty squats, shakes, or hops under throttle, it's time to fix the root of the problem. The BDS Recoil Traction Bar Kit gives you the control and stability your truck should have had from the start. Whether you’re towing a loaded trailer, launching at a green light, or crawling off-road, this system eliminates axle wrap without killing ride comfort. It keeps your rear end planted, reduces wheel hop, and helps protect your driveshaft and U-joints from unnecessary stress. The dual-stage springs inside each bar let you dial in how aggressive or forgiving the response feels. So whether your truck’s a weekend warrior or a daily hauler, this kit adds confidence in every gear. It's a bolt-on upgrade that works hard behind the scenes, because control shouldn’t be optional when you're building something this capable.

Engineered To Control Axle Movement Without Compromise

The BDS 2309 Recoil Traction Bar Kit is specifically designed to fit 2017–2026 Ford F250 and F350 Super Duty models equipped with 3.5 to 4 inch rear axle tubes. Its core feature is a full floating design that allows bind-free suspension movement across the entire range of travel, ideal for both on-road comfort and off-road articulation. Inside each bar is a dual-stage internal compression spring system, allowing you to adjust spring preload right on the truck without disassembly. At the axle, large forged flex ends provide up to 15 degrees of misalignment and are built to withstand high torque loads without failure. The bars themselves are constructed from thick-wall steel tubing with a corrosion-resistant finish, while the included hardware and mounts ensure a secure, straightforward installation. It’s the kind of solution that lets you drive harder, tow smarter, and enjoy greater control in every condition.

Fitment: 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026 F250/F350 6.7L Powerstroke with 3.5-4 in Axle

Notes:

• Fits rear lifts from 0 to 6 inches
• Includes 123409 Traction Bar Box Kit
• Includes 123416 Mounting Kit
• Not compatible with regular cab models

• Designed for 3.5" or 4" axle tube only
• (2) BDS Recoil Traction Rear Bar Kit
• Product images may be representative
