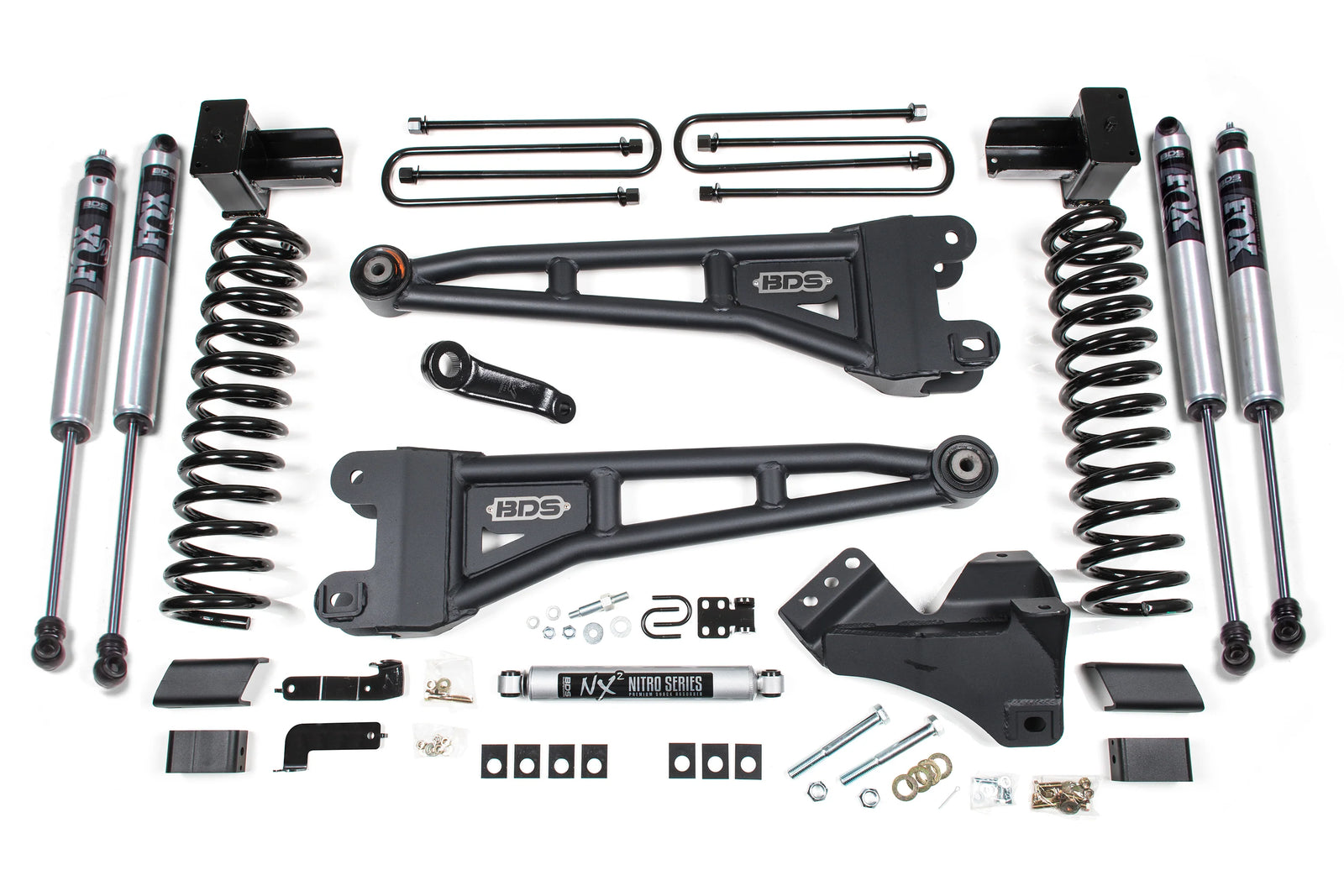

BDS 2243FS 5 Inch Lift Kit w/ Radius Arm, FOX 2.0 Performance Series Shocks & 5 Inch Block Kit w/o Overload | 2023-2025 Ford F250/F350 Super Duty 4WD Gas

Features:

• 5" lift for 37" tire clearance
• Heavy-duty tubular steel radius arms
• FOX 2.0 aluminum body performance shocks
• Dual-rate Pro-Ride coil springs
• CNC-machined 6061-T6 shock mounts
• Bolt-on install; no cutting required
• Maintains factory steering geometry
• Rear lift blocks for level stance
• High-flow piston for racing performance
• Nitrogen-charged monotube shock design
• Quiet OE-style rubber radius bushings
• Clear anodized finish for longevity

Take Your Super Duty From Capable To Commanding

If you’re looking to give your 2023-2025 Ford F250 or F350 Super Duty a major upgrade in both presence and performance, this BDS 2243FS 5-inch lift kit is the real deal. It’s not just about jacking up your truck to fit 37-inch tires, though it definitely does that, it’s about dialing in the stance, control, and off-road capability so your truck doesn’t just look better, it drives better. With heavy-duty radius arms replacing the factory stamped steel, you’re getting a big boost in strength and proper caster alignment, so your steering stays tight and confident. Up front, gas-specific Pro-Ride dual rate coil springs make for a surprisingly smooth ride, whether you're crawling trails or just cruising down the highway. And since this kit is 100% bolt-on, you won't be spending days in the shop or cutting into your frame to get it installed. Paired with FOX 2.0 Performance Series shocks that bring real off-road tuning straight from racing tech, you’ll notice the difference the first time you hit uneven terrain. It's more than a lift, it’s a transformation that makes your Super Duty feel as tough as it looks.

Built With Precision To Conquer Any Terrain

This 5-inch lift kit from BDS Suspension is engineered to maintain factory handling while giving your Super Duty the clearance and durability to handle more demanding conditions. The Pro-Ride coil springs are designed specifically for gas trucks and feature a dual rate that balances on-road comfort with off-road control. For enhanced suspension geometry, the kit includes a forged drop pitman arm and a track bar relocation bracket, working together to maintain proper steering angles and recenter the axle during suspension travel. The rear of the truck is leveled out using high-strength fabricated steel blocks and extended U-bolts, ensuring consistent performance and durability under load. FOX 2.0 Performance Series shocks come with internal floating pistons, a clear anodized finish, and a CNC-machined 6061-T6 aluminum construction that stands up to the elements while delivering consistent damping. These shocks also feature large-diameter shafts and application-specific valving, which means they’re tailored for the Super Duty’s weight and expected performance. Altogether, this kit isn’t just a lift, it’s a comprehensive system that respects the engineering of your truck while expanding what it’s capable of.

Fits: 2023, 2024, 2025 Ford F250/F350 Super Duty 4WD Gas

Notes:

• This kit is not compatible with trucks equipped with radius arm mounted ride height sensors.
• Ford recommends the replacement of the pitman arm nut after each time it has been removed.
• Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
• If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.
• Due to the taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
• Larger tires on stock wheel are not recommended due to interference with brake line, radius arm and sway bar. Use recommended specs listed in wheel and tire fitment section.
• Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups.
• Installation requires a torque wrench capable of 406 ft-lbs.
• Trucks without top mounted overload springs will require (4) UBT4028.
• Fits SRW models only.
• Recalibration of your vehicles Advanced Driver Assistance System (ADAS) cameras, radars, light detection and ranging (LiDAR), and other sensors may be necessary by your local dealership or ADAS service center. This will ensure proper functionality of the vehicle features such as lane keeping, lane departure, parking assistance, blind-spot detection, adaptive cruise control systems, and other functions as they did prior to installation. Please connect with your local dealership or ADAS service center. Similar to a wheel alignment, all charges and expenses that may occur from dealership calibrations and adjustments are the sole responsibility of the vehicle owner.
