BDS 2213FPE 5 Inch Lift Kit w/ 4-Link, FOX 2.5 Performance Elite shocks & Leaf Springs | 2020-2022 Ford F250/F350 Super Duty 4WD/SRW 6.7L Powerstroke

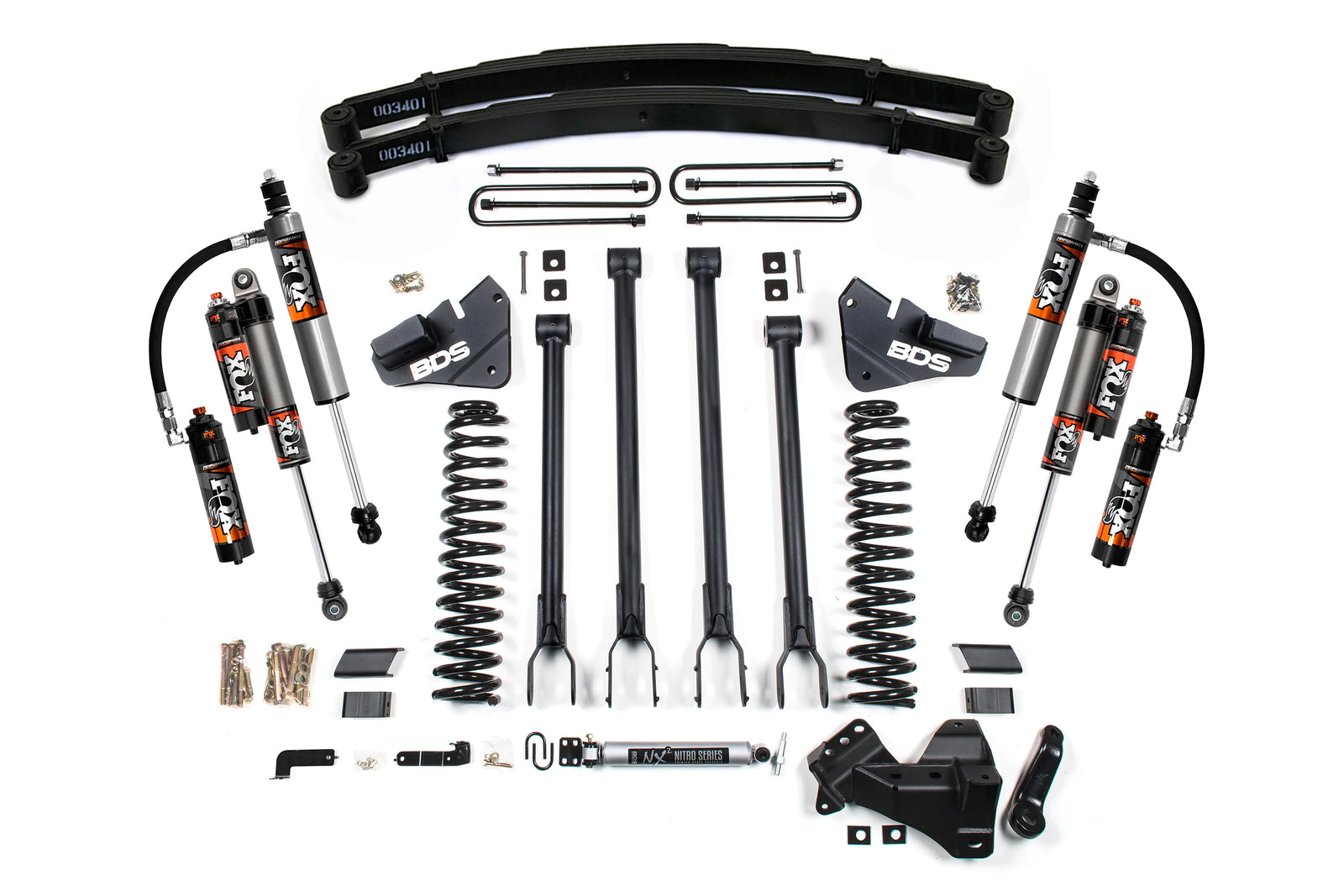

Features:

• 5" lift fits up to 37" tires
• 4-link system improves strength and stability
• Diesel-specific Pro-Ride dual rate coil springs
• Includes multi-leaf rear springs, no blocks needed
• Bolt-on installation with no cutting required
• FOX 2.5 shocks with external reservoirs
• DSC adjusters for compression tuning on demand
• Fabricated brackets maintain proper axle alignment
• Forged pitman arm corrects steering geometry
• Nitrogen-charged NX2 shocks for balanced control
• Maintains factory payload and towing capability
• Designed for smooth ride over any terrain

Turn Your Super Duty Into A High Clearance Beast

If you’re ready to give your Super Duty the height, attitude, and capability it deserves, this BDS 2213FPE 5 Inch Lift Kit with 4-Link conversion is exactly what you need. Whether you're chasing rugged trails or just want a bolder stance for daily driving, this setup delivers both form and function. The kit clears up to 37-inch tires with ease, giving your truck an aggressive, trail-ready look without compromising comfort. Diesel-specific dual rate Pro-Ride coil springs provide a smooth and controlled ride over rough terrain, while the multi-leaf rear springs eliminate the need for traditional lift blocks, giving your setup a clean, factory-like feel with more strength and stability. The 4-link conversion brings noticeable improvements to steering precision and overall handling, especially when loaded or towing. It’s all bolt-on too, so you don’t need to break out the welder or start cutting into your frame. Just real, trail-tested components built to handle whatever your day demands.

Precision Suspension Tuning For Your Diesel Workhorse

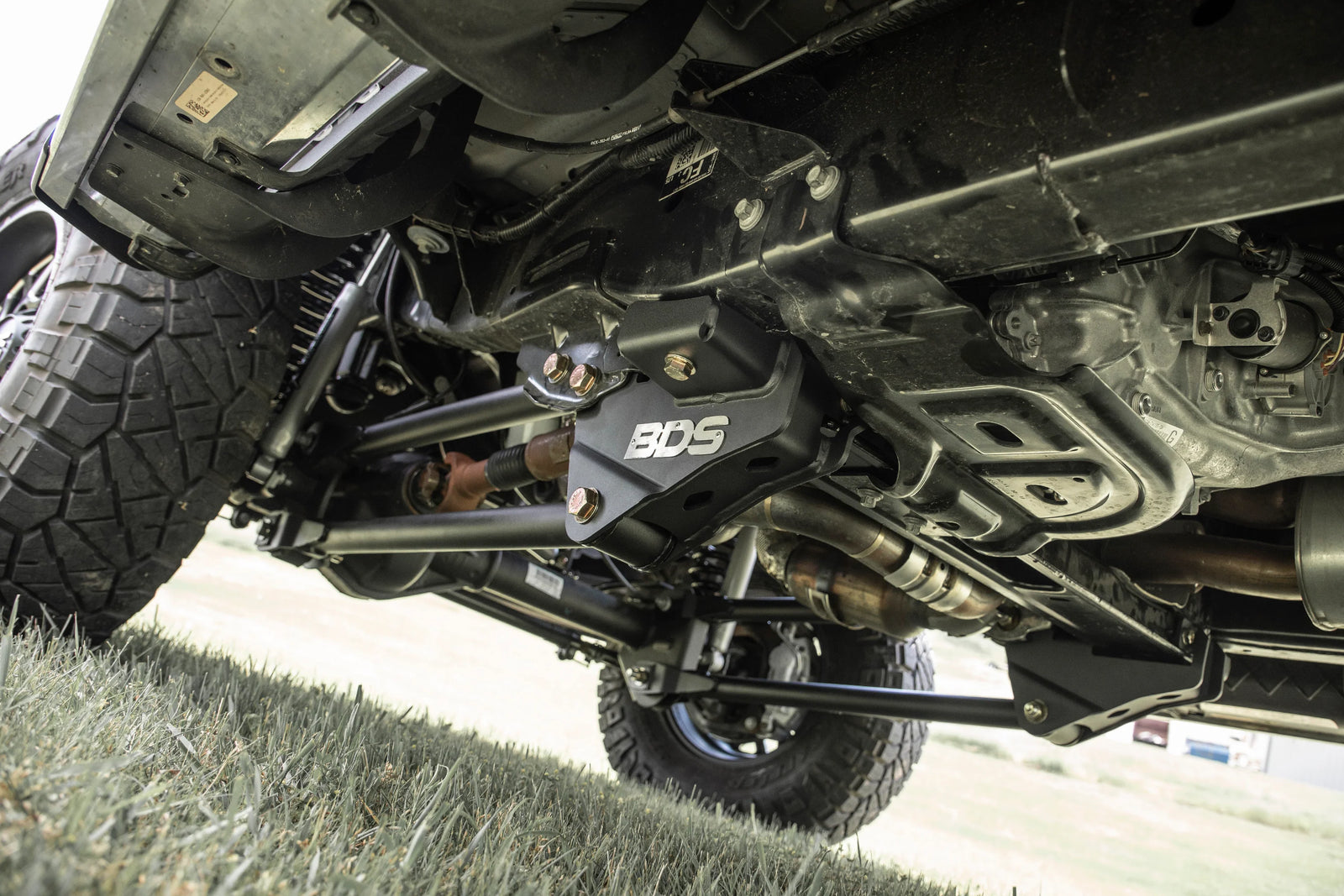

This BDS kit is engineered for 2020-2022 Ford F250 and F350 4WD diesel models that need more than just a lift, they need refined suspension performance. The heart of the system is a set of full-length, diesel-specific Pro-Ride coil springs that maintain ride comfort and control while handling added weight from bumpers, winches, or gear. The upgraded 4-link arms use thick ¼-inch steel brackets and precision geometry to limit caster change and optimize axle positioning across the full range of travel. In the rear, the inclusion of multi-leaf progressive rate springs eliminates the need for lift blocks, helping to reduce axle wrap and maintain a consistent ride under load. Steering geometry is corrected with a forged drop pitman arm and a heavy-duty track bar bracket, keeping things dialed in as you take on uneven roads or off-road routes. The kit includes nitrogen-charged NX2 Nitro shocks by default, but FOX 2.5 Performance Elite Series shocks are available for those who want maximum control. With external reservoirs and Dual Speed Compression adjusters, these shocks are tuned for real-world performance, whether you're hauling heavy loads or carving through desert terrain.

Fits: 2020, 2021, 2022 Ford F250/F350 Super Duty 4WD/SRW 6.7L Powerstroke

Notes:

• Ford recommends replacing the pitman arm nut after each removal
• Trucks with top-mounted overload springs may require UBT4027 spacers taller than 1-1/8"
• Use a small pitman arm puller for drag link and stabilizer removal
• Carrier Bearing Drop Kit (BDS123402) may be required for 2-piece driveshafts
• Tremor models will not achieve full advertised lift height
• Larger tires on stock wheels are not recommended due to brake line clearance
• Minor trimming may be needed for 37x12.50 tires on certain setups
• Installation requires a torque wrench rated to 405 ft-lbs
• Check for Ford Safety Recall 21S31 if rear driveline vibration occurs
• BDS recommends completing recall work before lift installation
• Fits Single Rear Wheel (SRW) models only

Install Instructions
