BDS 1999FPE 5 Inch Lift Kit w/ 4-Link, FOX 2.5 Performance Elite shocks & 4 Inch Block Kit | 2020-2022 Ford F250/F350 Super Duty 4WD Gas

Features:

• 5" lift allows 37-inch tire clearance
• Gas-specific Pro-Ride coil springs included
• Heavy-duty 4-link arms improve handling
• Bolt-on installation requires no cutting
• FOX 2.5 shocks with external reservoirs
• DSC adjusters fine-tune compression settings
• Pitman arm and bracket correct steering angles
• Fabricated steel blocks level front and rear
• Cast iron rear blocks for maximum strength
• Designed to improve stance and off-road performance
• Nitrogen-charged NX2 shocks for better control
• ¼-inch brackets maintain axle position and caster

Build Your Gas Super Duty Into A Trail Dominator

When you're ready to bring your gas-powered Super Duty to life, this BDS 5 Inch Lift Kit with 4-Link conversion is built to make that happen. It’s more than just a lift, it’s a complete transformation in how your truck handles the road, trail, or job site. With clearance for up to 37-inch tires, you’ll turn heads while also gaining the stance and travel needed to take on tougher terrain. The included Pro-Ride coil springs are tuned specifically for gas engines, giving you a comfortable ride without sacrificing performance. What really sets this kit apart is the 4-link system, designed to add strength and control where it matters most. Whether you’re navigating backroads, towing a heavy load, or just want a truck that feels planted and capable, this setup delivers. And thanks to the bolt-on design, you don’t need to hack up your frame or worry about complex installs, just solid parts and a proven fit.

Serious Suspension Engineering For Real World Demands

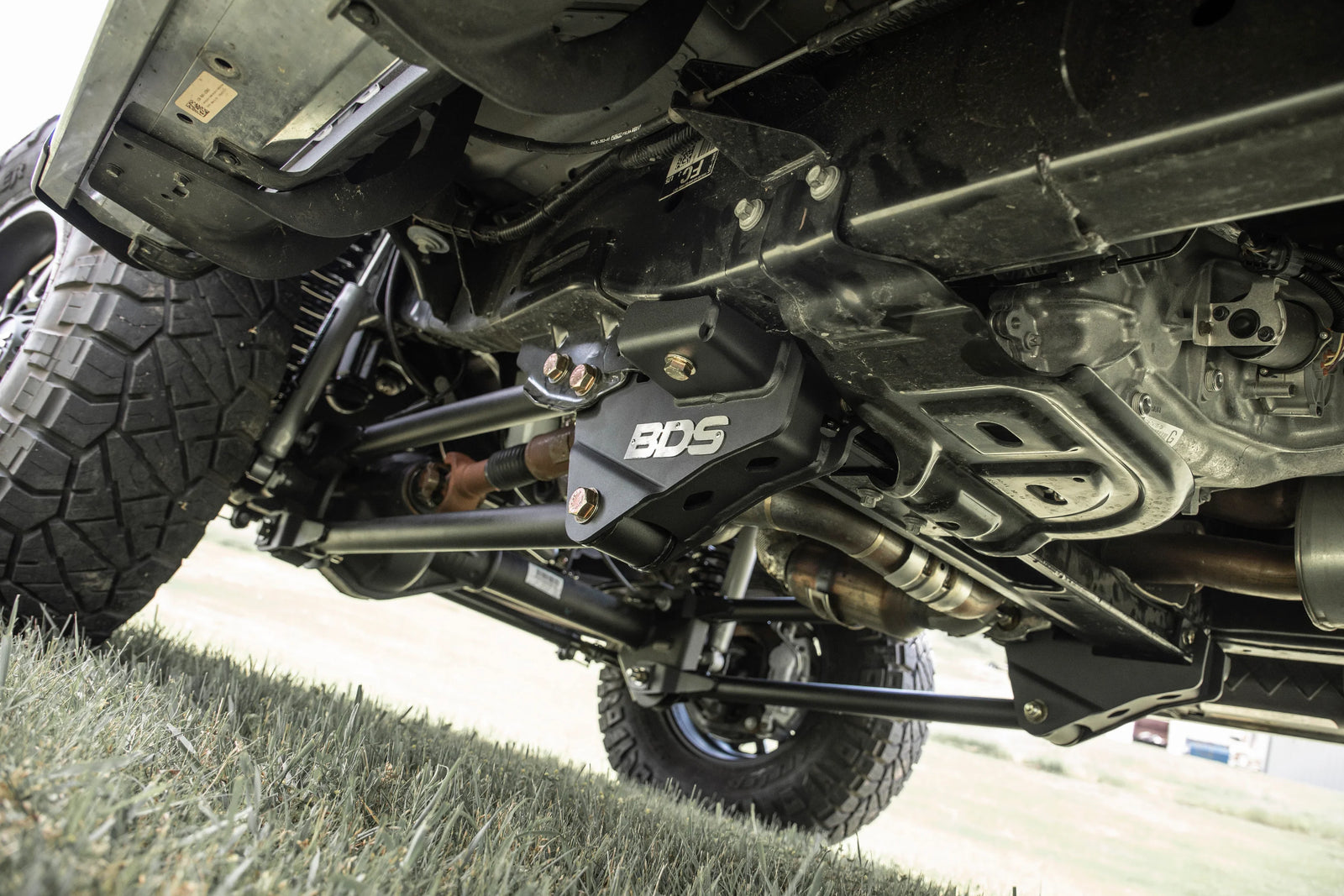

This BDS kit is engineered to give your 2020-2022 Ford F250 or F350 4WD gas truck a suspension system that works as hard as you do. The upgrade starts with full-length, dual-rate Pro-Ride coil springs that are specifically designed for gas engines, helping to maintain smooth ride quality across uneven terrain. Up front, the factory radius arms are replaced with a 4-link system featuring ¼-inch steel brackets, which provide better control of axle movement and reduce caster changes as the suspension cycles. Steering geometry is corrected using a forged drop pitman arm and a track bar relocation bracket, keeping the front axle centered and the steering feel predictable. In the rear, high-strength cast iron lift blocks and longer u-bolts help maintain proper pinion angles while giving the truck a level stance. Both NX2 Nitro and FOX 2.5 shocks are available depending on your selection, with the FOX shocks offering external reservoirs and Dual Speed Compression adjusters for total tuning control. This system is designed to not only lift your truck but optimize its performance and reliability in the process.

Fits: 2020, 2021, 2022 Ford F250/F350 Super Duty 4WD Gas

Notes:

• Ford recommends replacing the pitman arm nut after each removal
• Trucks with top-mounted overload springs may need UBT4027 spacers
• Front exhaust modification may be required on gas models
• Use a small pitman arm puller for safe removal of drag link joint
• Carrier Bearing Drop Kit (BDS123402) may be required for 2-piece driveshafts
• Tremor models will not achieve full advertised lift height
• Larger tires on stock wheels are not recommended due to brake line clearance
• Minor trimming may be needed for 37x12.50 tires on some setups
• Installation requires a torque wrench rated to 405 ft-lbs
• Check for Ford Safety Recall 21S31 if rear driveline vibration occurs
• BDS recommends performing recall work before lift installation
• Fits Single Rear Wheel (SRW) models only
