BDS 1998FPE 5 Inch Lift Kit w/ 4-Link, FOX 2.5 Performance Elite shocks & 4 Inch Block Kit | 2020-2022 Ford F250/F350 Super Duty 4WD 6.7L Powerstroke w/ factory Overload Springs

Features:

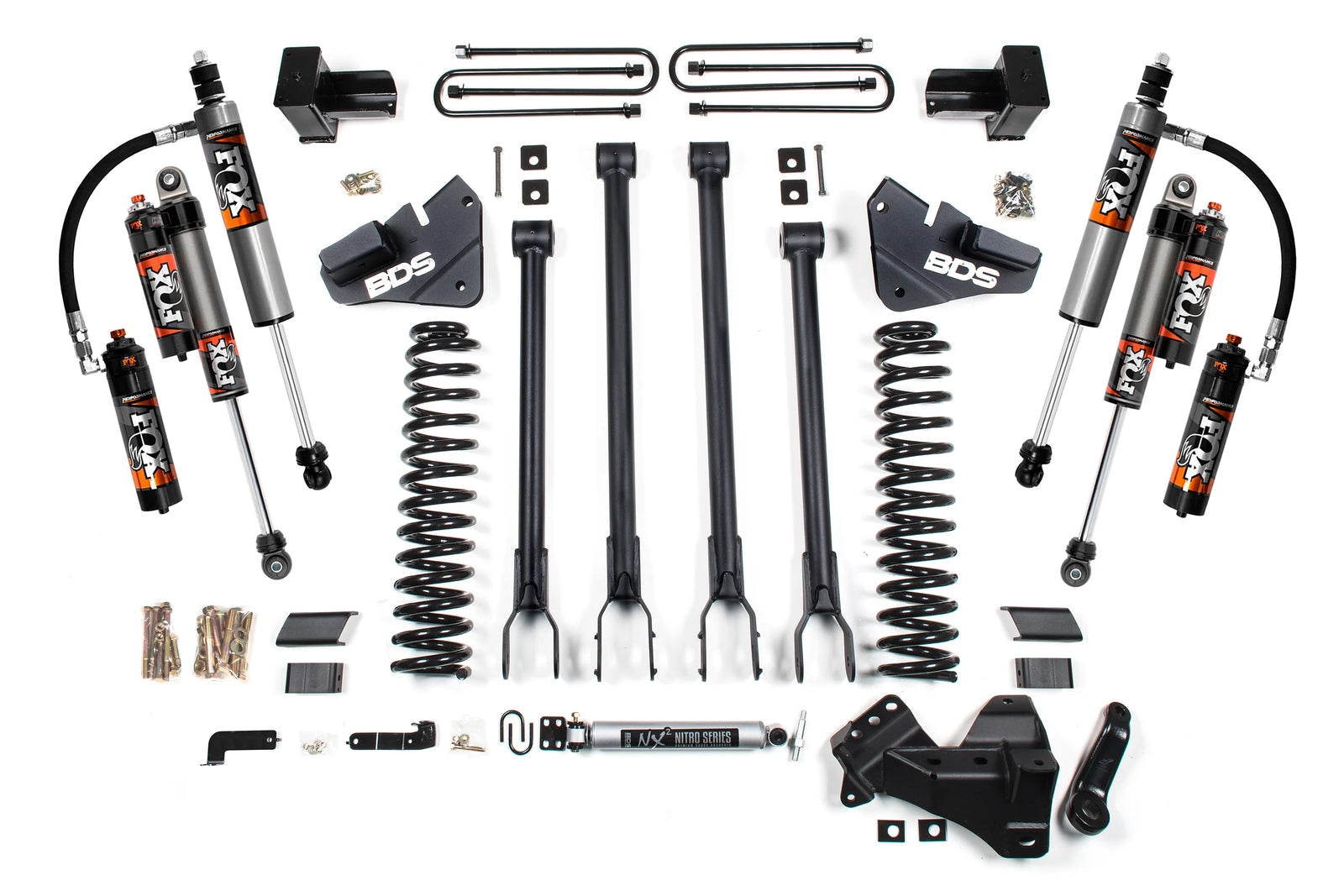

• 5" lift for larger tire clearance
• Heavy-duty 4-link control arms
• Includes 4 inch block kit
• Bolt-on installation, no cutting required
• Pro-Ride coil springs for smooth ride
• NX2 Nitro shocks for better control
• FOX 2.5 Performance Elite shocks
• DSC adjusters for fine-tuned compression
• Forged drop pitman arm for steering precision
• Track bar bracket recenters front axle
• Cast iron blocks for rear lift strength
• Maintains factory ride quality
• Supports up to 37" tires

Take Your Super Duty To A Whole New Level

If you're looking to transform the way your Super Duty rides and performs, this BDS 5 Inch Lift Kit with 4-Link conversion is exactly what you need. It’s not just about adding height, it's about bringing out the full potential of your 2020-2022 Ford F250 or F350 4WD Diesel. With clearance for up to 37-inch tires, this setup gives your truck an aggressive stance and the ability to tackle tough terrain without hesitation. The bolt-on installation makes it straightforward, so you can get back on the road or trail faster without cutting or welding. What really makes this kit stand out is the upgraded handling and control you get from the heavy-duty 4-link arms and Pro-Ride coil springs. Whether you're hauling, towing, or just enjoying the drive, you’ll feel the difference in every turn and bump. And with FOX 2.5 Performance Elite shocks included, you’re getting serious damping power built to handle changing loads and terrain. It’s the kind of upgrade that doesn’t just lift your truck, it changes the way you experience it.

Engineered Suspension Control That Works When You Do

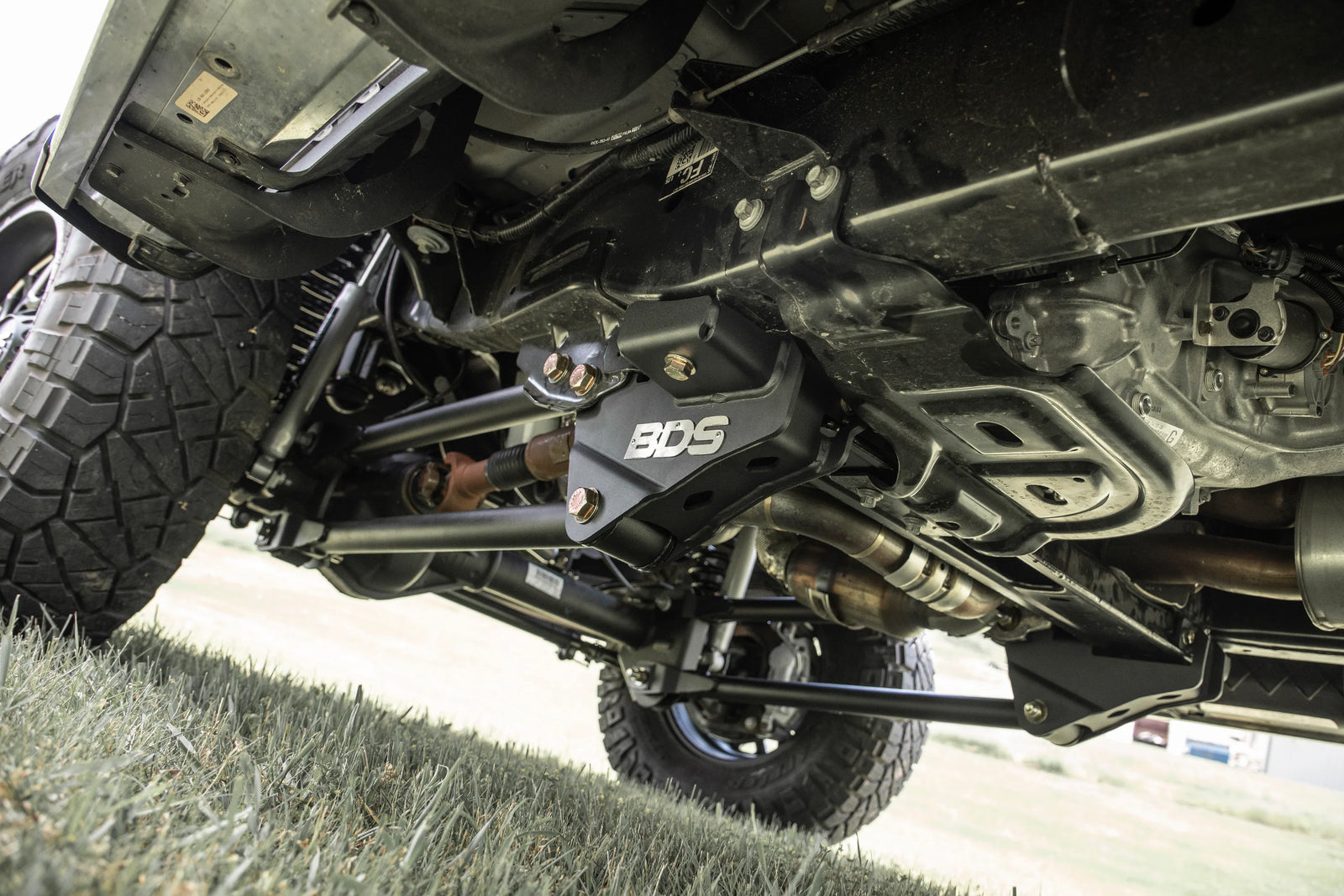

This BDS lift kit is built for those who demand performance from their suspension, not just looks. At the heart of this system are the diesel-specific Pro-Ride dual rate coil springs, delivering a steady, predictable ride whether you’re driving empty or loaded up. The 4-link control arms replace the factory radius arms, improving axle control and maintaining more consistent caster throughout wheel travel. This results in sharper steering feel and better on-road stability, even with larger tires. The forged drop pitman arm and heavy-duty track bar bracket realign your steering geometry, ensuring smooth response across all suspension cycles. Out back, cast iron lift blocks, extended U-bolts, and brake line brackets work together to maintain proper rear lift and driveline angles. Then there’s the FOX 2.5 shocks, complete with external reservoirs and DSC adjusters, letting you fine-tune compression based on load, terrain, or speed. It's a performance-first package, designed for serious truck owners who use their rigs hard and expect them to perform.

Fits: 2020, 2021, 2022 Ford F250/F350 Super Duty 4WD 6.7L Powerstroke w/ factory Overload Springs

Notes:

• Ford recommends the replacement of the pitman arm nut after each time it has been removed.
• If installed on a truck with a top-mounted overload spring and an overload spacer block taller than 1-1/8", UBT4027 (Qty: 4) is required.
• If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.
• Due to the taller factory ride height, Tremor models will not net the full advertised lift height. The final ride height will be the same as standard models.
• Larger tires on the stock wheel are not recommended due to the brake line clearance required. Use recommended specs listed in the wheel and tire fitment section.
• Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups.
• Installation requires a torque wrench capable of 405 ft-lbs.
• Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
• Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, BDS recommends having this performed prior to installing the lift.
• Fits SRW models only.

Install Instructions
