BDS 1991FPE 5 Inch Lift Kit w/ Radius Arm & FOX 2.5 Performance Elite shocks | 2020-2022 Ford F250/F350 Super Duty 4WD/SRW 6.7L Powerstroke w/ Overload Springs

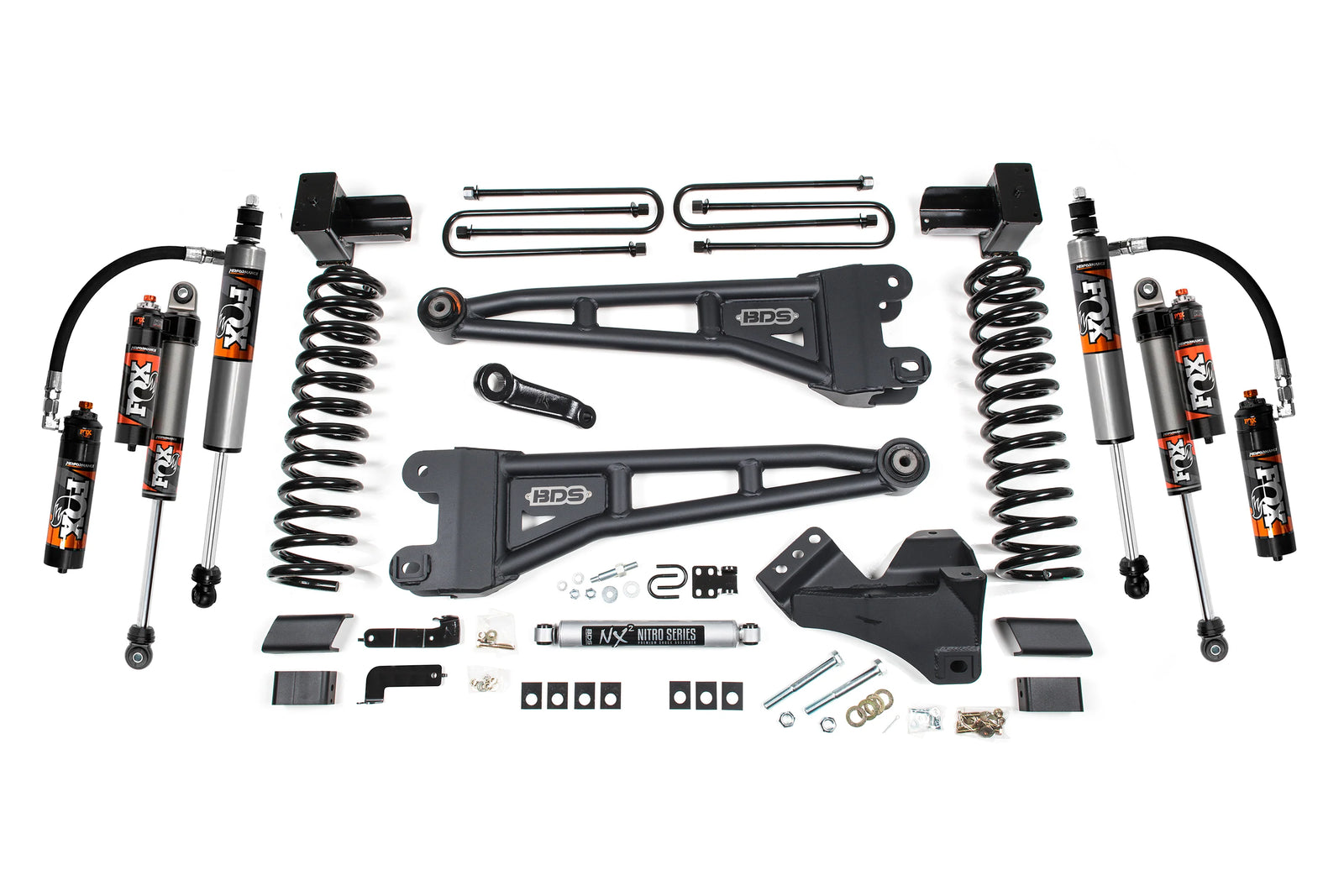

Features:

• Clears up to 37-inch tires
• Diesel-specific Pro-Ride dual rate coil springs
• Includes FOX 2.5 Performance Elite shocks
• Forged drop pitman arm improves steering angles
• Track bar bracket keeps axle centered
• Heavy-duty tubular radius arms included
• Radius arms offer caster adjustment
• OE-style bushings for quiet, smooth operation
• Fabricated steel rear lift blocks included
• Fully bolt-on installation, no cutting required
• External shock reservoir improves performance
• Dual Speed Compression adjusters included

Give Your Diesel The Lift And Control It Deserves

If you're ready to let your Super Duty diesel truck breathe a little and look like the beast it was built to be, this BDS 5-inch lift kit is the perfect next step. It gives your 2020-2022 F250 or F350 a commanding stance and the clearance to run up to 37-inch tires without breaking a sweat. But it's not just about size, it’s about control, stability, and ride quality that makes every mile more enjoyable. Whether you're hauling heavy gear, heading out on backroads, or just want a truck that turns heads in the parking lot, this kit checks all the boxes. The included FOX 2.5 Performance Elite shocks let you fine-tune your ride depending on how and where you drive, so you can go from daily driver to weekend warrior without skipping a beat. And since the whole kit is designed as a direct bolt-on system, you can get it installed without chopping up your truck or spending days in the shop. It’s the kind of upgrade that feels just as good in motion as it looks standing still.

Purpose Built For The Power Of Diesel Performance

The BDS 1991FPE 5-inch radius arm lift kit is precision-engineered for 2020-2022 Ford Super Duty 4WD diesel trucks, delivering the strength and geometry needed to support the weight and torque of the 6.7L Power Stroke. At the core are diesel-specific Pro-Ride dual rate coil springs that balance lift height with responsive handling and ride comfort across a variety of conditions. To keep your suspension working in sync, a forged drop pitman arm and heavy-duty track bar bracket are included to maintain steering angles and keep the axle properly centered. The heavy-duty radius arms not only offer improved ground clearance, but they’re also equipped with caster adjustment to fine-tune your alignment. OE-style rubber bushings help reduce noise and wear, keeping maintenance low and ride quality high. The rear setup uses fabricated lift blocks and longer u-bolts to level the stance while retaining towing strength. Topping it all off are the FOX 2.5 shocks with external reservoirs and Dual Speed Compression adjusters, providing advanced suspension control that’s fully serviceable and ready for anything.

Fits:  2020, 2021, 2022 Ford F250/F350 Super Duty 4WD/SRW 6.7L Powerstroke w/ Overload Springs

Notes:

• Ford recommends replacing the pitman arm nut after each removal
• Trucks with top-mounted overload springs require UBT4027 spacer blocks taller than 1-1/8" (Qty: 4)
• A small pitman arm puller is needed to remove the drag link joint and steering stabilizer taper
• Trucks with a 2-piece rear driveshaft may require Carrier Bearing Drop Kit BDS123402
• Tremor models will not achieve full advertised lift height due to higher factory ride height
• Final ride height on Tremor models will match standard Super Duty trucks
• Larger tires on stock wheels are not recommended due to brake line clearance issues
• Use recommended wheel and tire specs to ensure proper fitment
• Minor trimming may be needed for clearance of 37x12.50 tires on certain setups
• Installation requires a torque wrench capable of 405 ft-lbs
• Trucks with rear driveline vibration may be affected by Ford Safety Recall 21S31, complete this before installing the lift
• Kit is designed to fit Single Rear Wheel (SRW) models only

Install Instructions
