BDS 1990FPE 5 Inch Lift Kit w/ Radius Arm & FOX 2.5 Performance Elite shocks | 2020-2022 Ford F250/F350 Super Duty 4WD Gas

Features:

• Clears up to 37-inch tires
• Includes FOX 2.5 Performance Elite shocks
• Gas-specific dual rate Pro-Ride coil springs
• Heavy-duty tubular steel radius arms
• Forged drop pitman arm for steering correction
• Track bar bracket maintains proper steering angles
• Caster adjustment built into radius arms
• OE-style rubber bushings for quiet operation
• Precision-tuned nitrogen charged shock system
• 100% bolt-on installation with no cutting
• Fabricated rear blocks level front to rear
• Fully serviceable shock system with 1-year warranty

Make Your Gas Super Duty Stand Tall With Confidence

If you're looking to give your 2020-2022 gas-powered Super Duty a bold new stance with serious capability to match, this 5-inch lift kit from BDS is the perfect way to make it happen. Right off the bat, you'll gain room for 37-inch tires, letting you dominate job sites and trails with a commanding presence. The ride quality is just as impressive thanks to dual-rate Pro-Ride coil springs tuned specifically for gas trucks, so whether you're towing a trailer or just cruising down the highway, everything stays smooth and predictable. The FOX 2.5 Performance Elite Series shocks take things to another level, giving you real-time adjustability and next-level control no matter where the road, or lack of road, takes you. This setup doesn't just lift your truck, it transforms the way it drives and feels. And because it bolts right into factory locations, you won’t need to carve up your frame or spend a week in the garage just to get rolling. It's a high-quality, high-performance upgrade for gas truck owners who want their Super Duty to feel every bit as tough as it looks.

Precision Matched Components Built For Gas Power Demands

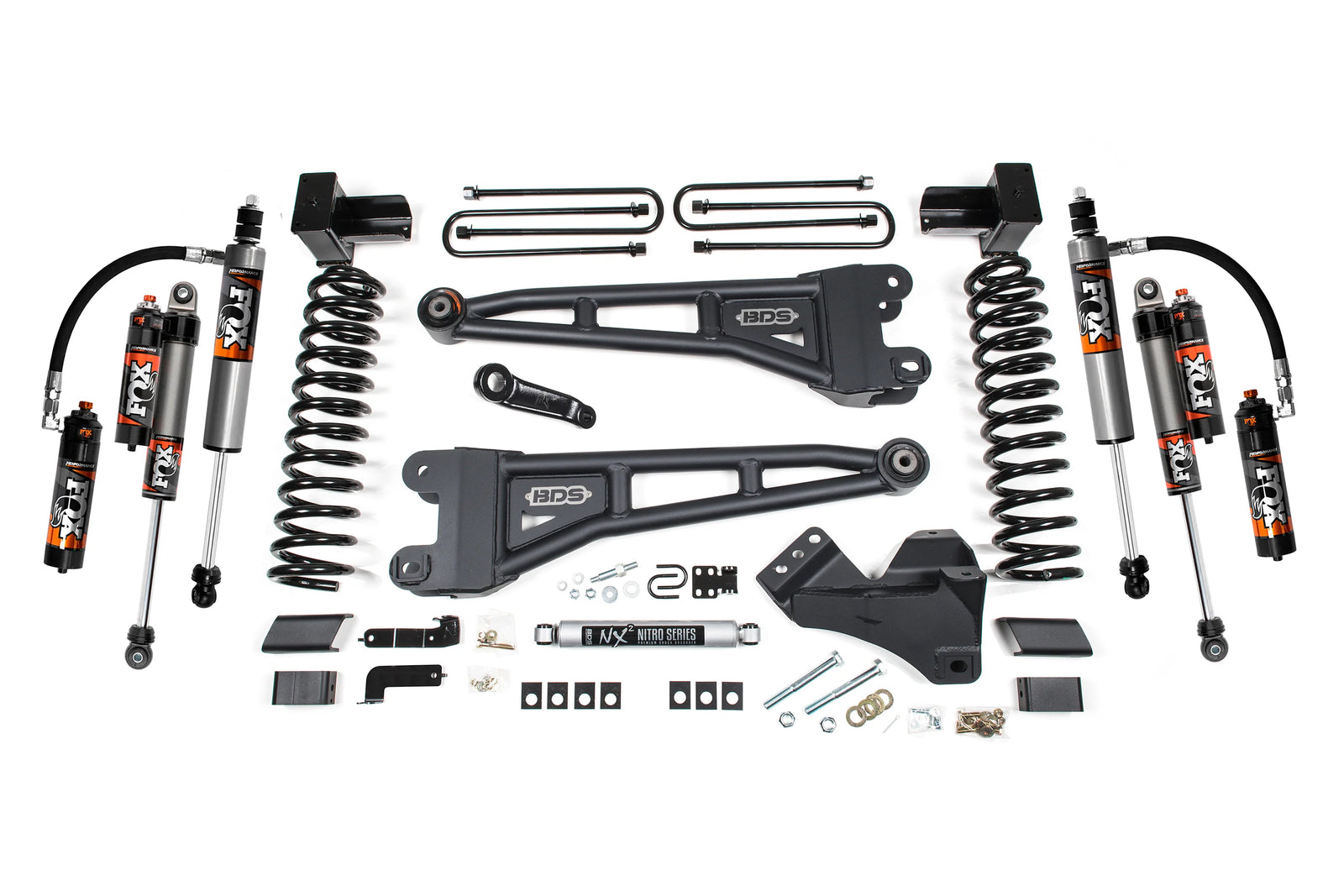

The BDS 1990FPE 5-inch radius arm lift kit is engineered specifically for 2020-2022 Ford F250 and F350 Super Duty 4WD gas models, offering purpose-built components that work in harmony with your truck’s factory geometry. At the front, gasoline-tuned Pro-Ride coil springs provide the right lift height while maintaining ride comfort and stability through varying road conditions. The heavy-duty tubular radius arms replace weaker factory units, offering built-in caster adjustment and using OE-style rubber bushings to keep noise and maintenance low. To keep your steering in check after the lift, the system includes a forged drop pitman arm and a track bar relocation bracket, both designed to correct steering angles and keep the axle centered. Out back, fabricated steel lift blocks and extended u-bolts level the stance without sacrificing towing capability. The included FOX 2.5 shocks feature a 2.5-inch aluminum body, external reservoir, and Dual Speed Compression adjusters that let you dial in your ride depending on load, terrain, and speed. Every component bolts on cleanly using factory mounts, delivering an installation process that’s as refined as the parts themselves.

Fits: 2020, 2021, 2022 Ford F250/F350 Super Duty 4WD Gas

Notes:

• Ford recommends replacing the pitman arm nut after each removal
• Trucks with top-mounted overload springs require UBT4027 spacer blocks taller than 1-1/8" (Qty: 4)
• Front exhaust modification may be required for gas models to clear the front driveshaft
• A small pitman arm puller is needed to remove the drag link joint and steering stabilizer taper
• Trucks with a 2-piece rear driveshaft may require Carrier Bearing Drop Kit BDS123402
• Tremor models will not achieve full advertised lift height due to higher factory stance
• Final ride height on Tremor models will match standard height trucks
• Larger tires on stock wheels are not recommended due to brake line clearance issues
• Follow recommended tire and wheel specs to avoid clearance issues
• Minor trimming may be necessary for 37x12.50 tires on certain wheel setups
• Installation requires a torque wrench capable of 405 ft-lbs
• Trucks with rear driveline vibration may fall under Ford Safety Recall 21S31, address this before installation
• Kit is designed to fit Single Rear Wheel (SRW) models only

Install Instructions
