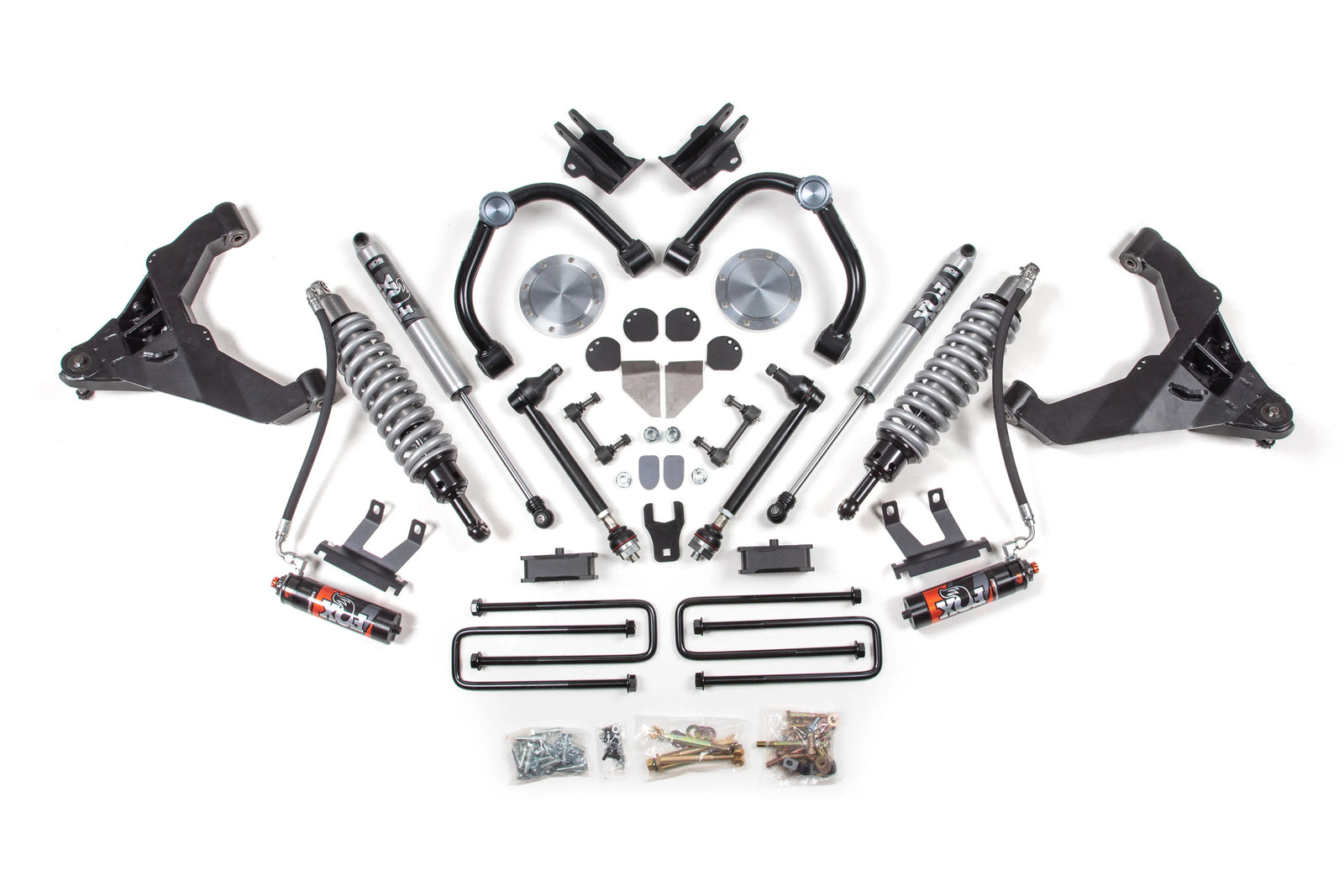

BDS 1832FPE 3 inch FOX 2.0 Coilover Lift Kit | 2020-2025 GM 2500HD/3500HD 6.6L Duramax

Features:

• 3-inch suspension lift height
• FOX 2.5 Performance Elite coilovers
• DSC adjusters for fine-tuned compression
• Includes FOX 2.0 Rear Shocks
• Converts torsion bars to coilovers
• Increased front suspension travel
• Heavy-duty upper control arms
• Boxed and gusseted lower control arms
• Clearance for up to 35-inch tires
• Remote reservoirs for cooler shock temps
• Bolt-on installation, no cutting required
• Corrects steering and suspension geometry
• Does not include rear blocks

Engineered for Performance From City Streets to Backcountry Trails

Take your HD truck to the next level with the BDS 1832FPE 3-inch FOX 2.5 Coilover Lift Kit, built specifically for 2020–2025 Chevy Silverado and GMC Sierra 2500HD/3500HD trucks running the 6.6L Duramax. Whether you're looking to level out the stance, clear bigger tires, or just want suspension that actually keeps up with your driving style, this kit brings the performance and durability you’re after—without the guesswork. Right out of the box, this system ditches the factory torsion bar setup and replaces it with a purpose-built FOX 2.5 Performance Elite coilover conversion. These coilovers aren’t just about looks—they’re tuned for real-world trail abuse and provide a plush ride on pavement. The added travel is noticeable the first time you hit a rut or dip, soaking up the bumps while keeping the truck planted and controlled. Plus, with remote reservoirs and dual speed compression (DSC) adjusters, you can fine-tune the shocks depending on whether you're daily driving or hammering through dirt roads.

Proven Strength That Holds Up Under Any Load

The kit doesn’t stop at shocks. BDS includes upgraded upper and lower control arms to match the new travel range and geometry. The uppers are crafted from 1.5-inch OD tubing and TIG welded for maximum strength. Down below, the boxed steel lower arms are gusseted internally and designed to handle whatever you throw their way—mud, rocks, hauling, or heavy tow loads. Everything’s finished off with maintenance-free bushings and heavy-duty ball joints for long-term reliability. In the rear, BDS supplies FOX 2.0 Series rear shocks to round out the setup. All hardware is included, and the entire system bolts on with no cutting or welding required, making installation as straightforward as it gets for a kit of this caliber. This isn’t just a lift—it’s a performance overhaul. So, whether you're exploring the backcountry or towing on the jobsite, this kit is ready for whatever you throw at it.

Fits: 2020, 2021, 2022, 2023, 2024, 2025 GM 2500HD/3500HD 6.6L Duramax

Note:

• Models with two-piece rear drive shafts will require a carrier bearing drop kit (BDS121612)
• Requires frame bracket modification and minor welding
• Disassembly and assembly of the factory torsion bar system requires a special unloading tool
• The GM specified tool number is CH48809
• Compatible with diesel models only, including standard and AT4
• Not recommended for gas models due to excessive lift
• Some minor trimming may be required with certain wheel and tire setups
• Dually models require 20" aftermarket wheels with max 285/60/20 tires
• Factory 17", 18" and 20" wheels cannot be reused due to UCA clearance
• Coilover preload requires a coil spring compressor for disassembly
• Do not increase coilover preload
• Use service kit BDS081203 for replacement ball joints
• Ball joints must be installed with the dot facing inward or outward
• Suspension track width increases 1" per side to improve travel and clearance

Wheel & Tire Fitment:

• 35 x 12.50 on 17" x 9" with 4.5 to 5.5" backspacing**
• 285/75 on 17" x 9" with 4.5 to 5.5" backspacing*
• 35 x 12.50 on 18" x 9" with 4.5 to 5.5" backspacing**
• 285/70 on 18" x 9" with 4.5 to 5.5" backspacing*
• 35 x 12.50 on 20" x 9" with 4.5 to 5.5" backspacing**
• 295/60 on 20" x 9" with 4.5 to 5.5" backspacing*
• Larger than 20", use 20" wheel specs
• **Trimming is required
• *Trimming may be required
• Stock 17", 18" and 20" wheels will not fit after installation
• See instructions for detailed wheel and tire fitment notes
