BDS 1578H 4 inch 4-Link Lift Kit with NX2 Nitro Shocks | 2017-2019 F350 DRW Gas

Lift Kit Features:

• 100% Bolt-on installation
• Provides smooth drive quality over rough terrain
• Maintain proper steering angles for improved handling
• Heavy-duty tubular steel radius arms that maximizes ground clearance
• Levels out stance
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

NX2 Nitro Shocks Features:

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Improve Your Off-Road Drive-Quality and Performance

Upgrade your dual rear wheel "DRW" 2017-2019 Ford F350 Super Duty gas powered truck with this 4-inch lift kit and 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your dually Ford truck up right with clearance for up to 37" tires. Up front the lift kit includes gasoline-specific Pro-Ride coil springs, 4-link control arms with conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.

Feel The Power After Installing These Heavy-Duty Components

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength ¼-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel. A pair of full-length, gasoline-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Tire & Wheel Note:

• 37 x 12.5 with 17 x 9 and 5 in. Backspace
• 37 x 12.5 with 18 x 9 and 5 in. Backspace
• 37 x 12.5 with 20 x 9 and 5 in. Backspace

Specs:

• Front Lift: Coil Spring
• Rear Lift: Block
• Shocks Included: Yes
• Front Lift Height: 4"
• Rear Lift Height: 3"

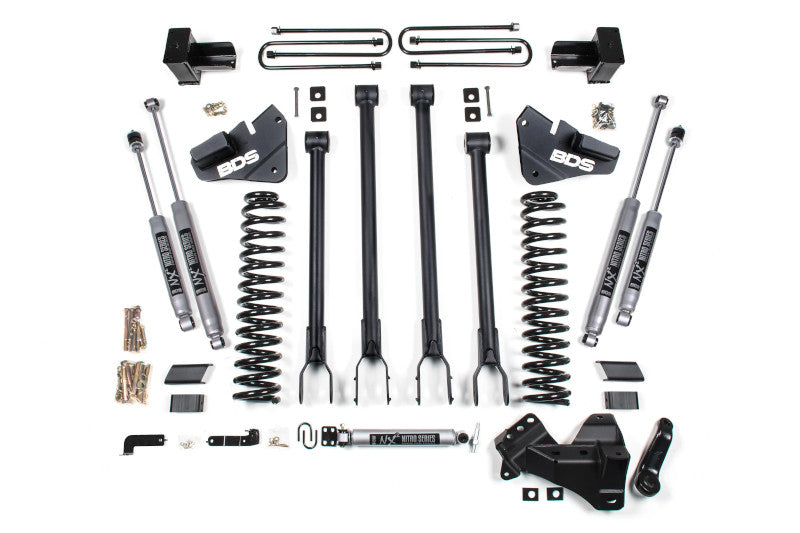

Kit Components:

• 1x - 2017-2019 Super Duty 4" 4-Link Box Kit (013422)
• 1x - 2017-2020 F350 Dually 5" Block Kit (013526)
• 1x - 2017-2022 Super Duty 4-Link Box Kit (013601)
• 1x - 2005-2022 Ford F250/F350 Gas 4" Coil Spring Kit (033412)
• 1x - 2017-2023 F250/F350 Single Stabilizer (85431)
• 2x - Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2 (85700)
• 2x - Shock - 33.00 x 19.25 x 2-3/8 - EB1/EB1 (85718)

Note: Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups

Note: Installation requires a torque wrench capable of 405 ft-lbs.

Vehicle Fitment: 2017-2019 Ford F350 Super Duty 4WD Gas

Year Ranges	Make	Model	Series	Engine
2017-2019	Ford	Super Duty	F350	6.7L Powerstroke

Property	Values
Year Ranges	2017-2019
Make	Ford
Model	Super Duty
Series	F350
Engine	6.7L Powerstroke
