BD Diesel 1064504BM TorqueMaster 6R140 Transmission & Converter Package | 2011-2016 Ford F250/F350 6.7L Powerstroke

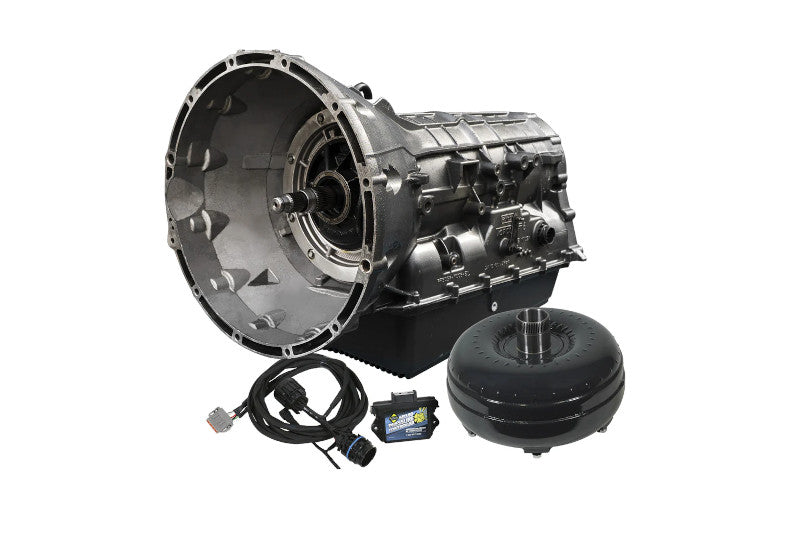

BD Diesel Performance Transmission & Torque Converter Package for 2011–2016 Ford 6.7L Powerstroke (2WD/4WD)

Upgrade your Ford 6.7L Powerstroke’s performance with the BD Diesel Performance Transmission & Torque Converter Package, engineered for towing, street, and race applications. This high-performance transmission solution is purpose-built to handle the massive torque and horsepower of modified and tuned 6.7L Powerstroke diesel engines, ensuring superior reliability, durability, and drivability under extreme conditions.

Key Transmission Features:

• Heavy-Duty Transmission Upgrade: Built to outperform stock and competitor models with enhanced internal components.

• Increased Clutch Count:

  • Forward: 6 clutches (20% increase)

  • Direct: 6 clutches (20% increase)

  • Intermediate: 8 clutches (60% increase)

  • Overdrive: 8 clutches (14% increase)

  • Low Reverse: 5 clutches

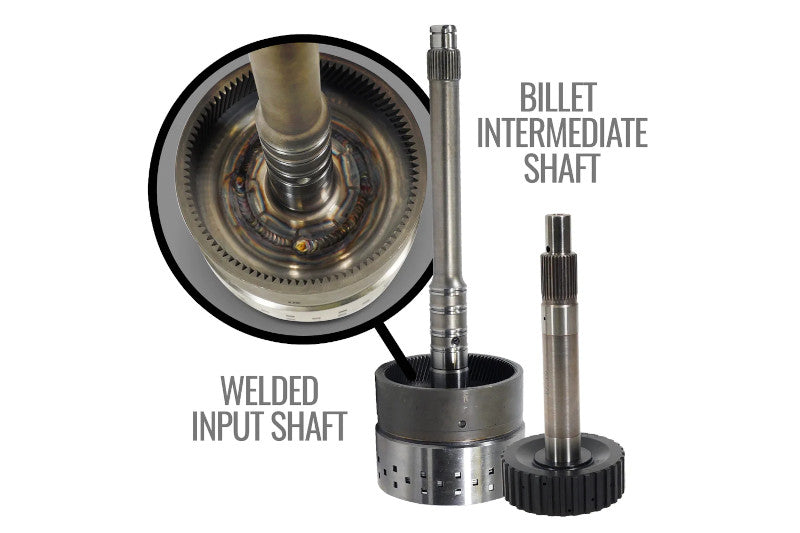

• Billet Intermediate Shaft: Designed to handle high horsepower and heavy towing loads.

• Upgraded Input Shaft: TIG-welded to prevent OEM weld failures in high-stress environments.

• Custom BD Patented Pressure Plates: Allow more clutches without compromising structural strength.

• Brand-New Valve Body: Ensures smooth shifting and long-term performance.

• Heavy-Duty Deep Transmission Pan: Increases fluid capacity and cooling efficiency.

Electronic Line Pressure Controller:

• Up to 300 PSI Line Pressure for maximum holding power

• 76% More Theoretical Holding Power than stock

• Boost-Activated Functionality: Only engages above 15 PSI, unlike passive solenoid foolers

• Low Heat Generation: No parasitic load when inactive, preserving transmission longevity

High-Performance Torque Converter Features:

• Built for Heavy Towing & High Horsepower Builds

• Captured Clutch Design: Smooth drivability without compromising strength

• Quad Surface Clutch Assembly: Doubles friction area compared to OEM converters

• Enhanced Heat Dissipation: Additional steels and increased piston area (23%) for superior thermal management

• Billet Components: Includes billet piston, bearing hub, and clutch retainer for maximum durability

• One-Piece Stamp-Forged Cover: Reinforced for high-torque applications

• Furnace-Brazed Fins: Pump and turbine fins are brazed for superior strength and reliability

Why Choose BD Power’s 6.7L Powerstroke Transmission Package?

When you choose BD Diesel's transmission and torque converter combo, you're getting a matched and dyno-tested package engineered for top-tier performance and longevity. Whether you're hauling heavy loads or pushing big power on the street or track, this BD Power upgrade is the transmission system your Ford 6.7L diesel needs.

Fitment:

Fits: 2011, 2012, 2013, 2014, 2015, 2016 Ford F-250 / F-350 / F-450 Super Duty with 6.7L Powerstroke Diesel – 2WD & 4WD models

Note: Not compatible with early 2011 models equipped with the 8-bolt flexplate. Requires 6-bolt upgrade.

Installation Notes:

• Ford Scanner Required: To update the TCM with the new solenoid code and perform a crucial relearn process.

• 2WD Models: Must transfer yoke adapter and rear mount bracket from OEM unit.

• Professional Installation Recommended: For proper function and warranty validation.

Warranty:

• Labor Warranty: 12-Month / 12,000 Miles
