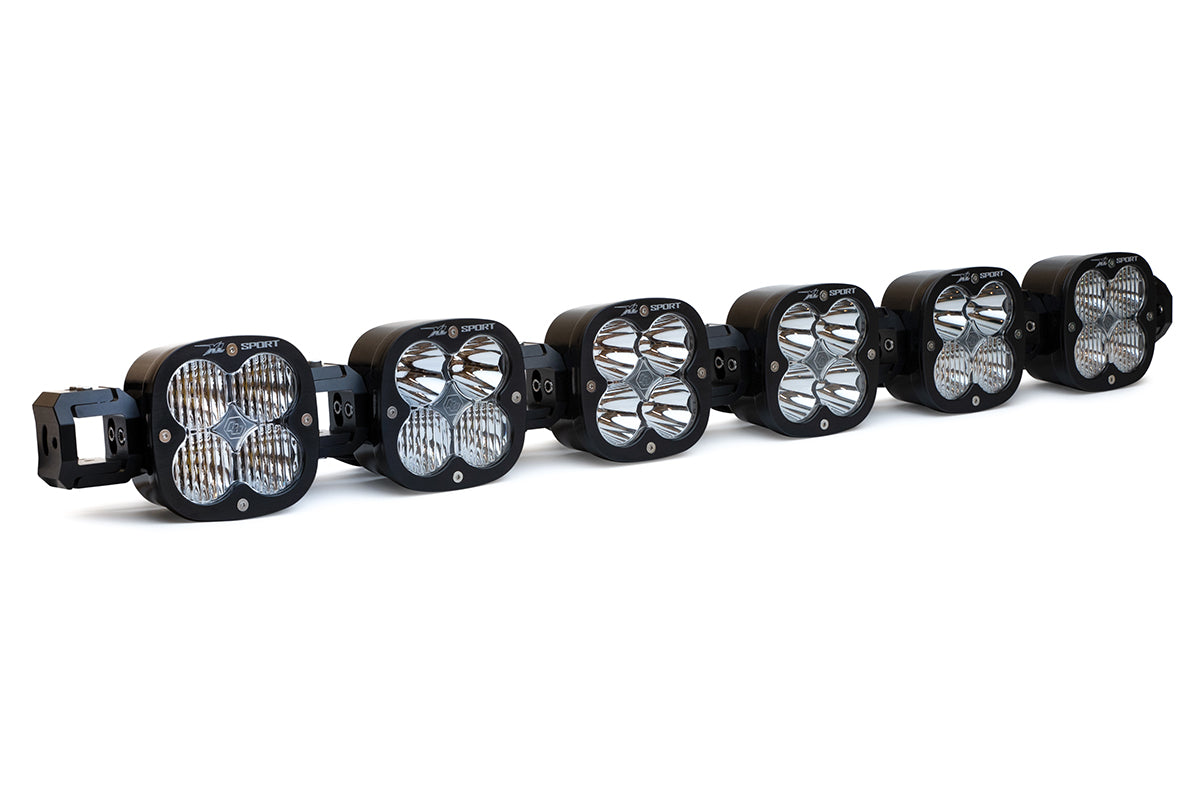

Baja Designs 740004 XL Linkable LED Light Bar 6 XLClear | Universal

Features:

• Includes 6 XL Sport Lights and Rock Guards
• Mix of Spot and Driving/Combo Beam Patterns
• 9,450 Lumens From 12 High-Powered LEDs
• Fully Linkable and Expandable Light Bar System
• Individually Adjustable Horizontal and Vertical Aim
• Customizable Straight or Arced Mounting Layout
• ClearView Optics Focus Light Exactly Where Needed
• Hard-Coated Polycarbonate Lens Resists Impacts
• IP69K Waterproof and Pressure Wash Rated
• Powder-Coated Aluminum Housing for Long-Term Durability
• 5000K Daylight Color for Natural Terrain Visibility
• uService Lens and Optics Easily Replaceable

Build The Perfect Light Bar For Your Rig

If you're serious about lighting performance and want total control over your setup, the Baja Designs XL Linkable 6-Light LED Bar gives you everything you need to dial it in your way. This kit includes six XL Sport pods, a mix of driving/combo and spot beam patterns, so you get full trail coverage from close-up terrain to the far edge of your line of sight. Each light can be adjusted individually both horizontally and vertically, letting you shape your beam exactly how you want it, whether you're running dunes, crawling rocks, or hitting forest trails at night. You can run them in a straight line for a clean, classic look, or curve them to match the body lines of your bumper or roof rack. The included rock guards not only protect your lenses but give your setup a finished, aggressive look. And if your lighting needs grow later, the linkable system makes it easy to expand. Whether you're building a weekend trail truck or a full-blown adventure rig, this light bar delivers performance, flexibility, and serious visual appeal.

Configurable Optics Designed To Maximize Trail Performance

The Baja Designs XL Linkable 6-Light Bar system is a fully customizable lighting solution that outputs 9,450 lumens using twelve high-output LEDs. This setup includes one XL Sport in spot configuration and two XL Sport lights in driving/combo pattern, giving you a balanced spread of lighting that covers both near-field and long-distance zones. Each pod features vertical pitch control with up to 45 degrees of adjustment and horizontal aim adjustability, allowing you to fine-tune light output for different driving conditions or vehicle types. The driving/combo beam combines a wide 44-degree flood with a tight 6-degree spot for zone 3 coverage, while the high-speed spot excels in zones 4 and 5 with a focused beam built for distance. The housing is built from powder-coated cast aluminum with a billet-machined bezel and stainless steel hardware for long-lasting durability in harsh environments. The lenses are made from hard-coated polycarbonate and are user-replaceable via Baja’s uService design. With IP69K waterproofing, MIL-STD810G compliance, and built-in overvoltage protection, this system is built to perform no matter how rough the trail gets.

Fits: Universal

Notes:

• Includes six XL Sport lights, links, and rock guards
• Wiring harness included, but mounting brackets sold separately
• Offers 45 degrees of vertical pitch adjustment per light
• Bar can be curved or straight to match vehicle lines

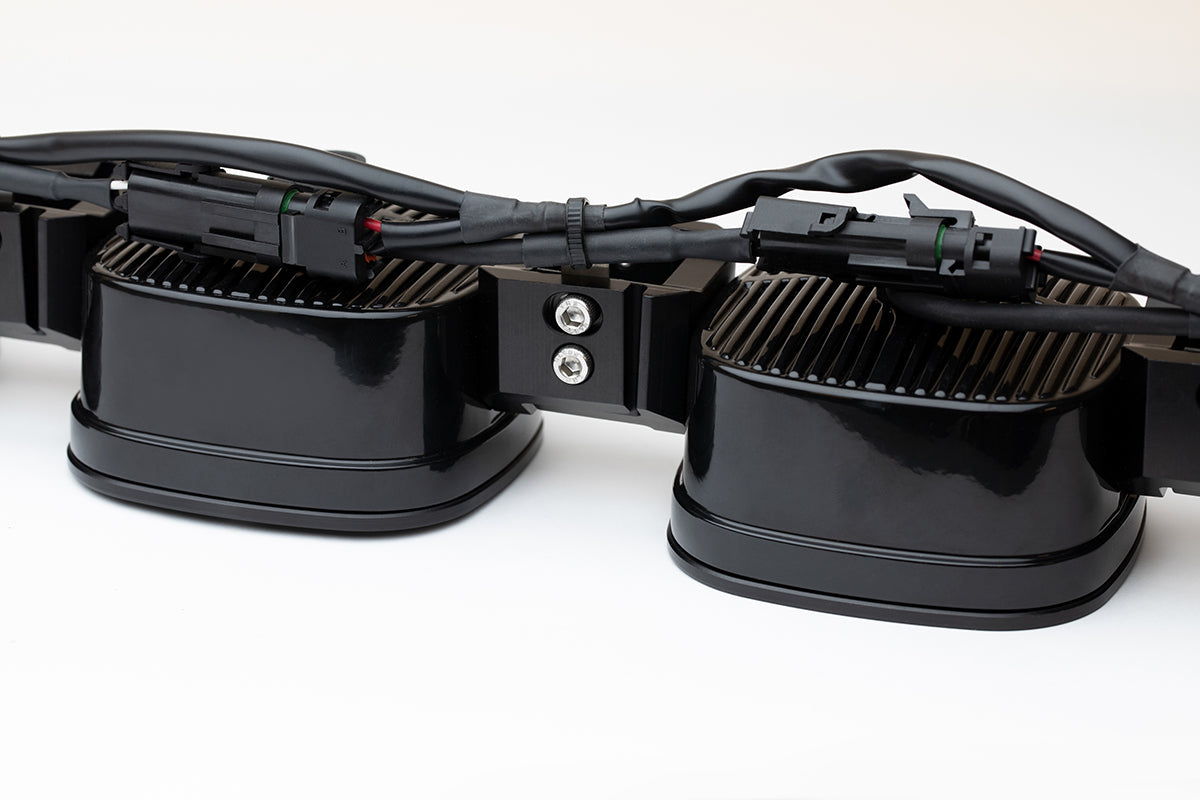

• Pre-crimped wiring simplifies installation and expansion
• Rock guards included to protect lenses on the trail
• Total output around 18,900 lumens at 156 watts
• Average current draw is approximately 12 amps total
• Polycarbonate lenses are impact and scratch resistant
• IP69K rated for waterproofing and pressure wash safe
• Tested to IK10 and MIL-STD810G for durability
• Universal fit but requires 39 inches of mounting space
