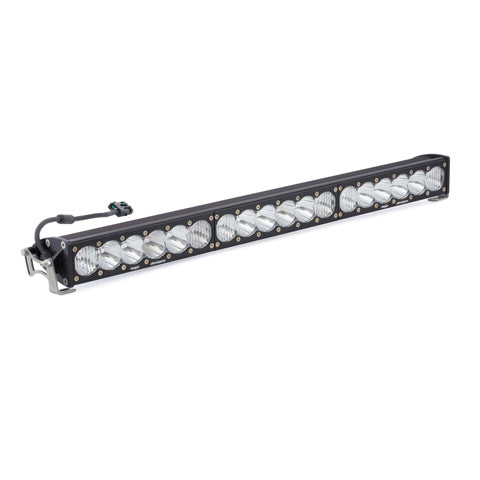

Baja Designs 453003 30 inch LED Light Bar Driving Combo Pattern OnX6 Series | Universal

Features:

• Outputs up to 31,910 lumens of light
• Driving/Combo beam blends distance and wide coverage
• High Speed Spot reflector projects furthest distance
• BMT technology prevents flicker and power spikes
• 5000K daylight color reduces driver eye strain
• uService design allows lens and optic replacement
• Aircraft-grade aluminum housing with anodized finish
• Hardcoated polycarbonate lens resists scratches
• Waterproof and submersible to IP69K standard
• IK10 impact rated and MIL-STD810G tested
• Hi-Low dongle included for power control
• Backed by lifetime warranty and 30-day guarantee

Turn Darkness Into Day With Relentless Power

When you’re pushing your rig into the night, you need lighting that doesn’t just guide the way but redefines it. The Baja Designs OnX6+ 30 inch Driving/Combo Light Bar delivers over 31,000 lumens, flooding the trail ahead with unmatched clarity and reach. This bar is built to handle everything from rocky technical climbs to high-speed desert runs, giving you a blend of long-range spot power and wide driving coverage in a single unit. The result is confidence in every turn, no matter how unpredictable the terrain or weather. Its sleek design, amber backlit feature, and powerful output add both function and style to your setup. Whether you’re chasing adventure, racing against the clock, or working in remote areas, this bar makes sure you can see what matters most. With lifetime warranty protection and Baja’s trusted reputation, it’s not just an upgrade, it’s peace of mind for every trip.

Advanced Engineering For Maximum Visibility And Durability

The Baja Designs OnX6+ 30 inch Light Bar is packed with race-proven technology to ensure consistent performance under demanding conditions. At its core, 18 Cree LEDs produce up to 31,910 lumens on high mode, with a lower power option at 25,450 lumens for flexible use. The Driving/Combo beam pattern pairs a 42 degree wide spread with a tight 6 degree spot, offering both near-field illumination and distance coverage in one bar. Built with High Speed Spot reflector technology, this light projects farther than anything in its class, trusted by Baja’s own racing teams. Battery Management Technology keeps your wiring protected by eliminating flicker, controlling spikes, and maintaining efficiency. The housing is made from aircraft-grade aluminum with a Mil-Spec anodized finish, while the lens uses scratch-resistant polycarbonate for long-lasting clarity. Rated IP69K waterproof, IK10 impact resistant, and tested to MIL-STD810G standards, the OnX6+ is designed to perform in the harshest off-road environments without compromise.

Fits: Universal

Notes:

• Outputs 31,910 lumens on high and 25,450 on low
• Driving/Combo beam blends wide 42° and focused 6° optics
• High Speed Spot reflector provides maximum projection distance
• Includes Hi-Low dongle for adjustable light output
• Harness not included, requires Baja Designs 640119 harness
• Draws up to 281W / 21.7A on high mode
• Measures 30 x 4.29 x 2.69 inches and weighs 11.45 lbs
• Compatible with aftermarket mounts using industry standard sizing
• uService design allows lens and optics replacement at home
• Built with aircraft-grade aluminum housing and billet bezel
• IP69K waterproof, IK10 impact rated, MIL-STD810G tested
• Backed by limited lifetime warranty and 30-day satisfaction guarantee
