ATS 319-954-2464 Full Allison Transmission Conversion Kit Stage 5 | 2019-2024 RAM 2500/3500 6.7L Cummins 68RFE 4WD

Features

• Fully integrated Allison 1000 6-Speed automatic transmission swap, engineered by ATS for Cummins-powered RAM trucks

• Includes ATS-built Stage 5 transmission with upgraded billet internals:

  • Billet input shaft

  • Billet intermediate shaft

  • Billet output shaft

  • Billet P2 carrier and C2 hub with modified P1 sun gear

• Deep aluminum transmission pan for improved cooling and strength

• TRANSLator module ensures seamless OEM integration:

  • Maintains push-button start, tow/haul mode, tap shift, gear display, rearview camera, cruise control, and 4x4 low-range

• Custom cast bellhousing and extension housing for bolt-on installation to the Cummins engine — no engine grinding or custom plates needed

• Transmission control system fully integrates with factory ECM/BCM for a “just like stock” driving experience

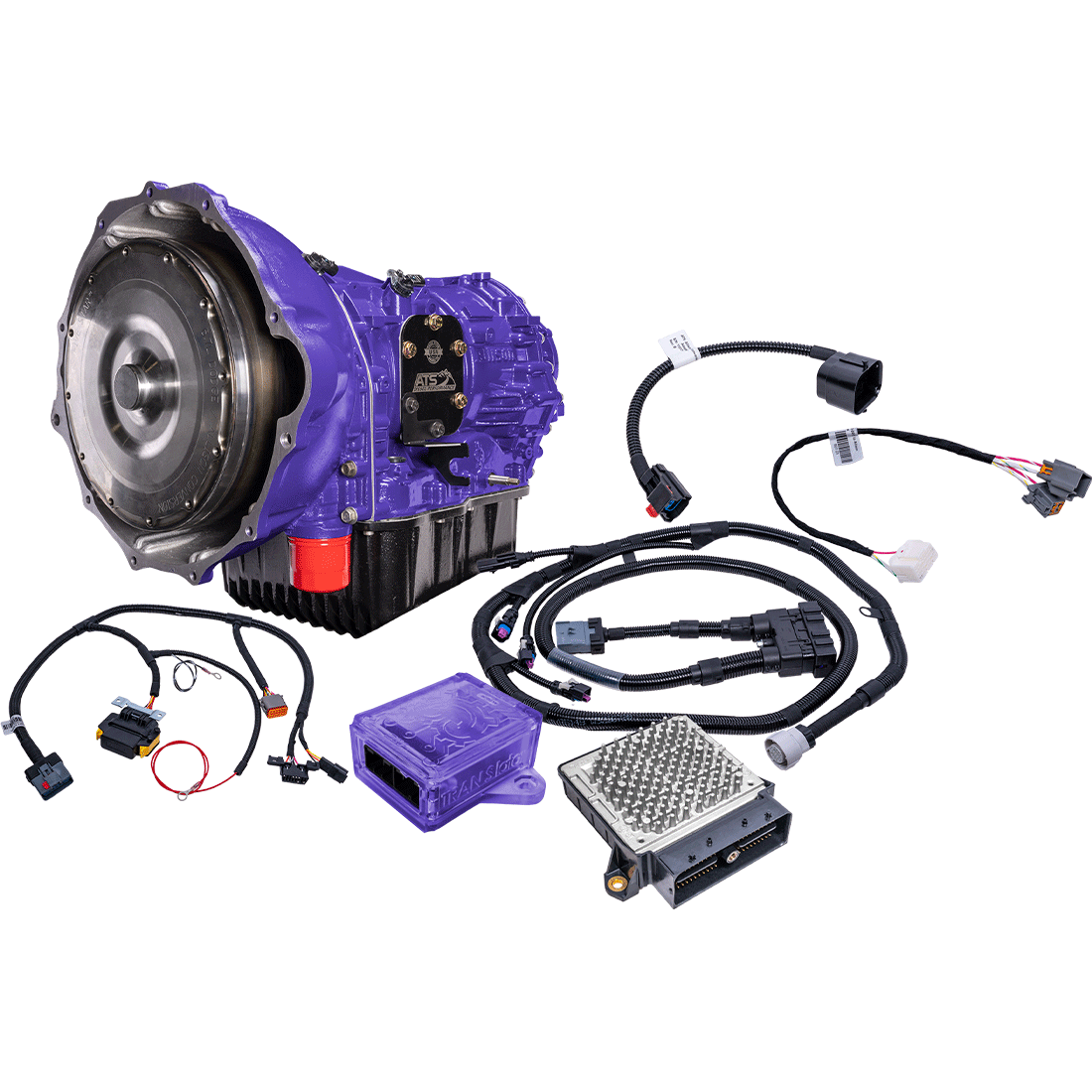

Kit Includes

• ATS-built Allison 1000 Stage 5 transmission

• ATS Five Star billet torque converter

• Deep transmission oil pan

• ATS TRANSLator module with plug-and-play harness

• Transfer case adapter kit

• Shift linkage kit

• Dipstick tube

• Cooler adapter lines and fittings

• Transmission mount

Installation

• Requires reflash to AS68RC or AS69RC calibration via factory Chrysler scan tool

• Approximately 12 hours of install time for a professional

• Driveshaft modifications may be required depending on truck configuration

Warranty

• 5-Year / 100,000-Mile Limited Warranty on complete conversion package

• Customer-supplied transmission core charge may apply

Fitment

2019, 2020, 2021, 2022, 2023, 2024 RAM 2500 & 3500 4WD 6.7L Cummins with 68RFE transmission
