Full Allison Transmission Conversion Kit Stage 5

Features:

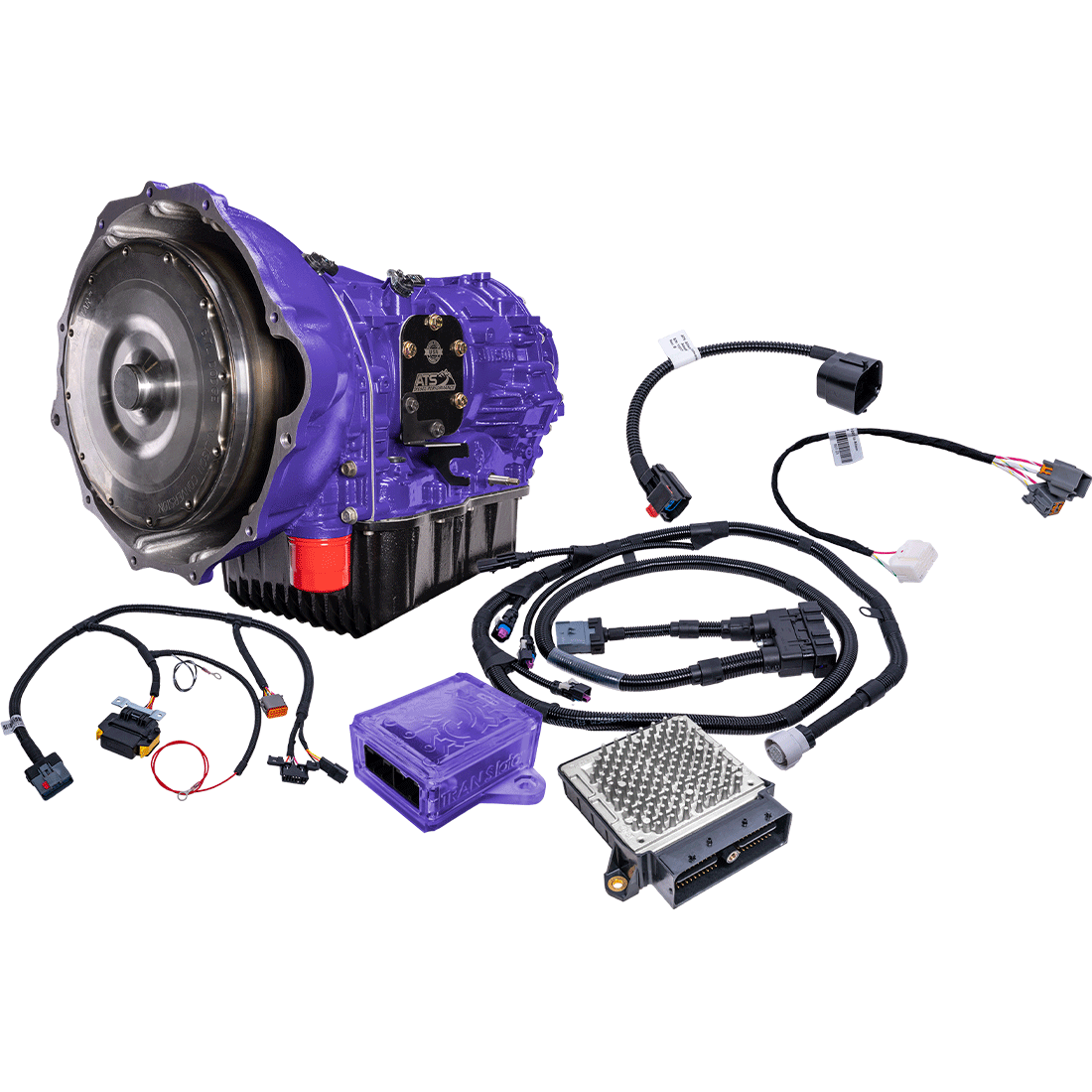

• Includes fully built ATS Stage 5 Allison 1000
• Fits 2013–2014 RAM 2500/3500 4WD trucks
• Designed for 6.7L Cummins diesel engines
• Replaces weak factory 68RFE transmission
• Billet input, output, and intermediate shafts
• Billet P2 carrier and C2 hub upgrades
• Modified P1 sun gear for improved strength
• Maintains full factory electronic functionality
• Includes ATS Translator for plug-and-play control
• Deep pan enhances fluid capacity and cooling
• No fabrication or block grinding required
• 5-year transmission warranty included

Built For Power And Designed To Last

If your 2013–2014 RAM 2500 or 3500 4WD with a 6.7L Cummins is still running the stock 68RFE, you already know it’s only a matter of time before something gives. The ATS Stage 5 Full Allison Transmission Conversion Kit is built for truck owners who push their rigs hard and need a transmission that won’t back down. Whether you’re towing heavy, running oversized tires, or putting down serious power, this kit gives you the confidence to use your truck to its full potential. It includes a fully built ATS Allison 1000 with top-tier billet internals, delivering strength and durability far beyond what the factory transmission could ever handle. You’ll also retain all your factory functions like tow-haul, tap shift, push-button start, and cruise control thanks to the included Translator module. Installation is straightforward and doesn’t require any cutting or block modifications. If you’re looking for a long-term solution that drives like stock but handles like a race-ready setup, this kit checks every box.

Complete Conversion With Heavy Duty Billet Performance

The ATS 319-954-2392 Stage 5 Conversion Kit offers the most advanced Allison swap available for 2013–2014 RAM 2500 and 3500 4WD trucks with the 6.7L Cummins. At the core of this setup is an ATS-built Allison 1000 transmission packed with serious hardware upgrades, including billet input, intermediate, and output shafts, a billet P2 carrier, C2 hub, and a modified P1 sun gear. These enhancements are engineered to withstand high torque loads and aggressive use without compromising shift quality or drivability. The package also features a deep transmission pan for added cooling and fluid capacity, ensuring long-lasting performance under load. The included ATS Translator module bridges the communication between the Allison TCM and your Ram’s ECM and BCM, maintaining all electronic features like factory shift displays, range select, remote start, and 4WD operation. Everything bolts in cleanly using the custom-cast bellhousing and adapter components, with no need for engine modifications. This is a full bolt-on solution built to eliminate the weaknesses of the 68RFE and deliver the strength and control that Cummins owners demand.

Fitment: 2013, 2014 RAM 2500/3500 6.7L Cummins 68RFE 4WD

Notes:

• Kit includes fully built ATS Stage 5 Allison 1000 transmission
• Designed for 2013–2014 RAM 2500/3500 4WD trucks with 6.7L Cummins
• Replaces factory 68RFE transmission with no fabrication required
• Billet internal components support high horsepower applications
• Translator module maintains all factory electronic functionality
• Push-button start, tow-haul, and tap shift remain operational
• Factory transfer case bolts directly to the transmission
• No engine block grinding or adapter plate needed
• Engine calibration may require reflash for compatibility
• Driveshaft modification may be needed depending on model
• Complete kit includes wiring, adapters, hardware, and deep pan
• Estimated professional installation time is approximately 12 hours
• $500 shipping surcharge will be added at checkout
• Backed by a 5-year ATS transmission warranty
