ATS 319-953-2464 Full Allison Transmission Conversion Kit Stage 5 | 2019-2024 RAM 2500/3500 6.7L Cummins AS69RC 2WD

ATS 319-953-2464 Full Allison Transmission Conversion Kit Stage 5 | 2019–2024 RAM 2500/3500 6.7L Cummins AS69RC 2WD

Overview:

The ATS 319-953-2464 is a comprehensive Stage 5 conversion kit designed to replace the factory Aisin AS69RC transmission in 2WD RAM 2500/3500 trucks equipped with the 6.7L Cummins engine. This kit integrates a fully built ATS Allison 1000 6-speed automatic transmission, engineered for superior strength, reliability, and seamless compatibility with factory systems.

Key Features:

• Stage 5 Transmission Build: Includes billet input, intermediate, and output shafts, billet P2 carrier, billet C2 hub with modified P1 sun gear, and a deep transmission pan for enhanced durability.

• ATS TRANSLator Module: Ensures full factory functionality, including push-button start, tow/haul mode, electronic range select, and electronic transfer case operation.

• Patent-Pending Bellhousing: Allows direct bolt-on installation to the Cummins engine without the need for additional fabrication or modifications.

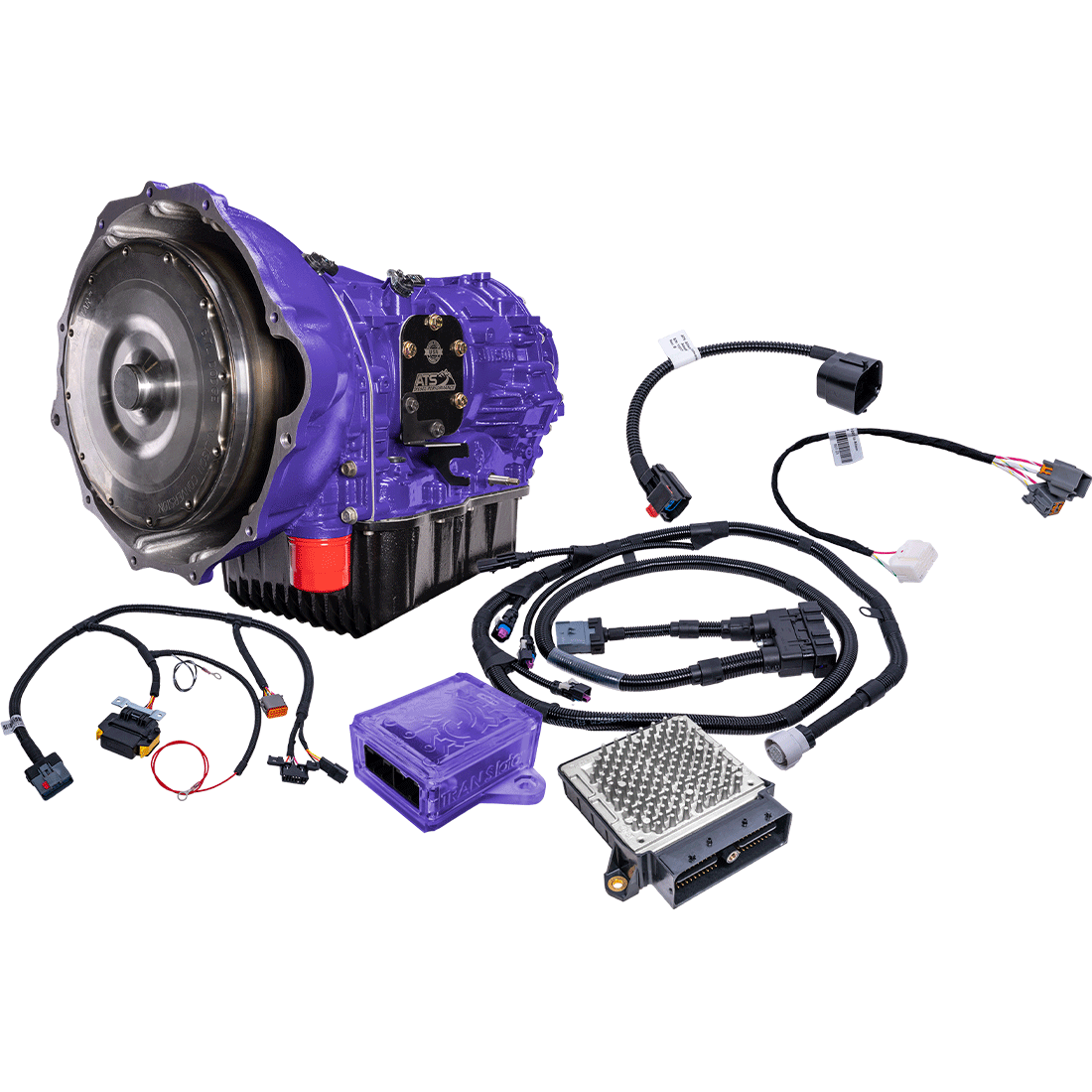

• Complete Installation Kit: Comes with all necessary hardware, wiring harness, transmission controller, shift linkage, transfer case adapter, dipstick tube, cooler adapter lines and fittings, and transmission mount.

Benefits:

• Enhanced Performance: Provides smoother, more precise shifting and improved towing capabilities, making it ideal for high-horsepower applications.

• Increased Reliability: Built to handle the massive torque of the Cummins engine, reducing the need for extensive modifications and expensive hard parts compared to factory transmissions.

• Seamless Integration: Maintains all OEM functionalities, ensuring a driving experience consistent with factory standards.

Fitment:

2019, 2020, 2021, 2022, 2023, 2024 RAM 2500/3500 6.7L Cummins 2WD

Technical Specifications:

• Part Number: 319-953-2464

• Transmission: ATS-built Allison 1000 6-speed automatic

• Warranty: 5-year/100,000-mile warranty on the transmission package

• Estimated Installation Time: Approximately 12 hours (professional installation recommended)

Note: A $500 shipping surcharge will be added at checkout.
