ATS 319-932-2464 Full Allison Transmission Conversion Kit Stage 3 | 2019-2024 RAM 2500/3500 6.7L Cummins 68RFE 2WD

Features

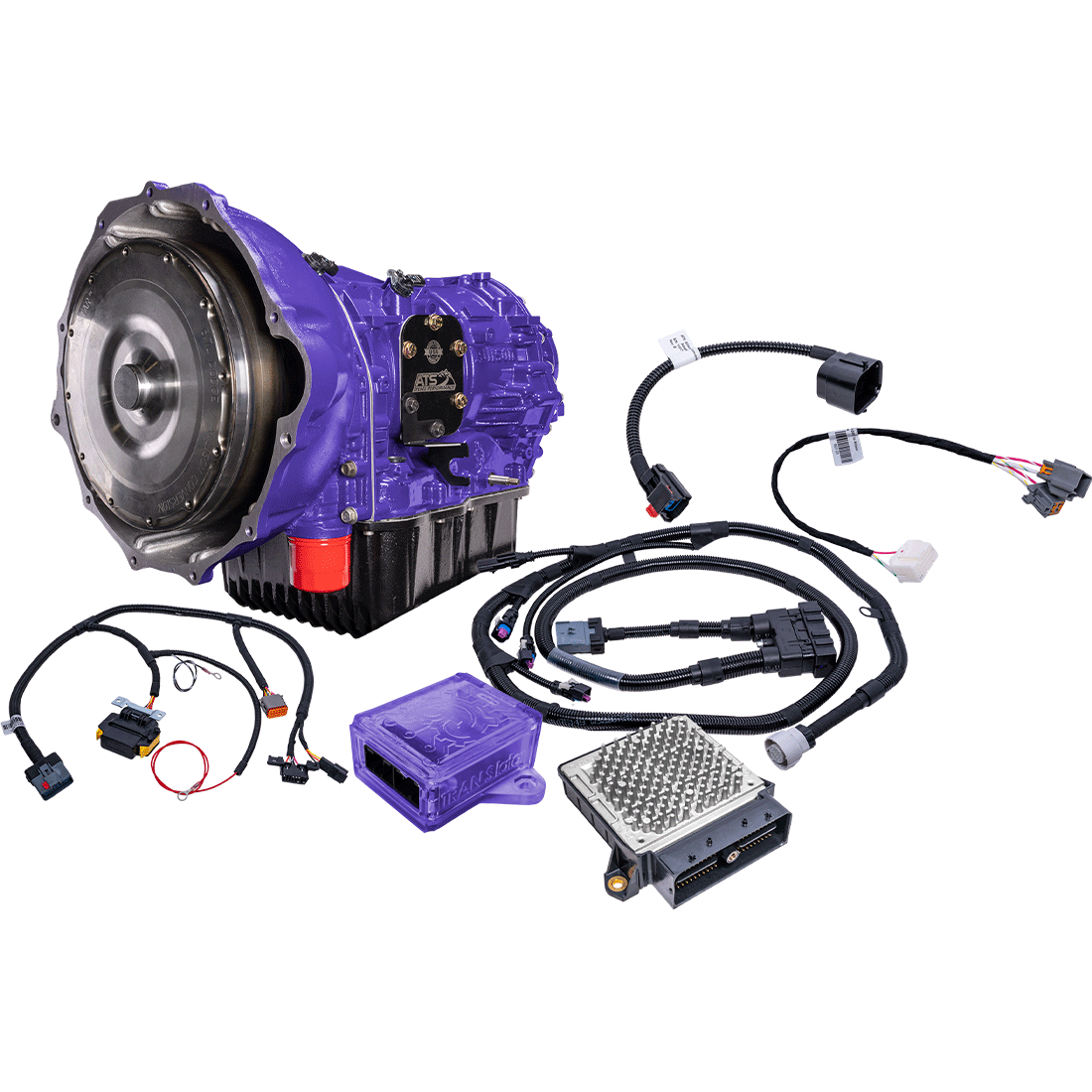

• Full Allison Transmission Conversion Kit – Stage 3 for 2WD RAM 2500/3500 6.7L Cummins

• Replaces factory 68RFE transmission with an ATS-built Allison 1000 6-speed

• Includes:

  • ATS-built Allison Transmission with deep pan

  • Billet input shaft and billet intermediate shaft

  • Billet Five Star torque converter

  • Patent-pending Cummins-to-Allison bellhousing and extension housing

  • TRANSLator module for full factory functionality

  • Plug-and-play transmission wiring harness

  • Transfer case adapter, linkage kit, dipstick tube, mount, and cooler line fittings

• Supports stock and modified Cummins builds

• Seamless integration with OEM controls: push-button start, tow/haul, tap shifter, and range display

Performance Benefits

The ATS 319-932-2464 Stage 3 Allison Conversion Kit offers the ultimate transmission upgrade for owners of 2019–2024 RAM trucks running the 6.7L Cummins and 68RFE transmission. This full conversion kit replaces the factory transmission with an ATS-built Allison 1000, delivering unparalleled strength, smooth shifting, and long-term reliability—especially under heavy towing, large tires, or high horsepower loads.

Unlike the limited design of the factory 68RFE, the Allison 1000’s larger clutch packs, stronger shafts, and advanced hydraulic design provide superior torque handling and smoother gear transitions. The TRANSLator control module ensures full compatibility with the factory ECM/BCM for a plug-and-play experience—retaining all factory functions including cruise control, tow/haul, tap shift, 4x4 low engagement, and more.

This is the most complete and seamless Allison swap on the market—no block grinding or major fabrications required.

Fitment

2019, 2020, 2021, 2022, 2023, 2024 RAM 2500 / 3500 6.7L Cummins (2WD, originally equipped with 68RFE transmission)

Fitment Notes

• For use on 2WD models with 68RFE factory transmissions only

• Engine calibration may require reflash to AS68RC or AS69RC profile using OEM scan tools

• Some driveshaft modifications may be required depending on truck configuration

• Estimated install time: 12 hours by a professional technician

Warranty

Includes 5-Year/100,000 Mile Limited Warranty from ATS Diesel Performance
(Contact ATS for full coverage and claims details)

Shipping Notice

A $500 freight shipping surcharge will be applied at checkout
