Allison Conversion Install Kit

Features

• Seamlessly replaces the factory 68RFE transmission with a customer-supplied Allison LCT1000 6-speed automatic

• TRANSLator module ensures full communication between Allison TCM and RAM ECM/BCM

• Maintains OEM functions: push-button start, tow/haul mode, tap shifting, range select, and 4x4 low-range (if applicable)

• Plug-and-play wiring harness included — no engine block grinding, custom flexplates, or starter mods required

• Custom cast Cummins bellhousing and extension housing for factory-aligned bolt-up

• Preserves factory shifter usability; optional ATS shifter available for older applications

• Advanced electronics integration retains cruise control, rearview camera, gear indicators, and more

• Transmission adapts to driver behavior for optimal shift quality and torque management

• Ideal for towing, oversized tires, and high-horsepower applications where the 68RFE struggles

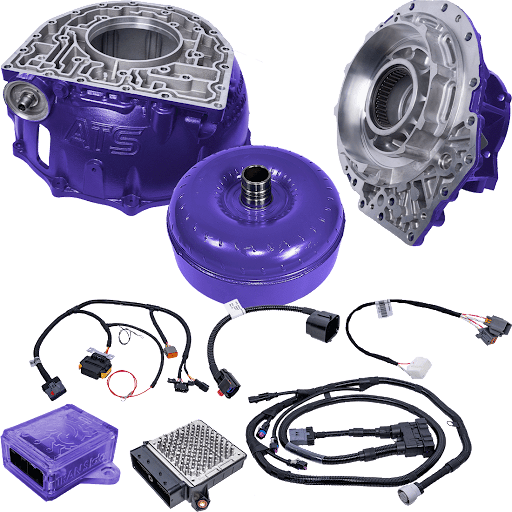

Kit Includes

• ATS TRANSLator module

• Plug-and-play wiring harness

• Cast Allison-to-Cummins bellhousing and extension housing

• Transfer case adapter kit

• Shift linkage

• Dipstick tube

• Cooler adapter lines and fittings

• Transmission mount

Installation

• Estimated install time: ~12 hours by a professional

• Some driveshaft modification may be required depending on vehicle configuration

• No reprogramming needed beyond a simple Chrysler scan tool re-flash to AS68RC/AS69RC calibration

Warranty

• 5-Year Limited Warranty on the ATS install kit (transmission warranty is separate if customer supplied)

Fitment

2019, 2020, 2021, 2022, 2023, 2024 RAM 2500 & 3500 2WD 6.7L Cummins with 68RFE transmission
