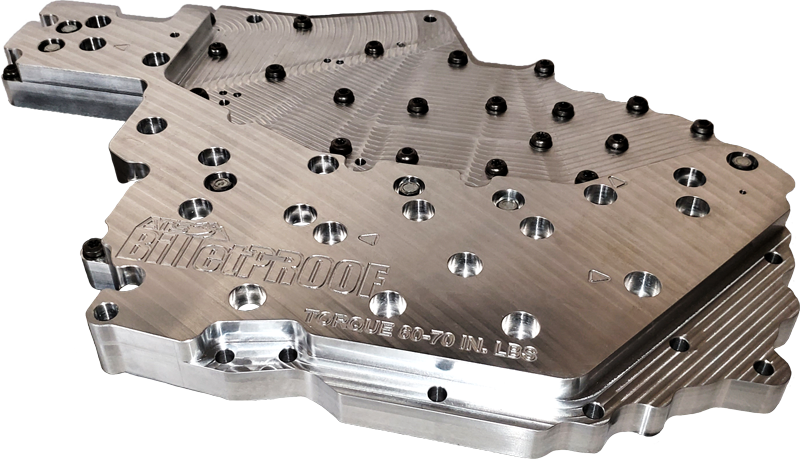

68RFE Billet Channel Plate

Features

• ATS BilletProof 68RFE Valve Body Channel Plate

• CNC-machined from a 1-inch thick stress-relieved aluminum tooling plate

• Enlarged fluid channels for quicker clutch pack fill and improved hydraulic efficiency

• Engraved pressure testing ports and valve body channel labels

• Compatible with both stock and deep transmission pans

• Significantly improves shift quality and eliminates cross leaks

• Designed and built in the USA by ATS Diesel Performance

Product Overview

The ATS 303-006-2464 BilletProof Channel Plate is the ultimate fix for one of the 68RFE transmission’s most critical design flaws—warping and leakage in the factory cast channel plate. Heat stress causes the OEM plate to deform, resulting in internal cross leaks that degrade shift performance and clutch engagement.

ATS solves this with a massively upgraded billet aluminum plate, CNC-machined from a 1-inch thick aluminum tooling block. This component eliminates flex, maintains precise fluid control, and features engraved pressure testing ports to assist with diagnostics and tuning. Internal channels are enlarged for improved clutch feed rates, delivering stronger, crisper, and more consistent shifts—especially under towing or performance conditions.

Whether you're rebuilding your 68RFE or enhancing its reliability, this plate is a must-have for high-torque Cummins applications.

Fitment

2019, 2020, 2021, 2022, 2023, 2024 RAM 2500/3500 6.7L Cummins (68RFE Transmission)

Fitment Notes

• Works with both stock and aftermarket deep transmission pans

• Recommended: Pair with ATS laser-cut separator plate and gaskets (PN: 3030322464) for best performance

• Can be installed in any 68RFE transmission regardless of build stage
