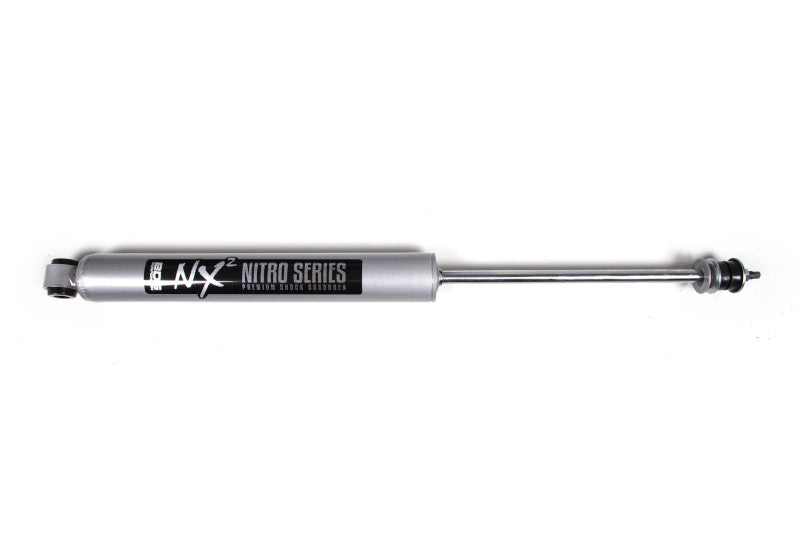

NX2 Nitro Rear Shock - for 4-5" Lift - (Single)

Features:

• Supports 4-5" rear lift
• Fits 1999-2017 GM Silverado/Sierra 1500
• Vehicle-specific valving for better control
• Pressurized nitrogen-charged twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch fluon-banded piston with self-lubricating seals
• High-end performance at an affordable price

Boost Your Rig's Power and Performance When Off-Roading

Upgrade your vehicle with BDS NX2 Nitro Series front shocks for high-end performance at an affordable price. They use a pressurized nitrogen-charged twin-tube design with 10-stage velocity-sensitive valving for lightning-fast dampening adaptive to whatever terrain you traverse on- or off-road. The 2-inch bodied shocks use a large 1-3/8-inch fluon-banded piston, self-lubricating seals, and a 14mm hardened chrome shaft to help resist rock chips and corrosion. Polyurethane bushings and metal sleeves are included to make swapping over your shocks a breeze.

Fitment: 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017 Chevy Silverado 1500 & GMC Sierra 1500 w/ 4-5" Rear Lift

Specs:

• Lower Mount: Eyelet
• Upper Mount: EB1
• Adjustable: No
• Compressed Length: 17.59 inches
• Travel Length: 12.19 inches
• Shaft Diameter: 14 mm

Notes:

• Sold individually, order two for a pair.
• Verify vehicle and lift height before ordering.
• Part 85759 fits multiple BDS applications.
• Intended for the rear on listed GM applications.
• Designed for lifted suspension applications.
• This shock is not externally adjustable.
• Compressed length is approximately 17.6 inches.
• Extended length is approximately 29.8 inches.
• Travel length is approximately 12.2 inches.
• Uses EB1 style mounting at both ends.
• Bushings and metal sleeves are included.
• Shock boots are available separately.
• (1) BDS NX2 Nitro Rear Shock.
• Product images may be representative.
