6.5" inch FOX 2.5 Coilover Conversion Lift Kit

Features:

• FOX 2.5 coilovers deliver race-grade performance
• DSC adjusters allow high and low-speed tuning
• Supports up to 38" tires with clearance
• No torsion bar drop maximizes ground clearance
• Heavy-duty boxed and gusseted control arms
• Multipoint differential brackets improve CV angles
• Skid plate system protects vital components off-road
• Maintains ESC system with robust steering knuckles
• Rear block kit lifts and levels stance
• Includes FOX 2.5 rear shocks with reservoirs
• Designed for diesel models with overload springs
• Factory Protection Plus drivetrain warranty included

Unlock The Full Potential Of Your HD Diesel

When you're ready to take your 2020-2024 Duramax-powered Silverado or Sierra 2500HD/3500HD to the next level, the BDS 793FPE 6.5" FOX Coilover Conversion Kit delivers the performance, stance, and durability serious truck owners demand. This isn't just about height, this is about making your truck more capable in every condition, on or off the pavement. With FOX 2.5 coilovers up front and FOX 2.5 Performance Elite shocks in the rear, this system smooths out rough trails, absorbs deep ruts, and still feels composed on the highway. The added clearance allows you to run up to 38-inch tires, giving your truck the presence and capability it was built for. From weekend off-roaders to daily workhorses, this kit brings the kind of confidence and control that changes the way your truck drives. It’s a bolt-on system that completely transforms your front suspension while leveling out the rear for a balanced stance and improved towing control. If you want more out of your HD without cutting corners, this is the kit that checks every box.

Built For Bigger Loads And Tougher Terrain

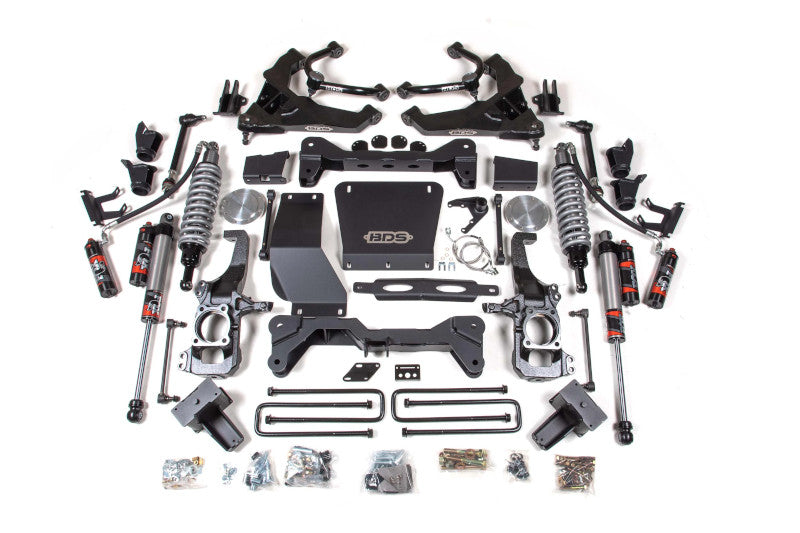

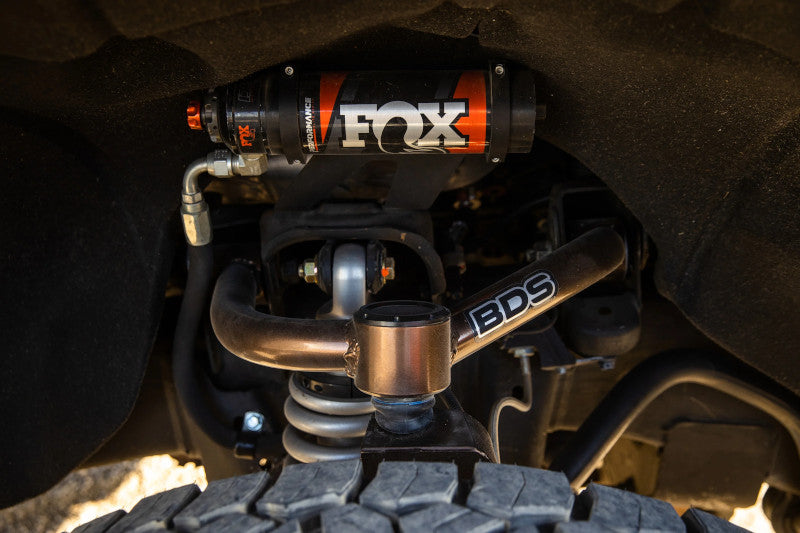

The BDS 793FPE Coilover Conversion Kit is purpose-built for 2020-2024 GM HD trucks equipped with overload springs, offering a complete high-clearance suspension upgrade engineered for strength, travel, and long-term reliability. At the core of the system are FOX 2.5 coilovers with remote reservoirs and DSC adjusters, giving you precise control over both high-speed and low-speed compression to dial in performance on any terrain. Heavy-duty upper control arms are TIG welded from 1.5-inch OD tubing, while the lower arms are fully boxed and gusseted for maximum strength under load. The included multipoint differential relocation brackets help maintain optimal CV angles, while CNC-machined steering knuckles correct geometry and retain ESC compatibility. Front and rear skid plates provide serious protection from trail obstacles, and stainless steel brake lines ensure consistent braking under pressure. A rear block and U-bolt flip kit raise the rear while retaining factory load capacity, pairing perfectly with the rear FOX 2.5 shocks for a well-rounded system. Every component is engineered with high-mileage diesel use in mind, making this kit ideal for work, play, or a little of both.

Fitment: 2020, 2021, 2022, 2023, 2024 GM Silverado/Sierra 2500HD/3500HD Duramax w/ Overload

Notes:

• Fits 2020-2024 Silverado/Sierra 2500HD and 3500HD
• Compatible with diesel models only
• Designed for trucks with top-mounted rear overload springs
• Requires frame bracket modifications during installation
• Factory torsion bars must be removed using GM tool CH48809
• Factory 17-18" wheels cannot be reused
• Stock 20" wheels can be used with up to 37x12.50 tires
• Minor trimming may be required with certain wheel and tire setups
• Coilovers come w/ significant preload & require a spring compressor for disassembly
• Do not increase coilover preload beyond factory settings
• Carrier bearing drop kit recommended for two-piece rear driveshafts
• Front driveline vibration may occur with 4WD highway use
• Dual Cardan front driveshaft recommended to eliminate vibration
• DRW models must use the version with overload-compatible rear lift
