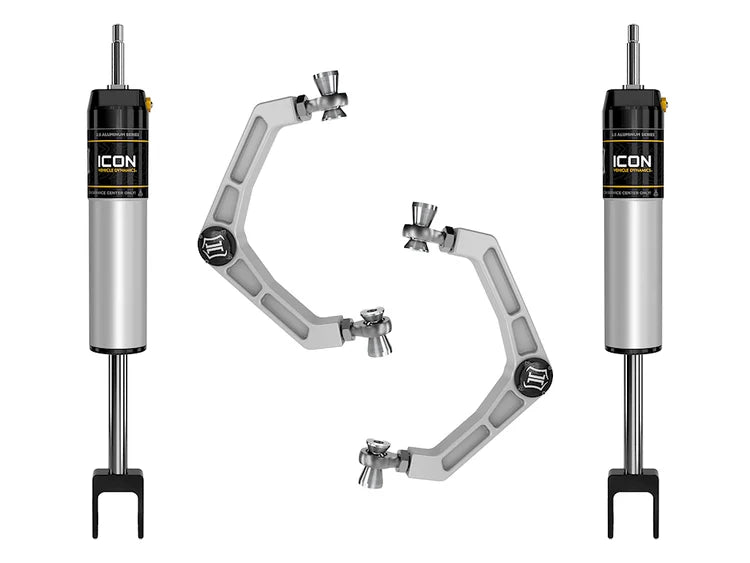

V.S. 2.5" Aluminum Internal Reservoir Billet Shock System - for 0-2" Lift - (Package)

Features:

• Supports 0-2" front lift
• Fits 2020-2026 GM Silverado/Sierra 2500HD/3500HD
• 1026 DOM Steel Construction
• CNC Bent Tubing
• Built-In Caster Correction
• Serviceable Dual Bushing Housings and sleeves
• Black Semi-Gloss Powder Coat Finish
• Nitrogen Charged Monotube Design with Internal Reservoir
• 7/8" Diameter Induction Hardened, Chrome Plated Shock Shaft
• 100% Rebuildable
• 100% Revalveable

Enhance Your Rigs Performance

Take the performance of your 2020-Up GM HD truck to new levels with the ICON Vehicle Dynamics Delta Joint billet upper control arm kit. These are constructed of CNC machined 6061 billet aluminum merging light weight with high strength properties. FK Rod End 3/4” heim joints provide precise and smooth function throughout the range of travel while also allowing for additional camber and caster adjustment for optimal alignment specifications and confidence inspiring handling. A main benefit of ICON upper control arms is the increased wheel travel when paired with our 2.5" series shock absorbers, this translates into superior performance and ride quality for your 2020-Up GM HD.

Get More Power With This High Quality Shock System

To ensure compatibility, ICON is no longer offering GM 2500HD/3500HD upper control arms as individual components. Upper control arms can only be purchased in unison with ICON shock absorbers as a complete system. The included ICON Vehicle Specific (V.S.) 2.5" Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5" Series shocks are 100% rebuildable and 100% revalveable. The larger diameter and oil volume of ICON 2.5" IR Series shocks provide better ride quality and heat dissipation properties than the standard 2.0" Aluminum Series IR Shocks.

Fitment: 2020, 2021, 2022, 2023, 2024, 2025, 2026 GM Silverado/Sierra 2500HD/3500HD w/ 0-2" Front Lift

Tech Note:

• Factory Wheels & Tires Fitment: Yes
• Aftermarket Wheels: ICON Alloys | 18x9 with 5.5” Backspace / 12mm Offset
• Aftermarket Wheels: ICON Alloys | 20x9 with 5.5” Backspace / 12mm Offset
• Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Tech Note: he additional down travel provided by an ICON Suspension System can cause clearance issues between the sway bar and the stock splash guard as the suspension approaches full extension. ICON Vehicle Dynamics 2020-UP GM HD Splash Guard Kit.
• (2) ICON V.S. 2.5" Aluminum Internal Reservoir Billet Shocks.
• Product images may be representative.

Install Instructions
